Default low mount turbo folks, oil return?

Specifically anyone with an absurdflow, or absurdflow style setup. what does your oil return look like?

Just about to order a couple new hose ends and fittings to drill and tap my pan for the return, and I'm thinking a 45deg -10AN to 1/2NPT fitting for the pan, a straight hose end to attach to that, and then a 30deg(?) hose end to attach to the turbo drain fitting.

Thoguhts? Suggestions? Pics?
devin mac is offline   Reply With Quote
Old 03-26-2012, 06:50 PM   #2
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by devin mac View Post
Specifically anyone with an absurdflow, or absurdflow style setup. what does your oil return look like?

Just about to order a couple new hose ends and fittings to drill and tap my pan for the return, and I'm thinking a 45deg -10AN to 1/2NPT fitting for the pan, a straight hose end to attach to that, and then a 30deg(?) hose end to attach to the turbo drain fitting.

Thoguhts? Suggestions? Pics?

There's pics on here somewhere (not helpful).

More helpful: I just bought a set of NPT taps (1/8" to 1") from McMaster-Carr so assuming you're in the Worc./Boston area, feel free to borrow what you need.

-Zach
thasac is offline   Reply With Quote
Old 03-26-2012, 07:15 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

45* off the turbo, pointed forward, to a straight fitting in the pan using #8 hose. You want to run the hose forward, toward the compressor so it won't melt as soon.
hustler is offline   Reply With Quote
Old 03-26-2012, 08:10 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I will get pictures of mine in a bit and post them up.
shuiend is offline   Reply With Quote
Old 03-27-2012, 06:00 AM   #5
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

45 degrees off the turbo would damn near rub the housing no? I looked through my build pics but couldn't find a decent picture. Mine is straight off the turbo (witch is clocked ~10*) and snaked down past steering rack to the pan and straight into the pan, no angle pieces. No problems at all so far, just make sure its not rubbing on anything and remember the golden rule of plumbing: ***** rolls downhill
Golferluke is offline   Reply With Quote
Old 03-27-2012, 07:00 AM   #6
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Well if you do hypers coolant reroute i'm pretty sure you can swing it around in there too.
triple88a is offline   Reply With Quote
Old 03-27-2012, 09:01 AM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Golferluke View Post
45 degrees off the turbo would damn near rub the housing no? I looked through my build pics but couldn't find a decent picture. Mine is straight off the turbo (witch is clocked ~10*) and snaked down past steering rack to the pan and straight into the pan, no angle pieces. No problems at all so far, just make sure its not rubbing on anything and remember the golden rule of plumbing: ***** rolls downhill
I bought a taller/longer oil return flange to clear the compressor housing.
hustler is offline   Reply With Quote
Old 03-27-2012, 09:51 AM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

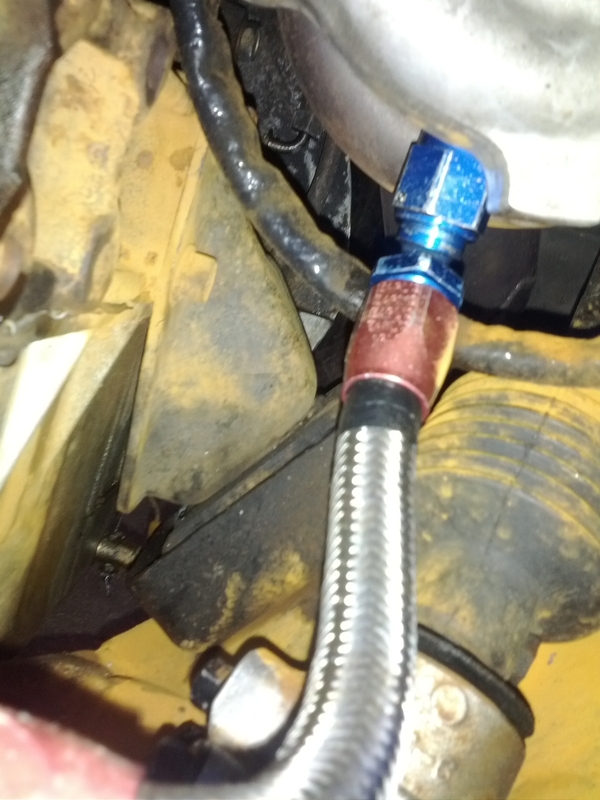

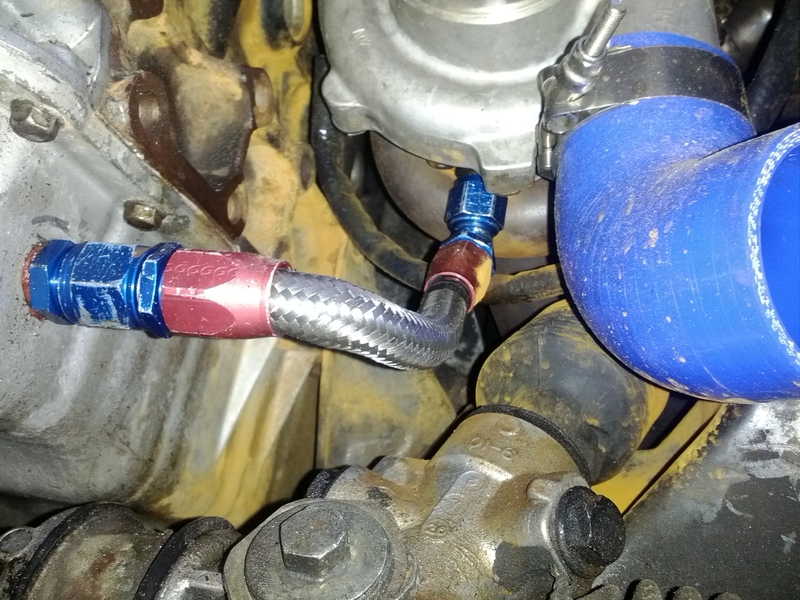

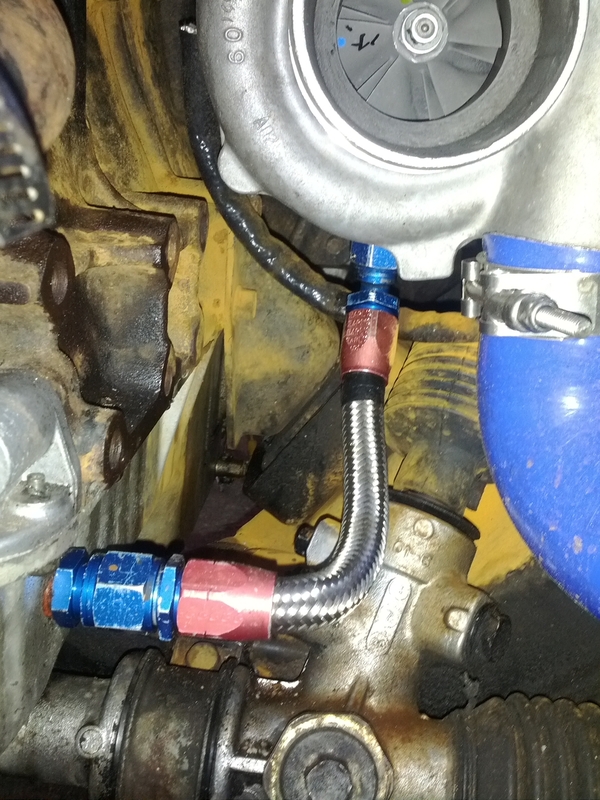

I have a 45 degree -8an fitting coming off the turbo and then have a straight fitting at the oil pan. When I redo the line I will probably get 45 degree fittings on each end.


Attached Thumbnails
low mount turbo folks, oil return?-img_20120326_192844.jpg   low mount turbo folks, oil return?-img_20120326_192830.jpg   low mount turbo folks, oil return?-img_20120326_192820.jpg
shuiend is offline   Reply With Quote
Old 03-27-2012, 10:21 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Kinky.
curly is offline   Reply With Quote
Old 03-27-2012, 10:25 AM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Thanks guys. I think my plan will work, after looking at Lar's pics. Just didn't feel like ordering a bunch of fittings and then not have it work out the way it does in my head.

Zach, I have a 1/2NPT and drill bit for it already, but thank you for the offer. When are we getting together to tear your car apart?

Last edited by Braineack; 03-27-2012 at 12:13 PM.
devin mac is offline   Reply With Quote
Old 03-27-2012, 10:56 AM   #11
Junior Member

Join Date: Mar 2011
Location: Indianapolis
Posts: 78
Total Cats: 1
Default

Maybe I am dumb, but what the hell is all that yellow shat?
adamvanxxx is offline   Reply With Quote
Old 03-27-2012, 11:51 AM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

dried and powderized R-Kelly brand lemonade
devin mac is offline   Reply With Quote
Old 03-27-2012, 11:54 AM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by adamvanxxx View Post
Maybe I am dumb, but what the hell is all that yellow shat?
One of my water lines attached to my turbo was not completely tight. So water was dripping out and leaking all over that area. I knew I had a leak, and just kept refilling my system with tap water, which down here is not very clean. It will all be cleaned and the water line will be tightened down this time. Then I will be flushing the system with CLR and filling it with distilled water.
shuiend is offline   Reply With Quote
Old 03-27-2012, 12:00 PM   #14
Junior Member

Join Date: Mar 2011
Location: Indianapolis
Posts: 78
Total Cats: 1
Default

Ahh okay.
