Old 01-13-2015, 01:37 PM   #41
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by m2cupcar View Post
You might have missed the part about the 12578.
I don't understand. It sounds like Concealer is saying the big Magnaflow (I assume 5x11x22 12578) is not quiet. Did I miss something?
EO2K is offline   Reply With Quote
Old 01-13-2015, 01:41 PM   #42
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

For the record, i don't know which Magnaflow is on the Enthuza. It's big, though.

I was just pointing out that David's car is nowhere near as loud as Brain made it out to be. At least... in comparison. He calls me while he's driving it all the time and we can have conversations quite easily.

On the flip side, my Enthuza-equipped car with a big (again, not sure if it's the 12578) Magnaflow muffler doesn't even let me hear my phone ring, and forget about having a conversation if i try to call someone else while driving it.
concealer404 is offline   Reply With Quote
Old 01-13-2015, 01:56 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

enthuza doesnt use the mt.net approved muffler.
Braineack is offline   Reply With Quote
Old 01-13-2015, 02:03 PM   #44
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 375
Total Cats: 49
Default

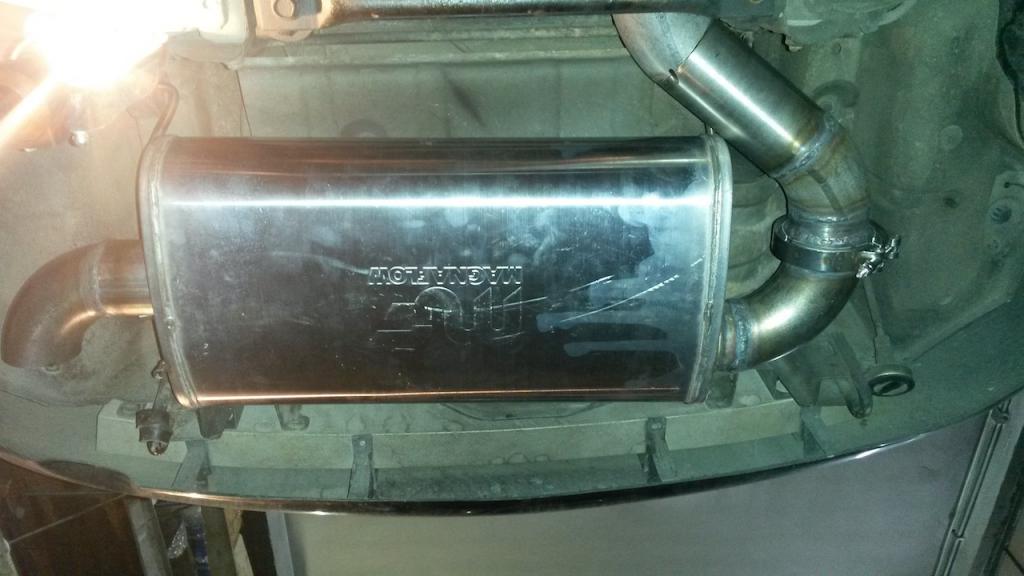

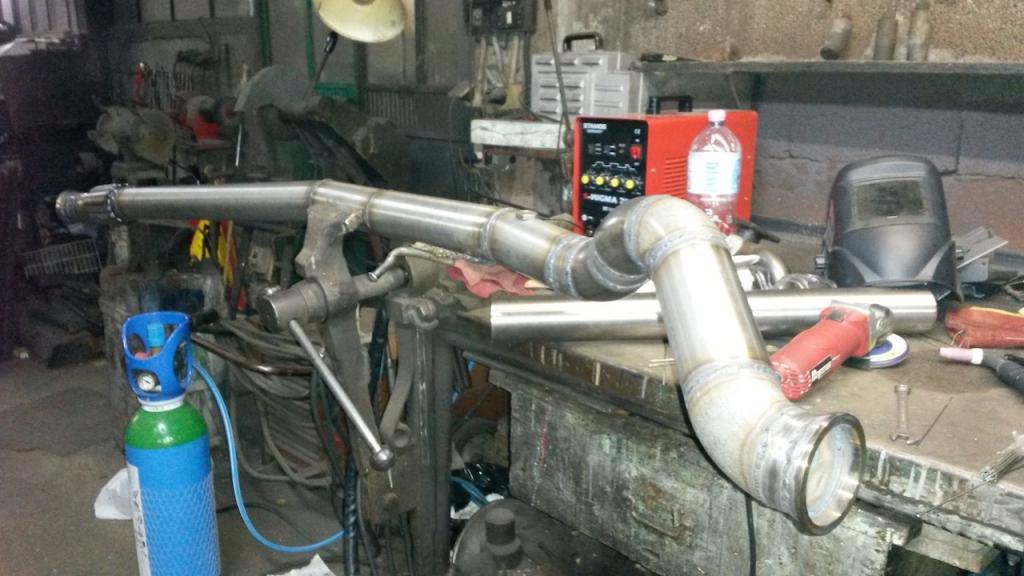

magnaflow 12589, the one that shuiend advised me, is really quiet
really, unbelievable. but it's heavy as ****. And big, really big.







Attached Thumbnails
Magnaflow muffler install-20141218_180059_zps9140d4bd.jpg   Magnaflow muffler install-20141218_154234_zps46793762.jpg
DNA54 is offline   Reply With Quote
Old 01-13-2015, 02:13 PM   #45
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Braineack View Post
enthuza doesnt use the mt.net approved muffler.
That makes me feel a bit better

Quote:
Originally Posted by DNA54 View Post
magnaflow 12589, the one that shuiend advised me, is really quiet
really, unbelievable. but it's heavy as ****. And big, really big.
Excellent. This is the same one I'll be using

Edit Derp! I'll be using the 12579, not the 89

Last edited by EO2K; 01-13-2015 at 06:35 PM.
EO2K is offline   Reply With Quote
Old 02-09-2015, 11:07 AM   #46
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by EO2K View Post
I don't understand. It sounds like Concealer is saying the big Magnaflow (I assume 5x11x22 12578) is not quiet. Did I miss something?
afaik- part numbers just differentiate inlet/outlet locations. offset/offset vs. offset/center. Otherwise they are the same straight through design.
m2cupcar is offline   Reply With Quote
Old 02-09-2015, 11:09 AM   #47
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

There's another one that instead of having 1 3" pipe straight through it has 2 2.5" pipes between the two, that one is supposed to be quieter, its like what comes on their non-droning truck exhausts or something like that.
Leafy is offline   Reply With Quote
Old 02-09-2015, 12:56 PM   #48
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Leafy View Post
There's another one that instead of having 1 3" pipe straight through it has 2 2.5" pipes between the two, that one is supposed to be quieter
That's the one I have and will be using
EO2K is offline   Reply With Quote
Old 02-10-2015, 09:16 AM   #49
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Two tailpipes?
m2cupcar is offline   Reply With Quote
Old 02-10-2015, 09:18 AM   #50
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by m2cupcar View Post
Two tailpipes?
No, its a 3" in 3" out, but inside the muffler is 2 2.5" perf tubes rather than 1 3".
Leafy is offline   Reply With Quote
Old 02-10-2015, 09:40 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yeah it's designed for huge diesel trucks :P
Braineack is offline   Reply With Quote
Old 02-10-2015, 12:42 PM   #52
Junior Member
iTrader: (1)

Handsome Greg's Avatar

Join Date: Aug 2010
Posts: 94
Total Cats: 14
Default

Anybody have the model number for the quieter version?
Handsome Greg is offline   Reply With Quote
Old 02-10-2015, 12:44 PM   #53
Junior Member
iTrader: (1)

Handsome Greg's Avatar

Join Date: Aug 2010
Posts: 94
Total Cats: 14
Default

Found this- MF13743- It's not the 22x11x5.... It's a pleasing sausage-y cylinder..

MagnaFlow Stainless Steel, Dual Core, Universal Muffler - XL Turbo Series - Satin Finish MagnaFlow Mufflers MF13743

EDIT: MF13219 has some different dimensions, 4x9x20..

Last edited by Handsome Greg; 02-10-2015 at 12:47 PM. Reason: More discovery. no need for new post
Handsome Greg is offline   Reply With Quote
Old 02-10-2015, 01:00 PM   #54
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Handsome Greg View Post
Anybody have the model number for the quieter version?
MagnaFlow Exhaust Products - For Trucks, Suv's, American Muscle, Diesel, & Sport Compact Vehicles

Quote:
Originally Posted by Magnaflow 12579
Material: 100% Stainless Steel - Satin Finish
Body Shape: 5in.x11in. Oval
Inlet/Outlet Size: 3in./3in.
Body Length: 22in.
Overall Length: 28in.
Core Size: Dual 2.5in.
Position: Center/Center
Here is the lowdown: https://www.miataturbo.net/diy-turbo...op-muff-67263/

Also, that PN 13743: DO NOT WANT. /shudder
EO2K is offline   Reply With Quote
Old 02-10-2015, 01:06 PM   #55
Junior Member
iTrader: (1)

Handsome Greg's Avatar

Join Date: Aug 2010
Posts: 94
Total Cats: 14
Default

Quote:
Originally Posted by EO2K View Post
MagnaFlow Exhaust Products - For Trucks, Suv's, American Muscle, Diesel, & Sport Compact Vehicles



Google that PN here on MT, we have a whole thread about it.

Also, that PN 13743: DO NOT WANT. /shudder
It's industrial and girthy. mmmm..

At a 7" diameter, I wonder if it could be placed in the heatshielded area where the catalytic converter previously resided....
Handsome Greg is offline   Reply With Quote
Old 02-10-2015, 01:09 PM   #56
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

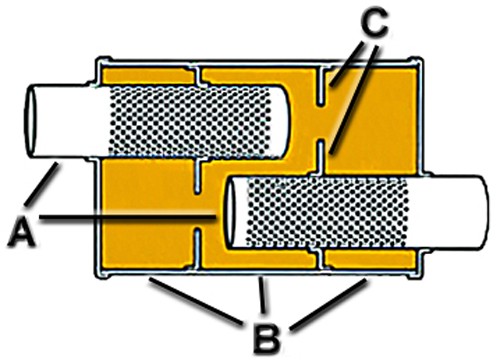

DO NOT WANT.
Attached Thumbnails
Magnaflow muffler install-mfxldiagram_500.jpg
EO2K is offline   Reply With Quote
Old 02-10-2015, 01:12 PM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

XL mufflers are "turbo" mufflers. they are chambered. you do not want.

we just put one on y8s civic.
Braineack is offline   Reply With Quote
Old 02-10-2015, 01:34 PM   #58
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
I've seen someone do it on an angle and just used a 45 in and out. I could never find the pics again.

otherwise, there's PLENTY of room to mount horizontally.


it's also highly dependent on what i/o's you ended up with. you should not be using a C/C muffler.
I did it way back in 07 or 08. Current muffler is horizontal though.
patsmx5 is offline   Reply With Quote
Old 02-10-2015, 01:35 PM   #59
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

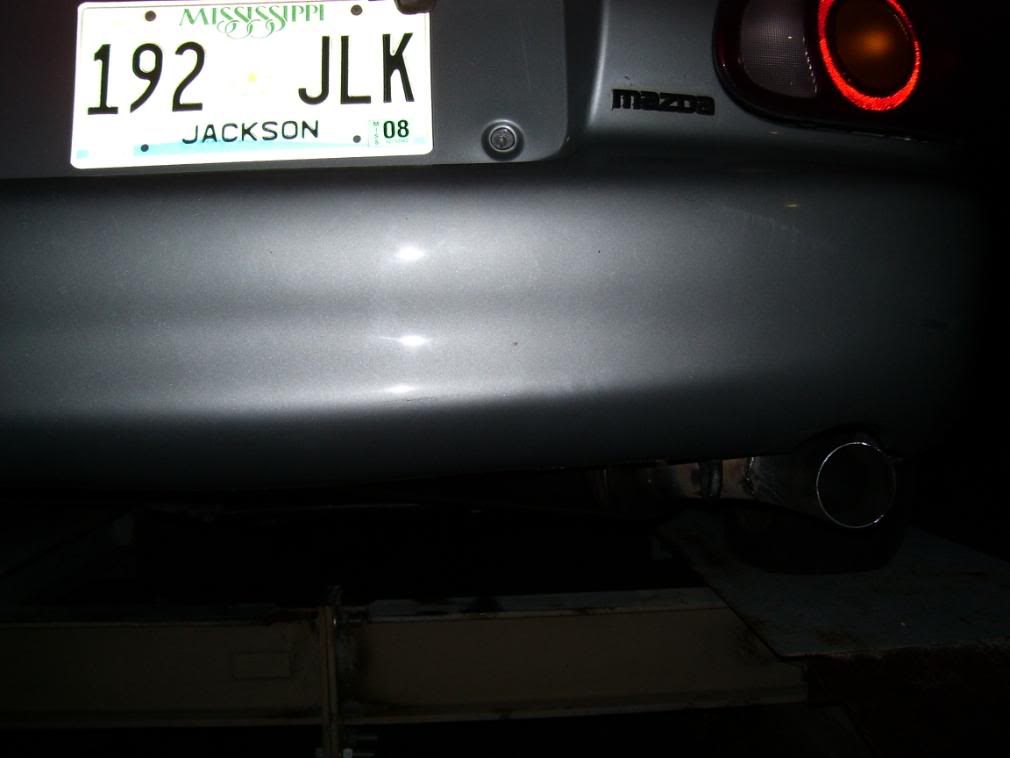

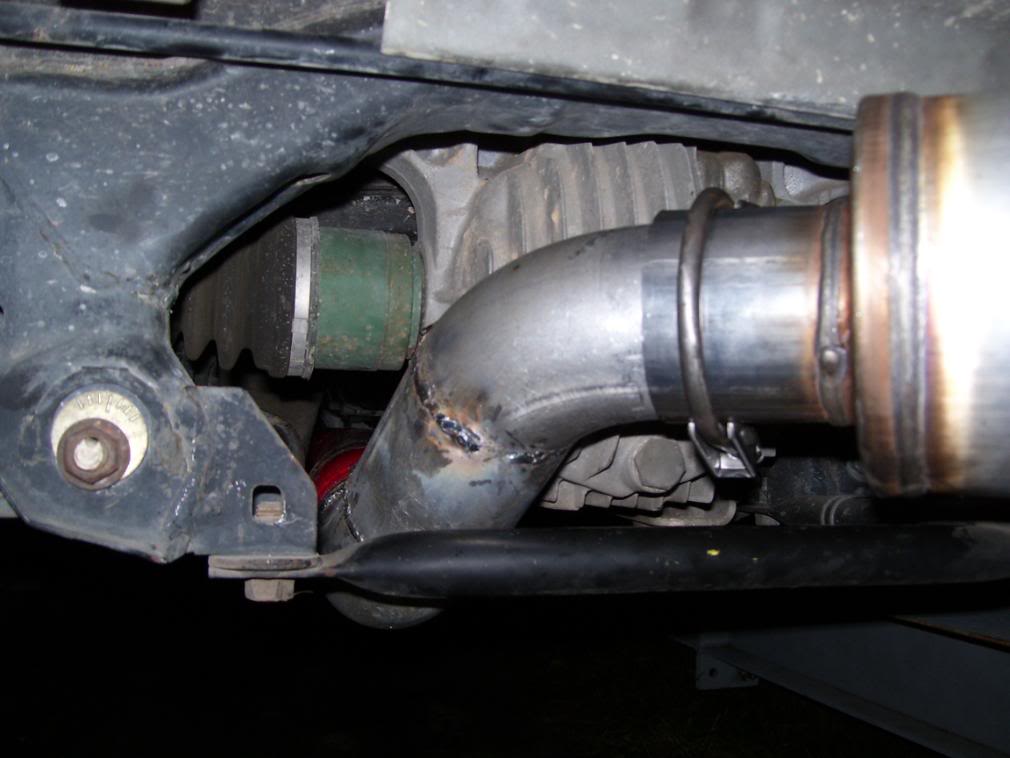

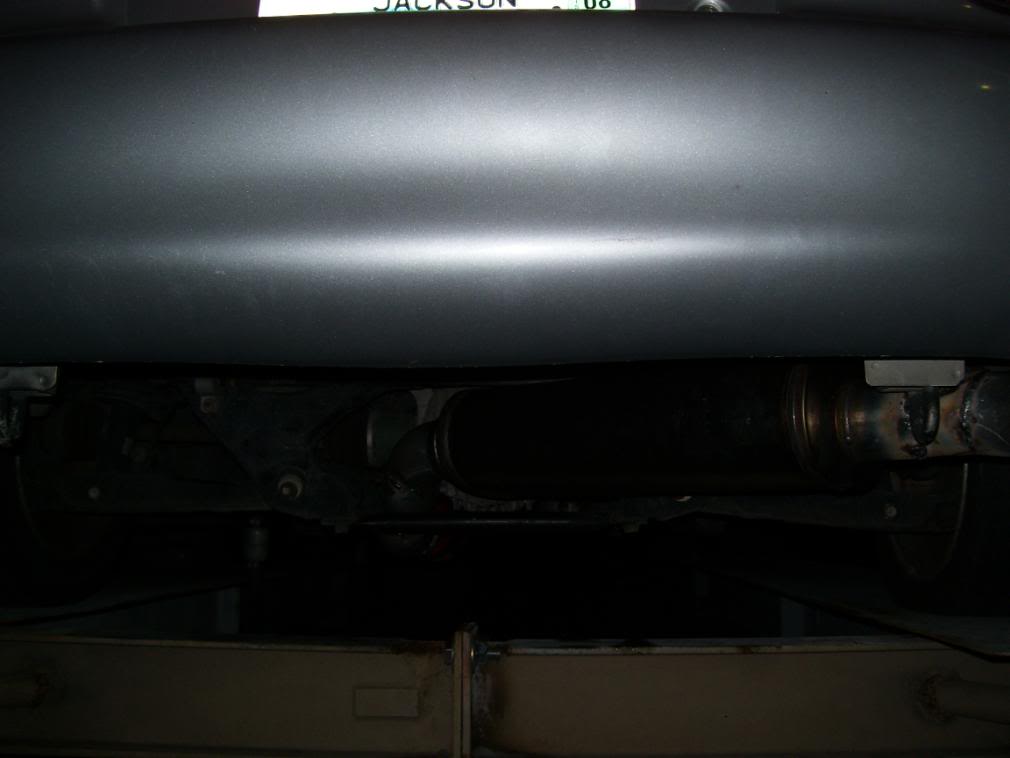

Terrible lighting but you can see it.



Attached Thumbnails
Magnaflow muffler install-exhaust7.jpg   Magnaflow muffler install-exhaust6.jpg   Magnaflow muffler install-exhaust5.jpg
patsmx5 is offline   Reply With Quote
Old 02-10-2015, 02:33 PM   #60
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Braineack View Post
XL mufflers are "turbo" mufflers. they are chambered. you do not want.

we just put one on y8s civic.
"Turbo" mufflers are like the "turbo" button on your 386. It makes the system run SLOWER
EO2K is offline   Reply With Quote
