Old 11-30-2006, 07:42 PM   #21
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I guarantee my garrett T25 is a bigger POS than your DSM turbo. It's complete garbage. But hey you want to trade? jk
cjernigan is offline   Reply With Quote
Old 11-30-2006, 07:56 PM   #22
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

heheheh, i dont know i have one 13g turbine housing that has enuff cracks in it, that i think if you tapped it with a hammer it would fall apart But i wont be using that one.
adbradley is offline   Reply With Quote
Old 11-30-2006, 09:26 PM   #23
Junior Member
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

this is what hks manifolds used to look like;



this is an early version of my diy downpipe that had a 240 t25;



now with a gt28rs and revised downpipe;



sorry, forgot to take some pics before i set it up
demetri is offline   Reply With Quote
Old 12-14-2006, 03:29 AM   #24
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

No one else wants to add to it?
cjernigan is offline   Reply With Quote
Old 12-14-2006, 03:55 AM   #25
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

I'll try and get some up over the holiday when I fix my WG leak. Until then, you can get an idea from some of these photos. The manifold and downpipe were made by Aurora Motorsports.
Click and Click
-Michael-
TheBandit is offline   Reply With Quote
Old 12-14-2006, 05:13 AM   #26
Junior Member
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default

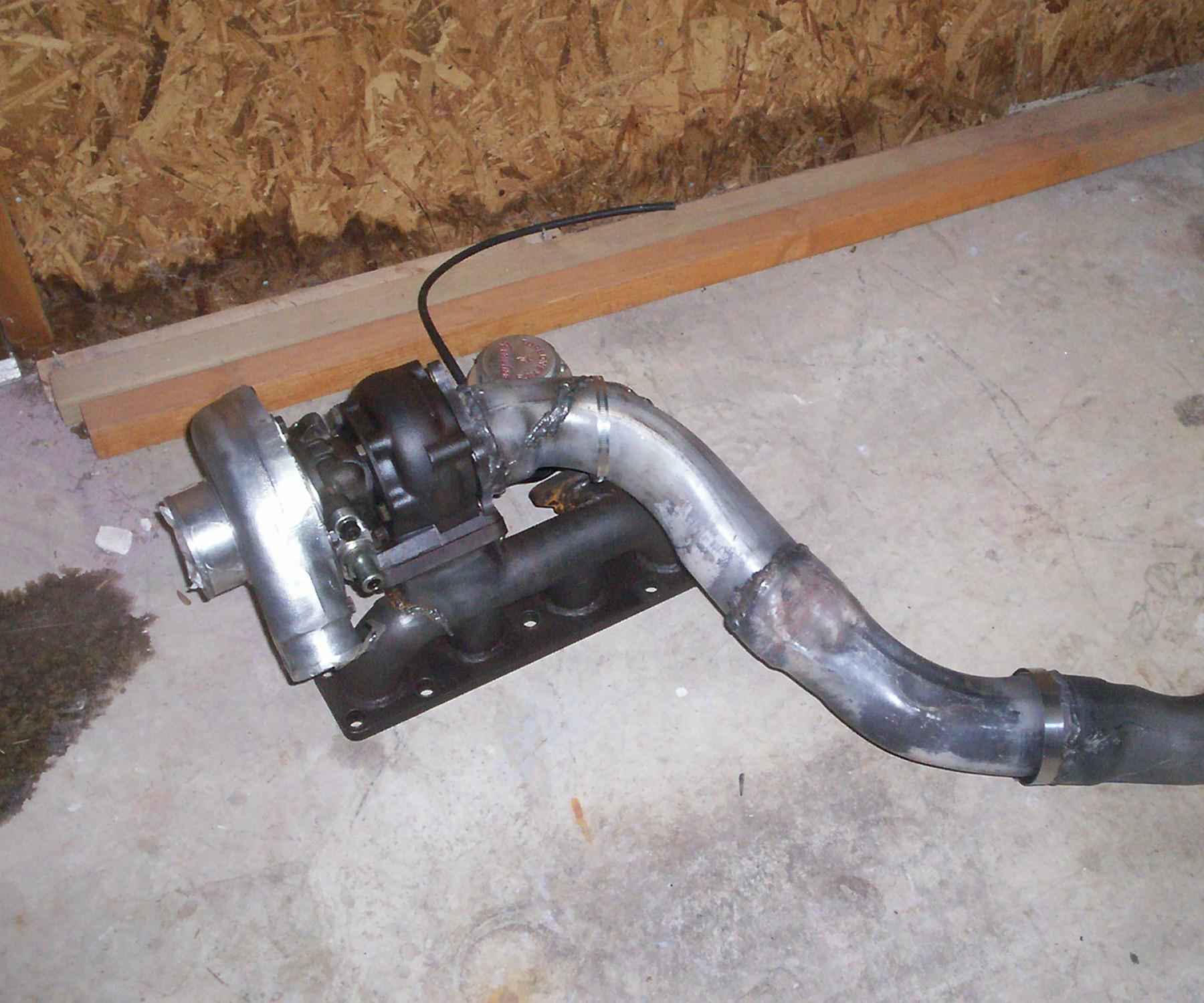

I'll have everyone know that I have the shittiest looking downpipe. But it works and it's a start.
Attached Thumbnails
Manifolds and Downpipes-dp004.jpg
timhill78 is offline   Reply With Quote
Old 12-14-2006, 09:22 AM   #27
Junior Member
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

Quote:
Originally Posted by timhill78 View Post
I'll have everyone know that I have the shittiest looking downpipe. But it works and it's a start.
dont listen to the haters. if it works, its beautiful.

i bet you learned alot building it. i know i did.
demetri is offline   Reply With Quote
Old 01-23-2007, 01:03 AM   #28
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

what kinda stock is everyone using to build the dp's?
hustler is offline   Reply With Quote
Old 01-23-2007, 01:15 AM   #29
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Everything from 16 gauge mild steel to SS 16 gauge.

If you're looking to DIY some stuff http://store.racing-solutions.org/ that store has tubing and mandrel bends cheap.
cjernigan is offline   Reply With Quote
Old 01-23-2007, 01:17 AM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

my first one was 14 ga aluminized.

my second one is I think 16 ga stainless.
y8s is offline   Reply With Quote
Old 01-23-2007, 02:09 AM   #31
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

wow, cool thread mate. Next time I have a turbo project, im going to do the DIY route. I have so much respect for all of you who had the ***** to weld up your own pipes, so do not be ashamed of your work because it deserves much more respect than my BEGi system I, no matter how ugly it may be.
akaryrye is offline   Reply With Quote
Old 01-23-2007, 08:51 AM   #32
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Agreed, I only decided to have cody make up the manifold because my last build was DIY and I wanted to do this build a bit differently. The rest of the work, vmount radiator/intercooler/intake manifold/downpipe will hopefully all be my work. Getting access to my friends Tig.... and time to learn.

DIY = the best... regardless of looks... if it works of course
Splitime is offline   Reply With Quote
Old 01-23-2007, 10:08 AM   #33
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

Quote:
Originally Posted by hustler View Post
what kinda stock is everyone using to build the dp's?
sched 40 right off the internal gate housing, then 16ga aluminized at the down section
m2cupcar is offline   Reply With Quote
Old 01-23-2007, 11:34 AM   #34
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by m2cupcar View Post
sched 40 right off the internal gate housing, then 16ga aluminized at the down section
You just happen to have a very interesting downpipe setup, i went through your build page and checked it all out. Cool stuff.
cjernigan is offline   Reply With Quote
Old 01-23-2007, 11:48 AM   #35
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

I use 16 gauge 304 Stainless for the entire piece.
-Michael-
TheBandit is offline   Reply With Quote
Old 01-23-2007, 12:09 PM   #36
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default


made by unknown kid in san diego, I totally forgot to take a pic of my dp before I installed it. :P
VRTSid is offline   Reply With Quote
Old 01-23-2007, 12:12 PM   #37
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by VRTSid View Post

made by unknown kid in san diego, I totally forgot to take a pic of my dp before I installed it. :P
Looks like the ETD shorty manifold unless i'm mistaken.
cjernigan is offline   Reply With Quote
Old 01-23-2007, 02:13 PM   #38
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

thanks- important note: my second dp section is no longer braced at the trans for fear of it ripping a hole in the 16ga pipe.
m2cupcar is offline   Reply With Quote
Old 01-23-2007, 02:30 PM   #39
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Looks like the ETD shorty manifold unless i'm mistaken.
looks like it to me to, but its a 16g flange and its quite the same angle if they used a jig and different flange
VRTSid is offline   Reply With Quote
Old 04-19-2007, 02:29 AM   #40
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Anyone else have some good stuff to add?
cjernigan is offline   Reply With Quote
