Default Max HP/TQ on Bandaids, Lets See'em!!!

Please limit "discussion" in this thread...
I just want setups and #'s!!!


All right, lets have some results. With MS getting easier every day, I wondered what limits some of us have probed w/no electronic "fuelery". I've got my theories, but I want to know how high"ish" people have/are pushing their bandaid setups.

My setup is in my sig... but I will caveat that when I lifted for knock (after about 6 back-to-back runs), I was only at 5500rpm and still gaining power. I'm pretty confident it makes 200whp/190ftlbs on the street at 12psi... but the official numbers are:

12psi boost
100psi fuel pressure
Base timing 14* w/Bipes pulling 6*
189whp/186ftlbs
samnavy is offline   Reply With Quote
Old 09-04-2007, 07:48 PM   #2
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

BEGi 2025 afpr with needle valve almost all the way in
Walbro 190HP
Bipes pulling 6* (base timing 14*)
GT2554 @9psi
Supra 305's
weird fuel curve, always leans out above 5k

no dyno #'s, but 13.933 et @103.83mph on 7psi

now i have an EMB waiting to get installed next time I go home from school, so hopefully i can up the boost and get a way better tune
SamS is offline   Reply With Quote
Old 09-04-2007, 08:12 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Andy Floyd is the hands down winner. With the typical band aids, GT32, and a built motor he made 294 rwhp on a mustang dyno at only 16 psi.

This quote sums it up
Quote:
Originally Posted by markp
Andy you are a MADMAN! Love that about your setup. It's the ghettocharger of engine management. LOL.

Mark
Ben is offline   Reply With Quote
Old 09-04-2007, 08:19 PM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yep
Andy gets the crown.
My 8 psi non Ic'ed 16g got me
176 mustang ponys and 155 lbft though.
Yeah for stock timming
magnamx-5 is offline   Reply With Quote
Old 09-04-2007, 09:53 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default



I think the fuel says a lot of why I went with MS. however, life was so much simpler back then :gay:

11.5psi boost
90psi fuel pressure
Base timing 16* w/Bipes pulling 8*
oem afm with 305cc injectors
Braineack is offline   Reply With Quote
Old 09-05-2007, 12:15 AM   #6
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

That's awesome posting... I guess Andy *sniff* is going to take the cake... but the more data points the better...

KEEP THE SETUPS and NUMBERS COMING!
samnavy is offline   Reply With Quote
Old 09-05-2007, 10:59 AM   #7
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

WTF, 100 views and I've got 5 posts... COME ON PEOPLE, JUST HIT THE REPLY BUTTON AND TELL ME WHAT YOU'VE MADE!!!!!
samnavy is offline   Reply With Quote
Old 09-06-2007, 02:28 PM   #8
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 464
Total Cats: 0
Default

849rwhp
VPC
SAFC II
Dual in tank pumps
Adjustable (for base pressure, static 1:1) FPR







but that was a Supra...
PAT! is offline   Reply With Quote
Old 09-06-2007, 05:08 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

you want replies....

0
I've never run a car with bandaids.
y8s is offline   Reply With Quote
Old 09-06-2007, 05:16 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Sam not many have made more power than those who posted with bandaids . 93mimi made 250whp with bandaids but sadly his thread and all but 1 post are now gone for some reason
magnamx-5 is offline   Reply With Quote
Old 09-08-2007, 06:51 PM   #11
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

read my signature....Still has WAAAY more to go just need to up the boost and do some more dyno time....(have to get a new gearbox first..the input shaft is very very noisy...sounds like a jumbo jet taking off when i load her up...)
4sfed5 is offline   Reply With Quote
Old 09-08-2007, 09:04 PM   #12
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

Back in the day I hit ~185hp 180tq with my gt2554r at 8psi. I'm pretty sure I could have broke 200 if I really tried. It was the standard BEGI AFPR/pierburg/bipes setup. Up until recently, I think this was a respectable low cost setup. Now with MS, I don't know why anyone would want to go this route. You need to get your **** squirted SamNavy
Stripes is offline   Reply With Quote
Old 09-08-2007, 09:09 PM   #13
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I had my car dyno'd today and well the results were dissapointing.
Begi t25, 7 psi,Begi AFPR, 1.8 injectors, stock pump.
At 4500 rpm my car leaned out to 13.8
I did see 115 hp and 135 tq at 4500 rpm. Do I need to replace the fuel pump to quickly fix this problem?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-08-2007, 09:54 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Leave discusion out of this thread like that. But with out seeing the FP etc and listenning to the car we realy can't tell Heck even a chart would help alot. Where are you getting those boost numbers from?
magnamx-5 is offline   Reply With Quote
Old 09-08-2007, 10:09 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Only dyno number I have from my band-aid set up was 185 rwhp at 9 psi. Typical set up: greddy, small fmic, begi fmu, walbro, 1.8 injectors, MSD.

Later, I got a bigger downpipe and added a second check valve to the FMU. Made a lot more power and torque, but never went back to the dyno.
Ben is offline   Reply With Quote
Old 09-09-2007, 02:39 AM   #16
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
Leave discusion out of this thread like that. But with out seeing the FP etc and listenning to the car we realy can't tell Heck even a chart would help alot. Where are you getting those boost numbers from?

I will scan my dyno sheet as soon I get back home. Boost numbers are from a boost guage, hooked up after the throttle body. Car was dyno'd on a dynojet with a wideband hooked up the the muffler. Im gonna take my sitution to a new post since its a nono to talk about it here.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-12-2007, 03:50 AM   #17
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

T3/T4E 50t .48/.60
Warlbro 190HP
Bipes pulling like.. max
BEGi FMU
Stock injectors, fuel pressure 85psi max
11psi as I write this

I dont have numbers yet.. and feel left out.. so heres my best time haha: [email protected] (10psi)
ApexOnYou is offline   Reply With Quote
Old 09-12-2007, 08:05 AM   #18
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Scott Loercher made 283 whp on a 1.6 (GTX rods/pistons) on the stock ECU w/Greddy and an AFPR. (125 shot of direct port NOS, but that ain't no bandaid). This was back in '94 or so IIRC. Not sure what he had for timing control but it was certainly a bandaid. He ran so rich that a white car that was parked way behind his while on the dyno had a bunch of soot on it after the run.

Frank
fmowry is offline   Reply With Quote
Old 09-12-2007, 09:54 AM   #19
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

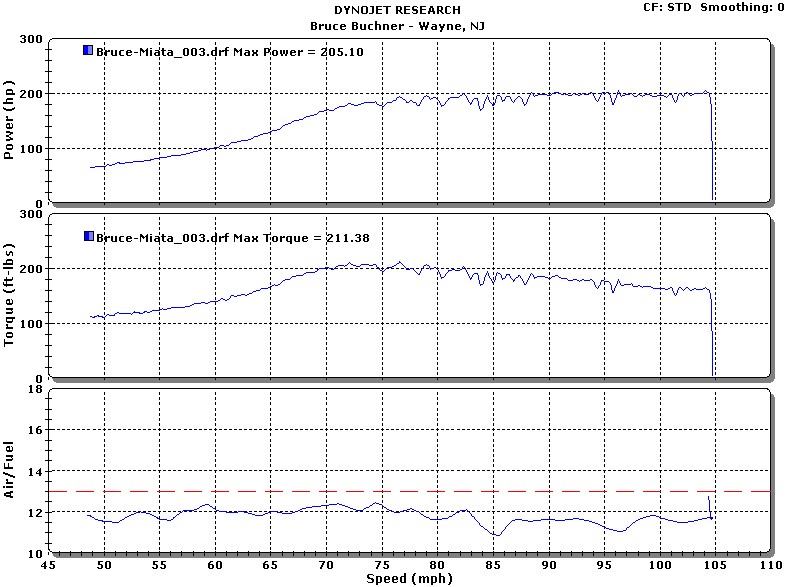

Bandaids? Tom did around 250 on roughly the same setup.
Attached Thumbnails
Max HP/TQ on Bandaids, Lets See'em!!!-miata-dyno.jpg
olderguy is offline   Reply With Quote
