Default Megasquirt Mounting

How have you mounted your megasquirt?

I want to use the stock location but didnt want to drill the new megasquirt to try and fit the stock brackets until I got some feedback.

I was thinking of attaching the PC cable and routing it into the glove box so its always there for easy access to plug into the laptop.
ronniebiggs is offline   Reply With Quote
Old 10-21-2010, 10:35 PM   #2
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

I made a bracket to hold my EMS in the passenger footwell. I have a DIY boomslang, so I was able to make the wires all exactly the correct length.
SolarYellow510 is offline   Reply With Quote
Old 10-22-2010, 09:52 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

mine sits where the stock ecu was...I have a usv port in my center console.
Braineack is offline   Reply With Quote
Old 10-22-2010, 11:47 AM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

at least yours isnt like mine....up and to the left of the clutch pedal....**** working up in that area, my back hurt for like a week. i probalby should have just removed the seat
aaronc7 is offline   Reply With Quote
Old 10-22-2010, 12:01 PM   #5
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Last time I put it in the stock location it fuxord most of my wiring. Putting it back now as we speak, but with some padding I cut up from the carpet I pulled out. Should be nice and snug now.
Oscar is offline   Reply With Quote
Old 10-22-2010, 12:05 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

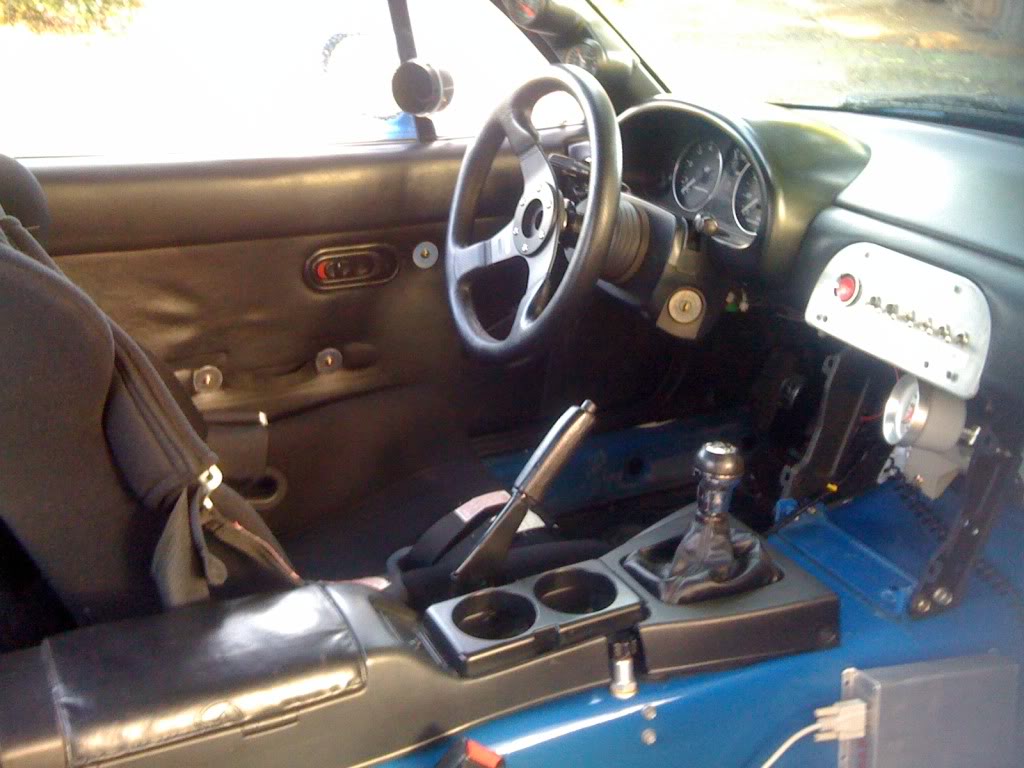

Velco baby.
Name:  IMG_0313.jpg
Views: 24
Size:  102.6 KB
curly is offline   Reply With Quote
Old 10-22-2010, 12:12 PM   #7
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

easy access ftw
aaronc7 is offline   Reply With Quote
Old 10-22-2010, 08:24 PM   #8
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

Under the driver's seat.
mikeflys1 is offline   Reply With Quote
Old 10-22-2010, 08:54 PM   #9
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

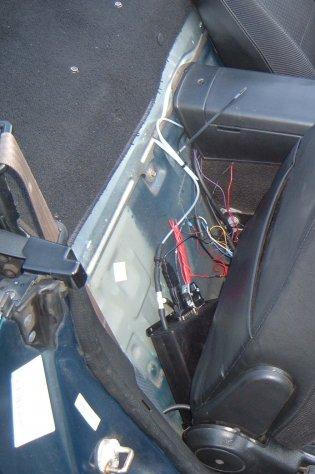

Why hell didn't I think of Velcro. Haha. The harness is keeping mine in place.
Attached Thumbnails
Megasquirt Mounting-24538_405940109743_775084743_4934588_7490370_n.jpg
turotufas is offline   Reply With Quote
Old 10-22-2010, 09:20 PM   #10
Junior Member

Join Date: May 2010
Location: Tucson, AZ
Posts: 174
Total Cats: 0
Default

I'll just place mine where my ecu is at now. I moved it from behind the seat to under the glove box. It's attached by velcro and small bunge cords.
weezerfan5487 is offline   Reply With Quote
Old 10-22-2010, 09:22 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

It's uber good stuff from Radio Shack, one step up from name brand Velcro. Until the adhesive really sets, it will fail before the "velcro".
curly is offline   Reply With Quote
Old 10-23-2010, 08:14 AM   #12
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

I was going to try and use the sock brackets and try and make them fit the MS. But I didnt fancy drilling the case of the MS incase I ruin it. I could put it on the padded matting and cable tie it in place but I liked the idea of the stock ecu been raised off the floor to allow airflow (Limited!).
ronniebiggs is offline   Reply With Quote
