So I got my manifold in the mail today:

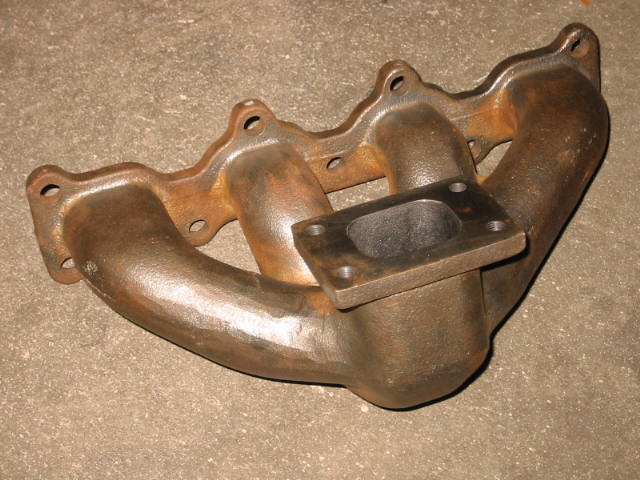

1.6L HKS manifold

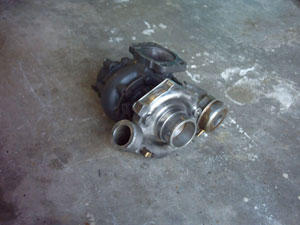

and I got this turbo.. TB0363 volvo garrett


I am such a stupid newbie. They don't line up. Is this manifold for standard t25s (sr20det)?

So is the 1.8L hks for T3s? Are there two HKS design manifolds? I am confused.

(sorry for the stolen pic, hope the owner doesn't mind, I took pics on my phone but my memory card is fucked up, can't load it on computer)
Attached Thumbnails
Mistake: Turbo-manifold no go-img_2170.jpg   Mistake: Turbo-manifold no go-used_tbo363.jpg
jay526 is offline   Reply With Quote
Old 03-14-2007, 11:56 PM   #2
Newb
Thread Starter

Join Date: Sep 2006
Location: bay area, ca
Posts: 24
Total Cats: 0
Default

One more question- Can I fit a different exhaust housing on this turbo to make it work? I am guessing the housing would be too small.
jay526 is offline   Reply With Quote
Old 03-15-2007, 12:02 AM   #3
Junior Member
iTrader: (22)

Join Date: Oct 2006
Posts: 491
Total Cats: 0
Default

Let me know if you end up selling the manifold. I have been looking for one.
keinayo is offline   Reply With Quote
Old 03-15-2007, 12:02 AM   #4
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

that's my manifold!

yeah, its for standard t2 get a turbo to fit it, not a new manifold to fit that turbo.
Al Hounos is offline   Reply With Quote
Old 03-15-2007, 12:22 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

none are for a t3, im pretty sure i told you that before.
Braineack is offline   Reply With Quote
Old 03-15-2007, 01:15 AM   #6
Newb
Thread Starter

Join Date: Sep 2006
Location: bay area, ca
Posts: 24
Total Cats: 0
Default

oops... I must have misunderstood something along the lines. Thanks guys for the help.
jay526 is offline   Reply With Quote
Old 03-15-2007, 01:49 AM   #7
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Ya, like stated above. Just sell your turbo and get a new one.
getsidewaysd1 is offline   Reply With Quote
Old 03-15-2007, 03:16 AM   #8
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Volvo turbo = T3/T4 turbo

HKS manifold = T25.
PaKMaN is offline   Reply With Quote
Old 03-15-2007, 09:56 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by PaKMaN View Post
Volvo turbo = T3/T4 turbo

HKS manifold = T25.


by t3/t4 you mean straight up TB03 turbo?! (which of course means t3)
Braineack is offline   Reply With Quote
Old 03-15-2007, 10:00 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

if you wanna keep the turbo:

I recommend the BEGi manifold and DP
or next the ETD Racing T3 manifold
or on the cheap the OBX log manifold has a T3 flange.

and machine down the recess on the turbine inlet


if you wanna keep the manifold:

a cheap sr20 turbo
Braineack is offline   Reply With Quote
Old 03-15-2007, 12:36 PM   #11
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
if you wanna keep the turbo:

I recommend the BEGi manifold and DP
or next the ETD Racing T3 manifold
or on the cheap the OBX log manifold has a T3 flange.

and machine down the recess on the turbine inlet


if you wanna keep the manifold:

a cheap sr20 turbo
And you can get some SR20 turbos that need rebuilding for CHEAP. on like sr20forums.com
miatamania is offline   Reply With Quote
Old 03-15-2007, 03:44 PM   #12
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
by t3/t4 you mean straight up TB03 turbo?! (which of course means t3)
They all use the same manifold. The main difference between all the flavors of T3 is different bolt patterns (ford-5 vs amg-5 vs 4 bolt) and different filter sizes for the various compressors.

All the compressor outlets are in nearly the same position and the turbines all use the same manifold and plumbing. Almost all the housing adaptors for the different T3 bolt patterns empty into either 2.5 or 3 inch 3 bolt downpipe flanges.
beerslurpy is offline   Reply With Quote
Old 03-15-2007, 09:04 PM   #13
Junior Member

Join Date: Aug 2006
Location: Farmington Valley, CT
Posts: 147
Total Cats: 0
Default

That Volvo flange is a nonstandard Volvo specific thing, no manifold will work. Just get a turbo with the normal T25 Flange. Nissan happens to use the standard Garrett flange, hence many of us using Nissan turbos.
Mechazawa is offline   Reply With Quote
Old 03-15-2007, 10:13 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by beerslurpy View Post
They all use the same manifold. The main difference between all the flavors of T3 is different bolt patterns (ford-5 vs amg-5 vs 4 bolt) and different filter sizes for the various compressors.

All the compressor outlets are in nearly the same position and the turbines all use the same manifold and plumbing. Almost all the housing adaptors for the different T3 bolt patterns empty into either 2.5 or 3 inch 3 bolt downpipe flanges.


at t3/t4 is that, a t3 turbine and housing and chra, and a tb04 compressor wheel and housing. the end.
Braineack is offline   Reply With Quote
Old 03-15-2007, 10:15 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by Mechazawa View Post
That Volvo flange is a nonstandard Volvo specific thing, no manifold will work. Just get a turbo with the normal T25 Flange. Nissan happens to use the standard Garrett flange, hence many of us using Nissan turbos.

there is an adapater to mate a non-vovlo t3 to a volvo manifold. a vovlo turbo to non-vovlo manifold just needs to e machined down on the turbine inlet.
