Old 12-21-2008, 12:50 AM   #41
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah. I dunno what to do. I want efficient, but quiet. I suppose I'll try the magnaflow with the turbo and see. Just afraid it's gonna be too loud still. I'm sure if I had a catalytic converter then it would be much quieter. But that adds backpressure too...
patsmx5 is offline   Reply With Quote
Old 12-21-2008, 01:03 AM   #42
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

we have welded up some of the summit 2.5" turbo mufflers and had some really good responses out of them. We went from having the stock system with basically a bell series 2 and a stock exhaust system to that and there was a huge difference in spool and power. if i were you and in a budget i would defeinately go with the summit muffler. It may wear out faster, but you can replace it for so cheap.
rharris19 is offline   Reply With Quote
Old 12-21-2008, 12:20 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

If I have a Summit Racing Turbo Muffler on my Altima, and it's not any louder than stock, then it's not a good turbo muffler.


a "turbo" muffler usually has 2 or 3 resonated tubes the airflow has to pass through...



a real turbo muffler will be straight through (inlet to outlet)...




If you're going to do a "turbo" muffler, the dynomax looks to be the least restrictive:

Braineack is offline   Reply With Quote
Old 12-21-2008, 02:33 PM   #44
Junior Member
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

A 12''inch long Resonator + Magnaflow straight thru muffler + turbo all thru 2.5'' of piping = deeper, no rasp, a little louder, but only the tuners could tell anything was done with it

I can't stand Ricer exhaust, and would rather not drive than sound like ****.
gompers is offline   Reply With Quote
Old 12-21-2008, 03:44 PM   #45
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

+1 on what Gompers and others have said. Magnaflow spiral metallic cat, resonator, and a straight-through muffler (big, like the stock one), 2.5" all through, and my exhaust is quiet, not much louder than stock. No droning on the highway, not ricey at all. Mellow, even sound. And according to the comparisons on the spool thread my GT2560 spools just fine with a 2.5" system.

https://www.miataturbo.net/forum/t26641/

performancepeddler.com FTW
ZX-Tex is offline   Reply With Quote
Old 12-21-2008, 03:59 PM   #46
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

What I'm most curious about regarding the muffler is just how much does a regular say, magnaflow oor whatnot aftermarket muffler that has chambers in it effect power output/spool etc. on a boosted miata vs. one of the straight throughs?

I've got the generic magnaflow upgrade muffler, and I plan to keep the high flow cat I have but am considering chopping the muffler off and welding in a straight through 'tuner' muffler - I'm thinking it wouldn't have any rasp as there would still be a cat.

-Ryan
ThePass is offline   Reply With Quote
Old 12-21-2008, 07:39 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by ThePass View Post
What I'm most curious about regarding the muffler is just how much does a regular say, magnaflow oor whatnot aftermarket muffler that has chambers in it effect power output/spool etc. on a boosted miata vs. one of the straight throughs?

It doesn't have to be a magnaflow, just a straight through muffler...there is ZERO restriction. I assure you, there will be performance loss in both peak power output and turbo speed.
Braineack is offline   Reply With Quote
Old 12-21-2008, 08:45 PM   #48
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Question: just how restrictive is the stock muffler? I've got the exhaust off as I'm turboing the car. I know you guys say the turbo will make it quieter, but straight open is too loud for me. So it's either buy a $30 summit turbo muffler and install that or put the stock muffler back on. I mean seriously, is the stock muffler that restrictive on a turbo car at ~250whp? I'm afraid even a 3" turbo muffler will still be too loud, hence the stock muffler idea. Just wondering if it would cost me 20whp or 50.
I have one car with a cat and no muffler, it is almost silent.

And the 3inch exhaust has a fart can. It will shake the paint off the walls!

I would bolt the turbo up. It will change everything. Then you can decide before spending $$$$.
Toddcod is offline   Reply With Quote
Old 12-21-2008, 10:33 PM   #49
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I've got a 3" cheapie turbo style muffler on now (like the center/offset brainy posted) with a 200 cell metal cat and 18" glass pack. I hope to be installing the king kong magnaflow over the holiday and will report back with some spool plots.

I went with the offset magnaflow thinking it would give me some more room to make the turn at the diff to muff area. But after looking at Pat's photo, I might try and see if I can cram it in diagonally.

My cheapie muff has about 2yrs (2000 miles) on it and it's already twice as loud as when installed. I think the short trips has kept the moisture from cooking off internally and it's already eating up the inside. Stainless will fair much better.

I'll back up the claim that the chambered (flowmaster etc.) muffs suck for turbos. I went from a chambered to the cheapie turbo and spooled 200-300 rpm sooner across the rpm band.
m2cupcar is offline   Reply With Quote
Old 12-22-2008, 10:26 AM   #50
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default



offset on the outlet.
Braineack is offline   Reply With Quote
Old 12-22-2008, 10:31 AM   #51
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

but that's not the 22" can is it?
m2cupcar is offline   Reply With Quote
Old 12-22-2008, 10:35 AM   #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by m2cupcar View Post
but that's not the 22" can is it?

IIRC It's 12259


Quote:
Originally Posted by Turbotim
Y8S fit one of the 22" magnaflows on his car, but it's more perpendicular to the car like the factory muffler. I tried to fit it diagonally but there was no F'in way.

I tried to fit different round mufflers but found the 5x8x18 was the best fit/quietest canister i could make as straight as possible.
Braineack is offline   Reply With Quote
Old 12-22-2008, 11:27 AM   #53
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

pat says it's the 22" one. perhaps the NB has different under-*** features? In either case, get a spare 90 and 180 as tight a radius as possible and a flange/v-band so you can get it on and off easy and you can do it my way or his--whichever works best.
y8s is offline   Reply With Quote
Old 12-22-2008, 11:52 AM   #54
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

As it stands right now I've got a 3bolt flanged junction right at the diff/subframe with my current setup and my hopes were to set somthing up that would bolt to that. Of course if it looks like I could go more diagonal with the 22" at the price of cutting up the existing junction I would. But looking at the brainy photo, I can't see how it's possible. That's an 18" can and it's tight on both ends. As it stands now, the magnaflow should show HUGE flow improvement over my current muffler. So the additional bends won't hurt so much.

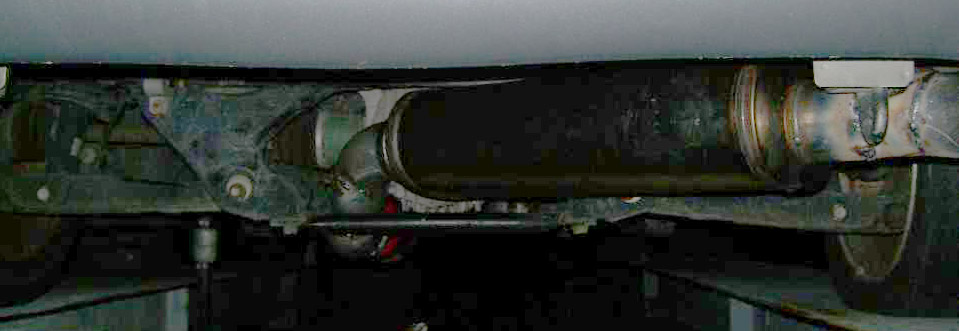

Based on the photo below, I'm skeptical that Pat's is actually the 22" can. It looks very similar to the 18" (12259) photo above when compared to Y8's (and Jason's) install.
Attached Thumbnails
m2cupcar is offline   Reply With Quote
Old 12-22-2008, 12:37 PM   #55
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Not to thread jack. But Diy funds are being watch by the little lady. LOL
My 3inch exhaust is straight pipe with a fart can on the back. I thought I would install the round 22inch 3inch straight through magnaflow muffler, instead of a resonator. And leave the fart can. Or do you think it would burn the packing out?
Toddcod is offline   Reply With Quote
Old 12-22-2008, 01:03 PM   #56
Newb

Join Date: Nov 2008
Location: San Antonio
Posts: 14
Total Cats: 0
Default

Hey guys I am new to the TURBO family. I was looking for an exhaust sytem system and bougth bought these this MagnaFlow Performance Exhaust magnaflow Magnaflow system. What do you guys think ?? Is it too smale small for my Garrett GT2560 I have a BEGI system nstalled installed in my miata.

Thank you for the help.
ddurieux is offline   Reply With Quote
Old 12-22-2008, 01:10 PM   #57
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by ddurieux View Post
Hey guys I am new to the TURBO family. I was looking for an exhaust sytem and bougth these MagnaFlow Performance Exhaust magnaflow system. what do you guys think ?? is it too smale for my Garrett GT2560 I have a BEGI system nstalled in my miata.

Thank you for the help.
You really want a 2 1/2 inch exhaust. If they haven't sent it, try to get bigger. Alot of people want 3". but It can be loud if you care about that. Some have mastered silencing it down some.

Basically you hurt some spool time and hp with a smaller than 2 1/2 exhaust. And your Cat needs to be a 200 or 300 cell count, and your muffer needs to be straight through.
3" is the best power, but for my dd I wish I would of kept my 2 1/2.
That price I think you can get flying miata or begi.

I would start a post in meet and greet post.

And look under the DIY section and read the "all your questions in one" stickey.

Good Luck!
Toddcod is offline   Reply With Quote
Old 12-22-2008, 01:21 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by ddurieux View Post
Hey guys I am new to the TURBO family. I was looking for an exhaust sytem system and bougth bought these this MagnaFlow Performance Exhaust magnaflow Magnaflow system. What do you guys think ?? Is it too smale small for my Garrett GT2560 I have a BEGI system nstalled installed in my miata.

Thank you for the help.
of all the 2.25" systems it'll be one of the better ones. In the least it's better than stock.


now no more thread jacking.....
Braineack is offline   Reply With Quote
Old 12-22-2008, 03:06 PM   #59
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Meh, just measured and it's an 18", not a 22". My bad. But FWIW, a 22 could be made to fit. You'd have to cut off the 3" center exit and weld your 45* bend right to it. That alone buys you 3", and the 1" discrepancy can be dealt with.
patsmx5 is offline   Reply With Quote
Old 12-22-2008, 03:49 PM   #60
Newb

Join Date: Nov 2008
Location: San Antonio
Posts: 14
Total Cats: 0
Default

It is on it way already but, I guess i can sell it and get a 2 1/2 " setting. Thank you for the information.
ddurieux is offline   Reply With Quote
