Default my 1600 gt2876r setup

few picks of my 1600 built engine running gt2876r and hydra ems
all work done by myself

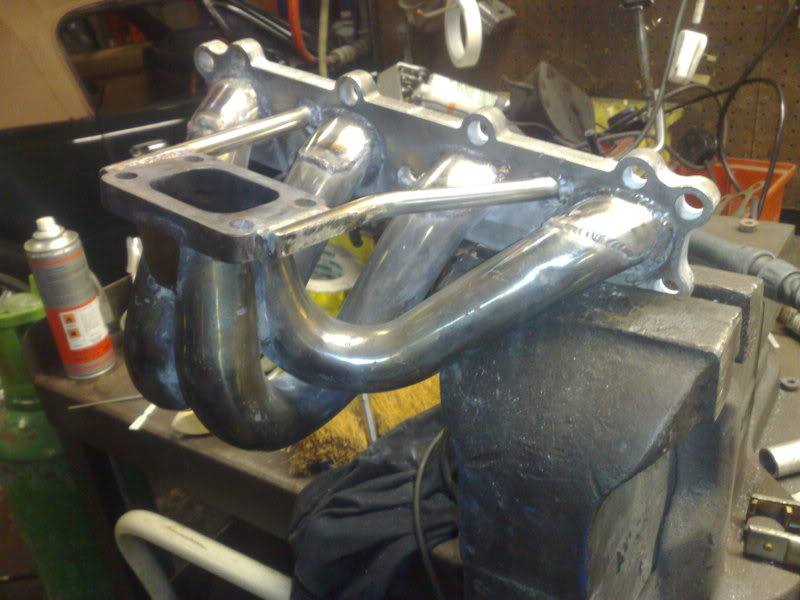

the manifold
Name:  27112008211.jpg
Views: 3
Size:  68.5 KB

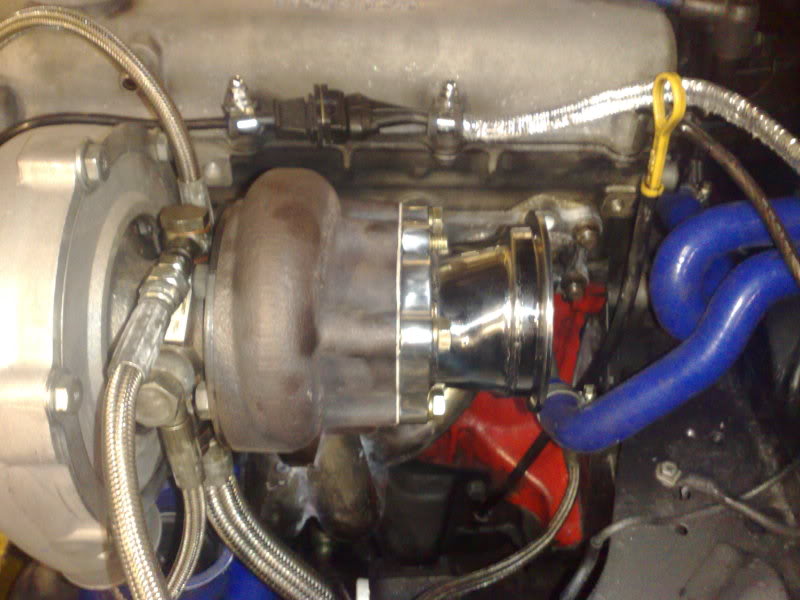

5bolt to v-band adaptor
Name:  01122008220.jpg
Views: 7
Size:  69.4 KB

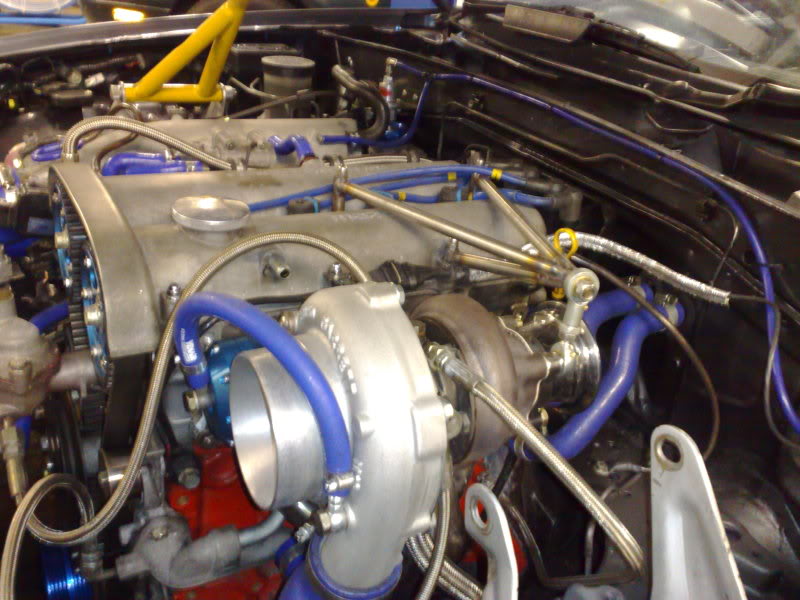

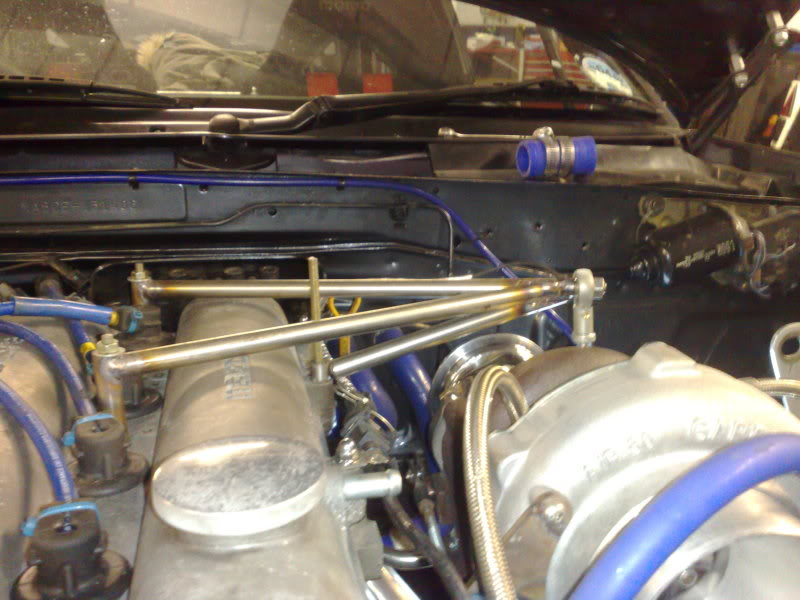

turbo suport
Name:  02122008241.jpg
Views: 3
Size:  78.8 KB

Name:  02122008240.jpg
Views: 4
Size:  89.8 KB

Name:  02122008236.jpg
Views: 3
Size:  77.9 KB

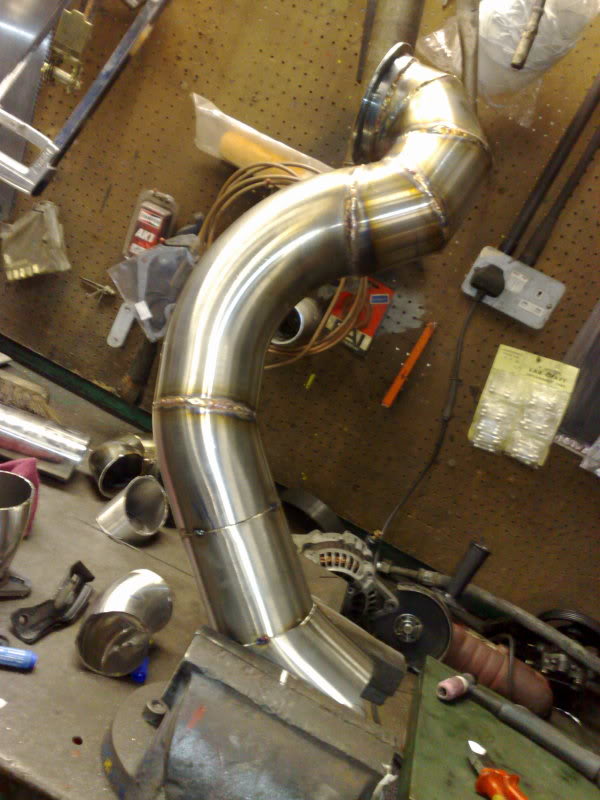

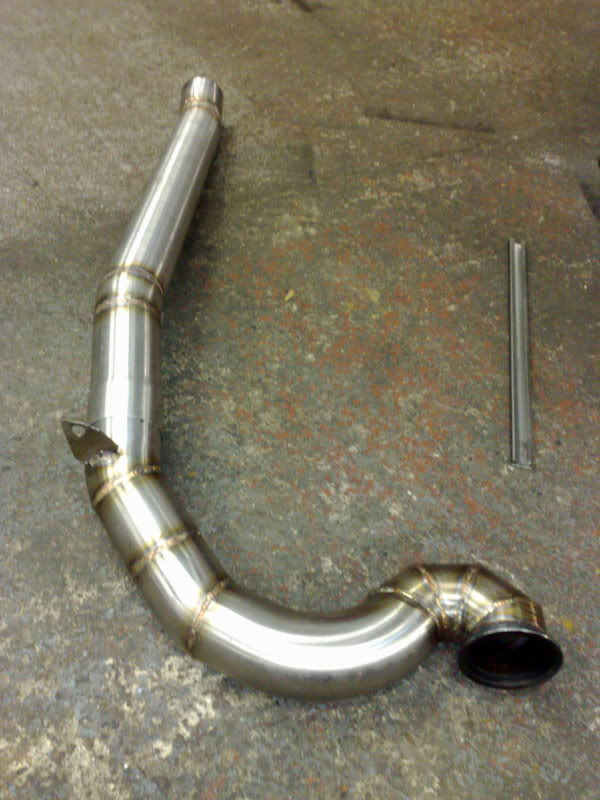

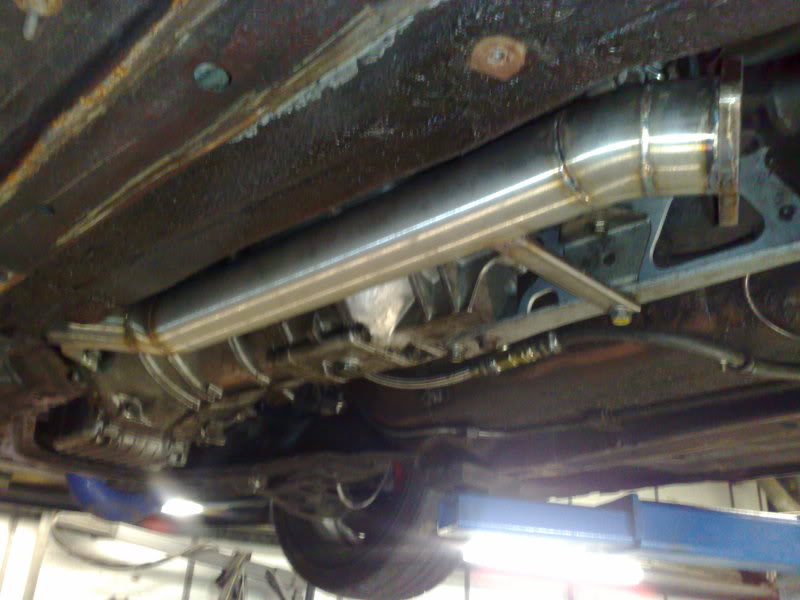

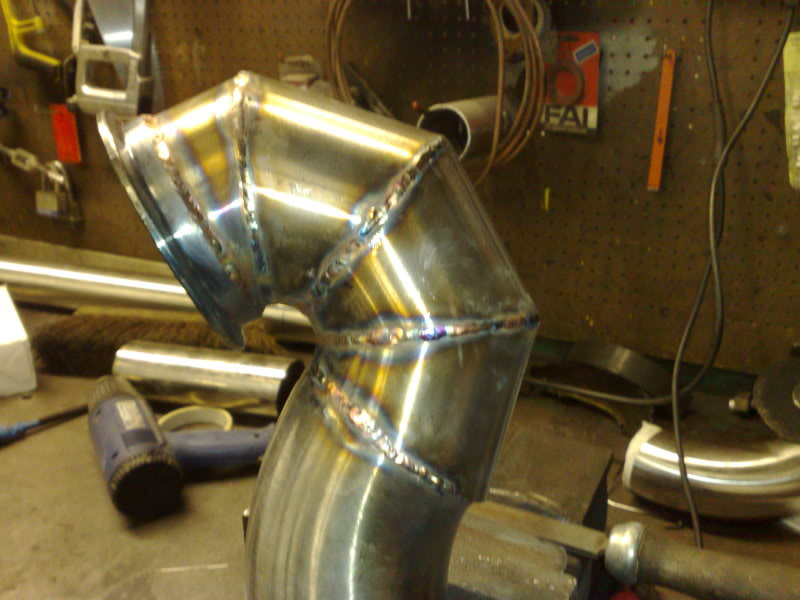

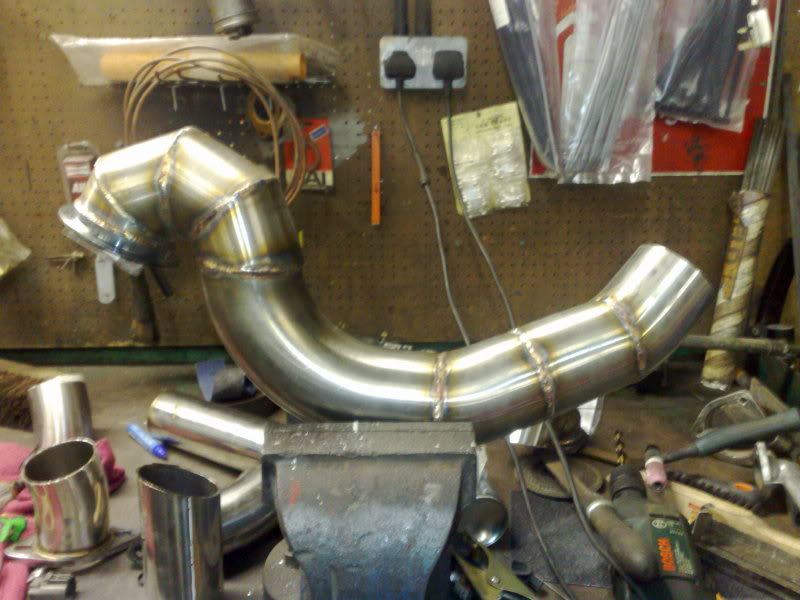

the down pipe
Name:  09122008256.jpg
Views: 4
Size:  64.3 KB

Name:  09122008258.jpg
Views: 4
Size:  80.3 KB

Name:  10122008259.jpg
Views: 35
Size:  76.7 KB

Name:  10122008267.jpg
Views: 3
Size:  77.4 KB

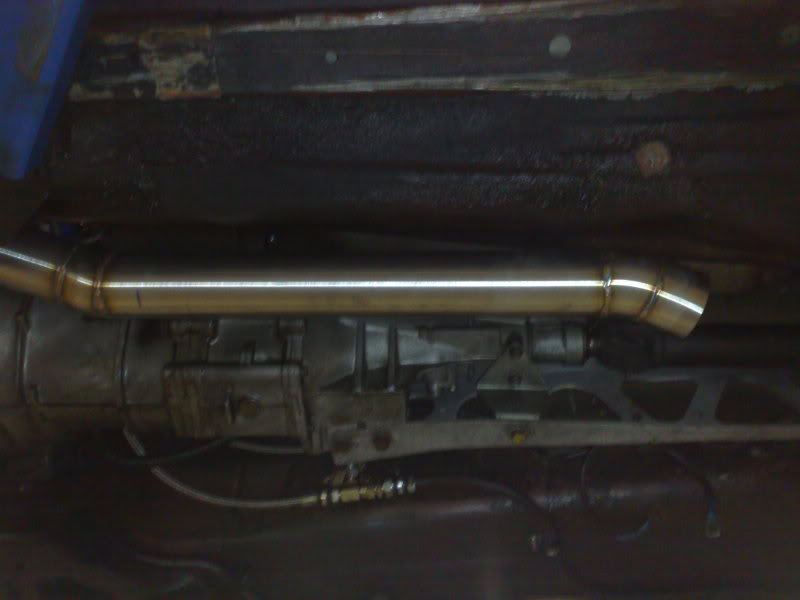

centre section
Name:  10122008261.jpg
Views: 3
Size:  34.1 KB

Name:  10122008268.jpg
Views: 4
Size:  62.0 KB

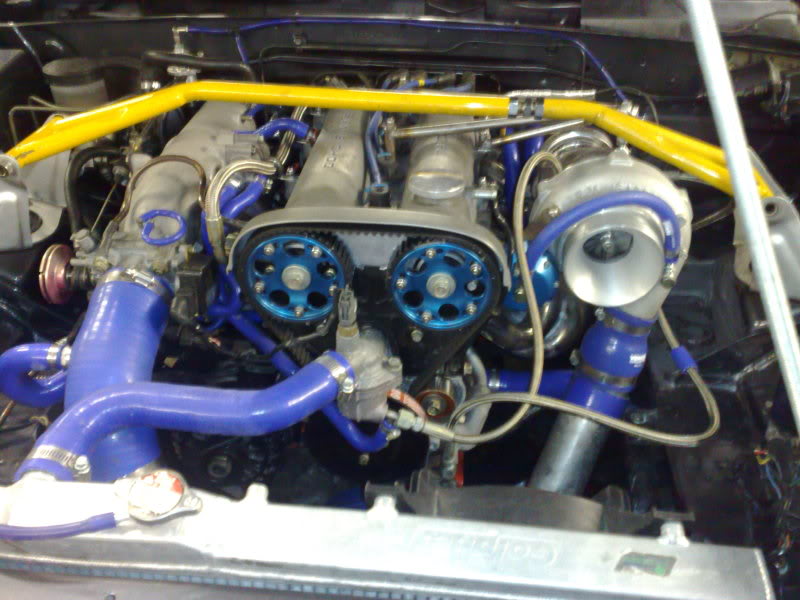

the engine bay
Name:  11122008286.jpg
Views: 3
Size:  83.5 KB
madmalc is offline   Reply With Quote
Old 12-16-2008, 06:35 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

that compressor housing looks huge compared to the turbine. Interesting heim joint mount...hopefully it works out.

What strut bar is that?
hustler is offline   Reply With Quote
Old 12-16-2008, 06:42 PM   #3
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

love those heater hoses!
thesnowboarder is offline   Reply With Quote
Old 12-16-2008, 06:51 PM   #4
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I like the ideas but I have a few opinions. 1) The hiem joint support is a good step but I think you are in trouble mounting it to the valve cover bolts. They are not made to withstand the stress an I can almost guarantee you they will break. I would fab a bracket similar that uses the engine lift mounting points. The same bolts that you would mount a hotside supercharger to. 2) Those pie cuts on the downpipe are going to kill your flow because they are too large so that you can get your radius. What I would recommend is you buy a small radius "donut" and cut the same shape out of it to replace you pie cut section. Donuts will provide you with the smallest possible smooth radius that you need.

Otherwise, looks really good. I take it you used an ebay 1.8 top mount mani and then custom welded it to a 1.6 flange?
neogenesis2004 is offline   Reply With Quote
Old 12-16-2008, 06:51 PM   #5
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

nice
Deatschwerks is offline   Reply With Quote
Old 12-16-2008, 06:53 PM   #6
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Actually, after looking at the last pic again. Cut the current heim joint support out of the equation. Modify your front suspension bar (forget the normal term) so that a heim joint mounts to it.
neogenesis2004 is offline   Reply With Quote
Old 12-16-2008, 06:54 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

its threads like this that make me appreciate BEGi's welding sweatshop.
hustler is offline   Reply With Quote
Old 12-16-2008, 07:02 PM   #8
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Are you sure you need that much bracing?

I mean, almost everywhere I look for turbo manifold there is no bracing at all. It seems only here where people has "bracing madness".
Dark Wanderer is offline   Reply With Quote
Old 12-16-2008, 07:03 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

nice to see another huge compressor taking over a miata.

yeah I gotta say, that downpipe is nice except where you turn the gas in sharp corners. You can get 3" small radius (or donuts as neo suggests) and at the VERY least, pie-wedge the bend instead of straight pieces.

otherwise, pretty. though I'm curious how many boost spikes you get with an internal wg
y8s is offline   Reply With Quote
Old 12-16-2008, 07:09 PM   #10
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Quote:
Originally Posted by Dark Wanderer View Post
Are you sure you need that much bracing?

I mean, almost everywhere I look for turbo manifold there is no bracing at all. It seems only here where people has "bracing madness".
I'm pretty sure thats a modified ebay manifold, which would explain the extravagant bracing. The OP is just being precautions so that he never has to removed it to fix a crack.
neogenesis2004 is offline   Reply With Quote
Old 12-16-2008, 07:10 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

why not brace the turbo from the motor mount?
hustler is offline   Reply With Quote
Old 12-16-2008, 07:17 PM   #12
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Also a good idea.
neogenesis2004 is offline   Reply With Quote
Old 12-16-2008, 07:17 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

looks beautiful.. my one problem has already been mentioned: that downpipe needs to be way smoother
18psi is offline   Reply With Quote
Old 12-16-2008, 07:21 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

the problem is the V-mount adapter that sticks out 10" off the turbo.
Braineack is offline   Reply With Quote
Old 12-16-2008, 07:46 PM   #15
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
the problem is the V-mount adapter that sticks out 10" off the turbo.
+1 ditch that vband adapter or get a v-band turbine housing if they make one for a t2
Mach929 is offline   Reply With Quote
Old 12-16-2008, 07:48 PM   #16
Newb

Join Date: Jun 2008
Location: STL, MO
Posts: 21
Total Cats: 0
Default

not that i have a vast knowledge of exhaust mani's or anything but i just finished reading the exhaust manifold section in Corky's 'maximum boost' and i couldn't help but notice that --

your mani' doesn't have any kind of seperation on the flange between each port in order to compensate for heat expansion. otherwise the flange is just going to bend into a fatty arc.

please correct me if im wrong

Last edited by esp140; 12-16-2008 at 08:34 PM.
esp140 is offline   Reply With Quote
Old 12-16-2008, 08:14 PM   #17
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

$$$$ vs time spent. I SAY AWSOME DUDE! 3inch. Yea the bends may hurt a little, 3inch that is alot of flow. And it sure beats spending $400. That is something if you wanna change later you can. I can't wait to see a video of it going down the strip. That should be pretty wild in full boost. Bolt it up.

If you decide to change it, pm me, I want it if the price is right. My Diy car needs a bigger dp.
Toddcod is offline   Reply With Quote
Old 12-16-2008, 08:21 PM   #18
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Am I the only one that is concerned that his exhaust is mounted to rigidly and has no flex piece?
Saml01 is offline   Reply With Quote
Old 12-16-2008, 08:30 PM   #19
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Quote:
Originally Posted by Saml01 View Post
Am I the only one that is concerned that his exhaust is mounted to rigidly and has no flex piece?
Too,

the worst of it is to be bolted on the ppf. Should add a flex joint after the dp and let the exhaust hang freely with stock rubber mount
Dark Wanderer is offline   Reply With Quote
Old 12-16-2008, 08:32 PM   #20
Newb

Join Date: Jun 2008
Location: STL, MO
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Am I the only one that is concerned that his exhaust is mounted to rigidly and has no flex piece?
the DP to mid pipe has one swaged joint ( if thats what u mean byvflex piece)....other than that i think its kinda eff'd
esp140 is offline   Reply With Quote
