Old 11-18-2012, 09:15 PM   #61
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Why not a throttle body with a wastegate can on it?

Dann
nitrodann is offline   Reply With Quote
Old 11-18-2012, 10:24 PM   #62
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

You can buy switching ones called "varex". That comes with a little central locking-like remote where you can switch between quiet and loud. They're a bit expensive if I recall correctly, but they are good to go out of the box and AFAIK dont suffer from rattling.
Vilko is offline   Reply With Quote
Old 11-18-2012, 10:41 PM   #63
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by nitrodann View Post
Why not a throttle body with a wastegate can on it?

Dann
I love how this repeats every time this thread is dug up from the dead and people still dont get it. From memory there were 2 other threads on this same thing at the same time as this one.
triple88a is offline   Reply With Quote
Old 11-19-2012, 03:01 AM   #64
Junior Member
iTrader: (5)

Join Date: May 2009
Location: Gay Area, CA
Posts: 220
Total Cats: 6
Default

Quote:
Originally Posted by Vilko View Post
You can buy switching ones called "varex".

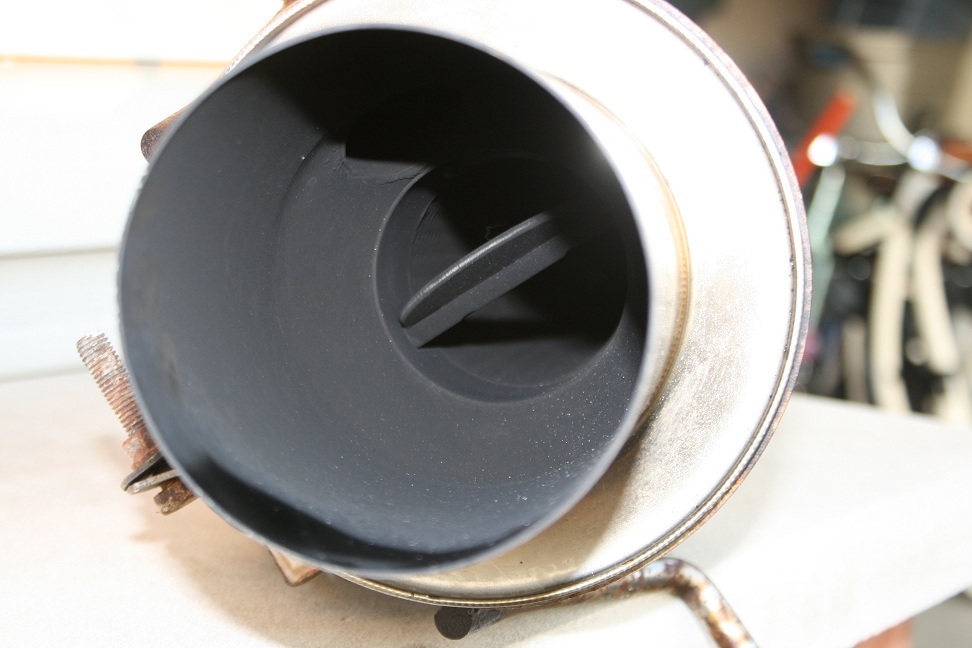

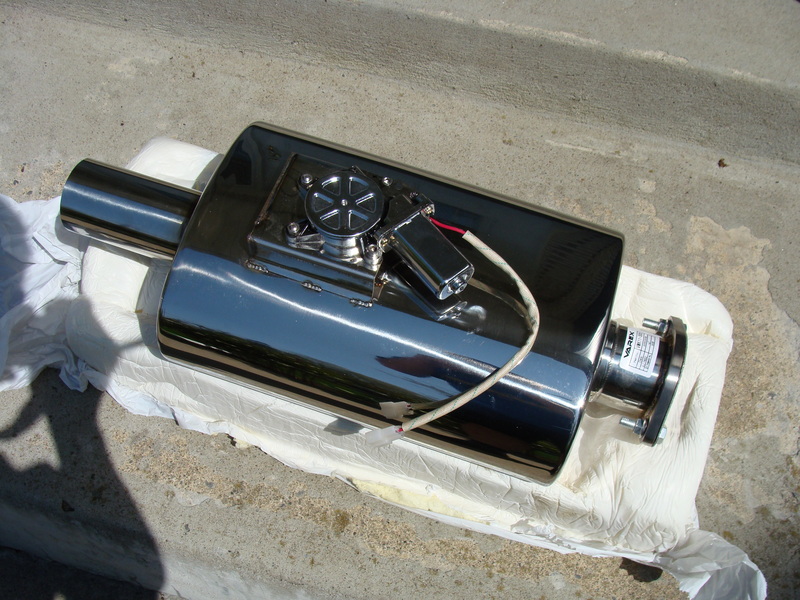

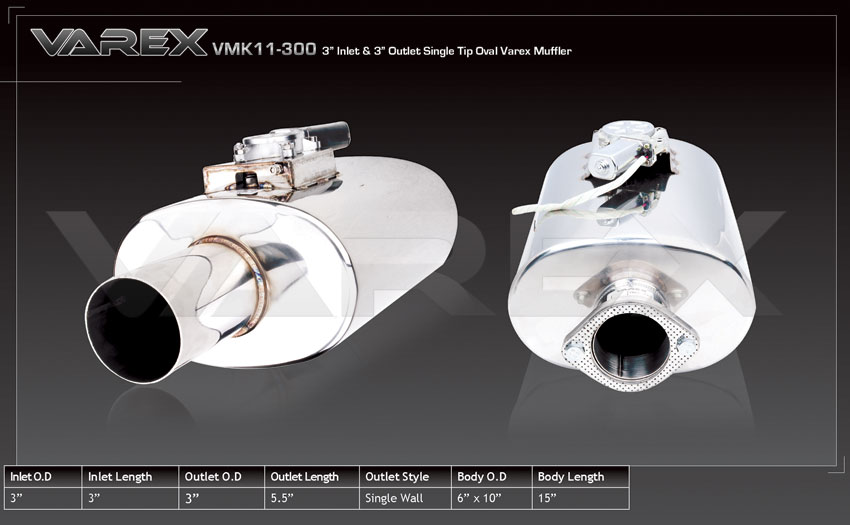

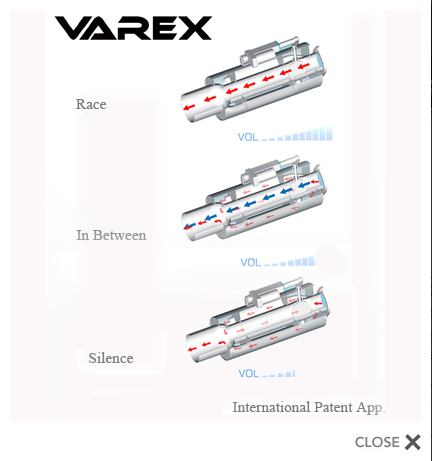

Just looked these up, hopefully not a repost. They appear to be a nicely executed dual-stage muffler with electronic
remote control from Ozzieland. Varex offers 3" & 3.5" inlet/outlet oval mufflers (pn# MK11-300 [3"] and MK11-350
[3.5"] are both $500 shipped) That price includes the adjustable electronic hardware & wiring. I'm curious as to the
diameter of the butterfly valve, and the durability of the actuator mechanism/motor.




Attached Thumbnails
My 3" custom exhaust with spring loaded flapper valve-vmk11-300.jpg   My 3" custom exhaust with spring loaded flapper valve-dsc01086f.244174746_std.jpg   My 3" custom exhaust with spring loaded flapper valve-varex-muffler.jpg   My 3" custom exhaust with spring loaded flapper valve-62355d1239235277-xforce-varex-muffler-remote-control-varex2pp9.png
Import Al is offline   Reply With Quote
Old 11-19-2012, 03:37 AM   #65
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

yeah I have one of those in the shed right now.

Dann
nitrodann is offline   Reply With Quote
Old 11-19-2012, 03:44 AM   #66
Junior Member
iTrader: (5)

Join Date: May 2009
Location: Gay Area, CA
Posts: 220
Total Cats: 6
Default

Quote:
Originally Posted by nitrodann View Post
yeah I have one of those in the shed right now.

Dann
Pictarz! What model/size? Any idea on butterfly plate diameter? Is it well-constructed?
Import Al is offline   Reply With Quote
Old 11-19-2012, 07:30 AM   #67
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Hang on, You want me to just get it out and review it? These are pretty common down under.

Dann
nitrodann is offline   Reply With Quote
Old 11-19-2012, 09:11 AM   #68
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Too bad we don't have em here. $500 is definitely not the kinda price I'd want to be a guinea pig for, and I'm not sure these will hold up long term.
18psi is offline   Reply With Quote
Old 11-29-2012, 07:29 PM   #69
Newb

Join Date: Nov 2010
Location: Mississauga Ontario Canada
Posts: 28
Total Cats: -9
Default

That looks like someone has chromed a power window mechanism (the flatted sides of the motor look familiar) and connected it to a throttle plate. The main concerns would be motor heat and the type of bushings used for the throttle. It would have the same problems as electric cutouts. You could use an electric cutout with a resonator ahead of it or one with a resonator after it in a dual exhaust setup to get the same effect and the heat buildup will not be nearly as great. Slight leakage would be no more of a problem than with the integrated muffler/flapper setup and parts would be replaceable separately.
amptramp is offline   Reply With Quote
Old 09-15-2015, 01:14 PM   #70
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

I'm desparately looking for one of these for my subaru.
found this:
3" Exhaust Assembly with Spring Loaded Flapper Valve | eBay

not sure what kinda spring tension his has, doesn't say.

Jason/Tim,
Any more input on these now that it's been quite some time?
18psi is offline   Reply With Quote
Old 09-15-2015, 01:29 PM   #71
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

That's a great price...buy one and let us know how it works out.
TurboTim is offline   Reply With Quote
Old 09-15-2015, 01:38 PM   #72
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

Why the hell would they make the outlet 3.25"?

Either way, you could absolutely make it work. And since the spring is external, you could easily swap springs around or maybe make a safety wire travel limiter.
vehicular is offline   Reply With Quote
Old 09-15-2015, 01:45 PM   #73
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by 18psi View Post
I'm desparately looking for one of these for my subaru.
found this:
3" Exhaust Assembly with Spring Loaded Flapper Valve | eBay

not sure what kinda spring tension his has, doesn't say.

Jason/Tim,
Any more input on these now that it's been quite some time?
From memory the above looks like a dead ringer for the one I excised out of a Dynomax VT muffler and put behind my big Magnaflow.

It's still working well. When I'm backing up with a particular combo of gas and clutch it'll sometimes rattle with a ringy tone to it, but other than that it's pretty unobtrusive. And quiet at cruise.
JasonC SBB is offline   Reply With Quote
Old 09-15-2015, 01:47 PM   #74
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Awesome. I'll order tonight
THanks
18psi is offline   Reply With Quote
Old 09-15-2015, 02:07 PM   #75
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Yeah looks exactly like the dynomax unit.

What are you trying to fix? Why all of a sudden?
TurboTim is offline   Reply With Quote
Old 09-15-2015, 02:18 PM   #76
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

see other thread

it's not sudden, but it became a problem after going to a turbo with a much larger hotside, and catless really hi-flow downpipe, and equal length header.

And the "problem" is only at low rpm, which is really weird. it's a pulse more than just noise. you can feel the pressure, if that makes sense
18psi is offline   Reply With Quote
Old 09-16-2015, 12:37 AM   #77
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Ya the low speed bassy thrum was noticeably reduced by the flapper.
JasonC SBB is offline   Reply With Quote
Old 09-21-2015, 01:06 PM   #78
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

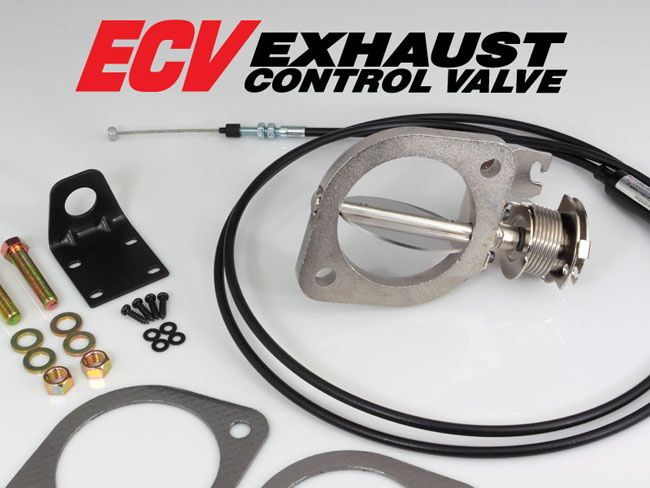

Attached Thumbnails
My 3" custom exhaust with spring loaded flapper valve-80-exhaust_ecv_957c0ab8803ae3563397be01aee7fe00d6d9aec3.jpg
18psi is offline   Reply With Quote
Old 09-22-2015, 10:31 AM   #79
Newb

Join Date: Nov 2010
Location: Mississauga Ontario Canada
Posts: 28
Total Cats: -9
Default

^

I like it. Some people have added surplus power window motors (that cost under $30) to a flapper valve and have an electric exhaust valve. No adjustment necessary.
amptramp is offline   Reply With Quote
Old 09-22-2015, 01:00 PM   #80
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

My concern with any type of electric motors is that they all tend to die fast.
18psi is offline   Reply With Quote
