Old 12-31-2011, 11:04 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by 573 View Post
I'm surprised they won't fix that under warranty. I guess I'll take care of it myself then. Thanks for the info.
Cause they are silly.
Braineack is offline   Reply With Quote
Old 12-31-2011, 02:58 PM   #22
Newb

Join Date: Jul 2011
Posts: 4
Total Cats: 0
Default

Thats pretty interesting! Cant you do basically the same thing with an electric cutout?
Vissi is offline   Reply With Quote
Old 12-31-2011, 03:40 PM   #23
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Vissi View Post
Thats pretty interesting! Cant you do basically the same thing with an electric cutout?
I'd assume if u put a hole in the butterfly so its not a completely closed thing it should work.
triple88a is offline   Reply With Quote
Old 12-31-2011, 04:13 PM   #24
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

yes but all other cutouts I found (mech, elec) were pricier than the entire VT mufler.
JasonC SBB is offline   Reply With Quote
Old 12-31-2011, 05:00 PM   #25
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

I've been wanting to build my own muffler with one of these flaps in it, I think i am going to use a resonator though and put the flap inside it. That way when the flap is closed it causes the gas to go through the packing in the resonator, instead of just blocking most of the flow.
hochkis is offline   Reply With Quote
Old 12-31-2011, 06:11 PM   #26
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

If you're willing to go that far why not just run a cutout before the muffler?
triple88a is offline   Reply With Quote
Old 12-31-2011, 06:59 PM   #27
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Because a cutout has to seal 100% and that would be too hard for me to build. That and i'm really cheap, even the cable style cutouts (which don't seal well) are nearly 60 dollars. For a few pieces of metal and cutting and welding the resonator I already own i can make my own... why not?
hochkis is offline   Reply With Quote
Old 01-01-2012, 04:29 PM   #28
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Get a 10 bucks throttle body from an old civic or something. The mount is easy to make if u have a welder.
triple88a is offline   Reply With Quote
Old 01-01-2012, 08:12 PM   #29
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Not sure an aluminum throttle body would hold up at the end of the downpipe. Not to mention it still probably would not seal 100% although it would be really close.
hochkis is offline   Reply With Quote
Old 01-01-2012, 10:07 PM   #30
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Remember that these restrictors work best at quieting the drone/thrum when installed at the end of the exhaust. This way the exhaust pulses have the entire volume of the exhaust to pressurize/de-pressurize.
JasonC SBB is offline   Reply With Quote
Old 01-01-2012, 10:13 PM   #31
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

EVOs, F430s, and E46 BMW afaik have them.

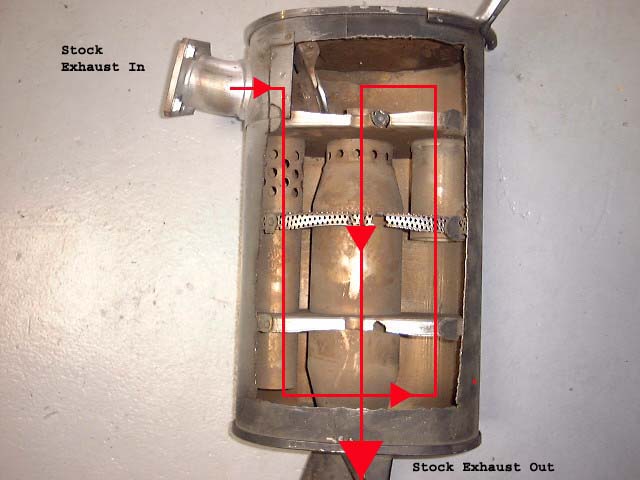

EVO muffler cutaway: Flapper is in the upper left. The arrows show the flow while flapper is closed. When it opens it bypasses the circuitous route.

Attached Thumbnails
My 3" custom exhaust with spring loaded flapper valve-03-06-evo-viii-ix-including-rs-mr.jpg
JasonC SBB is offline   Reply With Quote
Old 02-15-2012, 01:10 AM   #32
Junior Member

Join Date: Dec 2008
Posts: 72
Total Cats: 2
Default

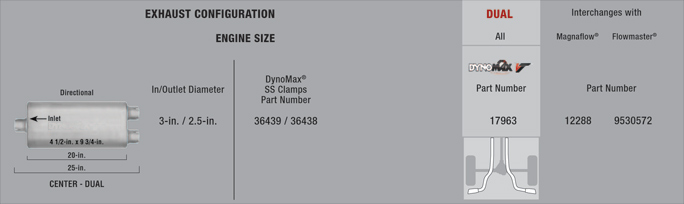

The popular quiet 3" muffler seems to be the 22x5x11 Magnaflow, but I like the flapper idea. All the Dynomax VT Mufflers are of the smaller variety except for the 17963:


If a Dynomax 17963 were to be installed on a miata I would envision that the dual 2.5" outlets would have gradual 90 turndowns, rotated 45 to the rear. The flapper may not last a long time, but these mufflers are relatively cheap if they need replacement in a few years.

Pro's?
Con's?
Attached Thumbnails
My 3" custom exhaust with spring loaded flapper valve-vt_app_chart3.jpg
Sclippy96 is offline   Reply With Quote
Old 02-15-2012, 03:51 AM   #33
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Don't use turndown tips that point to the ground. The noise gets reflected from the ground up to the car. Ask me how I know...
JasonC SBB is offline   Reply With Quote
Old 02-15-2012, 11:15 PM   #34
Newb

Join Date: Aug 2011
Location: pittsburgh area
Posts: 31
Total Cats: 0
Default

So are you guys figuring out how to get the brown note out of the exhaust, cause road trips kinda suck with a brown note! just saying.
KPNITCLAC is offline   Reply With Quote
Old 02-15-2012, 11:32 PM   #35
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Quote:
Originally Posted by JasonC SBB View Post
Don't use turndown tips that point to the ground. The noise gets reflected from the ground up to the car. Ask me how I know...
How do you know?
Tw34k is offline   Reply With Quote
Old 02-16-2012, 12:51 AM   #36
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

LOL I'll bite whether you're joking or not... what else, I tried it when I upgraded my old 2.5" muffler to a larger one, was aghast at the noise ... complained bitterly to Magnaflow, then realized it was the temporar turn down...(was waiting for a proper tip to come in)
JasonC SBB is offline   Reply With Quote
Old 02-16-2012, 02:34 AM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

I am so pissed off that they dont sell something like this seperately from the muffler, for say, 50-60. I mean its simple as hell, and obviously effective, why hasn't someone already started mass producing these thingamabobs?
18psi is offline   Reply With Quote
Old 02-16-2012, 02:02 PM   #38
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,276
Total Cats: 53
Default

Quote:
Originally Posted by 18psi View Post
I am so pissed off that they dont sell something like this seperately from the muffler, for say, 50-60. I mean its simple as hell, and obviously effective, why hasn't someone already started mass producing these thingamabobs?
Then you wouldn't have to buy their muffler...
Midtenn is offline   Reply With Quote
Old 02-16-2012, 02:04 PM   #39
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Duh...
vehicular is offline   Reply With Quote
Old 02-16-2012, 02:07 PM   #40
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

My research on these VT mufflers hasn't shown much promise. Apparently they are really bad for boxer engines (boo for my Forester) and cars with cams. Apparently the flapper and rattle at idle and other situations. Also, it seems the flapper starts to wear over time and loses some performance, for the Evo guys it was after ~ 1 year.

Honestly, I wish somebody would run with this idea but do a better job engineering it. The Dynomax VT muffler is pretty affordable but it seems to have some serious flaws. Personally I would rather pay $200 for the muffler if it worked 100% as advertised. Versus paying ~$100 for a muffler that sort of works but also rattles like hell at idle...
Efini~FC3S is offline   Reply With Quote
