Default My DIY mani

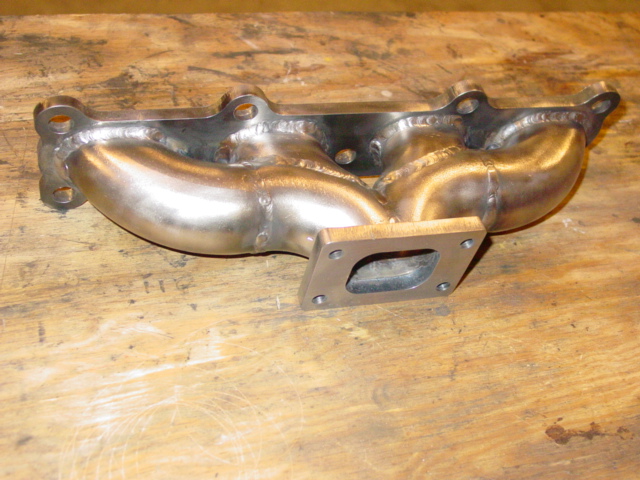

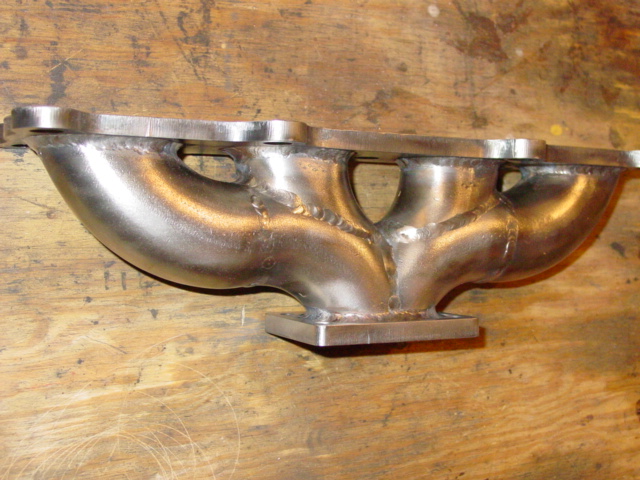

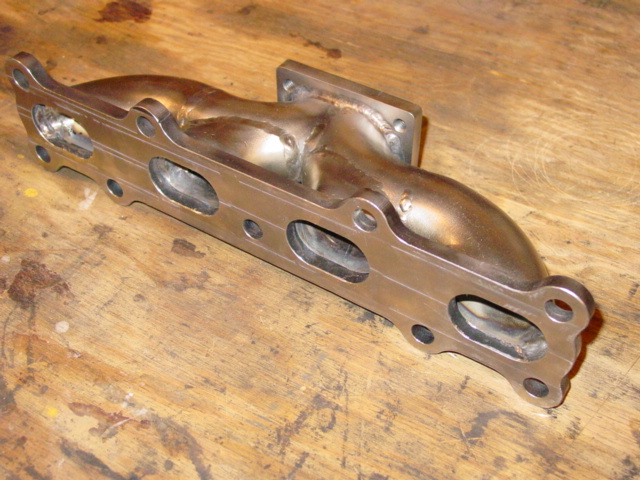

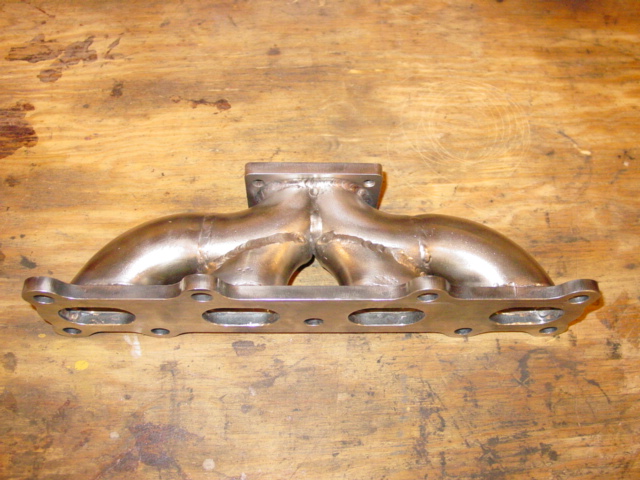

Well, I had this done last weekend, but never got the pics taken. Weirtech flanges and Ace Stainless weld els FTW. After welding I took it to work and had one of the guys mill the flange flat for me. It probably would have been OK, but now I don't have to worry about it.
Attached Thumbnails
My DIY mani-picture-125.jpg   My DIY mani-picture-126.jpg   My DIY mani-picture-127.jpg   My DIY mani-picture-128.jpg
Stein is offline   Reply With Quote
Old 12-15-2008, 10:17 AM   #2
Senior Member
iTrader: (12)

Join Date: Nov 2005
Location: Murfreesboro, TN
Posts: 596
Total Cats: 3
Default

Wow, that looks really good!
sbrian2 is offline   Reply With Quote
Old 12-15-2008, 10:18 AM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Nice welds.
Saml01 is offline   Reply With Quote
Old 12-15-2008, 10:21 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Needs more boost.
Braineack is offline   Reply With Quote
Old 12-15-2008, 10:30 AM   #5
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

That is NICE!

One off, or considering a production run?
gospeed81 is offline   Reply With Quote
Old 12-15-2008, 10:30 AM   #6
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

nice work man
SloS13 is offline   Reply With Quote
Old 12-15-2008, 11:09 AM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

total cost not including G-jobs?
y8s is offline   Reply With Quote
Old 12-15-2008, 11:39 AM   #8
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Stien, how did you make the holes in the pipes so 2 and 3 can merge into 1 and 4?
Saml01 is offline   Reply With Quote
Old 12-15-2008, 11:53 AM   #9
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Braineack View Post
Needs more boost.
If Stephanie would ever ship me my Zoom3 I could get to it.
Stein is offline   Reply With Quote
Old 12-15-2008, 11:54 AM   #10
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by gospeed81 View Post
That is NICE!

One off, or considering a production run?
Definitely a one off. I'll never do another stainless weld el manifold. Way too tough to saw and grind.
Stein is offline   Reply With Quote
Old 12-15-2008, 11:59 AM   #11
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by y8s View Post
total cost not including G-jobs?
Weirtech flanges are $22 and $12 respectively, six weld els $32, so $66 plus another $20 or so for shipping.

I just checked and Ace Stainless has lowered the prices more since I bought mine. Now down to $5.05 each for the 1 1/2"

Ace Stainless

I anyone decides to build one, I have two els left over that they can have for the price of shipping.
Stein is offline   Reply With Quote
Old 12-15-2008, 12:02 PM   #12
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Saml01 View Post
Stien, how did you make the holes in the pipes so 2 and 3 can merge into 1 and 4?
That part really sucked, especially in stainless. Drilled a 3/4" hole and hogged it out with a carbide burr in an air die grinder. I taped the shop vac in #1 and taped off #4 and ran it the whole time. Those carbide burrs throw off nasty needle burrs. The vac worked well.

One of these days someone will have to teach me how to reply to multiple posters in one post.
Stein is offline   Reply With Quote
Old 12-15-2008, 12:06 PM   #13
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by Stein View Post
Definitely a one off. I'll never do another stainless weld el manifold. Way too tough to saw and grind.
Just modifying the stud holes on a BP flange to fit the F was torture. And that was with my custom SST. Nice mani job!
m2cupcar is offline   Reply With Quote
Old 12-15-2008, 12:06 PM   #14
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

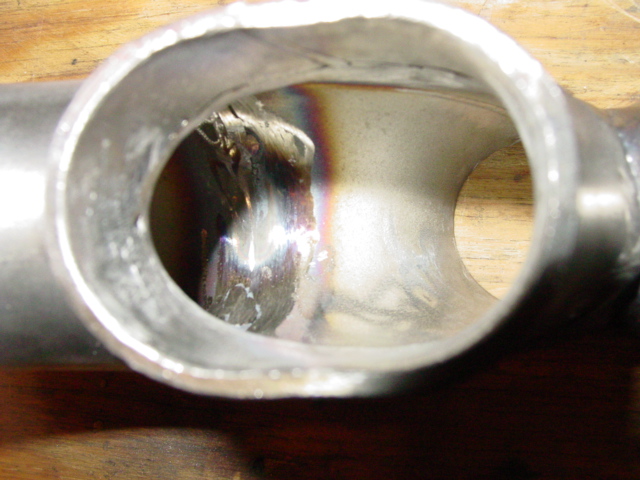

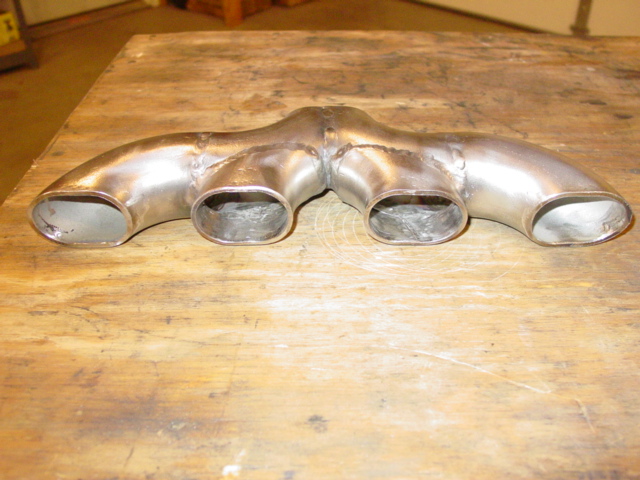

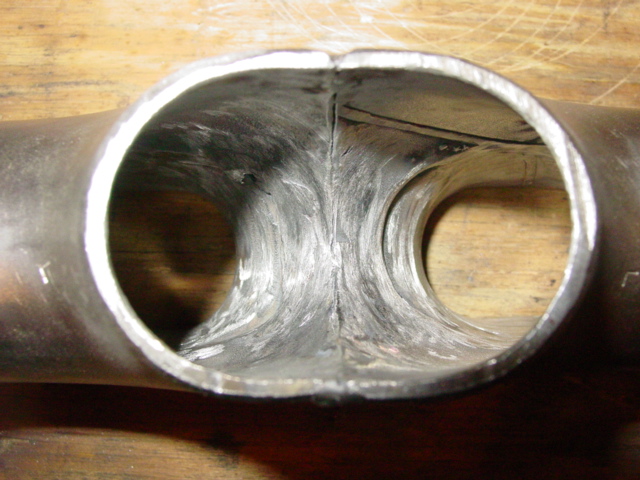

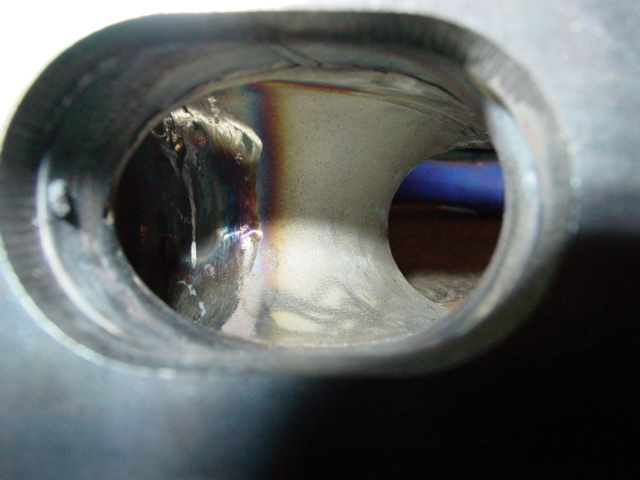

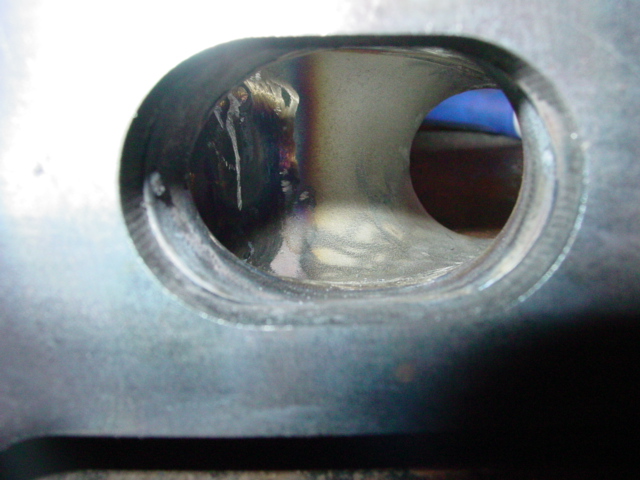

I had posted up in-process photos in another thread, but I don't know if everyone saw them there.

Here they are again.
Attached Thumbnails
My DIY mani-picture-114.jpg   My DIY mani-picture-116.jpg   My DIY mani-picture-117.jpg   My DIY mani-picture-121.jpg   My DIY mani-picture-122.jpg

Stein is offline   Reply With Quote
Old 12-15-2008, 12:11 PM   #15
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

if you would of used a backing gas an cap the holes you coulda got a nice full penetration weld and not have to do any post grinding as long as you didnt booger it up.
SKMetalworks is offline   Reply With Quote
Old 12-15-2008, 12:21 PM   #16
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by sbkcocker499 View Post
if you would of used a backing gas an cap the holes you coulda got a nice full penetration weld and not have to do any post grinding as long as you didnt booger it up.
Yeah, but I didn't want to rig up a tee, line, valve just for one stainless job. Like I said, first and last one ever. But you are right, it is the best way to do it.
Stein is offline   Reply With Quote
Old 12-15-2008, 04:56 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

stein that is ABSOLUTELY BEAUTIFUL!!!!

that is exactly what me and my father are getting ready to make here really shortly. just waiting on his brand new tig/mig to come in.

so you got away with only using 4 weld els? nice, thats what Im planning on.

and VERY interested in the 2 your giving away, I'm in sacramento, ca 95842 pm me a shipping quote and paypal addy and I'll take em right away.

THANX
18psi is offline   Reply With Quote
Old 12-15-2008, 05:10 PM   #18
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by 18psi View Post
stein that is ABSOLUTELY BEAUTIFUL!!!!

that is exactly what me and my father are getting ready to make here really shortly. just waiting on his brand new tig/mig to come in.

so you got away with only using 4 weld els? nice, thats what Im planning on.

and VERY interested in the 2 your giving away, I'm in sacramento, ca 95842 pm me a shipping quote and paypal addy and I'll take em right away.

THANX
Six weld els to make mine. You can't do it this way with 4. $5.00 should ship the two I have. paypal jkunkle at garnerindustries dot com. Glad you can use them.
Stein is offline   Reply With Quote
Old 12-15-2008, 05:54 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

MONEY SENT thanx a lot man
18psi is offline   Reply With Quote
Old 12-15-2008, 05:56 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by gospeed81 View Post
That is NICE!

One off, or considering a production run?
my dad (licensed/certified professional welder) is considering starting making these after we make mine if there is any need for em. downpipes as well
18psi is offline   Reply With Quote
