Default My first turbo miata, pictures n' stuff

So, this is my 3rd turbocharged car, but this is the first one i did myself... overall im proud of it... I am a full time student who gets paid minmum wage, so i tried to go a cheaper route with still some sort of quality, i just couldnt fork out enough for a FM kit, and i didnt really like the begi kits.

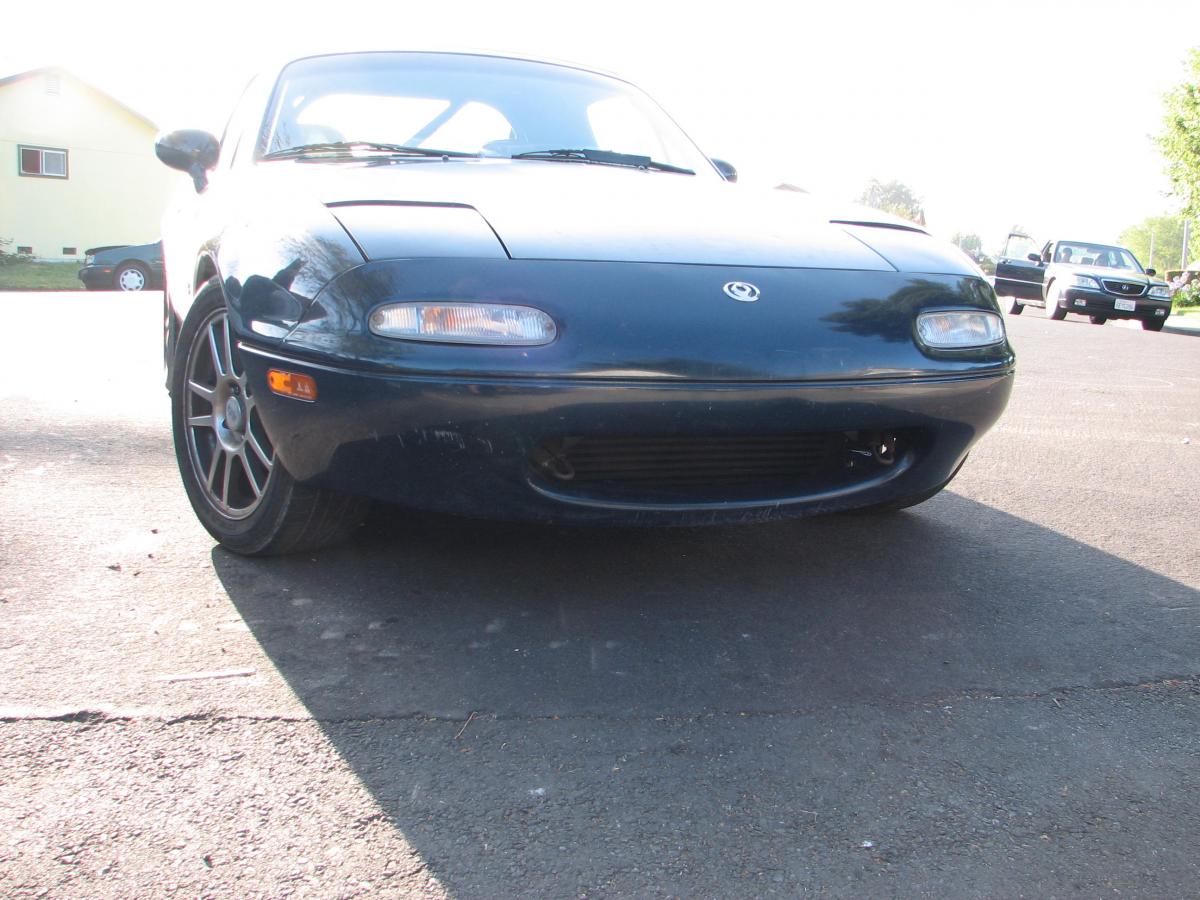

My miata is a 94

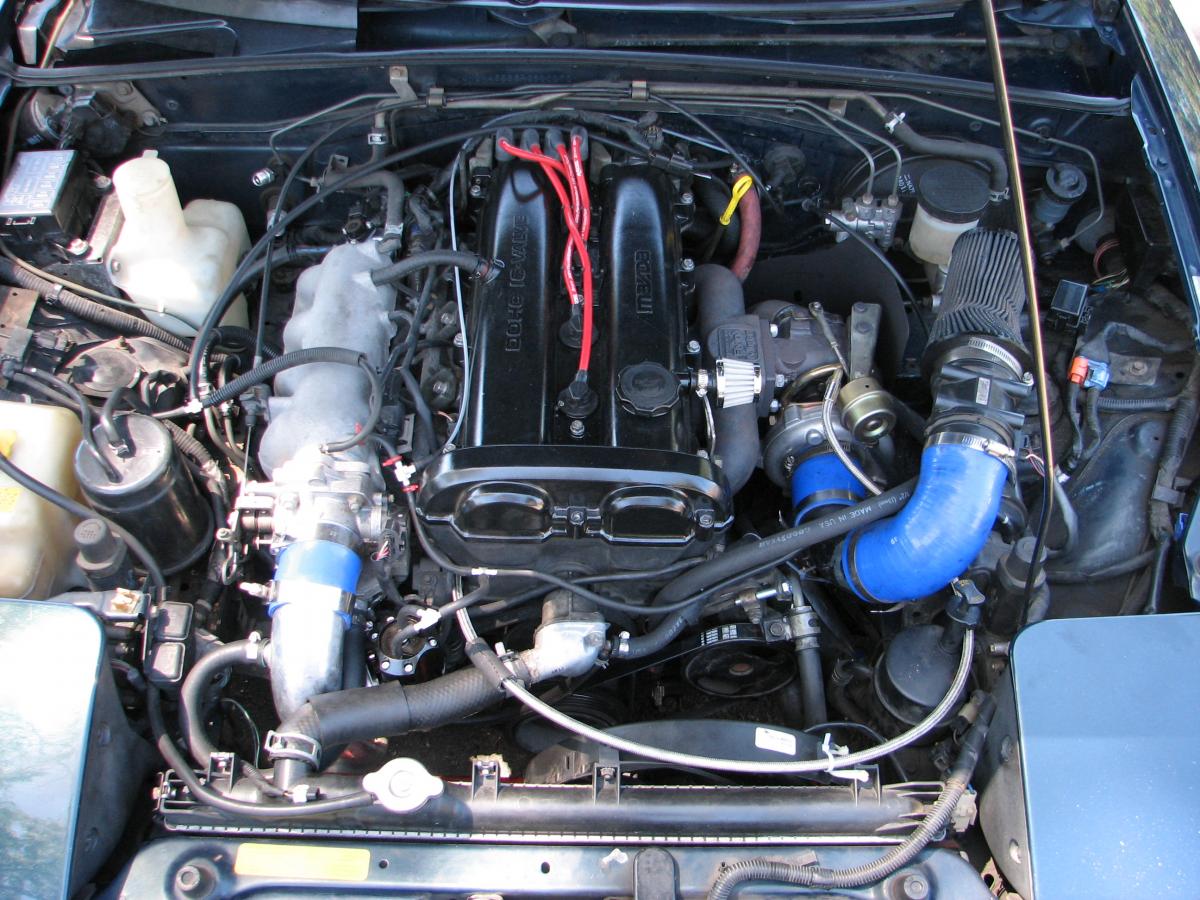

This kit consists of:

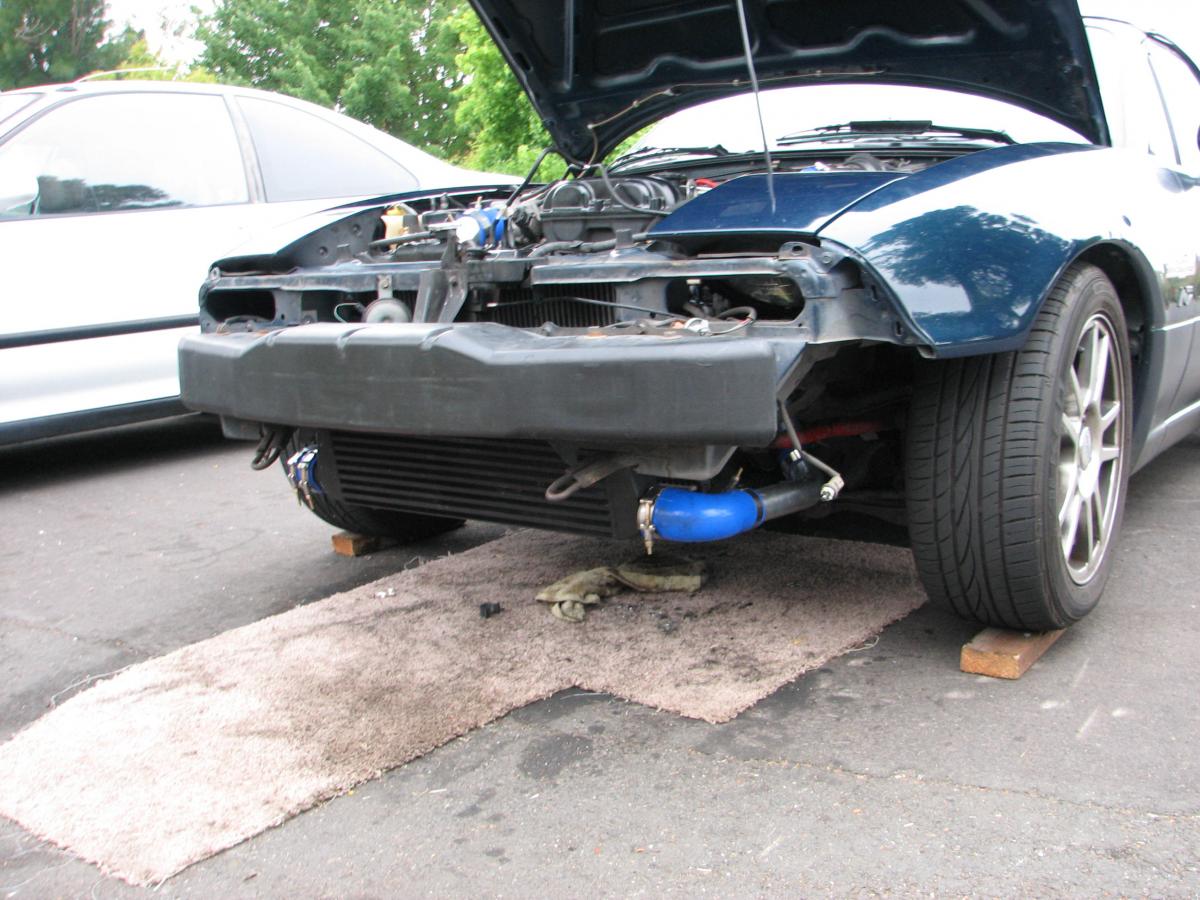

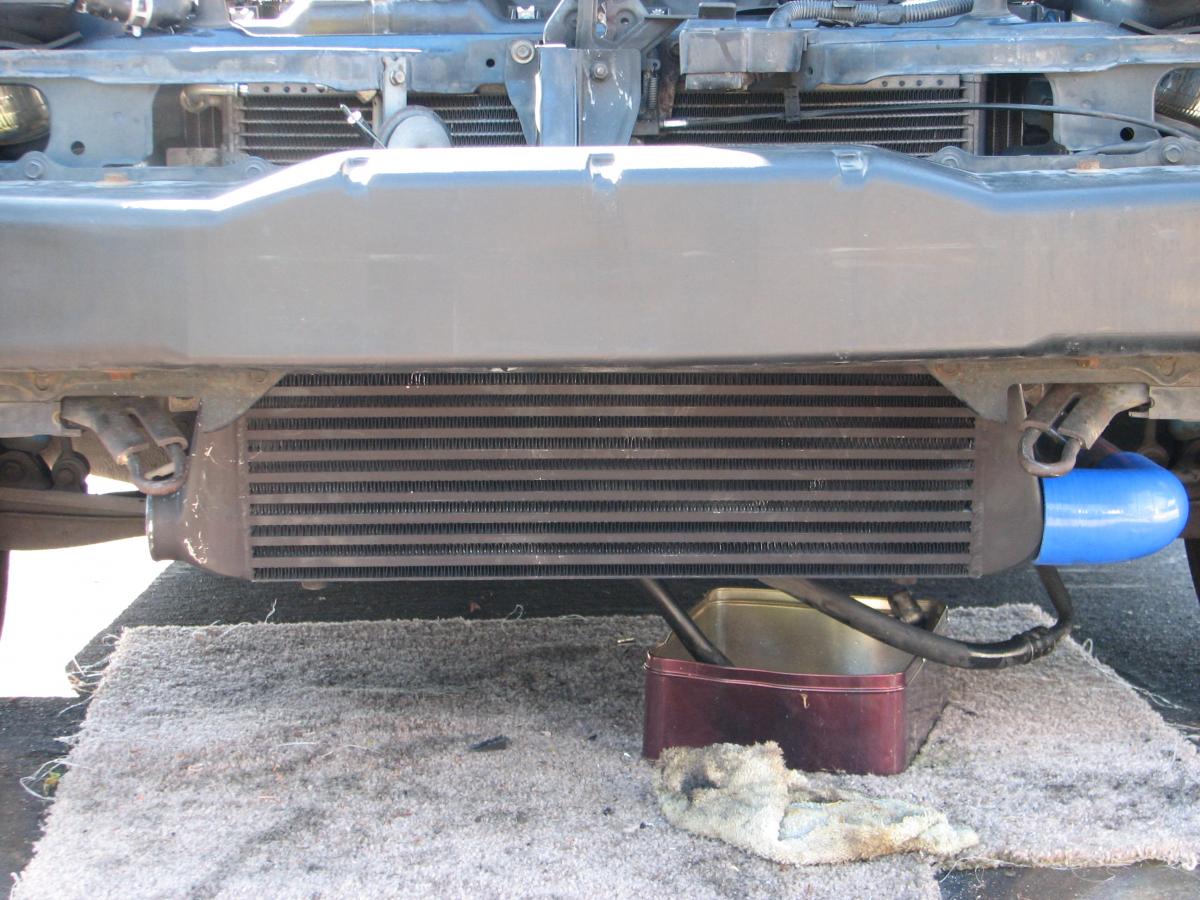

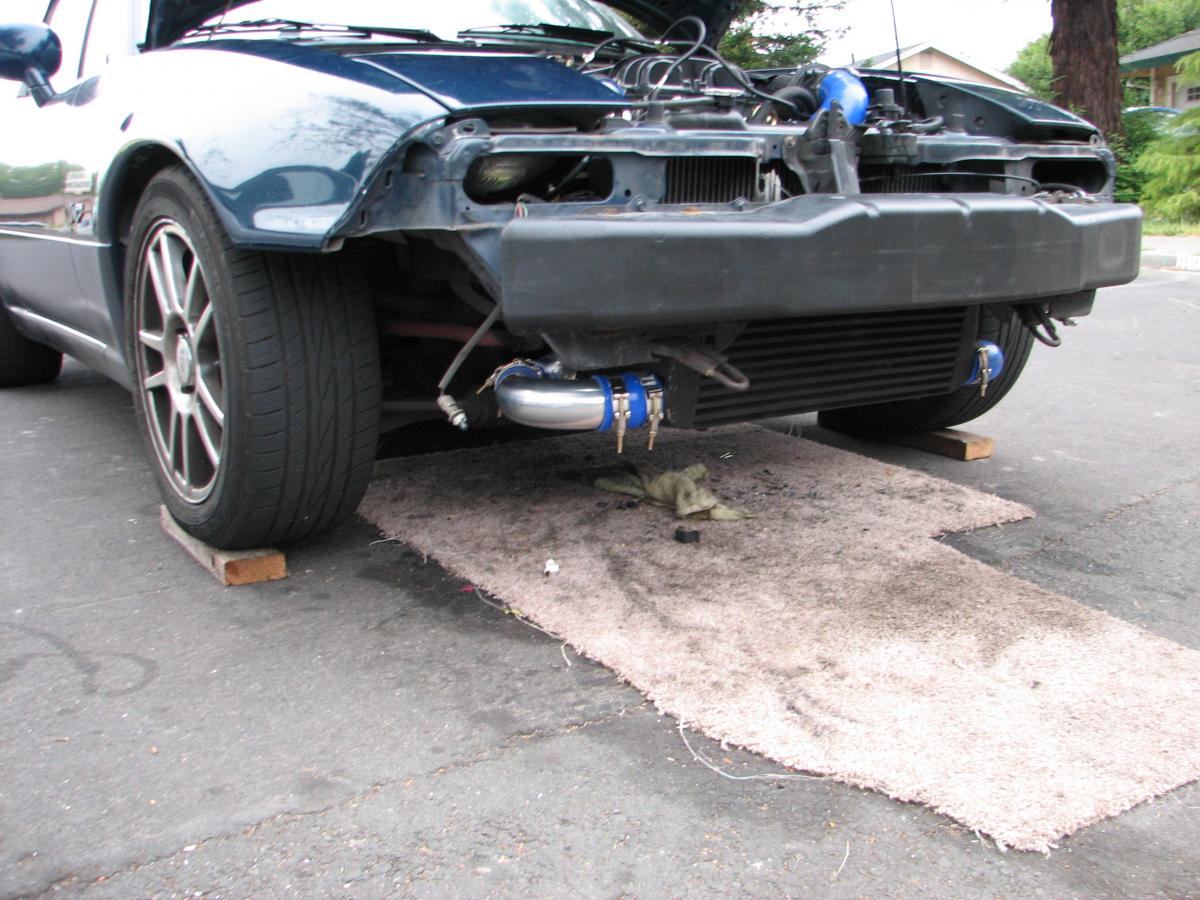

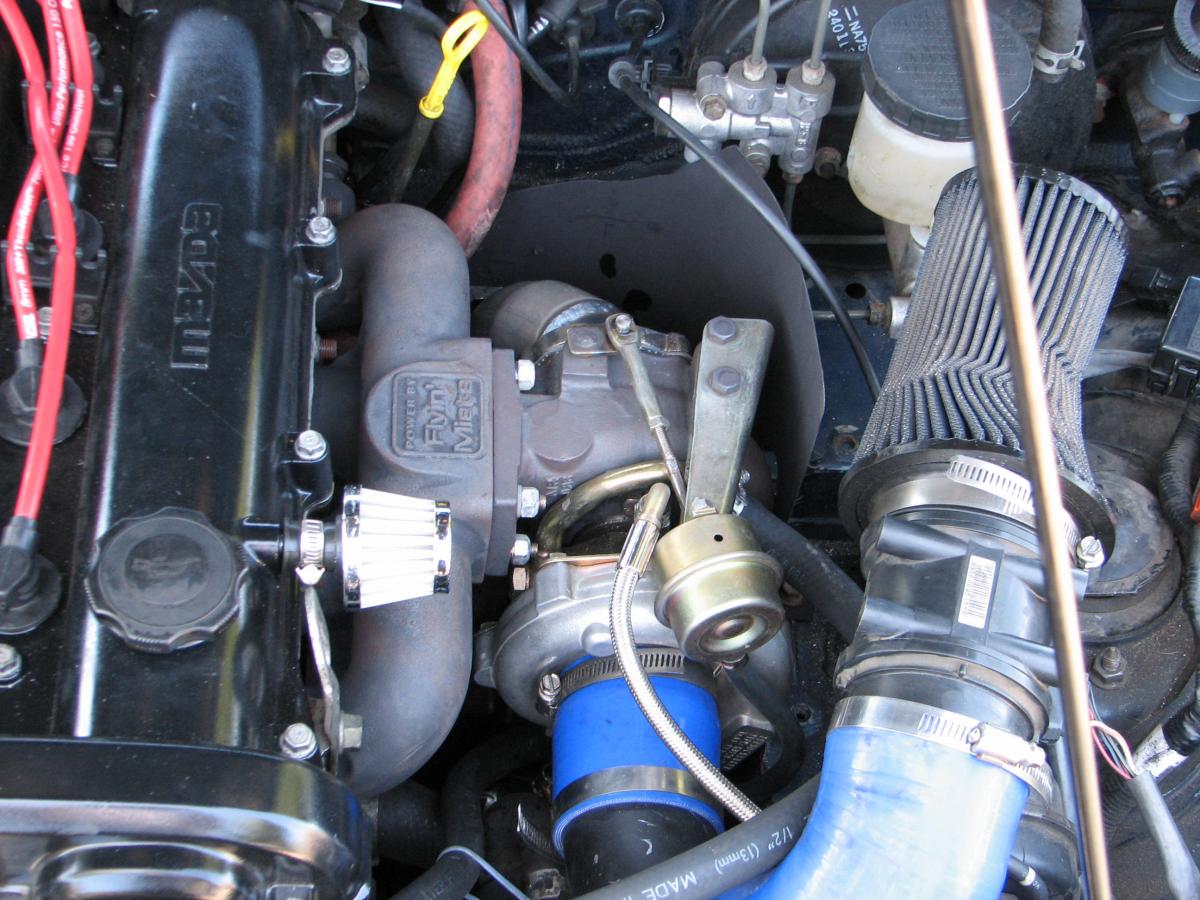

T28 chinacharger from CXracing along with their intercooler (28x7x2.5) and piping (2" hot side, 2.5" cold side) for the 90-93 miata, and a oil line from them as well.
Flyin' Miata manifold and EGR pipe

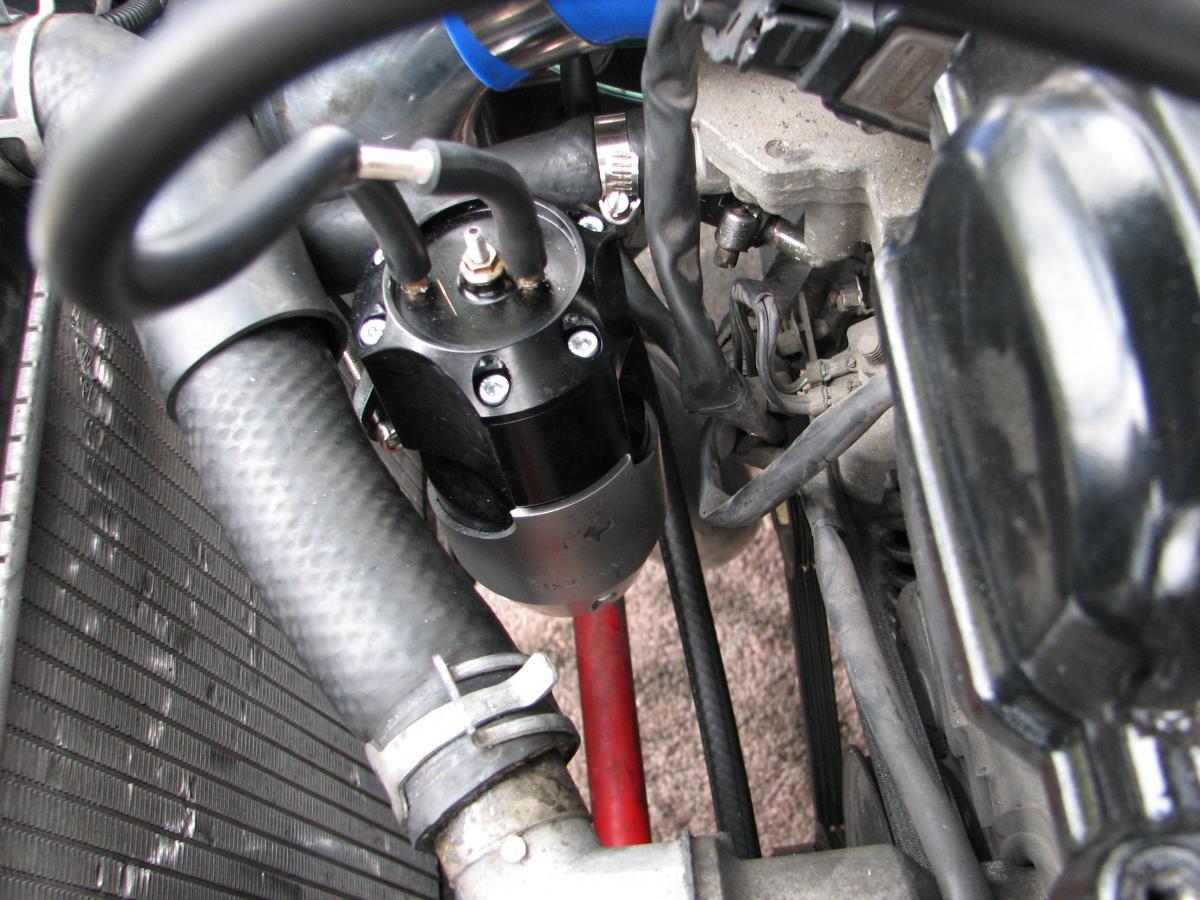

synapse BOV with anti-stall kit
AEM F/IC - boomslang PnP wire harness

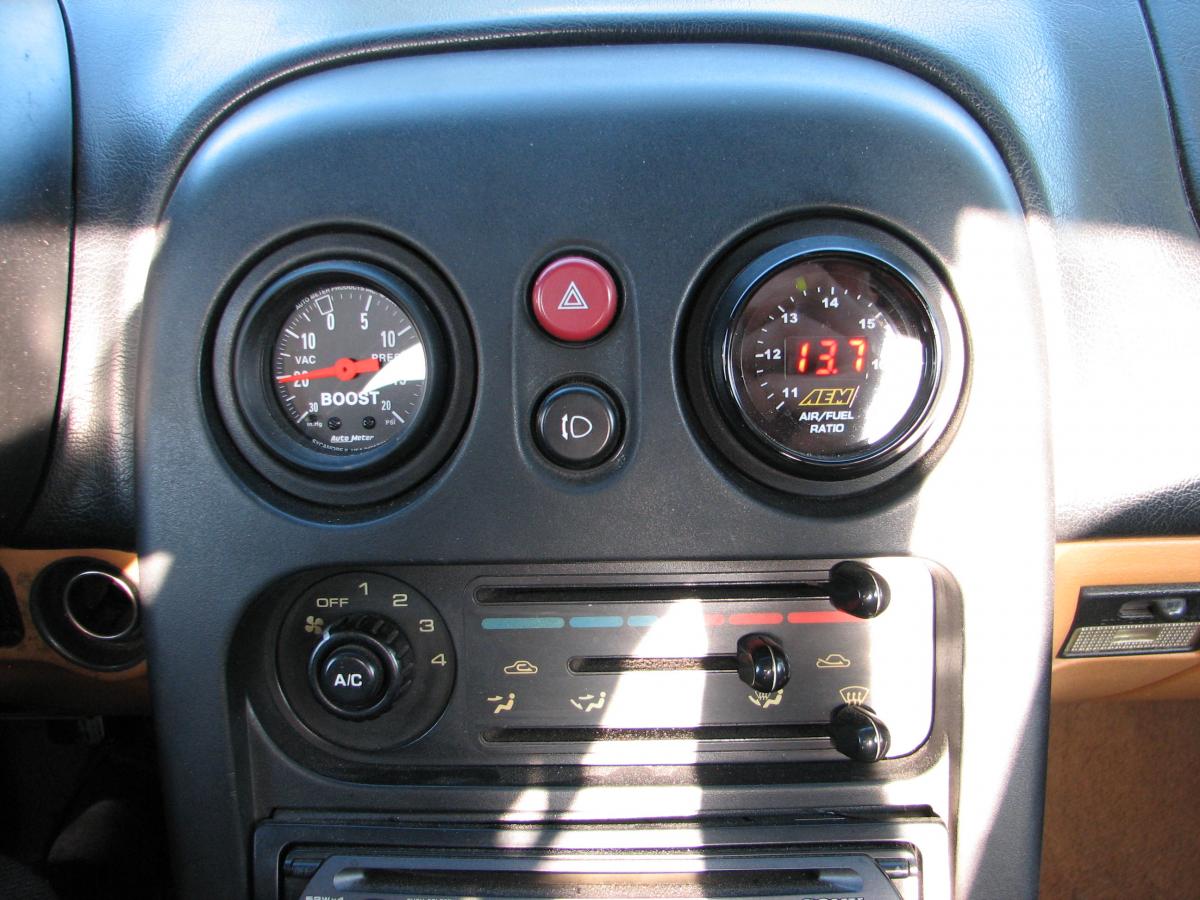

AEM UEGO WO2
autometer boost gauge
2.5" exhaust with no cat

Since CXracing isnt the most reliable company, the turbo same with a 14psi wastegate acuator when it was suppose to be a 8, yippie, but i try to keep it at 10, at 10psi my stock injecotrs are around 95% duty cycle. i will be getting a correct acuator soon.

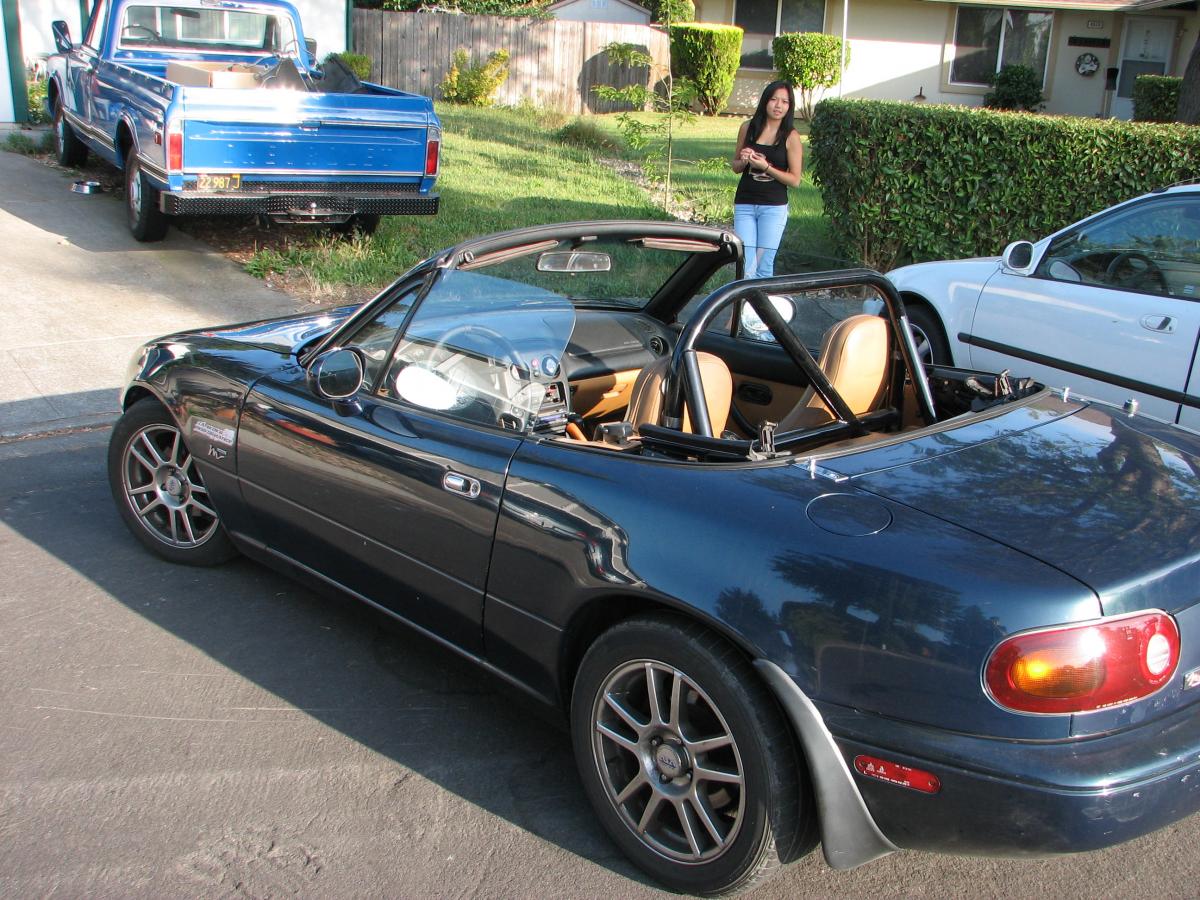

I bought the car with a 6 puck clutch and heavy pressure plate, racing beat springs and tokico blues, racing beat sway bars, 15" rims, and a single diagonal hard dog roll bar.

I also fabricated a small heat shield for the brake fluid reservoir, and will be making a top part shortly.

I also removed my AC while i was at it, take some weight off, and i dont really like AC, so no use for it IMO.
Attached Thumbnails
My first turbo miata, pictures n' stuff-img_3153.jpg   My first turbo miata, pictures n' stuff-img_3160.jpg   My first turbo miata, pictures n' stuff-img_3161.jpg   My first turbo miata, pictures n' stuff-img_3159.jpg   My first turbo miata, pictures n' stuff-img_3166.jpg

My first turbo miata, pictures n' stuff-img_3167.jpg   My first turbo miata, pictures n' stuff-img_3168.jpg   My first turbo miata, pictures n' stuff-img_3169.jpg   My first turbo miata, pictures n' stuff-img_31690.jpg
turboT is offline   Reply With Quote
Old 07-21-2010, 08:42 AM   #2
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

so did CX racing's intercooler pipe pretty much bolt right up or did you have to modify it?
aaronc7 is offline   Reply With Quote
Old 07-21-2010, 01:22 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

i had to cut the first one coming from the turbo, the power steering line and bracket were in the way, so with that cut, it went over it. then the first cold side piping, the end was too long, so a few inches were cut off, and the pipe that hooks up to the intake fits fine as long as you remove the AC fan, you have to get creative with the IAC hose.

i go to a shop who bought the CX kit for a 90-93, and it fit right in, with the exception of the downpipe, and the kit pretty much went on flawlessly, but if your going to be using this for a 94-97, id be more than happy to try and get come closer pictures and how you where the cuts were, and how to route it.
turboT is offline   Reply With Quote
Old 07-21-2010, 01:35 PM   #4
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Not a bad start at all
johnmatt is offline   Reply With Quote
Old 07-21-2010, 01:40 PM   #5
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Asian lover is hawt. Cool car.
Bond is offline   Reply With Quote
Old 07-21-2010, 01:47 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by Bond View Post
Asian lover is hawt. Cool car.
thats my tiny asian girlfriend
turboT is offline   Reply With Quote
Old 07-21-2010, 01:52 PM   #7
Junior Member
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

Ems?
aznDragonX is offline   Reply With Quote
Old 07-21-2010, 02:05 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by aznDragonX View Post
Ems?
Yeah, the AEM F/IC
It fuel/ignition controller, and one of the best piggyback systems
turboT is offline   Reply With Quote
Old 07-21-2010, 09:23 PM   #9
Junior Member

Join Date: Mar 2010
Location: Glasgow, Scotland, U.K.
Posts: 114
Total Cats: -12
Default

Quote:
Originally Posted by turboT View Post
thats my tiny asian girlfriend
shes awesome!
delcbr is offline   Reply With Quote
Old 07-21-2010, 09:34 PM   #10
Reverse Cerberus
iTrader: (10)

mrryanbaker's Avatar

Join Date: Oct 2008
Location: Vancouver, WA
Posts: 130
Total Cats: 5
Default

Good looking car! I'm really glad that the fear of chinachargers is fading out and people are using them.
mrryanbaker is offline   Reply With Quote
Old 07-22-2010, 02:11 AM   #11
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by mrryanbaker View Post
Good looking car! I'm really glad that the fear of chinachargers is fading out and people are using them.
My first car was a 95 honda prelude, and i had it turbocharged and used a t3/t4 hybrid chinacharger, it lasted 5000 miles easily with no shaft play, i sold the car because i wanted RWD, but CXracing doesnt have a bad reputation with their turbos (from what i hear), and the chinachargers are definatly improving.
turboT is offline   Reply With Quote
Old 07-22-2010, 02:12 AM   #12
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by delcbr View Post
shes awesome!
lawl, stop eye humping her. shes mine.
turboT is offline   Reply With Quote
Old 07-22-2010, 05:28 AM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

She's all of ours now.....


Clean car, I like the wheels. How do you like the AEM F/IC? I am thinking of getting one for my KA frontier.
viperormiata is offline   Reply With Quote
Old 07-22-2010, 02:53 PM   #14
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by turboT View Post
thats my tiny asian girlfriend
You should become a member and post detailed proof she's still a tiny little Asian...

Setup looks good!
chpmnsws6 is offline   Reply With Quote
Old 07-22-2010, 02:55 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

you know that's not how you properly plumb that bov's vacuum lines right?
Braineack is offline   Reply With Quote
Old 07-22-2010, 02:57 PM   #16
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Who cares about the plumbing, more pics of the little Asian gf.
buffon01 is offline   Reply With Quote
Old 07-22-2010, 03:36 PM   #17
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Clean car, I like the wheels. How do you like the AEM F/IC? I am thinking of getting one for my KA frontier.[/QUOTE]


The F/IC is ok, i didnt do the tuning, i was able to buy the F/IC for $310, and get it tuned for $85, and right now it is working great, i also used it on my honda, which there were no problems.
turboT is offline   Reply With Quote
Old 07-22-2010, 03:39 PM   #18
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you know that's not how you properly plumb that bov's vacuum lines right?
well, i didnt use its own sererate sorce, and instead of using the T connecter i used a Y, but it still works just fine, on my honda it was plumbed the correct way, and this setups seems to work better on my miata, the response it quicker.
turboT is offline   Reply With Quote
Old 07-22-2010, 03:40 PM   #19
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Rohnert Park, CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by chpmnsws6 View Post
You should become a member and post detailed proof she's still a tiny little Asian...

Setup looks good!
i think ill keep her to myself >
turboT is offline   Reply With Quote
Old 07-22-2010, 03:42 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by turboT View Post
well, i didnt use its own sererate sorce, and instead of using the T connecter i used a Y, but it still works just fine, on my honda it was plumbed the correct way, and this setups seems to work better on my miata, the response it quicker.

it's not that it needs it's own separate source, which it does, it's where that source is sourced in proximity to the throttle plate...
Braineack is offline   Reply With Quote
