Old 12-19-2011, 01:44 AM   #41
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Tappin' dat pan was the most puckering thing on my install, glad it went smoothly for you. And part of me likes those wheels, but feels dirty about it.
matthewdesigns is offline   Reply With Quote
Old 12-22-2011, 05:41 PM   #42
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default


Attached Thumbnails
My TD05 NB project-28330488.jpg   My TD05 NB project-4a10544d.jpg
dliverance is offline   Reply With Quote
Old 12-22-2011, 10:53 PM   #43
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

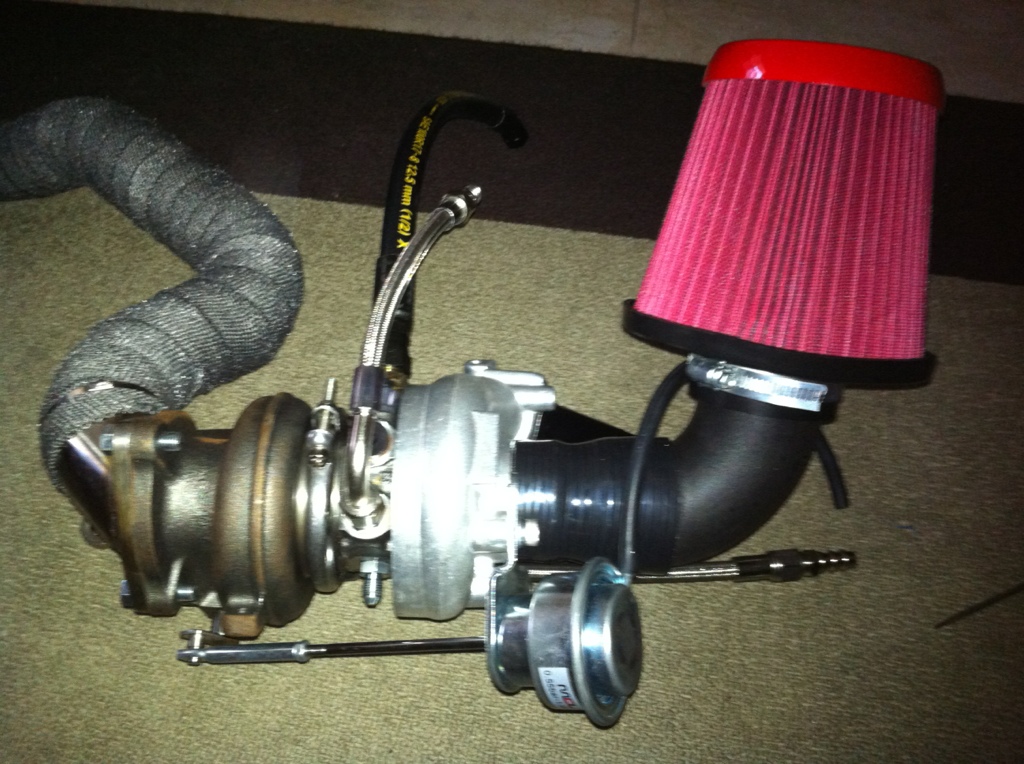

Looks so tiny
buffon01 is offline   Reply With Quote
Old 12-22-2011, 11:27 PM   #44
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

Especially when its next to that huge filter lol.
dliverance is offline   Reply With Quote
Old 12-23-2011, 02:51 PM   #45
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Is that a Chinabay 16g? Comp housing looks like it. Interested to see how it holds up if so.
matthewdesigns is offline   Reply With Quote
Old 12-23-2011, 11:47 PM   #46
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

Yes it is. It's temporary. I'm waiting to get my hands on an oem piece.
dliverance is offline   Reply With Quote
Old 12-24-2011, 01:02 AM   #47
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default



Right on. It seems like the Garrett knockoffs last a lot longer than the Mitsubishi ones so I was curious.
matthewdesigns is offline   Reply With Quote
Old 12-25-2011, 01:34 PM   #48
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

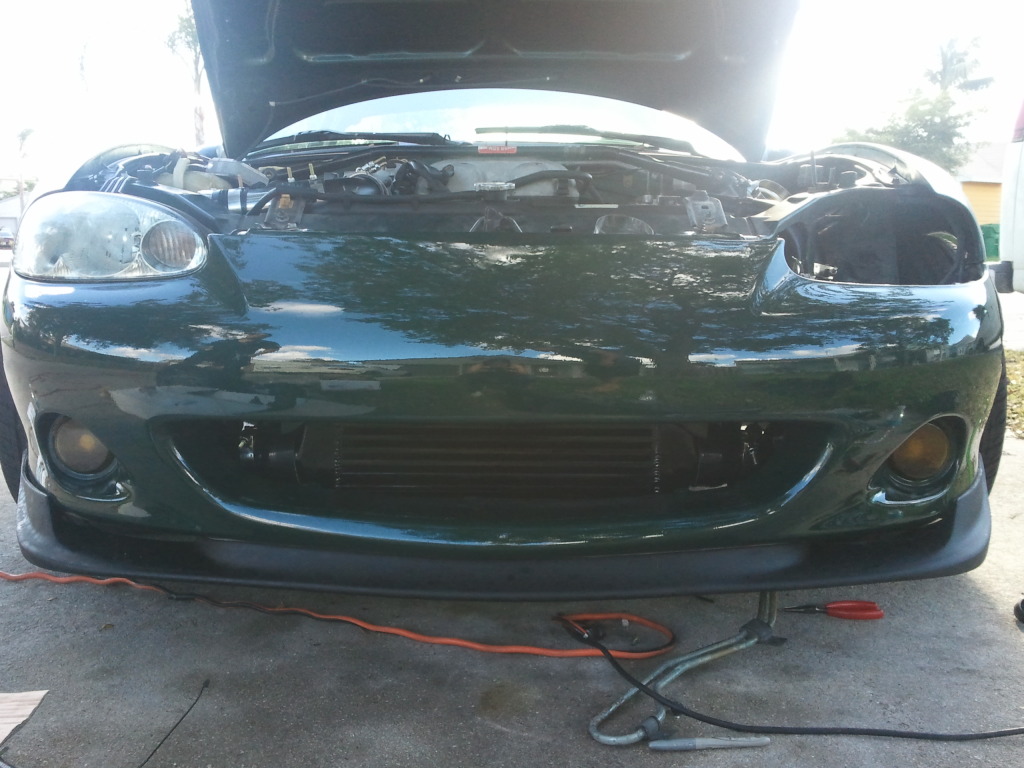

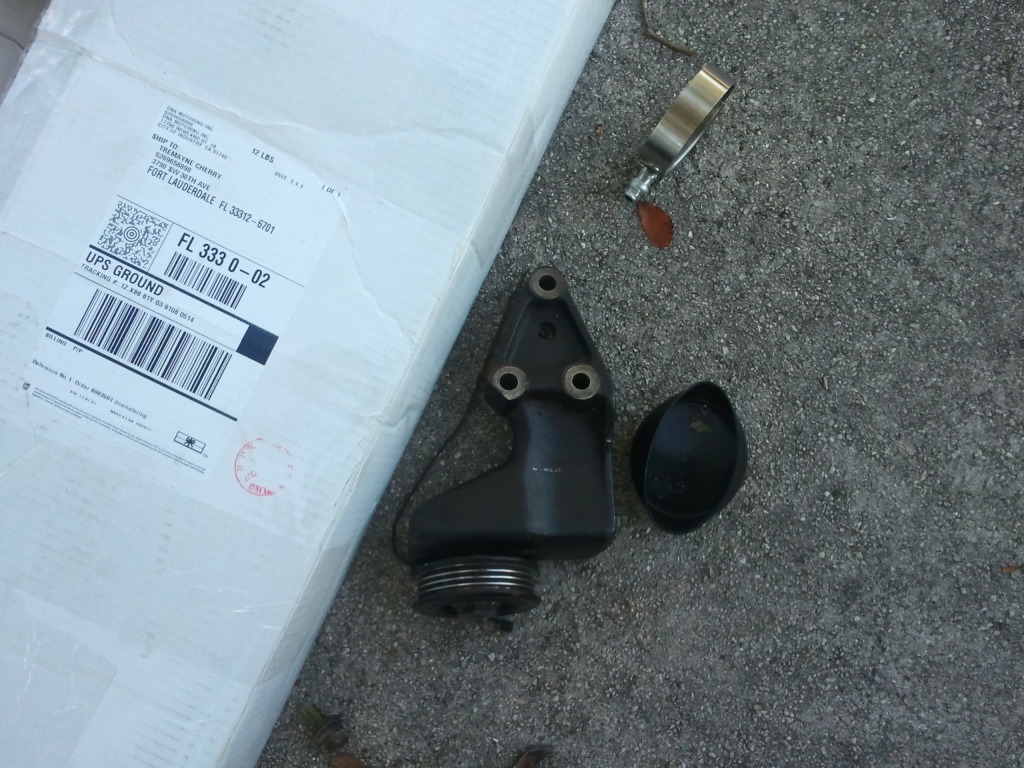

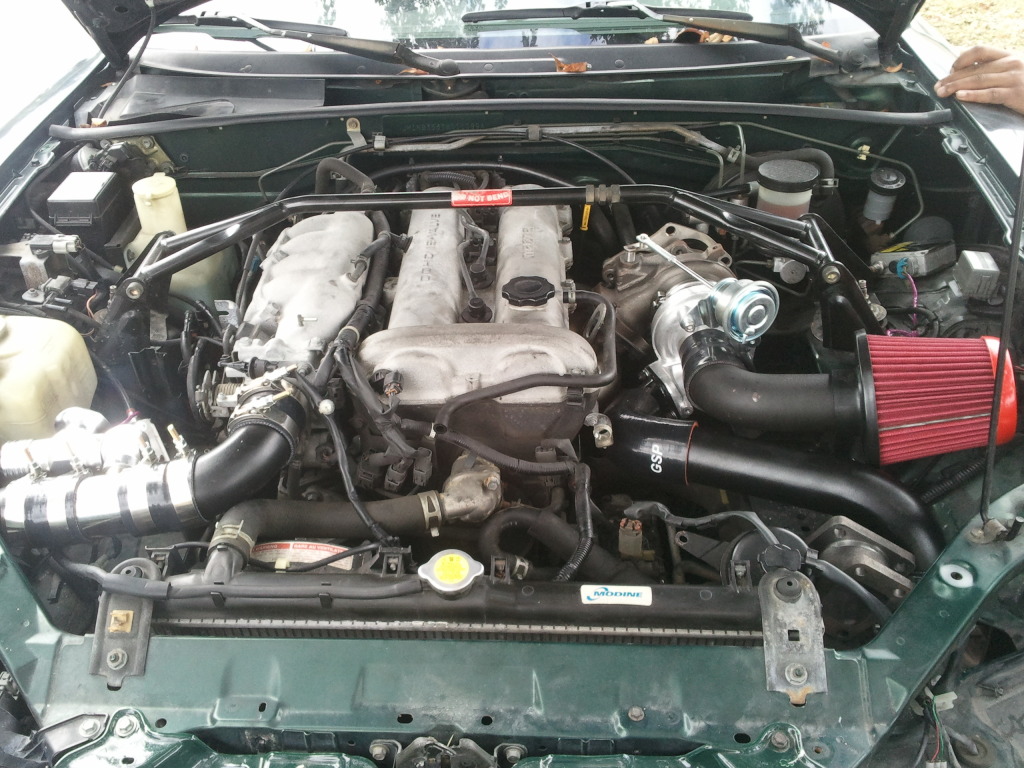

I got started on the install. Intercooler piping is complete and power steering has been removed. Next step is welding in my IAT bung and hacking up my downpipe.




Attached Thumbnails
My TD05 NB project-2011-12-24162155.jpg   My TD05 NB project-2011-12-24150334.jpg   My TD05 NB project-2011-12-25112607.jpg

Last edited by dliverance; 12-25-2011 at 01:49 PM.
dliverance is offline   Reply With Quote
Old 12-28-2011, 02:49 PM   #49
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

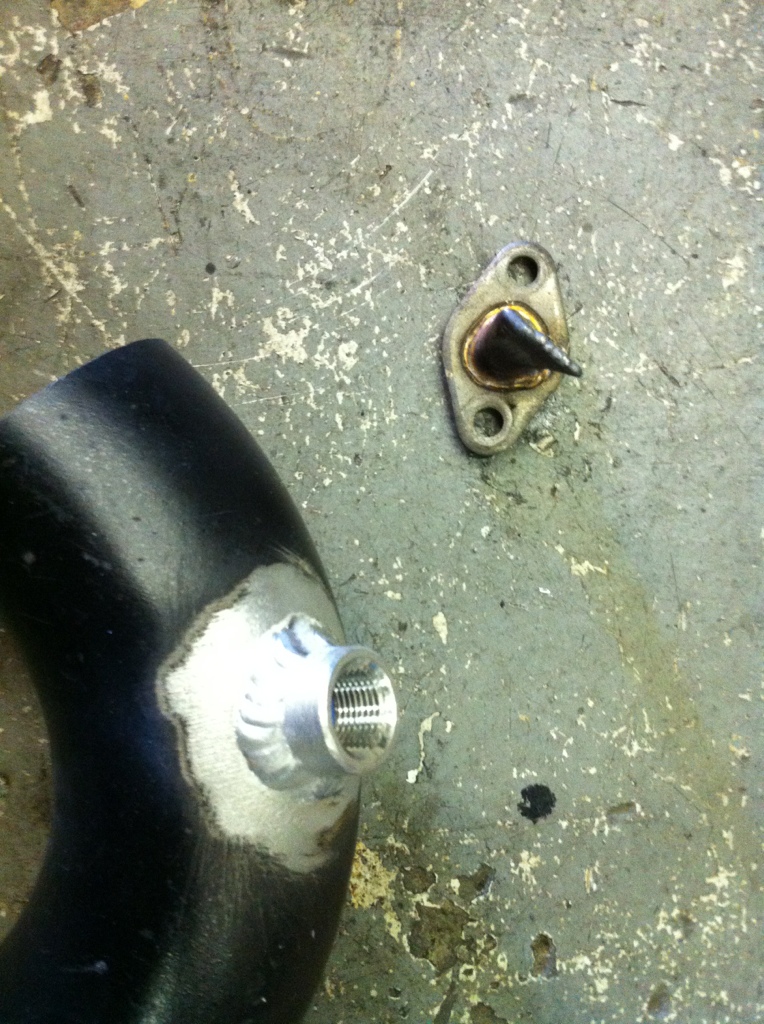

Got my AIT bung welded in as well as my EGR tube.

Test fitting my gauges.
Attached Thumbnails
My TD05 NB project-780cc5b6.jpg
dliverance is offline   Reply With Quote
Old 12-28-2011, 03:32 PM   #50
Junior Member

Join Date: Aug 2011
Posts: 172
Total Cats: 0
Default

Keep up the good work, good progression.
mr.na is offline   Reply With Quote
Old 12-29-2011, 10:48 PM   #51
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

Thank you sir.

Here's a little teaser.
dliverance is offline   Reply With Quote
Old 04-08-2012, 05:30 PM   #52
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

It's been a while since I've posted on here so here's an update.

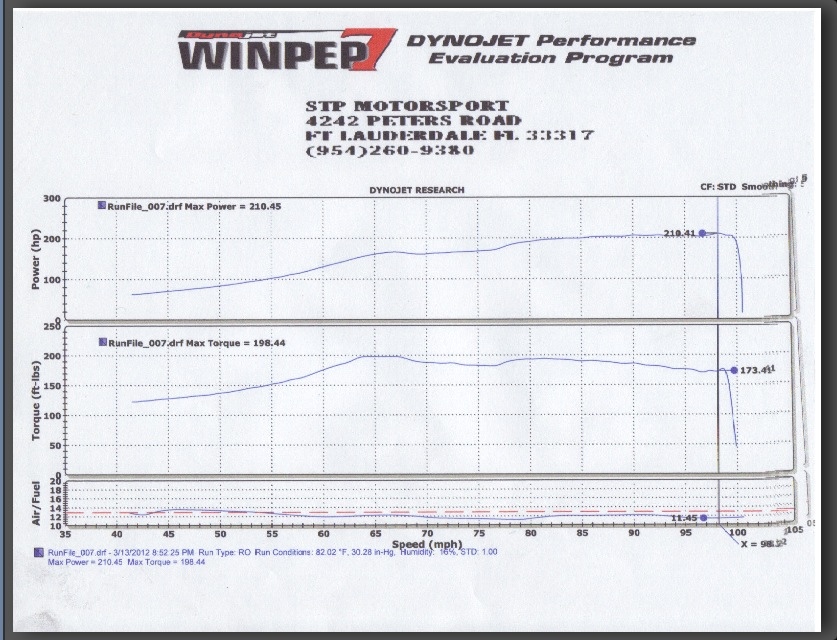

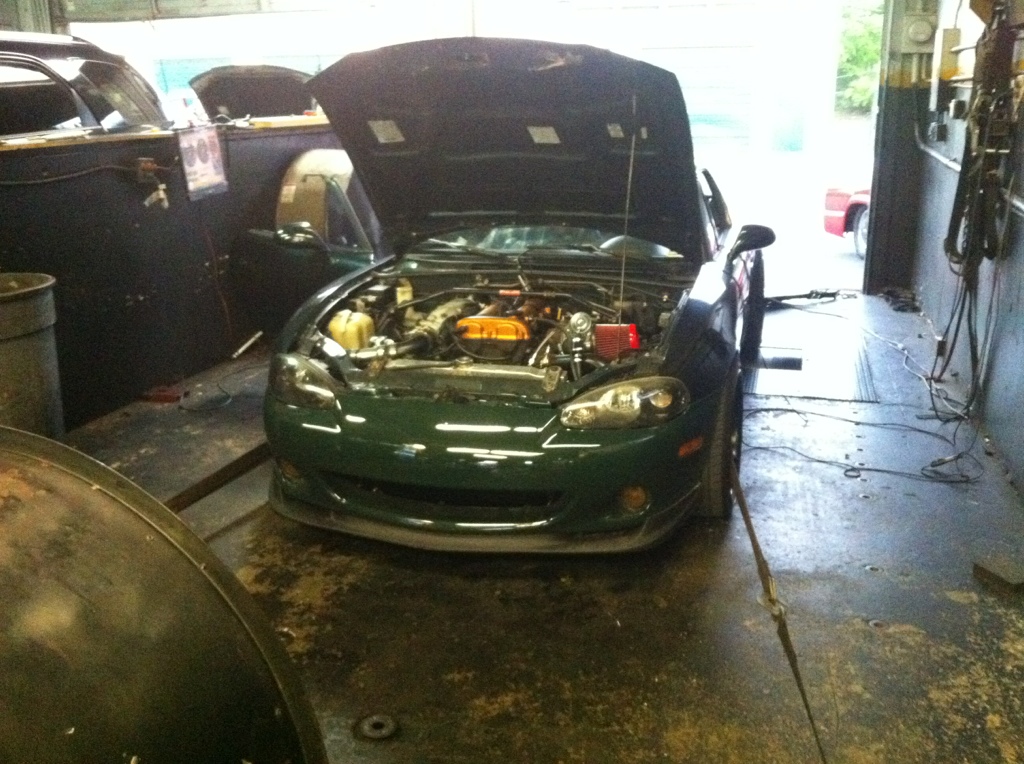

The current setup is making 210/198 whp/tq @8psi. Overall I'm happy with this setup but now I'm toying with the idea of 12psi. This coming friday I will be upgrading my injectors to rx7 550cc, and I might be going with an 18g cold side conversion for my turbo. Here are some pics and a video.


Attached Thumbnails
My TD05 NB project-587f2b56.jpg   My TD05 NB project-587f2b56.jpg   My TD05 NB project-4f0e47c5.jpg
dliverance is offline   Reply With Quote
Old 04-08-2012, 05:41 PM   #53
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Nice, you made progress quick...
buffon01 is offline   Reply With Quote
Old 04-09-2012, 08:01 PM   #54
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Good to see it up and running!
matthewdesigns is offline   Reply With Quote
Old 04-10-2012, 12:17 PM   #55
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Nice, thread delivers. So.. update us with your mani or downpipe breaks, I'm curious now.
Fireindc is offline   Reply With Quote
Old 04-10-2012, 02:31 PM   #56
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

Thanks for all of the compliments. As for the manifold and down pipe, no cracks or breaks. In fact the only problem I've had is a leaky gasket. I plan on taking everything apart soon and machining the surfaces.
dliverance is offline   Reply With Quote
Old 04-11-2012, 03:17 AM   #57
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Gaskets are a pain. Smart move on getting them surfaced flat. Flat surfaces don't need a gasket.
viperormiata is offline   Reply With Quote
Old 04-11-2012, 04:32 AM   #58
Junior Member
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

Wich injector do you currently run? Nice power for 8 psi, congrats!
Sentic is offline   Reply With Quote
Old 04-11-2012, 09:16 AM   #59
Junior Member
Thread Starter

Join Date: Jun 2010
Location: Hollywood Fl
Posts: 61
Total Cats: 2
Default

Right now I'm running 7mge 305cc injectors but this weekend I'll be getting either 460cc or 550cc rx7 injectors. Then I need to see if my walbro 190 will keep up or if I need to upgrade to a 255. If everything goes smooth I'll be bumping the boost up to 12psi with 250whp as my goal. Definitely going to need a clutch though.
dliverance is offline   Reply With Quote
Old 04-11-2012, 02:48 PM   #60
Newb

Join Date: Oct 2011
Posts: 2
Total Cats: 0
Default

sounds like u have a lil comp serge might wanna fix that soon
