Old 01-30-2010, 04:26 PM
  #61
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
Im waiting to get a laptop that has windows xp on it, my vista laptop is a pain. Im probably getting a cheap netbook to tune the car with. It does run though
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 01-30-2010, 05:14 PM
  #62
Elite Member
iTrader: (11)

Cspence's Avatar

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,065
Total Cats: 1
Default
Originally Posted by slutz4
I see you got one of my company's bins in your shop
Cspence is offline
Reply
Leave a poscat 0 Leave a negcat
Old 01-30-2010, 05:17 PM
  #63
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
ya its definitely good quality. Nothing better than not having to go to the hardware store anymore. I still need to expand my metric stuff though
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-10-2010, 03:06 PM
  #64
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
UPDATE

The cars running well with no afm on megasquirt, and I have the aem wideband as my primary o2 sensor working well with the pnp. Now all I gotta do is put in my rx7 460 injectors and Ill be able to drive it =). Well and I need to wait for the foot of snow on the roads to melt lol.
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-13-2010, 05:28 PM
  #65
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default

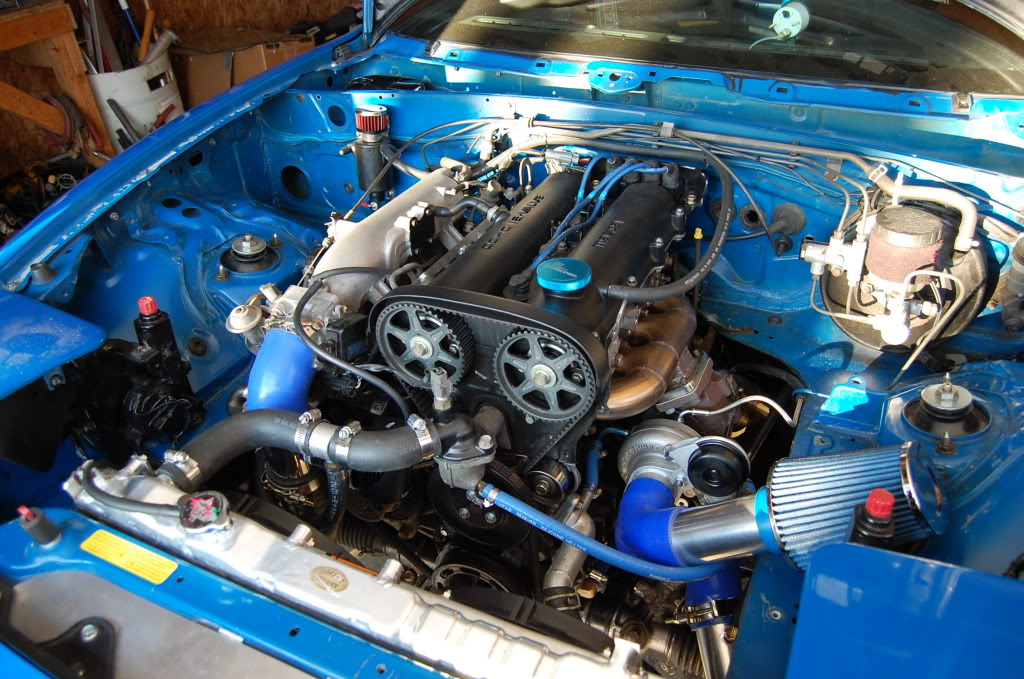

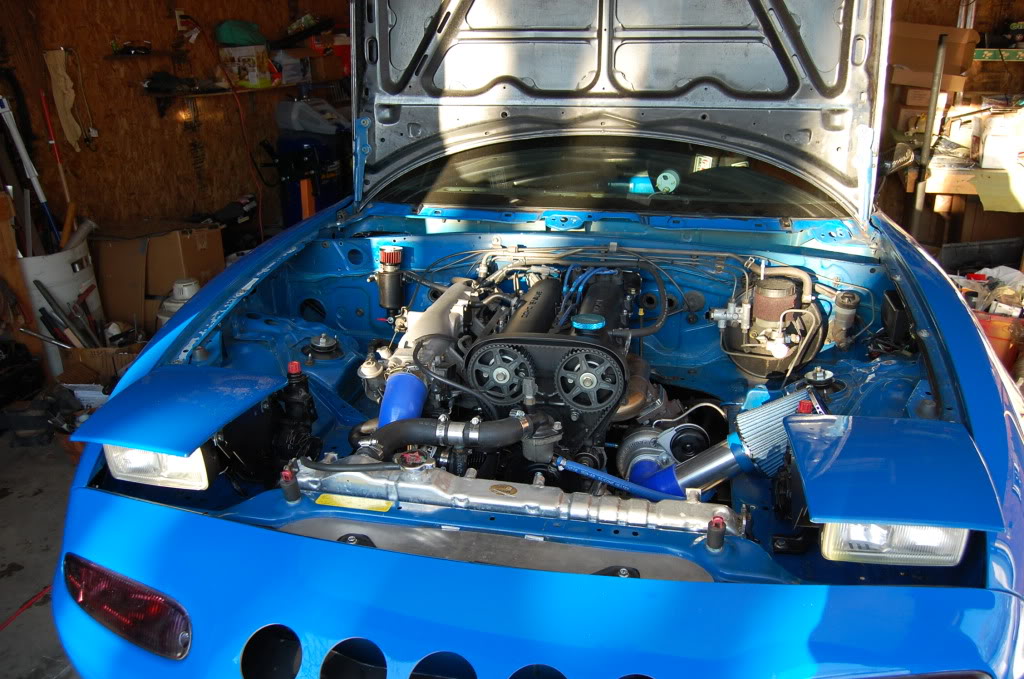

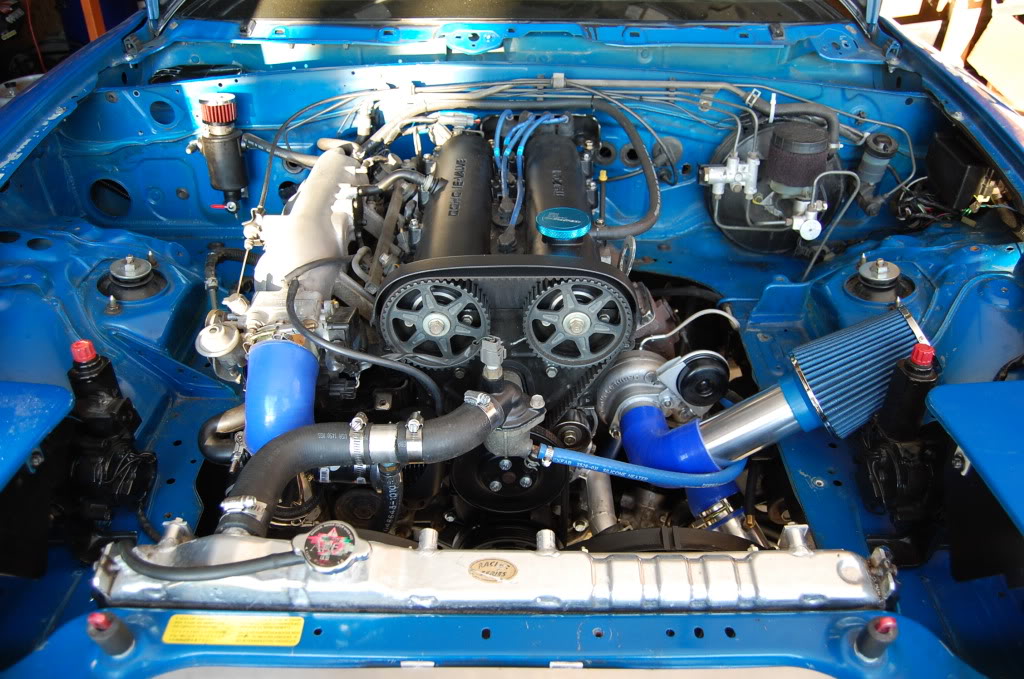

I finished rerouting wires on the passenger side and finally put a filter on the turbo.

Name: DSC_0002.jpg Views: 1745 Size: 205.0 KB
Name: DSC_0005.jpg Views: 951 Size: 200.4 KB
Name: DSC_0008.jpg Views: 415 Size: 186.6 KB
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-13-2010, 08:13 PM
  #66
Senior Member
iTrader: (7)

jtothawhat's Avatar

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,376
Total Cats: 4
Default
Props on the engine bay, looks really clean...
jtothawhat is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-13-2010, 11:58 PM
  #67
Senior Member

apariah's Avatar

Join Date: Apr 2008
Location: NHR, TX
Posts: 538
Total Cats: -2
Default
I agree, it looks really good. Just wondering is it track only> You mentioned snow on the ground, but it doesn't look like you have a heater based on couple of hoses that look like they are missing.

Originally Posted by jtothawhat
Props on the engine bay, looks really clean...
apariah is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-13-2010, 11:59 PM
  #68
Senior Member

apariah's Avatar

Join Date: Apr 2008
Location: NHR, TX
Posts: 538
Total Cats: -2
Default
Where did you move the under the hood fuse panel?
apariah is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-14-2010, 12:06 AM
  #69
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,174
Total Cats: 180
Default
Originally Posted by slutz4
I havent started the car yet since putting on the turbo. Im sure it will be somewhat loud but not that bad. I live in an area where mustangs drive to the dragstrip with open headers. Im sure Ill be ok. Ill make sure to get some good videos once the car is running. But I expect that is still about a month away.
I ran my car with out the muffler last night, exhaust ended right before the differential. It was OMG loud. The turbo sounded amazing through the exhaust though.

Anyways that engine bay is looking super clean.
FRT_Fun is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-14-2010, 08:14 AM
  #70
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
I take it to local car meets and stuff like that, but its definitely not my daily by any means. The under hood fuse box is mounted under the dash on the passenger side.
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-15-2010, 06:35 AM
  #71
Newb

rxmx's Avatar

Join Date: Jul 2008
Posts: 17
Total Cats: 1
Default
Such a clean engine bay, looks very nice.
rxmx is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-15-2010, 06:53 AM
  #72
Junior Member
iTrader: (3)

Reverend Greg's Avatar

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 350
Total Cats: -26
Default
That looks smurfy,great job cant wait to see it when it is done.
(G)
Reverend Greg is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-20-2010, 07:32 PM
  #73
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
Well I somewhat messed up my ignitor by megasquirt. But the car is running fairly good other than that. Ive been driving it a decent amount of the weekend and have been playing around with settings. I put the dual feed fuel rail in, rx7 460 injectors, shock tower bar, and gutted the hood somewhat because I was bored lol. Anyways here are the pics.

Name: enginebay1.jpg Views: 2622 Size: 186.5 KB
Name: engine2.jpg Views: 376 Size: 178.6 KB
Name: engine4.jpg Views: 380 Size: 153.8 KB
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-20-2010, 10:49 PM
  #74
Elite Member
iTrader: (8)

shlammed's Avatar

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
Default
that t25 is hella clean. is it new, or from an sr20 type deal...
shlammed is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-21-2010, 08:11 AM
  #75
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
sr20 type deal. People around here sell them for 100 dollars in decent shape. There just so cheap it was hard to pass up as a starting point.
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2010, 06:51 PM
  #76
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default

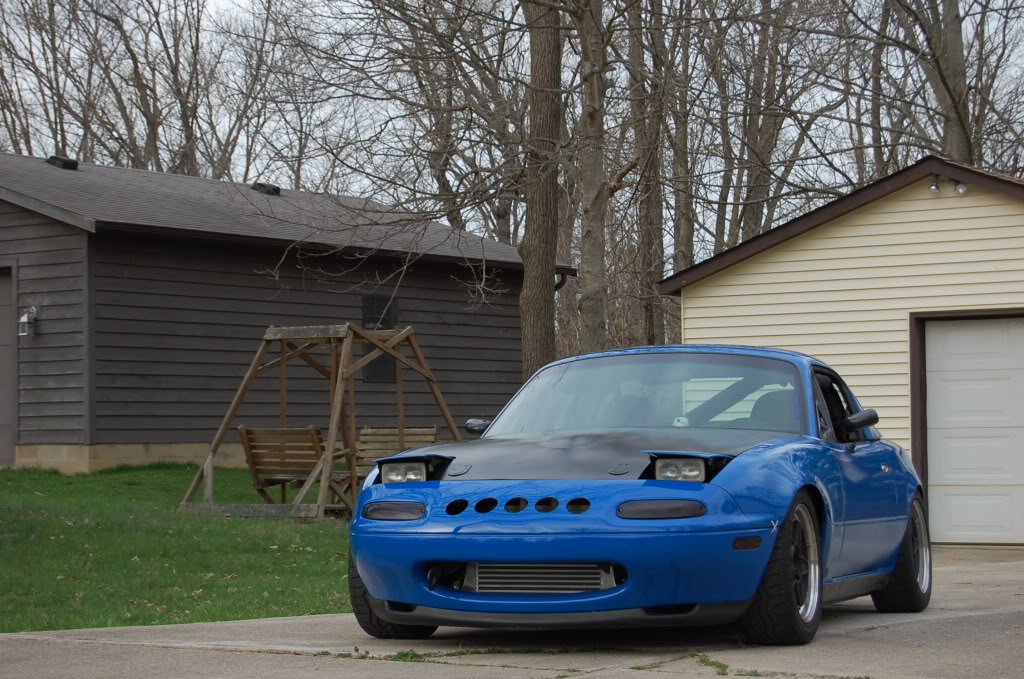

well I made my rear upper control arms longer, I guess it took out about 2 degrees negative camber. Heres a before picture.

Name: b4arms.jpg Views: 365 Size: 208.9 KB

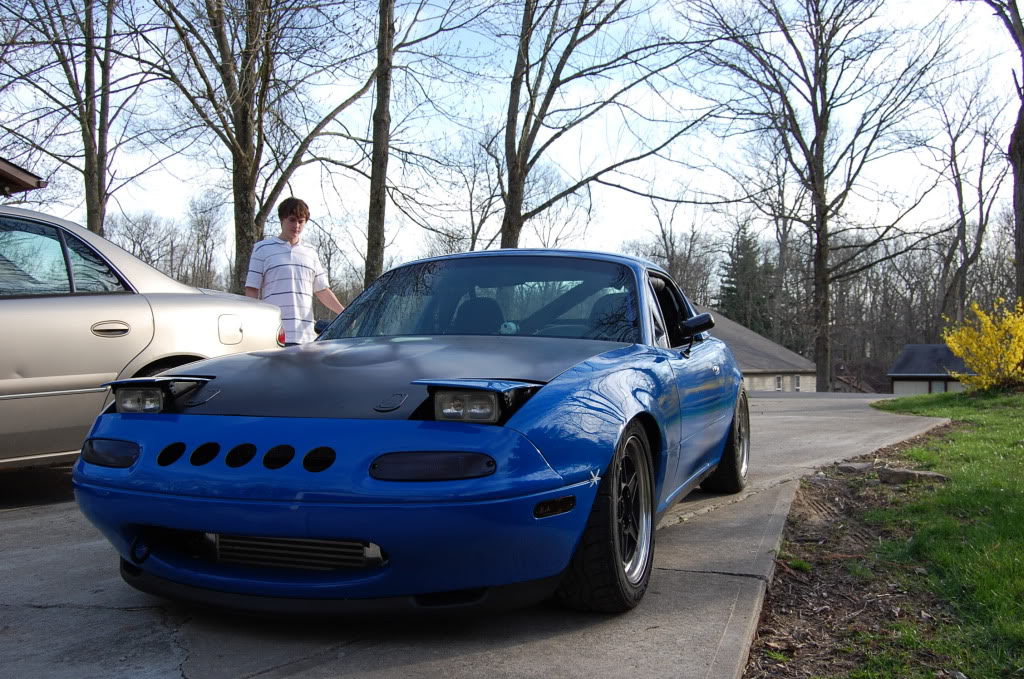

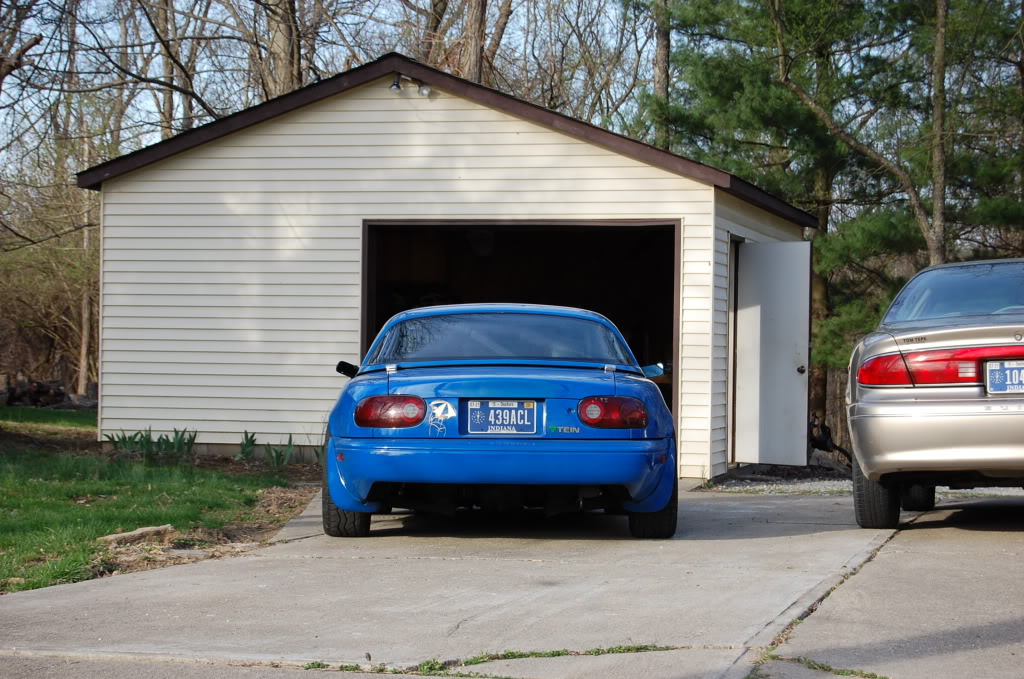

.... AND after

Name: frontal.jpg Views: 373 Size: 246.4 KB
Name: rear.jpg Views: 372 Size: 203.8 KB
Name: sideshot.jpg Views: 374 Size: 137.1 KB

Ill try to get a picture of the actual. My buddy took pictures of them after we made em.
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2010, 07:24 PM
  #77
Junior Member
iTrader: (3)

Reverend Greg's Avatar

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 350
Total Cats: -26
Default
Thats cool...In for those pics Sir..
(G)
Reverend Greg is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2010, 08:09 PM
  #78
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default

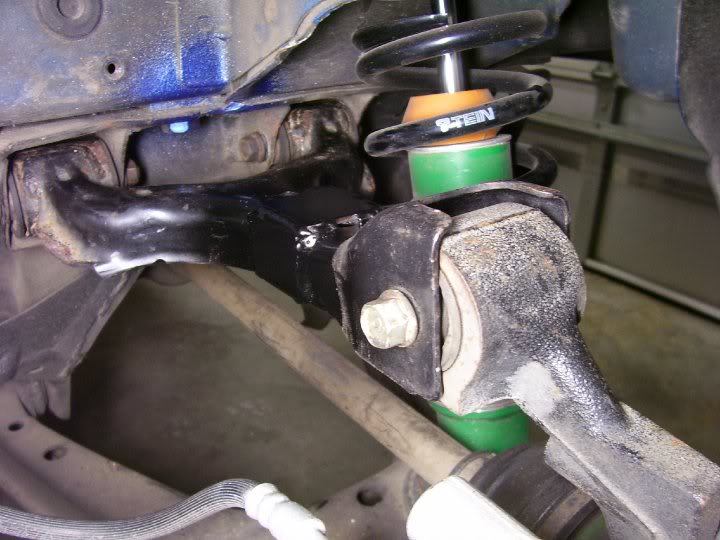

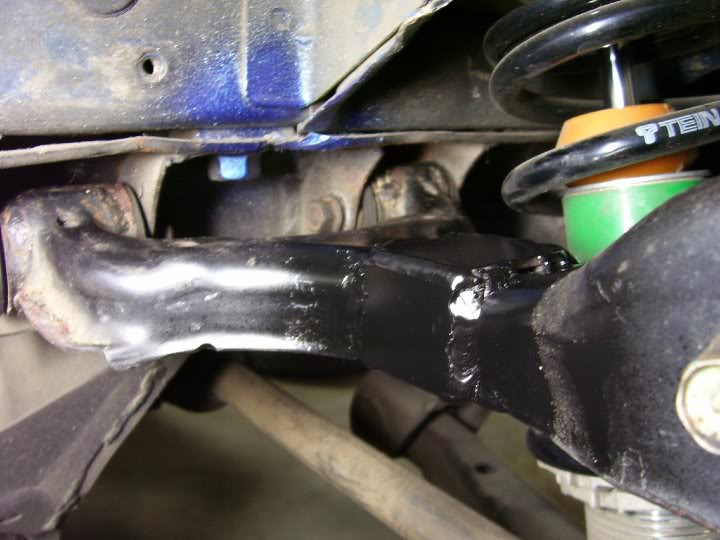

dont pay attention to the ricer blue paint on the subframe.

Name: 25727_721588588735_21416202_4015635.jpg Views: 404 Size: 66.9 KB
Name: 25727_721588583745_21416202_4015635.jpg Views: 352 Size: 57.3 KB
slutz4 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2010, 08:16 PM
  #79
Junior Member
iTrader: (3)

Reverend Greg's Avatar

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 350
Total Cats: -26
Default
How long was the extention?
(G)
Reverend Greg is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2010, 08:18 PM
  #80
Senior Member
Thread Starter
iTrader: (3)

slutz4's Avatar

Join Date: Mar 2007
Posts: 566
Total Cats: 2
Default
about .6 inch if I remember right. Half an inch goes along way with adjustment. Im honestly not sure how much camber I removed it may of been even more.
Last edited by slutz4; 04-04-2010 at 10:14 PM.
slutz4 is offline
