Default Need info about this Turbonetics T3 (.48 hotside) turbo please!

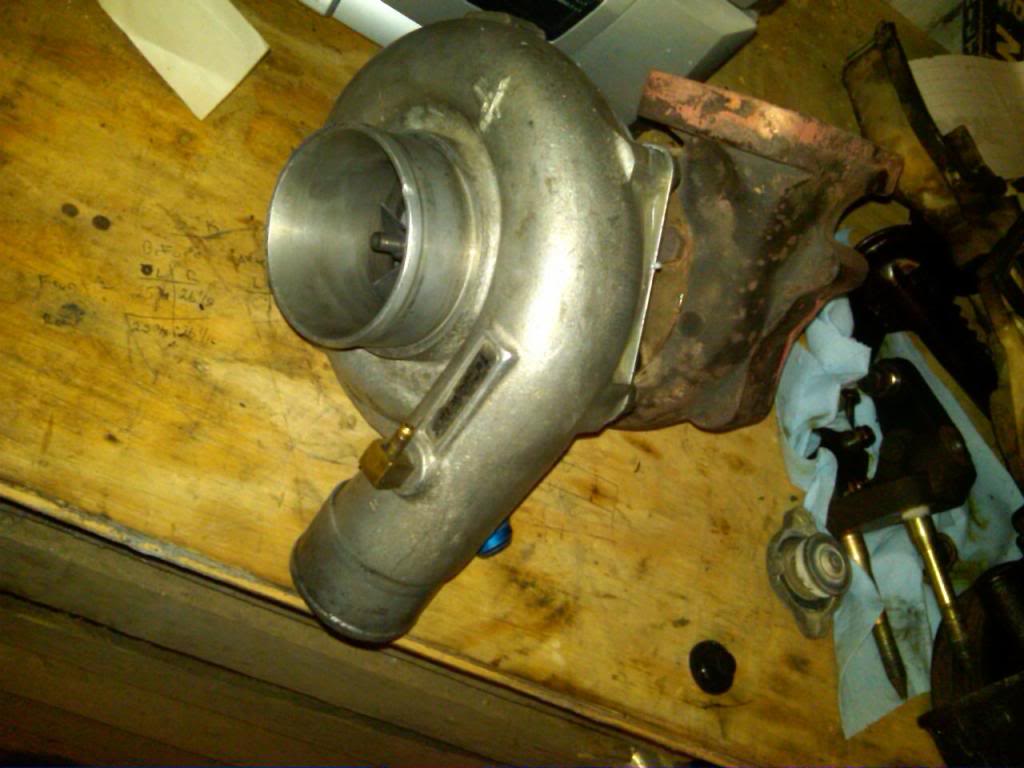

I've been told this is a Turbonetics with a T3 flange, external wastegate, .48 hotside and a compressor that is "no bigger than a .60" (more accurate size coming soon). Can anyone tell me anything about this turbo?

My friend is trying to sell it to me for $200 and he just had it sent out to be rebuilt. No shaft play and no smoke came from the turbo.

I'm trying to build my car for autox and maybe the occasional track day. Maybe. I want to run somewhere around 225-250hp with meth and I don't want too much boost lag or too crazy of a spike when the turbo hits full boost. Does anyone know if my goals are achievable with this turbo? Is it too small? Too big?

Name:  IMG-20110701-00220.jpg
Views: 14
Size:  82.1 KB

Last edited by spitefulcheerio; 07-03-2011 at 03:40 PM.
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 11:50 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

wheel looks huge measure the inducer
Braineack is offline   Reply With Quote
Old 07-03-2011, 11:51 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

That picture is out of proportion...it's from a blackberry.

It's only 2.5"

(wow...crazy that I refreshed the page like right after you posted)
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 12:11 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

if the inducer is 63mm than that's a huge t4 wheel, probably 71 or 76 mm exducer.
Braineack is offline   Reply With Quote
Old 07-03-2011, 12:13 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

so what you're trying to say is: there will be substantial lag, a pretty strong boost spike and more power than I'm looking to make?
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 12:24 PM   #6
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

I think I may have made a mistake. did you mean the inlet of the turbo? or the size of the actual wheel?
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 12:28 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

size of wheel dawg.
Braineack is offline   Reply With Quote
Old 07-03-2011, 12:34 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

I don't know that and don't have the turbo with me to pull apart and measure :(
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 12:47 PM   #9
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

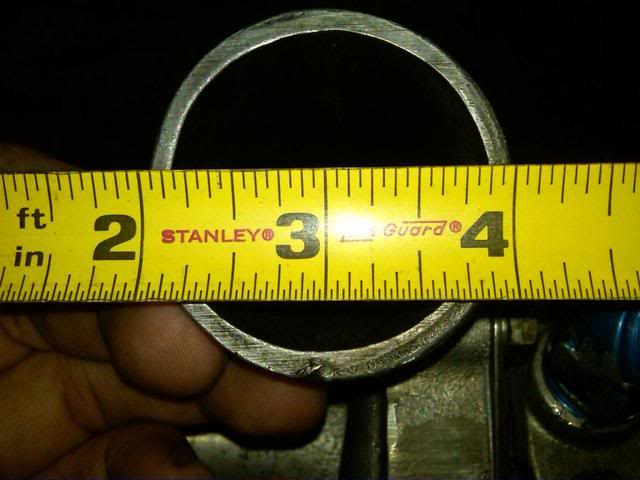

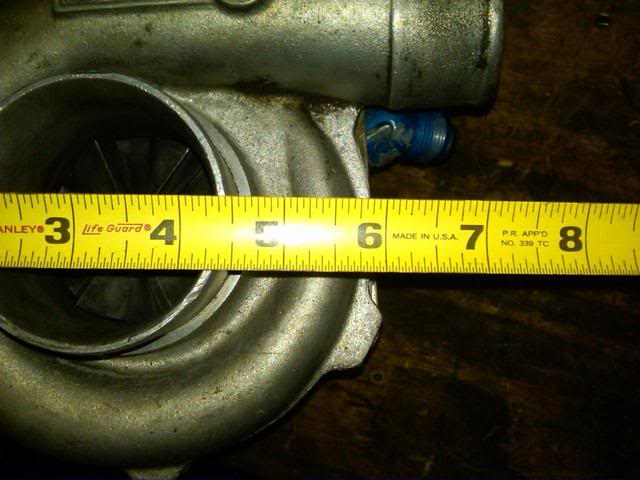

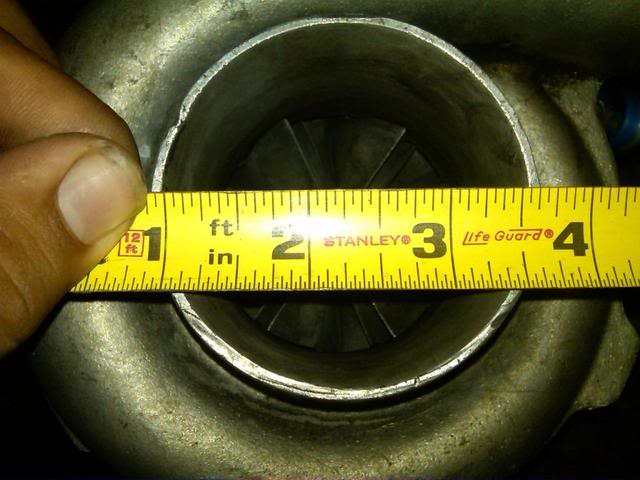

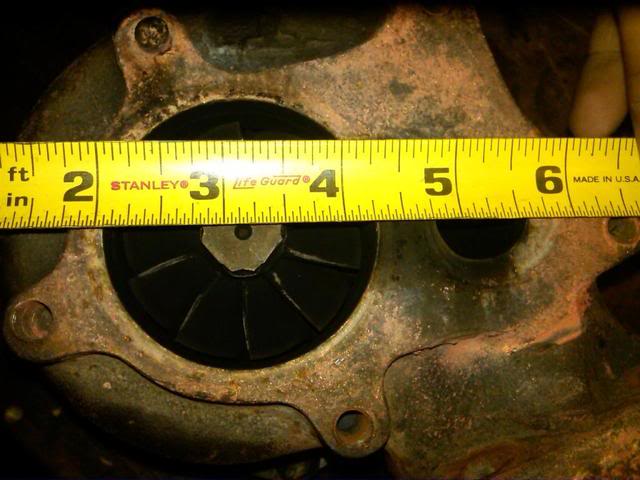

These are a few measurements a friend just sent me

Name:  IMG-20110703-00226.jpg
Views: 10
Size:  45.7 KB

Name:  IMG-20110703-00230.jpg
Views: 10
Size:  43.2 KB

Name:  IMG-20110703-00231.jpg
Views: 10
Size:  44.9 KB

Name:  IMG-20110703-00232.jpg
Views: 10
Size:  36.9 KB
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 01:57 PM   #10
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

that was just rebuilt?
RyanRaduechel is offline   Reply With Quote
Old 07-03-2011, 02:02 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by spitefulcheerio View Post
I don't want too much boost spike or too crazy of a spike when the turbo hits full boost.

not the turbo for you.
Braineack is offline   Reply With Quote
Old 07-03-2011, 03:21 PM   #12
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

Quote:
Originally Posted by RyanRaduechel View Post
that was just rebuilt?
I'm pretty sure these were taaken right before he had it sent out. I've seen the turbo and it looks way better than this.

Quote:
Originally Posted by Braineack View Post
not the turbo for you.
okay. Thanks for the tip man
spitefulcheerio is offline   Reply With Quote
Old 07-03-2011, 06:19 PM   #13
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

so you havent bought it? If you did, you wanna sell it?
RyanRaduechel is offline   Reply With Quote
Old 07-03-2011, 07:58 PM   #14
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

havent bought it yet but if you wanna pay more than I can pick it up for......
spitefulcheerio is offline   Reply With Quote
Old 07-06-2011, 09:53 PM   #15
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

It depends on what you want to do. If you want to track your car, autocross or do anything other then street pulls and drag racing then thtas prolly not an ideal turbo, If you want high 200s-high 300hp range for a rediculous street/drag car then its prolly great. Looks like a Turbonetics 60-1.
Its going to lagg till 4k rpms then its gonna feel like a semi truck hit you from behind doing 60. That is if its a 60-1 journal bearing.
On second thought you have a vvt head and it seems like the honda crew with the ls motors (1.8l DOHC non vtec ) spool that turbo just fine, they have same rpm limit as us at about 7500 and they make about the same power stock for stock, 140ish crank. It might work fine, but it will prolly make your power goals on very very low boost.

Last edited by 1slowna; 07-06-2011 at 10:35 PM.
1slowna is offline   Reply With Quote
Old 07-09-2011, 11:58 PM   #16
Junior Member
iTrader: (2)

Join Date: Feb 2011
Posts: 110
Total Cats: 1
Default

Could be a super 60. My buddy had one on his civic and the 1.6 spooled fast and made great top end.
Wildanimal is offline   Reply With Quote
