Old 02-15-2009, 11:18 AM   #21
Junior Member

Join Date: Jul 2008
Location: Savannah-ish GA
Posts: 57
Total Cats: 1
Default

Glad to see you didn't waste any time with that downpipe

Build quality looks top notch from those pics.
Archetype is offline   Reply With Quote
Old 02-15-2009, 11:28 AM   #22
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by johnwag View Post
Dan, I really like your design! I've been contemplating replacing my FM single tip with a lightweight, straight-through design like yours. My only concern is loudness on an n/a setup. I'm staying n/a until I can justify spending the $$$ on FI, and I love the simplicity of this setup.

Alot of us have shown interest in hearing a sound clip. If you can provide one, that would be great. I realize that it would be on a turbo car, too.
If you have a glasspack for a reasonator on the 2 1/2 it isn't bad, just a little louder than I liked. It would of been perfect with the Turbo. I should of kept it.

But now I'm switching to the 3" Enthuza system.
Toddcod is offline   Reply With Quote
Old 02-15-2009, 11:31 AM   #23
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by danscreations View Post
The exhaust will be hand built and test fitted for quality. Will come with all hangers (use stock locations and chassis mounting areas), flanges, gaskets, and hardware. Due to shipping purposed the exhaust will have to be 2pcs instead of one so another flange or slip fit connection will be added. Flameproof Paint will be included to spray on arrival (keep from getting chipped up in shipping).

For those who are interested PM me and I'll start a list. Don't think it will take long to get 4-6 ppl.

Man I still have to make a test pipe. Those are good prices. I noticed that in the picture you don't have a rear brace. Do you have one.
I was just woundering if it clears it. I had some issues with the brace clearance once.

Mabe he can make a brace to sell with it?
Toddcod is offline   Reply With Quote
Old 02-15-2009, 11:49 AM   #24
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Alright guys! Posted up a list of interested ppl and those 100% down on an exhaust. Weather is crappy today and the Daytona 500 is going on in town today so I'm not going anywhere. I will do something Monday if the weather permits for sound clips. I'll talk to David Wallen's of Grass Roots Motorsports about using his car for 1.8L fitment which shouldn't be any different as well as a sound clip on an NA. Only downside is we'd be using my exhaust which is 2.5" so it will be the LOUDEST of the bunch on NA's. Sorry Miata Turbo guys....know this doesn't apply to you. I'll also take video of the install on his car etc so you can see how it goes on.

Rear Brace/Tow Hook Area
I know for sure no rear braces will fit with the exhaust other than MAYBE 949 Racings but looks like that might be a fail too. We were talking about this when making the exhaust and we have a great solution but just haven't made it yet. Based off 949's inharited design we're going to do the same however instead of going UNDER the exhaust createding a "U" bend to go up and OVER the exhaust eleminating the age old issue. Emilio if you have the resources to do this and want to by all means! Sure it would work for more than just this exhaust. The passengers side rear tow hook area MAY have to be trimmed. Mine was for the last exhaust systems so it was no issue. If so it will be minimal but I don't think you will have to do anything.

Mufflers/Resignators
I can get anything magnaflow you may want however keep in mind pricing may very depending on what you want as well as build price will reflect slightly as it won't be an exact copy anymore.

Last edited by danscreations; 02-15-2009 at 12:03 PM.
danscreations is offline   Reply With Quote
Old 02-15-2009, 12:22 PM   #25
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: south FL
Posts: 215
Total Cats: 0
Default

For the turbo guys, i can maybe offer another alternative (clears rear bracing)
i'll have pics up tue.

3" stainless using Borla straight through muffler.

danscreations, where in FL are you and what did you end up doing with your other wheels that are pictured in your sig?
robino is offline   Reply With Quote
Old 02-15-2009, 12:50 PM   #26
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by robino View Post
For the turbo guys, i can maybe offer another alternative (clears rear bracing)
i'll have pics up tue.

3" stainless using Borla straight through muffler.

danscreations, where in FL are you and what did you end up doing with your other wheels that are pictured in your sig?
He said Daytona 500 is going on where he is
Rafa is offline   Reply With Quote
Old 02-15-2009, 01:17 PM   #27
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

In for sound clips.

Would you be able to fab up a 2.5-3" adapter test pipe for those of use who want 3" exhaust but can only get a 2.5" downpipe?
miatamania is offline   Reply With Quote
Old 02-15-2009, 01:31 PM   #28
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

when's an NB version coming out?
Marc D is offline   Reply With Quote
Old 02-15-2009, 03:22 PM   #29
Newb
iTrader: (1)

Join Date: Jul 2008
Location: Il
Posts: 10
Total Cats: 0
Default

it looks sooo nice, but is there going to be a NB version coming out?
Js_roadster is offline   Reply With Quote
Old 02-15-2009, 03:57 PM   #30
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

that shop makes me drool

nice exhaust too
240_to_miata is offline   Reply With Quote
Old 02-15-2009, 04:06 PM   #31
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Hey Dan,

Since you are over in Daytona, just let me know if he want's to get into the NB market. I'm over in Orlando, and would gladly make the trip over there sometime in the summer.
coastertrav is offline   Reply With Quote
Old 02-15-2009, 04:16 PM   #32
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

looks great.
18psi is offline   Reply With Quote
Old 02-16-2009, 06:24 PM   #33
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

Quote:
3.5" Stainless Steel Mandrel 45 degree
Did you polish after the fact...or you got a piece already polished and cut it..
rlogan is offline   Reply With Quote
Old 02-17-2009, 02:51 AM   #34
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I have another concern/question with the exhaust. I dont mind doing some minor alterations to make it fit, but how do you know this one exhaust will fit all of the slight variations from downpipe design? Alot of people make custom dp's and from what I hear the Bell down pipe is hit or miss on fitment. Id hate to get one and have to have it cut and rewelded (though not a big deal really).

Also, do you guys plan to do more runs of this exhaust after the first 6? Id like to buy one now, but I have yet to even buy my MS or turbo. Dont want to dump $500 on an exhaust just to change my mind about my turbo plans 2 or 3 months later and be stuck with it. If you do plan to do another run in a few months, I would for SURE want one then, its more of a time issue now. I dont want to jump the gun and build my turbo system backwards if you know what I mean.
NA6C-Guy is offline   Reply With Quote
Old 02-17-2009, 09:15 AM   #35
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Quote:
Originally Posted by coastertrav View Post
Hey Dan,

Since you are over in Daytona, just let me know if he want's to get into the NB market. I'm over in Orlando, and would gladly make the trip over there sometime in the summer.
Will do! I just posted up some information on CR.NET about this. Guys are asking for axel backs, etc, etc. So I first have to find out what exactly is different between them (tip location, etc, etc). I'll contact you when the time comes.


Quote:
Originally Posted by rlogan View Post
Did you polish after the fact...or you got a piece already polished and cut it..
After the fact....we have a full polishing shop at CCW (main job) where the guys work on a peice by peice basis. I can do it but for what they'll charge me there no bother to have black rasin size bugers for 3 days afterwards. Hate to see what it does to your lungs. One of those jobs where you come in white and leave black.


Quote:
Originally Posted by NA6C-Guy View Post
I have another concern/question with the exhaust. I dont mind doing some minor alterations to make it fit, but how do you know this one exhaust will fit all of the slight variations from downpipe design? Alot of people make custom dp's and from what I hear the Bell down pipe is hit or miss on fitment. Id hate to get one and have to have it cut and rewelded (though not a big deal really).

Also, do you guys plan to do more runs of this exhaust after the first 6? Id like to buy one now, but I have yet to even buy my MS or turbo. Dont want to dump $500 on an exhaust just to change my mind about my turbo plans 2 or 3 months later and be stuck with it. If you do plan to do another run in a few months, I would for SURE want one then, its more of a time issue now. I dont want to jump the gun and build my turbo system backwards if you know what I mean.
We'll only worry about fitting to stock OE equipment. If a new header or downpipe changes where they meet up (which they shouldn't so they work with the OE equipment) it's on you to have either shortened or extended. The guy I'm getting all the parts from is getting us magnaflow systems for each year span to copy lengths, etc. so there should be zero issues.

Please keep in mind I never ment for this to be what it is now. It could be an inital run, could be two, three, etc. I don't have an exact plan. I talked to my friends Danny who's doing all the welding and were talking about making nice jigs to produce these in so we can make them whenever down the road but I'm looking at taking baby steps right now.
danscreations is offline   Reply With Quote
Old 02-17-2009, 09:25 AM   #36
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Soundclips added on Post #1
danscreations is offline   Reply With Quote
Old 02-17-2009, 10:56 AM   #37
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Doesn't sound bad...

How is the drone?
coastertrav is offline   Reply With Quote
Old 02-17-2009, 11:34 AM   #38
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Don't need the exhaust but sure would like photography lessons.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-17-2009, 11:55 AM   #39
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Quote:
Originally Posted by coastertrav View Post
Doesn't sound bad...

How is the drone?
Not bad, really depends on the tip length. The longer the less it seams but the shorter tip like mine doesn't quite get it exhaust out from under the car as much as others. The longer tip always bothered me though since the bumpers cut back twards the car. Hangs out a tad too much.
danscreations is offline   Reply With Quote
Old 02-17-2009, 01:06 PM   #40
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Quote:
Originally Posted by danscreations View Post
Rear Brace/Tow Hook Area
I know for sure no rear braces will fit with the exhaust other than MAYBE 949 Racings but looks like that might be a fail too. We were talking about this when making the exhaust and we have a great solution but just haven't made it yet. Based off 949's inharited design we're going to do the same however instead of going UNDER the exhaust createding a "U" bend to go up and OVER the exhaust eleminating the age old issue. Emilio if you have the resources to do this and want to by all means! Sure it would work for more than just this exhaust. The passengers side rear tow hook area MAY have to be trimmed. Mine was for the last exhaust systems so it was no issue. If so it will be minimal but I don't think you will have to do anything.

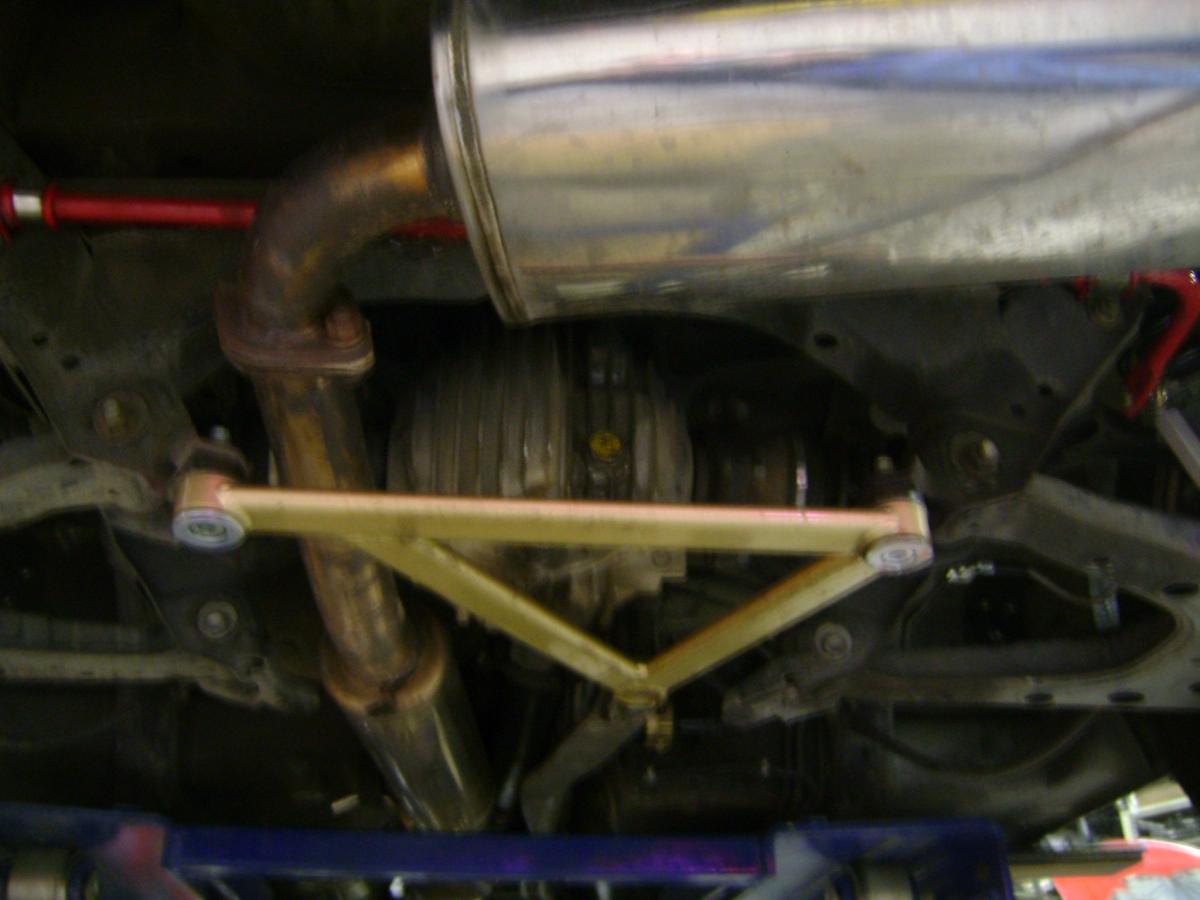

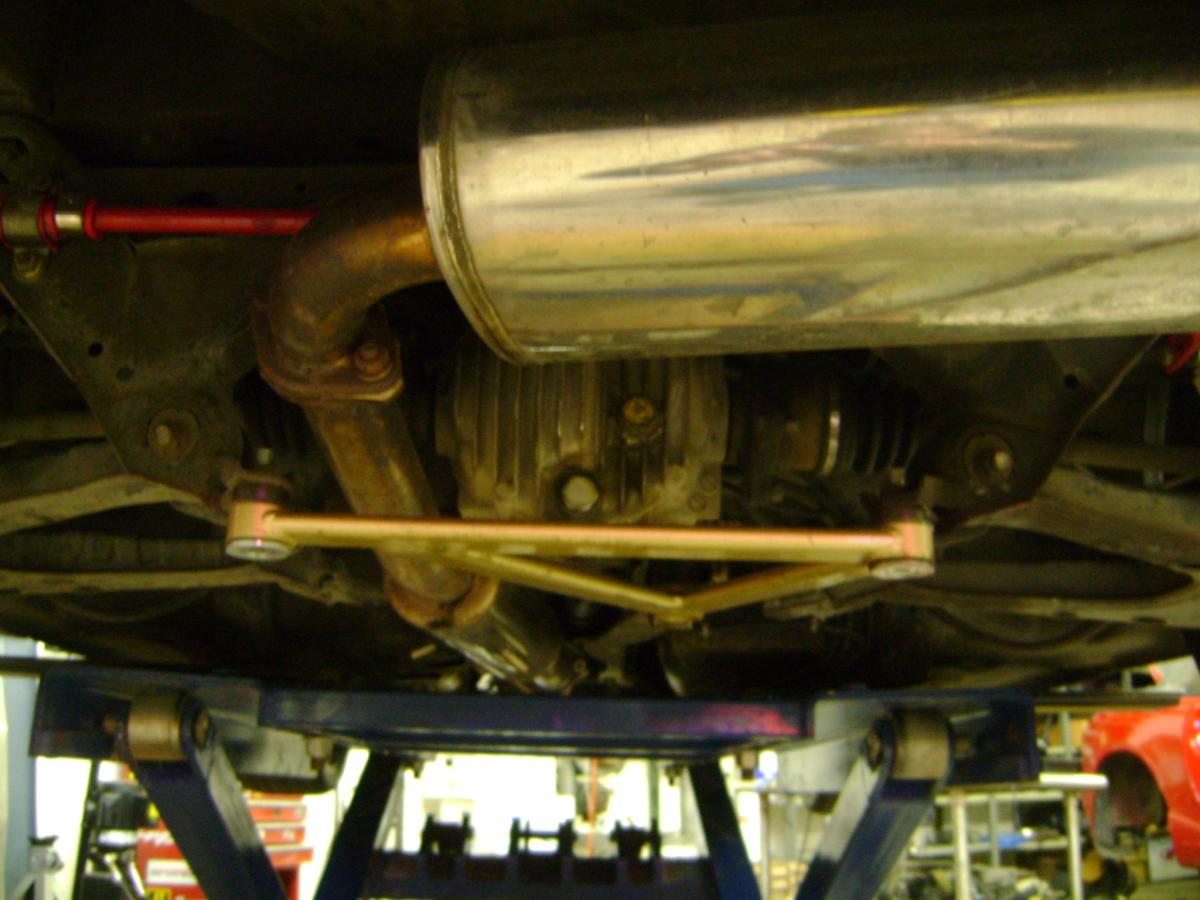

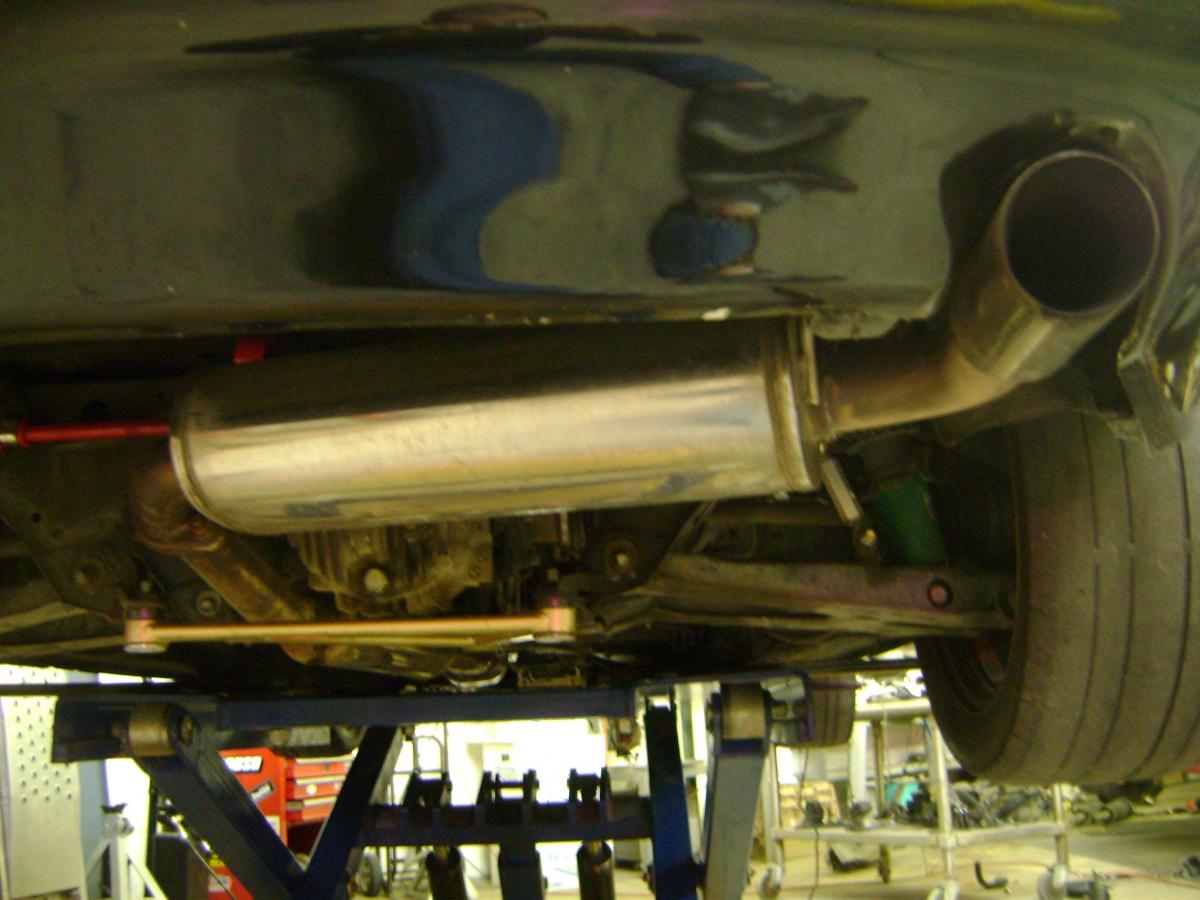

I can't tell if the beatrush rear ladder brace will fit with your exhaust. It looks close, but you have the 1.6 rear subframe, which doesn't have the mount holes for rear bracing.
Attached Thumbnails
New Fabricated Exhaust (RSR Inspired/Turndown/56K WATCHOUT)-dsc01320.jpg   New Fabricated Exhaust (RSR Inspired/Turndown/56K WATCHOUT)-dsc01321.jpg   New Fabricated Exhaust (RSR Inspired/Turndown/56K WATCHOUT)-dsc01322.jpg
johnwag is offline   Reply With Quote
