Old 02-23-2009, 02:48 PM   #61
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

please take pics of my car.
hustler is offline   Reply With Quote
Old 02-23-2009, 05:01 PM   #62
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: DC Metro, MD
Posts: 198
Total Cats: 0
Default

Quote:
Originally Posted by danscreations View Post
Was thinking something sexy looking....(dunno if that sounds right)...based off the 949 racing tubular bar. Some crappy photoshop sketches.

I think 3 or 4 would perform the goal... I don't think 1 or 2 would provide the right amount of rigidity.
mad doc is offline   Reply With Quote
Old 02-23-2009, 05:50 PM   #63
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

For that redesigned brace, I wonder if we could come up with a design that could be water jet cut? I'll see what I can work, up...manufacturing costs would be nil...I coul do a little welding if it were multiple components....
Ryan
rlogan is offline   Reply With Quote
Old 02-23-2009, 06:29 PM   #64
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

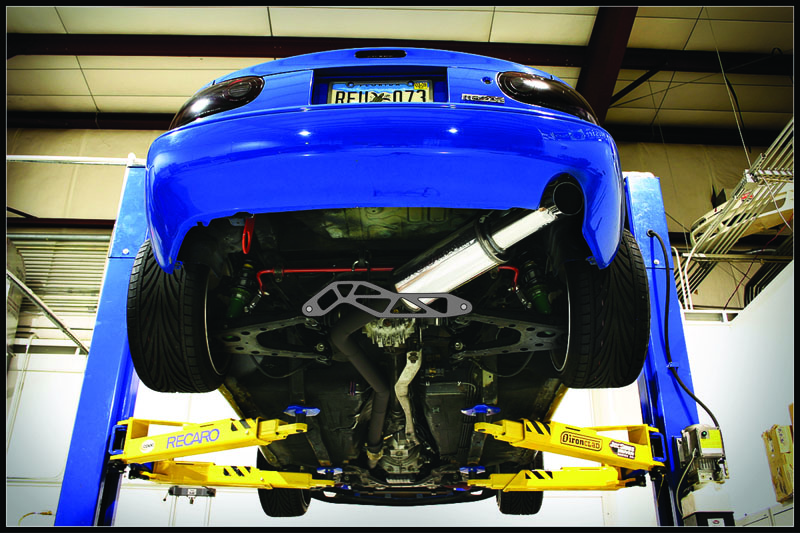

Something like this...I just quickly threw this together...but manufacturing is minimal if designed correctly. If all components are water jet cut, I have a friend that does it and as long as you have enough orders to offset the setup costs...it's a good deal.

Attached Thumbnails
New Fabricated Exhaust (RSR Inspired/Turndown/56K WATCHOUT)-brace1.jpg

Last edited by rlogan; 02-23-2009 at 09:25 PM.
rlogan is offline   Reply With Quote
Old 02-23-2009, 06:54 PM   #65
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

UPDATE
Sorry guys I've been slow to update the thread. Were in the process of making the 2.25" exhausts first and then on to the 2.5" and 3". Even still the jigg will beable to make all of them so they won't fall far behind. I expect in a few weeks. Until then I don't want to take deposits on them. Were working as fast as possible outside of our normal jobs to make these so please understand.

PM's about wanting an exhaust 100% are fine. I will PM you ASAP when we get to having them made.

FITMENT
We're going to due our best to get the 2.5" and 3" exhaust to clear the factory braces (which should also clear the aftermarket as well). The rear passenger side tow hook WILL HAVE TO BE REMOVE AND CUT OFF! The entire thing doesn't have to be but several inches up will have too. I did this for my last exhaust and same issue with this one. It didn't bother me to do but some it may. Just wanted to let everyone know.
danscreations is offline   Reply With Quote
Old 02-24-2009, 04:55 AM   #66
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Surprised nobody has commented on the orange GT3 yet, I would love my Miata to share the same shop with one. Hey Dan, can I get an exact parts list for the 2.5in cat-back?
zoomin is offline   Reply With Quote
Old 02-24-2009, 08:29 PM   #67
Newb
iTrader: (1)

Join Date: Jul 2008
Location: Il
Posts: 10
Total Cats: 0
Default

i am 100% interested in a 2.5 in pm me when available thanks
Js_roadster is offline   Reply With Quote
Old 02-24-2009, 09:39 PM   #68
Newb
iTrader: (2)

Join Date: Feb 2009
Location: Chicago / Lombard IL.
Posts: 17
Total Cats: 0
Default

I like the look!!!
BP_Overload is offline   Reply With Quote
Old 02-25-2009, 12:14 AM   #69
Junior Member
iTrader: (3)

Join Date: Feb 2009
Location: Montclair, CA
Posts: 80
Total Cats: 0
Default

Very Very nice!!
wrc2tuning is offline   Reply With Quote
Old 02-25-2009, 11:37 AM   #70
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Quote:
Originally Posted by rlogan View Post
Something like this...I just quickly threw this together...but manufacturing is minimal if designed correctly. If all components are water jet cut, I have a friend that does it and as long as you have enough orders to offset the setup costs...it's a good deal.

I think a tubular one would be the sht instead of flat plate but thats me.
danscreations is offline   Reply With Quote
Old 02-25-2009, 12:49 PM   #71
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

danscreations, i hate ur face.....


simply because i now have to go to the bank,
take out a buncha moneys,
to buy this ridiculously cool exhaust
urgaynknowit is offline   Reply With Quote
Old 02-25-2009, 02:20 PM   #72
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Dan, I'll ask again, can I get a parts list for the 2.5in cat-back?
zoomin is offline   Reply With Quote
Old 03-03-2009, 07:26 PM   #73
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

I'm still interested in getting jsut the can/turndown combo...I'll have to build the rest myself.
rlogan is offline   Reply With Quote
Old 03-31-2009, 05:36 PM   #74
Junior Member
Thread Starter
iTrader: (6)

Join Date: Apr 2006
Posts: 259
Total Cats: 0
Default

Sorry for dissapearing guys! We've got the 2.25" exhaust in production as well as the 2.5" setups. The 3" exhaust will need a seporate jigg and be a little bit before we can make one and build the jigg.

For more information
DP6061 // Design & Development
or
ClubRoadster.net • Log In [ Guest ]
danscreations is offline   Reply With Quote
