Default New ilovetacotaco Manifold?

http://pages.ebay.com/motors/link/?n...654124&alt=web

Browsing ebay and came across this pricing seems to good to be true for a cast manifold. I'm boosting my 00 miata should I try this manifold out, for under 100$ it seems decent if it fits my 2000 miata.
Dobzeh is offline   Reply With Quote
Old 12-01-2015, 09:57 AM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Looks like it would flow extremely well, but turbo yes hit block?
thirdgen is offline   Reply With Quote
Old 12-01-2015, 10:08 AM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I have both the t2 and t3 versions of that manifold sitting in my garage. I have test fitted the manifold on a 99 and it fits. I have not put a turbo on to see if it works with AC/PS. You will need longer studs at the front and rear of the head to use on that manifold.
shuiend is offline   Reply With Quote
Old 12-01-2015, 10:11 AM   #4
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

ooooh comes with a fancy hot plate for you to make a grill cheese on

surface finish is listed as cast aluminum?
psyber_0ptix is offline   Reply With Quote
Old 12-01-2015, 10:12 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

It's a rip off of one of BEGi's first manifolds.
Braineack is offline   Reply With Quote
Old 12-01-2015, 10:31 AM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by psyber_0ptix View Post
ooooh comes with a fancy hot plate for you to make a grill cheese on

surface finish is listed as cast aluminum?
Not all come with the heat shield.

My t2 manifold came with the heat shield and studs for the manifold, the t3 manifold came with a EWG block off plate, but no heat shield or studs. Both manifolds are exactly the same with just the holes for the studs drilled in different places for t2/t3.
shuiend is offline   Reply With Quote
Old 12-01-2015, 10:38 AM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

grilled cheese > ewg
psyber_0ptix is offline   Reply With Quote
Old 12-01-2015, 03:28 PM   #8
Newb
Thread Starter

Join Date: Jun 2014
Posts: 43
Total Cats: -32
Default

I just bought it I'll update when it arrives
Dobzeh is offline   Reply With Quote
Old 12-03-2015, 12:07 AM   #9
Newb

Join Date: Apr 2012
Location: Tallahassee, Fl.
Posts: 14
Total Cats: 0
Default

I've been running it on my new build for the last two months. So far so good.
jjking52 is offline   Reply With Quote
Old 01-29-2016, 10:26 AM   #10
Junior Member

Join Date: Jun 2015
Location: Chicagoland, IL
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by jjking52 View Post
I've been running it on my new build for the last two months. So far so good.
Have any fitment pics you can post/share?
MotoCARR is offline   Reply With Quote
Old 01-29-2016, 10:29 AM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

You can go check the other eBay cast iron manifold thread where I have posted pictures of both the t2 and the t3 manifold with turbos. Here is a link to the post.

Last edited by shuiend; 01-29-2016 at 12:16 PM.
shuiend is offline   Reply With Quote
Old 02-02-2016, 10:01 PM   #12
Newb

Join Date: Apr 2012
Location: Tallahassee, Fl.
Posts: 14
Total Cats: 0
Default

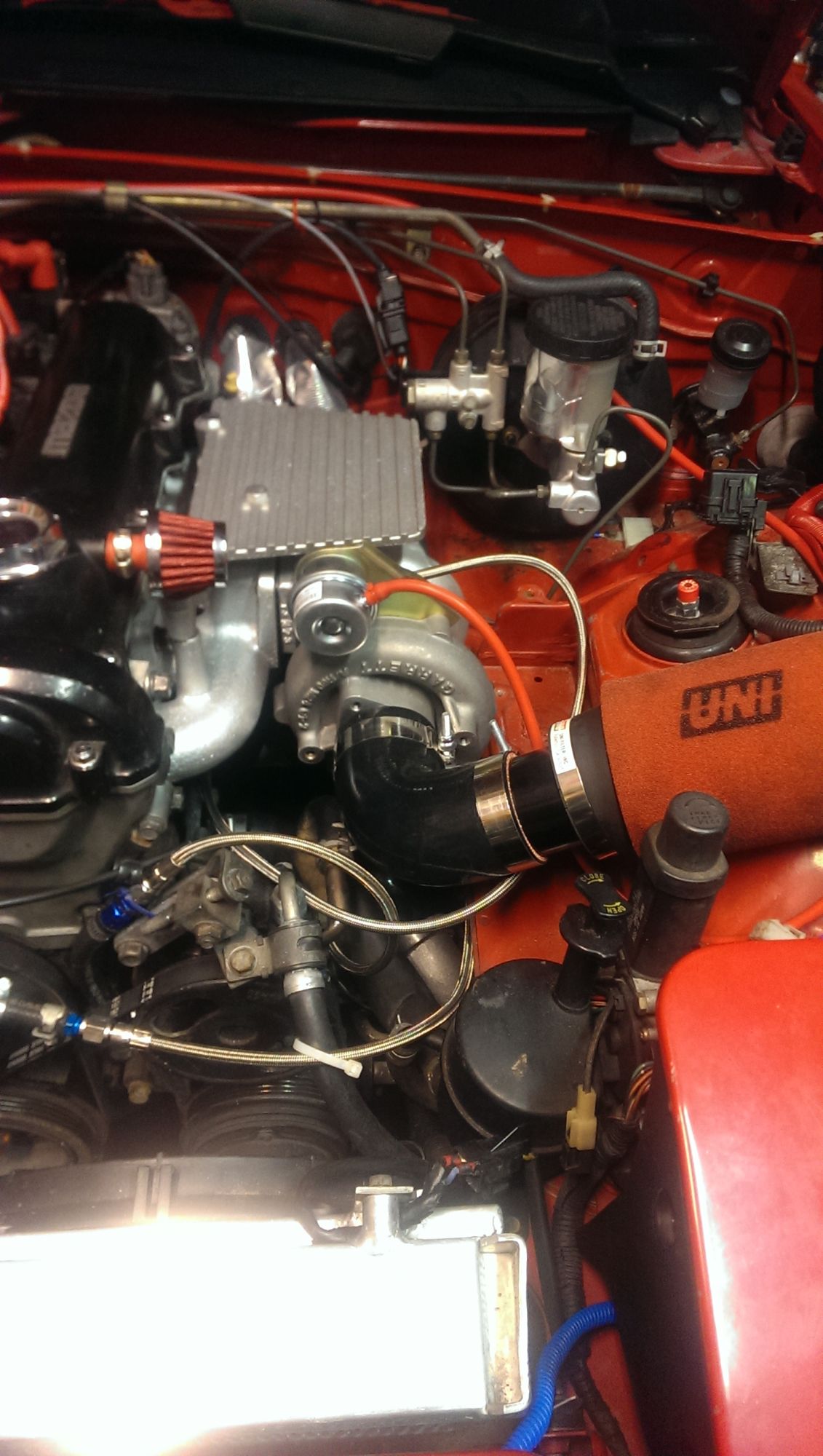

Like Shuiend said, Need longer studs on the end and does hit the frame. Just like a BEGI or FM install you have to cut or bend the frame a little. Painted it with Eastwood manifold paint. I used a quality copper gasket from manifold to turbo. I installed the turbo to manifold first because the bolts are a bitch to get to. I bought the FM lower radiator reroute hose so I could run the intercooler tubing downward. I do have power steering so it was tight to the turbo.
Now this is not a daily driver. So, I don't have many miles on it so far. I did burn through a fairly new Exedy stage one pretty quick. We had to put in a stronger clutch and I am just about at the 500 mile break in. Might take a little more time on the break in. hoping to get it to a dyno soon.
Attached Thumbnails
New ilovetacotaco Manifold?-80-imag0267_a3cb26f7f94f58ffbf4b95602e95e9638fec38c8.jpg
jjking52 is offline   Reply With Quote
Old 02-02-2016, 10:05 PM   #13
Junior Member

Join Date: Nov 2013
Posts: 55
Total Cats: 0
Default

Really Interested to see how well these last!
bhooligan is offline   Reply With Quote
Old 02-02-2016, 10:12 PM   #14
Newb

Join Date: Apr 2012
Location: Tallahassee, Fl.
Posts: 14
Total Cats: 0
Default

Thought I had more pictures without the grilled cheese maker. I did use that as a base to install some home made heat shields.
jjking52 is offline   Reply With Quote
Old 02-02-2016, 10:15 PM   #15
Newb

Join Date: Apr 2012
Location: Tallahassee, Fl.
Posts: 14
Total Cats: 0
Default

I'm told they can crack but, for less than a hundred bucks I had to try it. My BEGI down pipe will probably crack first.
jjking52 is offline   Reply With Quote
Old 02-07-2016, 07:39 PM   #16
Newb

Join Date: Sep 2015
Location: FL
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by jjking52 View Post
I'm told they can crack but, for less than a hundred bucks I had to try it. My BEGI down pipe will probably crack first.
Not to hijack, but I gotta ask.. How'd you tighten the center bolt on the bottom side? I just installed with no issues, but can't get a wrench or anything in there to tighten that one.
joshcox19 is offline   Reply With Quote
Old 02-08-2016, 01:04 AM   #17
Junior Member
iTrader: (1)

Join Date: Nov 2013
Posts: 49
Total Cats: 5
Default

Quote:
Originally Posted by jjking52 View Post
My BEGI down pipe will probably crack first.
So your BEGI downpipe fit without any modifications? Any fitment problems to speak of?
wred is offline   Reply With Quote
Old 02-08-2016, 01:09 AM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Quote:
I used a quality copper gasket from manifold to turbo
bad idea. it looks thick too, which means it will fail that much faster
18psi is offline   Reply With Quote
Old 02-09-2016, 12:19 PM   #19
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by 18psi View Post
bad idea. it looks thick too, which means it will fail that much faster

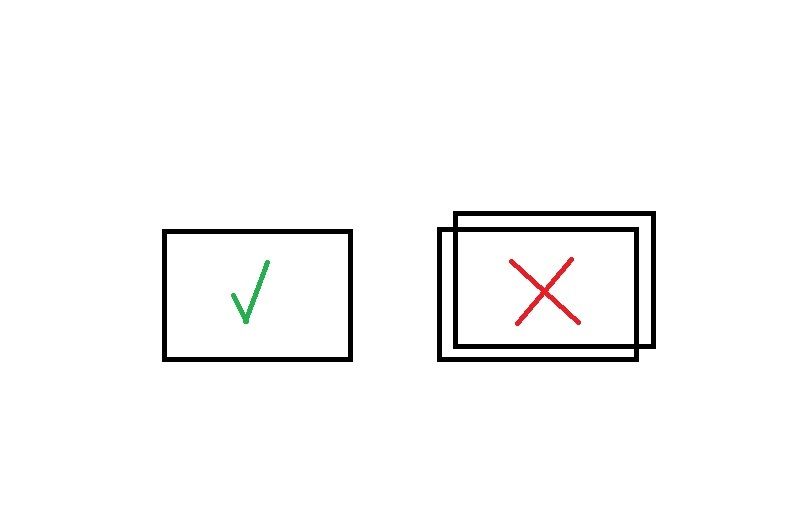

Gaskets are a fine idea. When they fail is
1) if the flanges are not machined flat, or
2) if the outlet on the turbo manifold and inlet on the exhaust housing of the turbo are not the same dimensions and centered on each other. If they aren't exact, a gasket will blow out almost immediately.

Illustration:


Attached Thumbnails
New ilovetacotaco Manifold?-80-1_d2234a2dfcc6cd0da83ffefdfac2f5dc44d63376.jpg
NBoost is offline   Reply With Quote
Old 02-09-2016, 12:32 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Quote:
Originally Posted by NBoost View Post
Gaskets are a fine idea. When they fail is
1) if the flanges are not machined flat, or
2) if the outlet on the turbo manifold and inlet on the exhaust housing of the turbo are not the same dimensions and centered on each other. If they aren't exact, a gasket will blow out almost immediately.

Illustration:


I don't need a silly mspaint illustration to tell you that gaskets are not needed if your surfaces are true.
And I especially don't need to attempt to explain why a thick copper gasket on a pressurized, vibrating, 1800F orifice is really really stupid idea and has no chances of lasting whatsoever.

It's like arguing for gravity.
