Old 01-20-2016, 02:25 PM   #21
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Joe Perez View Post
God damn, that thing is ugly...



Kinda cool that they include that heatshield plate, though. Addressed a problem that's difficult to tackle otherwise. Though I wonder how much heat it's pulling from the turbine flange and subsequently re-radiating...
The manifold is available in both a T3 and T2 "flange" on eBay. Both are exactly the same, with just holes drilled in different places on the flange surface. The t2 manifold uses M8 studs, the t3 uses M10 studs. The T2 manifold I got came with the heat shield on top and a wastegate block off plate, no studs came with it. The t3 manifold came with studs, but no block off place or heat shield. One day I will get some time to actually get them installed on a car and some fitment pictures.

My big concern is what downpipe to use with them. I don't have a current Begi/FM cast manifold to compare turbo placement, so I am not sure if either of their off the shelf DP's would work.
shuiend is offline   Reply With Quote
Old 01-20-2016, 02:38 PM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

likely not, since most of don't even work with their own manifolds
18psi is offline   Reply With Quote
Old 01-20-2016, 08:49 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by 18psi View Post
I have said this at least a dozen times now, but here goes: why can't they knock off something that's not an old piece of junk? I mean, it takes the brainpower of a grunt to do a google search for Miata manifold and see that like every other one is a better, nicer, design, order the $300-350 unit and scan it.

because they finally got their hands on a circa 1990 Begi manifold?




and the heat shield was copied too:

Attached Thumbnails
Thoughts on this cheap cast mani?-80-undefined_0da50a7ffe98f4635247dd4e89474c240730276e.png
Braineack is offline   Reply With Quote
Old 01-20-2016, 09:02 PM   #24
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

I ordered this manifold off ebay in T3 1.8L form, along with MS2E from Rev, Ebay intercooler and piping, ebay HKS SSQV knockoff BOV, ebay oil/drain lines, and the same turbo thats in the MK kit. Exhaust/DP will be custom made locally.

Still thinking about which wideband to get.

all this is going into my 99.

so in the next month or three you will see a post of how it works, or how i blew up my enginez...
borka is offline   Reply With Quote
Old 01-20-2016, 10:16 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

ebay wideband.
Braineack is offline   Reply With Quote
Old 01-20-2016, 11:53 PM   #26
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

I hear that the ebay hks knock off works like the real one. Let us know how it goes for you!
ryansmoneypit is offline   Reply With Quote
Old 01-20-2016, 11:55 PM   #27
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

They should make a knock of the intake manifold.
aidandj is offline   Reply With Quote
Old 01-21-2016, 12:00 AM   #28
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

Dear EBAY,

Please sell a complete turbo BP engine, turnkey, 450 hp.
ryansmoneypit is offline   Reply With Quote
Old 01-21-2016, 12:45 AM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by borka View Post
I ordered this manifold off ebay in T3 1.8L form, along with MS2E from Rev, Ebay intercooler and piping, ebay HKS SSQV knockoff BOV, ebay oil/drain lines, and the same turbo thats in the MK kit. Exhaust/DP will be custom made locally.

Still thinking about which wideband to get.

all this is going into my 99.

so in the next month or three you will see a post of how it works, or how i blew up my enginez...
Attached Thumbnails
Thoughts on this cheap cast mani?-80-undefined_33da2e2346ad0e245e8efd2effc3f59d0fb70b48.png
Joe Perez is offline   Reply With Quote
Old 01-21-2016, 12:55 AM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by aidandj View Post
They should make a knock of the intake manifold.
and it would likely fit
18psi is offline   Reply With Quote
Old 01-21-2016, 11:37 AM   #31
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by borka View Post
I ordered this manifold off ebay in T3 1.8L form, along with MS2E from Rev, Ebay intercooler and piping, ebay HKS SSQV knockoff BOV, ebay oil/drain lines, and the same turbo thats in the MK kit. Exhaust/DP will be custom made locally.

Still thinking about which wideband to get.

all this is going into my 99.

so in the next month or three you will see a post of how it works, or how i blew up my enginez...
I can tell you that you will need to cut back the rear shelf to get a down pipe to fit with the ebay t3 I use. The rear v-band flange is very far back and there is no way to get a 90 bend off it without hitting that shelf.
shuiend is offline   Reply With Quote
Old 01-21-2016, 11:50 AM   #32
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by shuiend View Post
I can tell you that you will need to cut back the rear shelf to get a down pipe to fit with the ebay t3 I use. The rear v-band flange is very far back and there is no way to get a 90 bend off it without hitting that shelf.
thanks for letting me know.

I dont mind trimming the shelf a little, but i do want to avoid major cuts.

I will have the dp custom made, so we will see if they can bend a sharper bend or i might have to ditch the vband, and just weld the dp to turbo or switch for the normal turbo output and not the vband output.
borka is offline   Reply With Quote
Old 01-21-2016, 11:57 AM   #33
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by borka View Post
thanks for letting me know.

I dont mind trimming the shelf a little, but i do want to avoid major cuts.

I will have the dp custom made, so we will see if they can bend a sharper bend or i might have to ditch the vband, and just weld the dp to turbo or switch for the normal turbo output and not the vband output.
I am not sure how much of the shelf will need to be cut, I did not measure that. I may be able to check late tonight when I get home. What shop do you plan on building you a downpipe? The large majority of shops do not have mandrel benders for exhaust pipes on site. They usually just buy prebent pipes.

As for going without the v-band outlet, you would most likely need to go to an external wastegate at that point, then weld the wastegate hole closed on the turbo. It would be doable with the cast manifold.
shuiend is offline   Reply With Quote
Old 01-21-2016, 02:47 PM   #34
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by shuiend View Post
I am not sure how much of the shelf will need to be cut, I did not measure that. I may be able to check late tonight when I get home. What shop do you plan on building you a downpipe? The large majority of shops do not have mandrel benders for exhaust pipes on site. They usually just buy prebent pipes.

As for going without the v-band outlet, you would most likely need to go to an external wastegate at that point, then weld the wastegate hole closed on the turbo. It would be doable with the cast manifold.
thanks, if you can take a quick pic of the clearance on an NB that would be great.

The shop is not so much as a shop, but more of a private dirt racing team, they built their Nascar style looking dirt racing car from scratch, welding the whole tube frame etc... so they are excellent welders.

they do not have a bender, but even with pre bent pieces, cant they take a 90 degree angle and add a small piece of say another 30 degrees to make a sharper bend? i could be wrong. so until i test fit turbo and manifold myself i wont know for sure.
borka is offline   Reply With Quote
Old 01-21-2016, 02:51 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by borka View Post
they do not have a bender, but even with pre bent pieces, cant they take a 90 degree angle and add a small piece of say another 30 degrees to make a sharper bend?
That, or use donuts. They come as a full toroid, and you just cut whatever angle you need out of it.

Attached Thumbnails
Thoughts on this cheap cast mani?-pw-c76-560-2t.jpg
Joe Perez is offline   Reply With Quote
Old 01-21-2016, 09:56 PM   #36
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

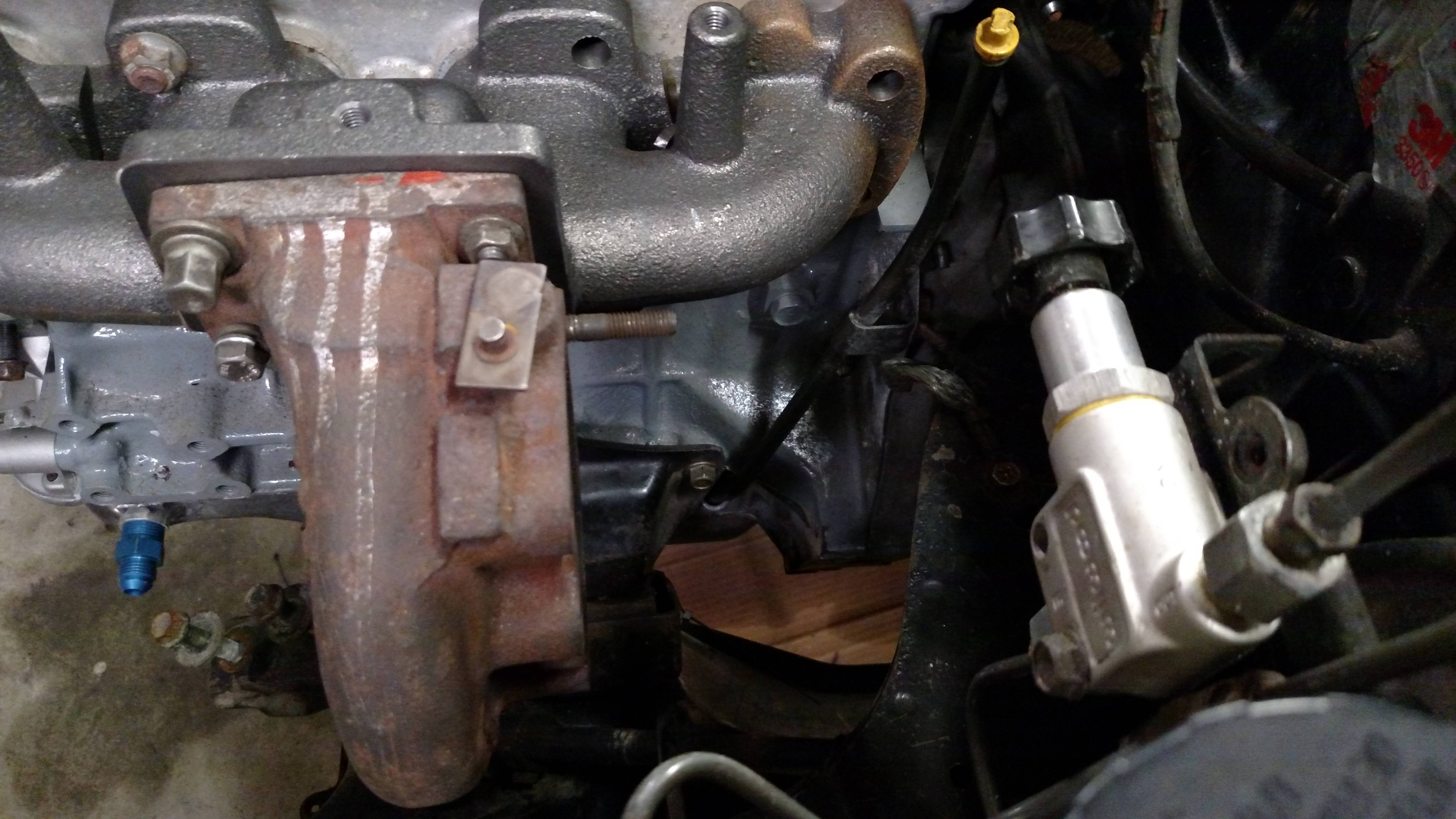

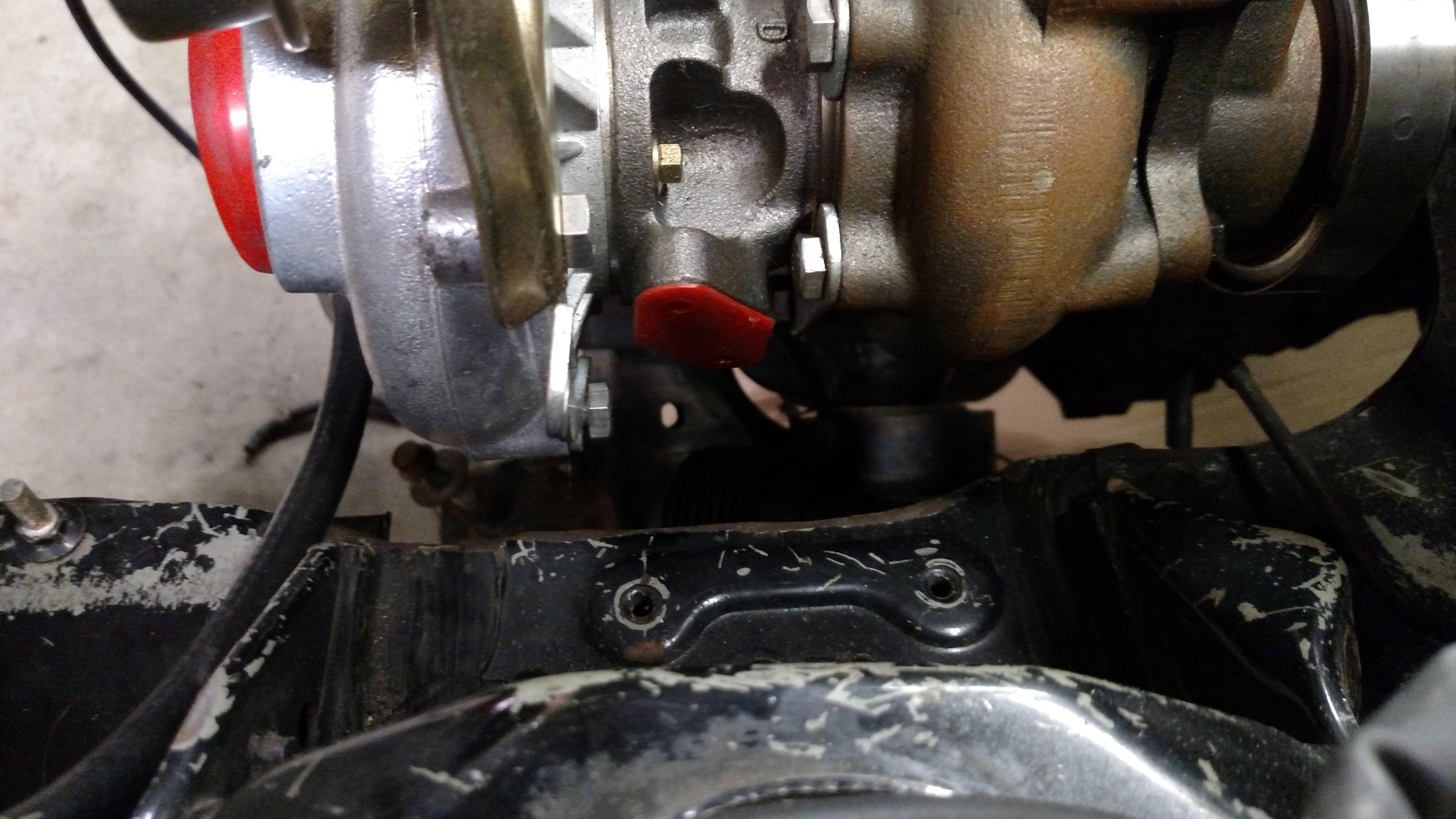

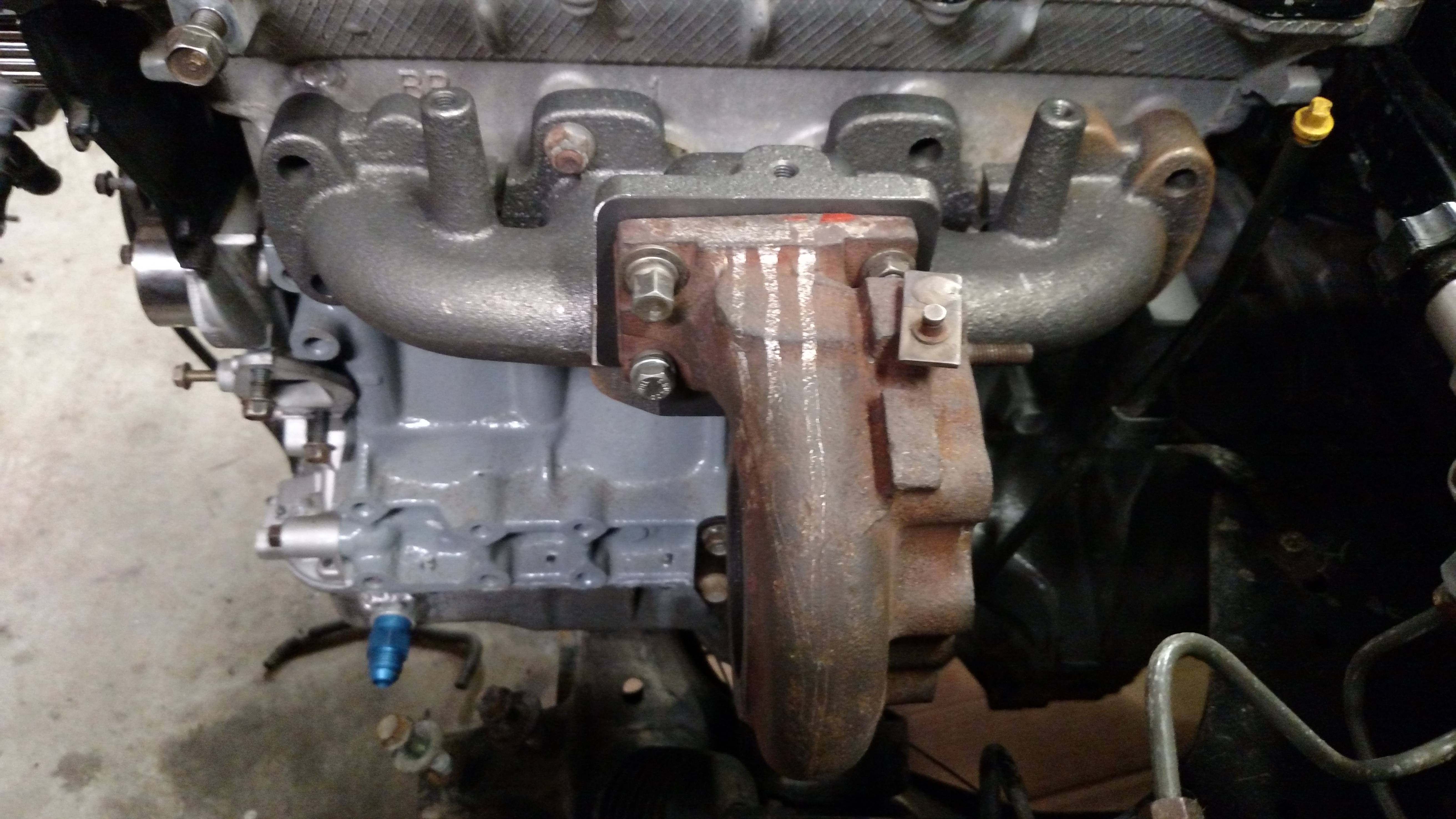

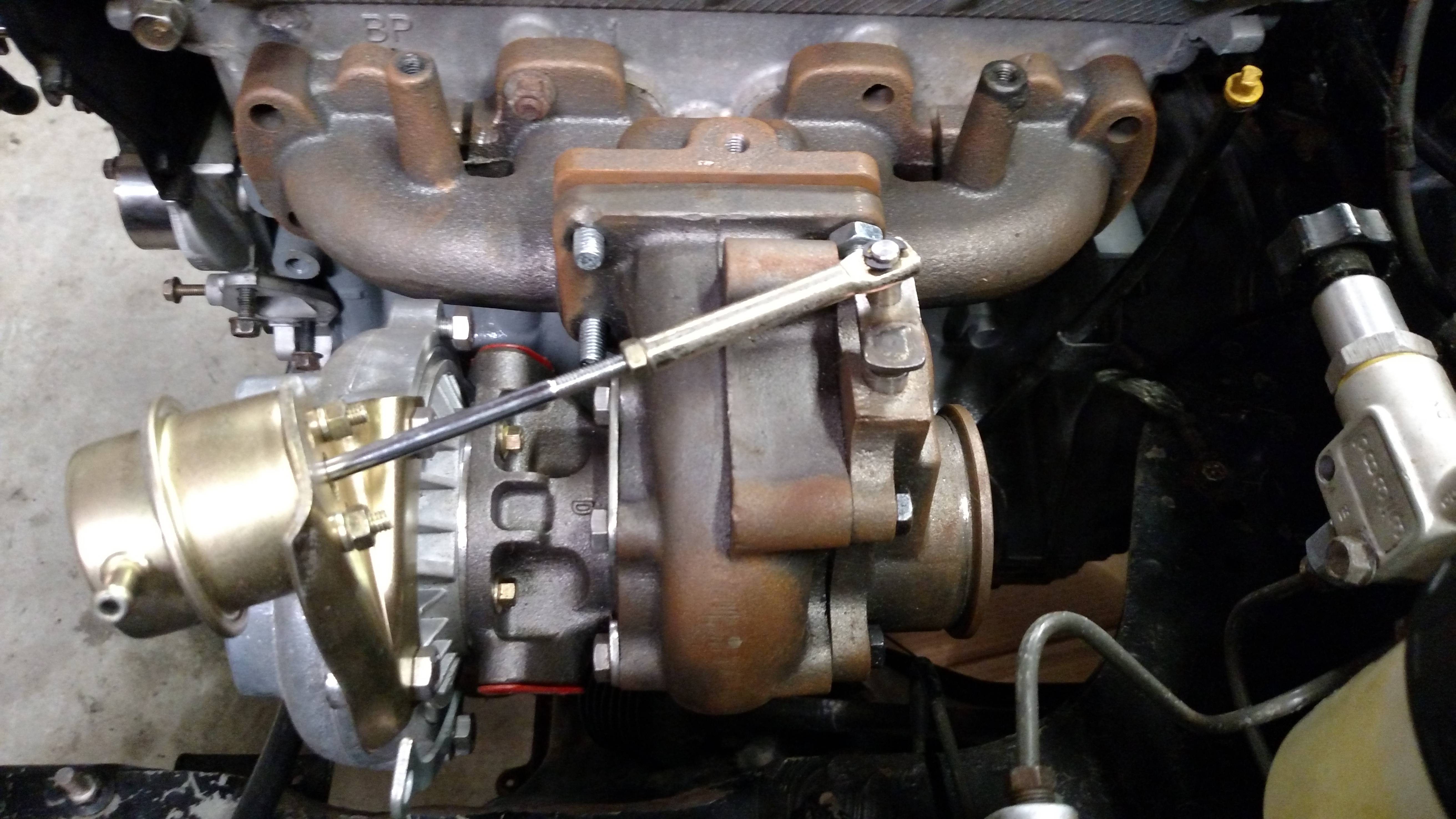

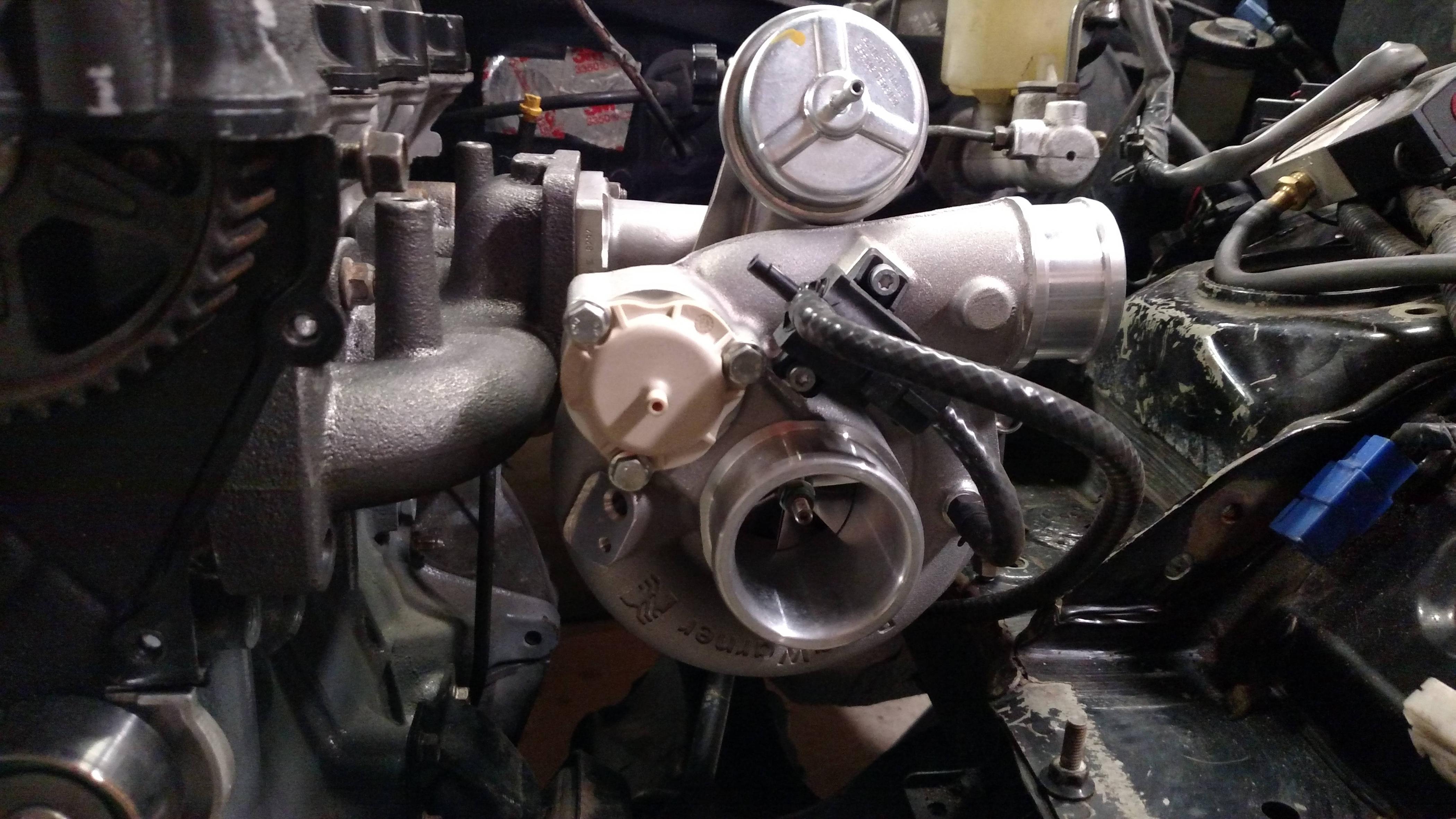

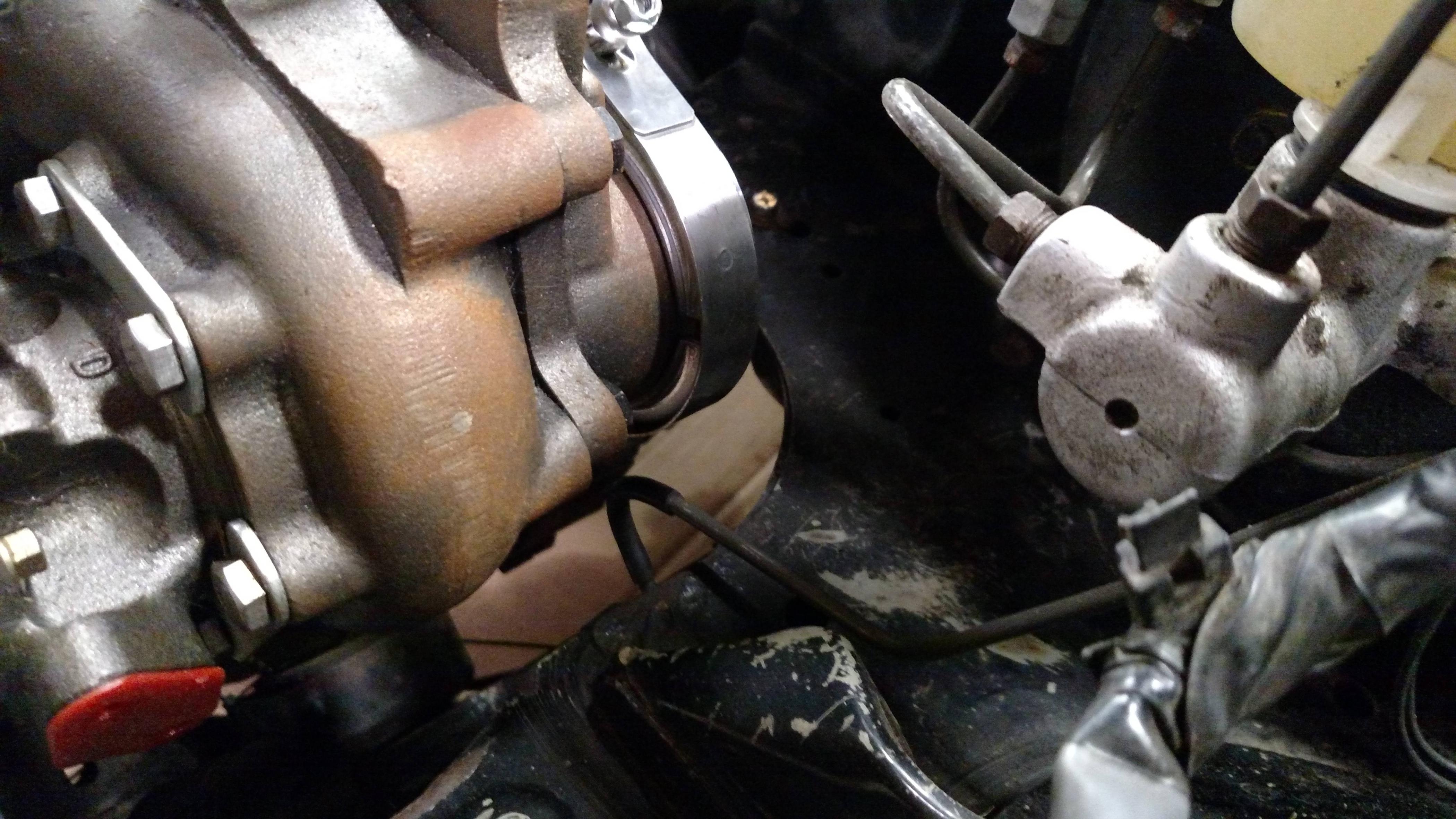

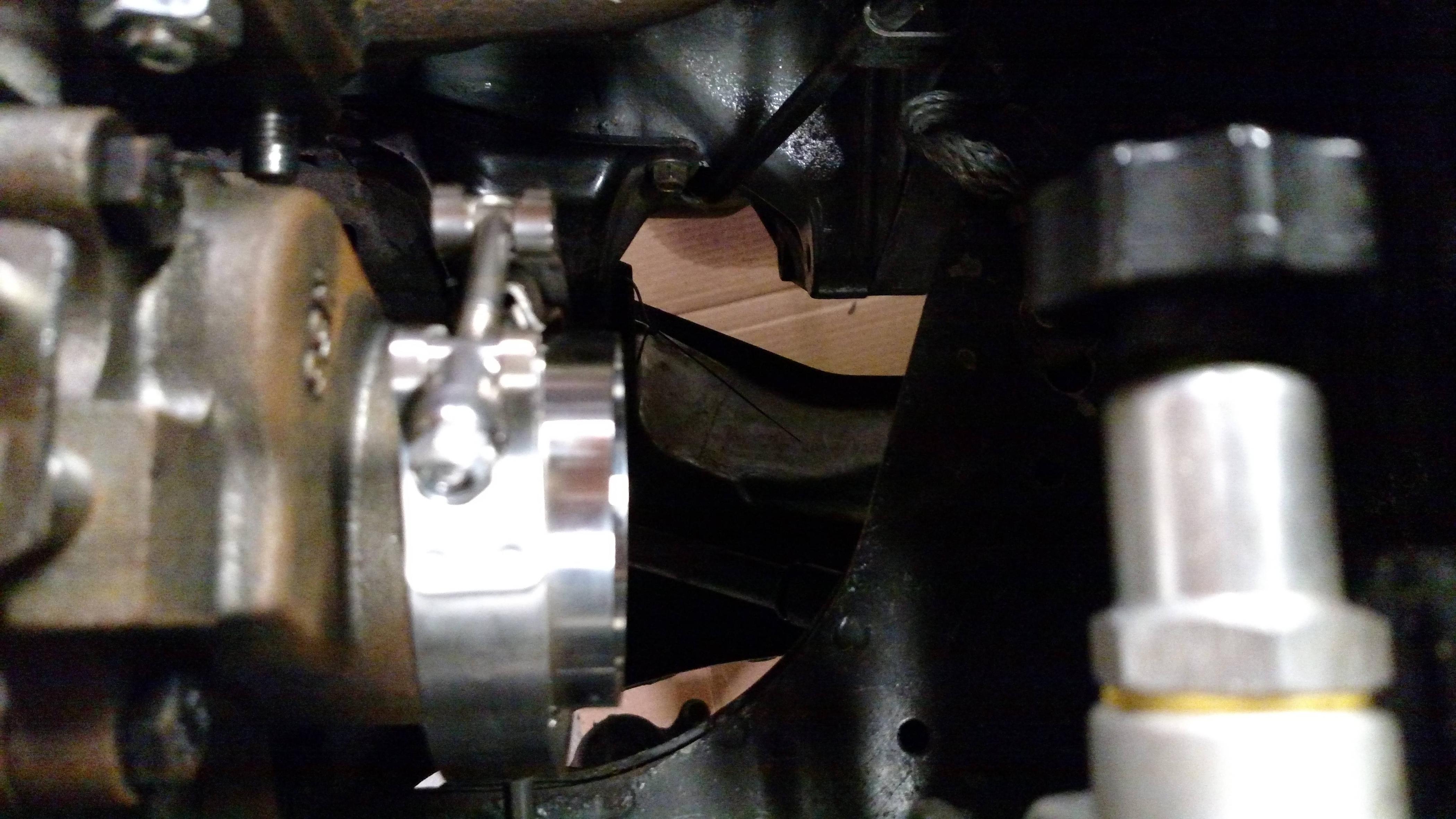

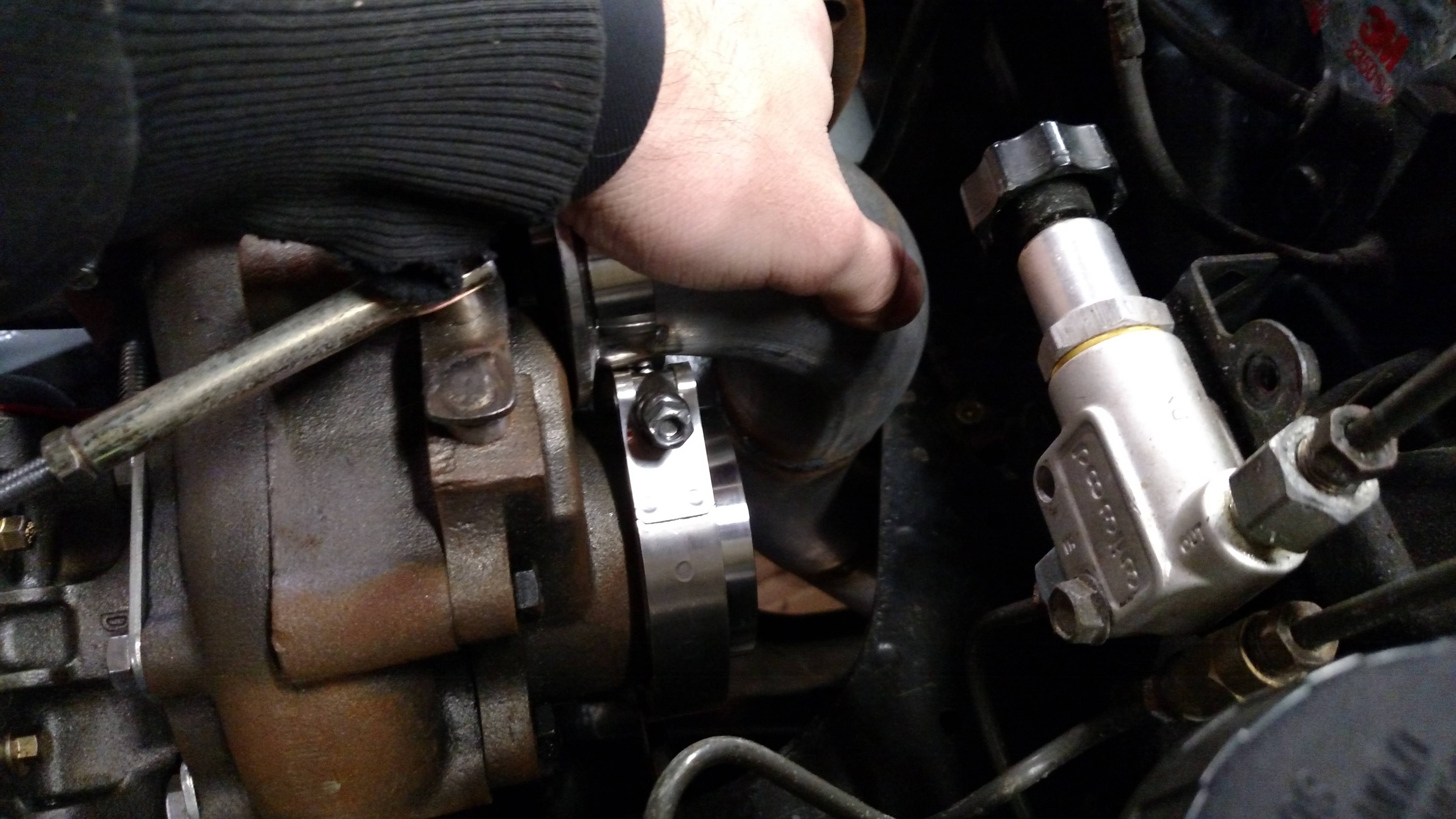

Supervisor.


T3 manifold and T3 chinacharger.







T2 manifold and SR20 T25 exhaust housing.



EFR TacoTaco


Attached Thumbnails

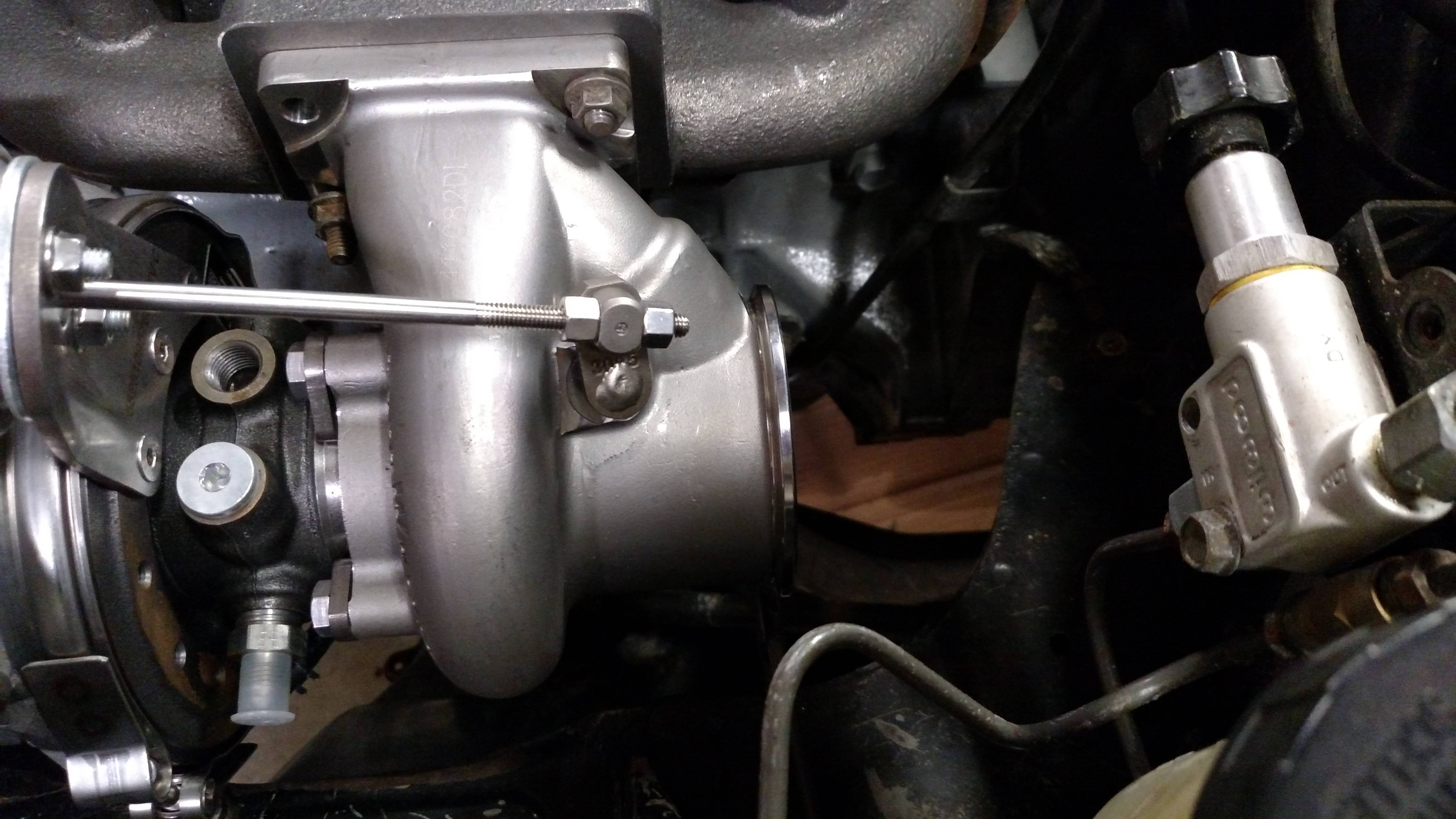

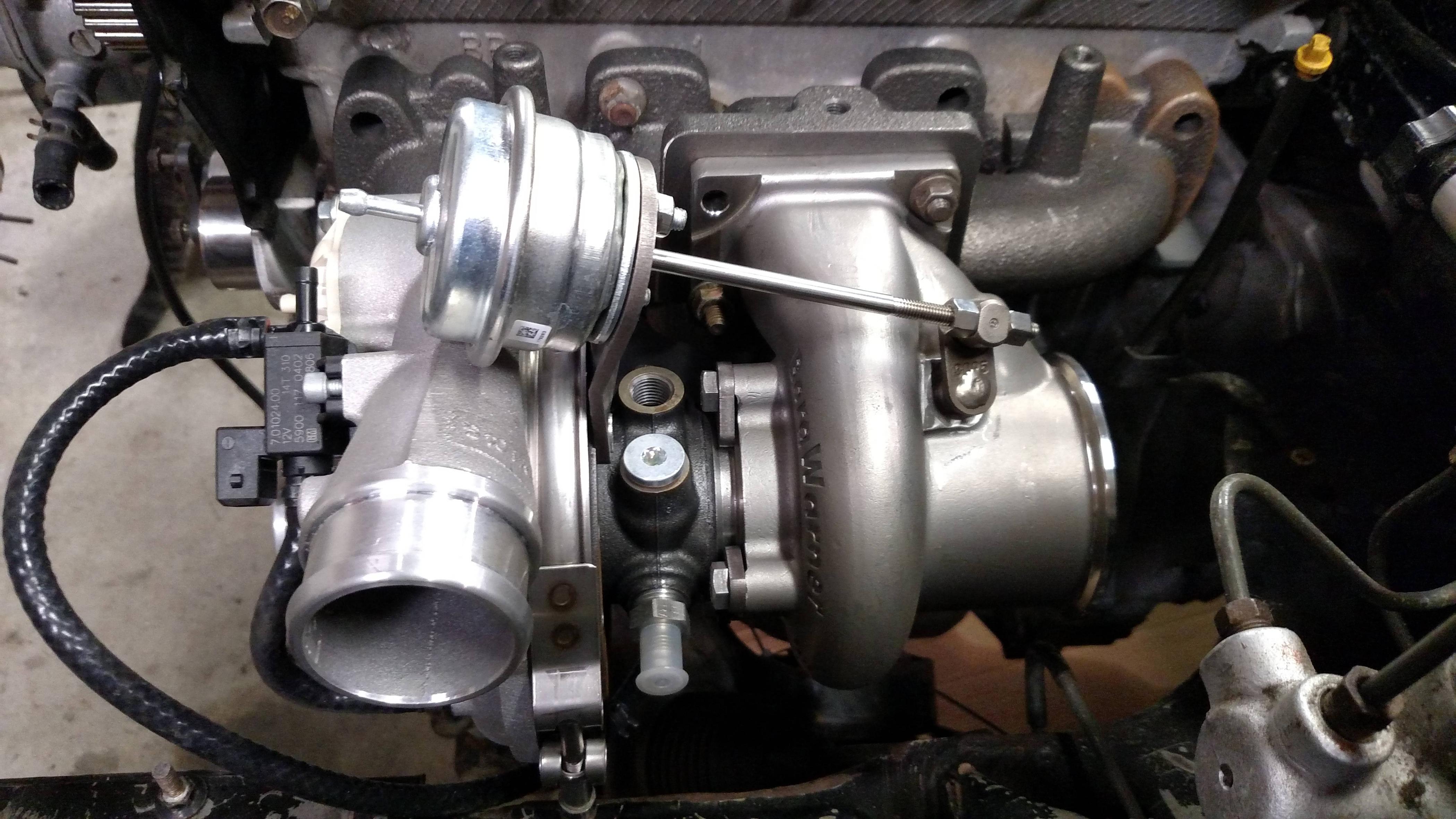

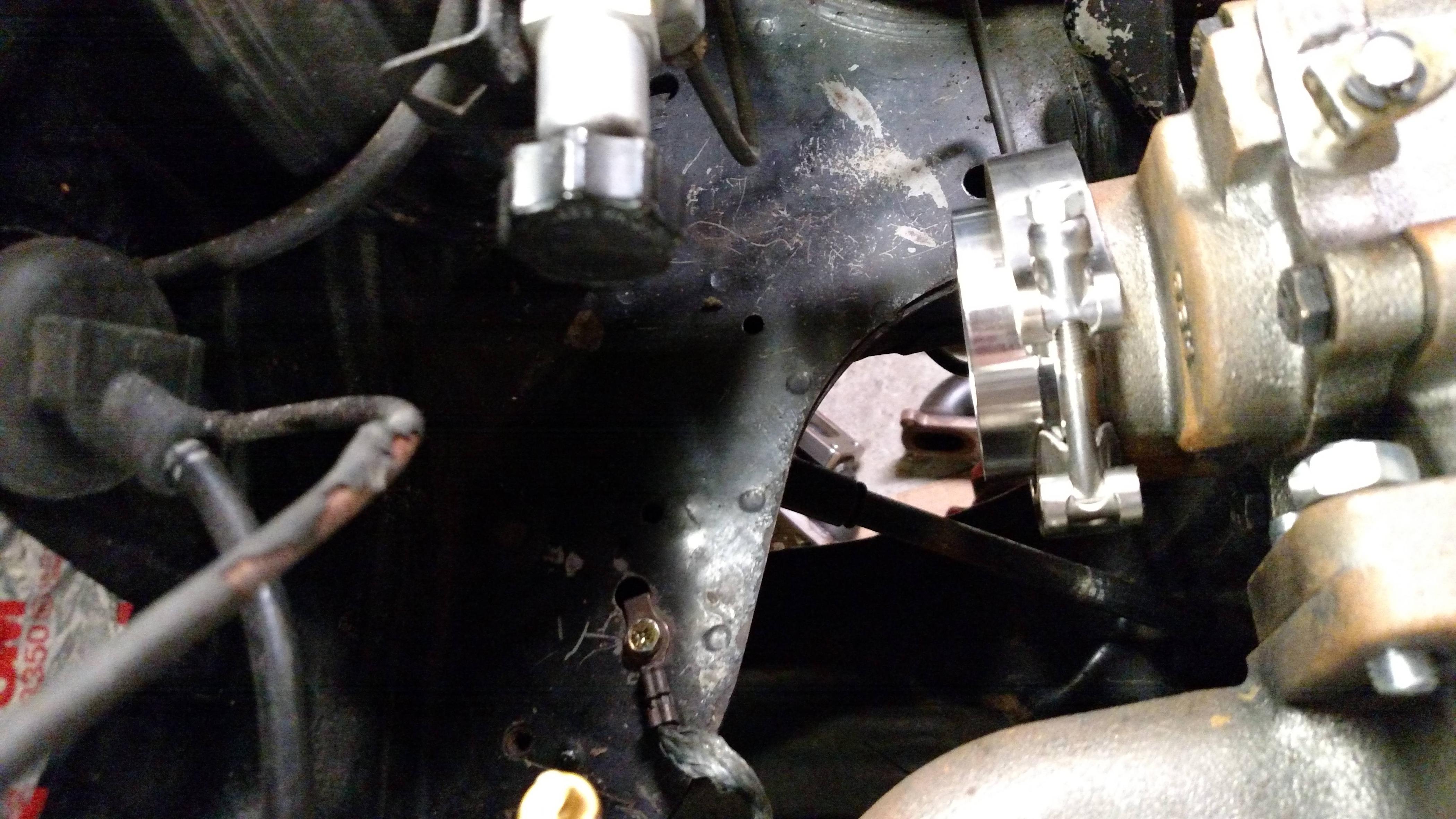

Thoughts on this cheap cast mani?-mcsuril.jpg   Thoughts on this cheap cast mani?-ilclqby.jpg   Thoughts on this cheap cast mani?-gadw3wf.jpg   Thoughts on this cheap cast mani?-ny22vb5.jpg   Thoughts on this cheap cast mani?-grc3bci.jpg

Thoughts on this cheap cast mani?-1v7o8xn.jpg   Thoughts on this cheap cast mani?-9qdoo9l.jpg   Thoughts on this cheap cast mani?-awnjv8w.jpg   Thoughts on this cheap cast mani?-qbafke9.jpg   Thoughts on this cheap cast mani?-l3wu3d5.jpg

Thoughts on this cheap cast mani?-w2zd6dd.jpg   Thoughts on this cheap cast mani?-71tdphl.jpg
shuiend is offline   Reply With Quote
Old 01-21-2016, 10:00 PM   #37
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by shuiend View Post
(A bunch of pictures)
Not hit block?
Joe Perez is offline   Reply With Quote
Old 01-21-2016, 10:04 PM   #38
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Hit shelf, not block?

T3 with flappy paddle v-band, at least?

EFR tacotaco, lel
deezums is offline   Reply With Quote
Old 01-21-2016, 10:29 PM   #39
Newb
Thread Starter

Join Date: Oct 2015
Location: Port Orchard Washington
Posts: 38
Total Cats: 2
Default

Thank you Guys for the awesome response. I kinda figured it was cheap for a reason, so I placed my order for the FM no elec kit last night. Now I just have to save my duckets for the happy meal clutch kit and I will have everything I need.
NicDrilling is offline   Reply With Quote
Old 01-22-2016, 08:38 AM   #40
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by shuiend View Post
Supervisor.
Thank you so much for the pics.

so it doesnt look like the T3 with vband can fit a downpipe. not good.

but it does look like a T2 T25 sr20 turbo should fit.

from what i understand its an old BEGI knockoff, so it must have worked back in the day, i wonder what turbo it was originally made for? SR20?
borka is offline   Reply With Quote
