Default New level of cheap DIY....

This post is a bit premature, I still have a few weeks of fab work to go, but I thought I'd start it here anyway so I can organize everything in my head and see what I still need....

So the original plan was to wait until I had all the right parts piled in the garage, then go ahead with the install. Well, thanks to ThirdGen letting me drive his car at 7psi, that went out the window. So the new plan is throw some crap together, make some damn boost, then come through and redo it all slowly. I'm out of patience. So first the pricing so far.... Keep in mind the car already has MS, a LC-1 and a boost gauge....

Turbo -
Used Saab unit, .48 turbine 50 trim compressor - $25

Manifold POS DIY log style - $32 total
Manifold flange - $20
2 1/2" sch 40 pipe - $2 (Lowes scrap)
3/16" plate - $10
T3 flange 1/2" Scrap DIY - free

Wastegate -
XS Power 38mm 6psi spring - $65

Downpipe -
1/2" turbine flange - $13
2 1/2" pipe w/ mandrel bents left over from cat back
3" pipe w/ mandrel bends cut off my old Suburban

Intercooler -
Used Starion unit from forum member $30

Intercooler piping -
Scrap 2" conduit w/ lotsa pie cuts - free

Water lines -
Hard lines reused from turbo - free
Hoses from an old motor - free

BOV -
Old Bosch unit - free


More to come, still have to get oil lines, an air filter for the turbo and a set of injectors. But I'm at $165 so far and will be boosting soon.... (finally)
--Alex

Last edited by AlexO35; 09-18-2008 at 12:45 AM.
AlexO35 is offline   Reply With Quote
Old 09-17-2008, 04:11 PM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,701
Total Cats: 236
Default

Fireindc is offline   Reply With Quote
Old 09-17-2008, 04:19 PM   #3
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

Quote:
Originally Posted by Fireindc View Post
x2...post some pics ASAP of your extreme budget build.
99NBMia is offline   Reply With Quote
Old 09-17-2008, 04:52 PM   #4
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Make sure to use a couple flexible couplers in the IC piping. Conduit is pretty awful for fatigue/vibration loads.
Atlanta93LE is offline   Reply With Quote
Old 09-17-2008, 05:05 PM   #5
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

hehehe sounds fun so far
TurboTim is offline   Reply With Quote
Old 09-17-2008, 07:43 PM   #6
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

that's the same turbo I run... it seems to be a good fit for a stock bottom end.
Arkmage is offline   Reply With Quote
Old 09-18-2008, 12:06 AM   #7
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

what are you doing for fuel and timing?
UrbanSoot is offline   Reply With Quote
Old 09-18-2008, 12:39 AM   #8
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Pics will be coming soon. The intercooler is in, I'm running the piping to the TB now. The manifold is mosly done, just need to mount the turbo flange and EWG plumbing. That should happen this weekend, but I may go bone yard hunting for injectors instead.

The intercooler piping will have a few couplers in it. I was thinking for easy removal / upgrades, but yea vibration resistance is important too.

I did forget to mention that EMT conduit is galvanized and welding it is a very bad idea w/o serious ventilation. I'm using a light industrial fan to ventilate the area and have the hose of the shop vac next to the weld as a fume scrubber.

MS will deal with all the fuel, timing, EBC, over boost issues.

Glad to see someone else running this turbo with good luck. I have a TD04B compressor sitting around too, but the backing plate was corroded and broke when I took it apart.

Forgot about the DP and BOV, I'll update the first post. Still haven't decided on 2.5" or 3" for the DP. I have the tubing for both. Real exhaust stuff even.... The cat and back is 2.5, so I'll probably stick with that for now.

This has been a blast to do so far. A lot of cutting and welding for those pie cuts though.

I've been waiting too long to get it all "right". It was time to say screw it and just build some ****.
--Alex
AlexO35 is offline   Reply With Quote
Old 09-18-2008, 01:13 AM   #9
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

In for pics!!
elesjuan is offline   Reply With Quote
Old 09-18-2008, 02:12 PM   #10
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

First pic....
Attached Thumbnails
New level of cheap DIY....-dsc05002.jpg
AlexO35 is offline   Reply With Quote
Old 09-18-2008, 02:14 PM   #11
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

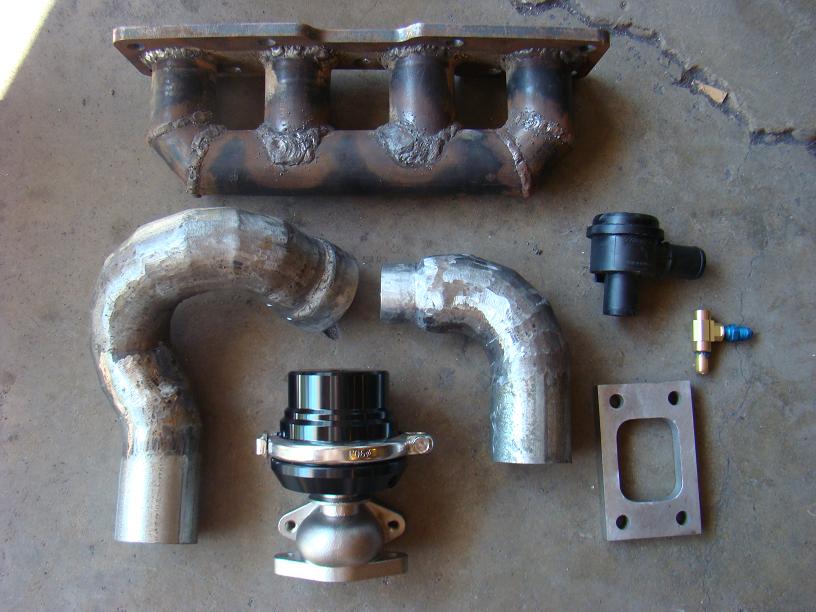

So there you have the beginnings of the manifold minus flanges. (Not to worry, there's a new one in the works already)

The IC pipe on the left is from the TB dropping down, the one on the right is the first 90 off the IC. I'll have better pics of that soon when I take the nose back off.

I threw in the EWG, BOV, oil line tee and home made T3 flange just for kicks....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-18-2008, 02:18 PM   #12
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

awesome build. That's right up my alley.
SloS13 is offline   Reply With Quote
Old 09-18-2008, 02:19 PM   #13
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

man, I'm jealous. I wish I could have done a turbo for 1/10 what I spent!
skidude is offline   Reply With Quote
Old 09-18-2008, 03:22 PM   #14
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

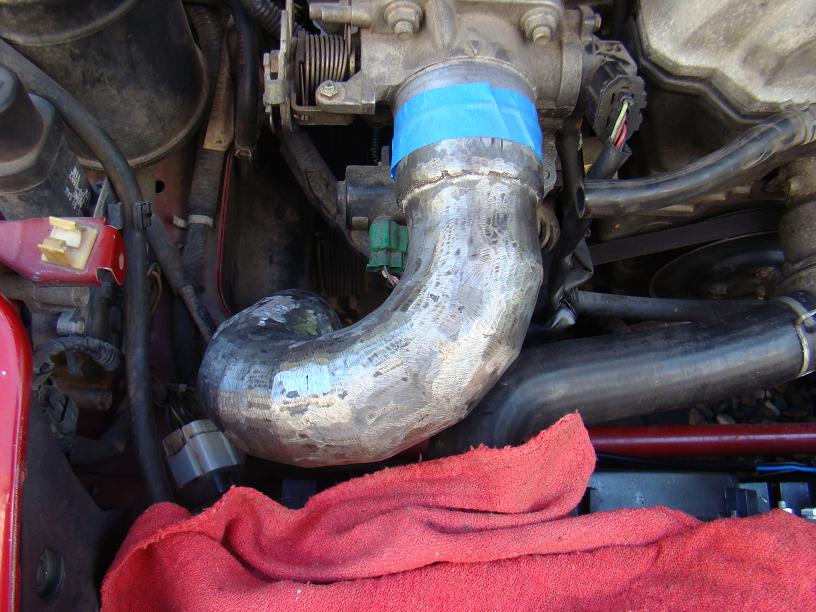

TB to IC pipe in place. In keeping with the low budget theme, I decided to use blue painters tape instead of silicone couplers....
--Alex
Attached Thumbnails
New level of cheap DIY....-2.jpg
AlexO35 is offline   Reply With Quote
Old 09-18-2008, 03:34 PM   #15
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Hahaha... +1 on the tape.
I'll give you 50 extra ghetto style points.
Laur3ns is offline   Reply With Quote
Old 09-18-2008, 03:40 PM   #16
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by AlexO35 View Post
TB to IC pipe in place. In keeping with the low budget theme, I decided to use blue painters tape instead of silicone couplers....
--Alex
For some reason I do not foresee that as a viable permanent solution . Very ghetto though
Newbsauce is offline   Reply With Quote
Old 09-18-2008, 03:55 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Are you using MIG or stick on that manifold?

That TB pipe is actually a really nifty shape. Reminds me of the old adage- "It's not how good you can weld, it's how good you can grind."
Joe Perez is offline   Reply With Quote
Old 09-18-2008, 04:35 PM   #18
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Very nice!!
elesjuan is offline   Reply With Quote
Old 09-18-2008, 04:40 PM   #19
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

LOL I love the tape, but I doubt it will ever see any boost without vibrating off/blowing off. Very creative
99NBMia is offline   Reply With Quote
Old 09-18-2008, 07:44 PM   #20
Newb

Join Date: Aug 2008
Location: the SLC
Posts: 1
Total Cats: 0
Default

I would have used duct tape instead of the painters tape. That way it would almost look like it was part of the TB.

Last edited by 801miata; 09-18-2008 at 08:08 PM.
801miata is offline   Reply With Quote
