Old 09-21-2008, 10:38 PM   #41
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

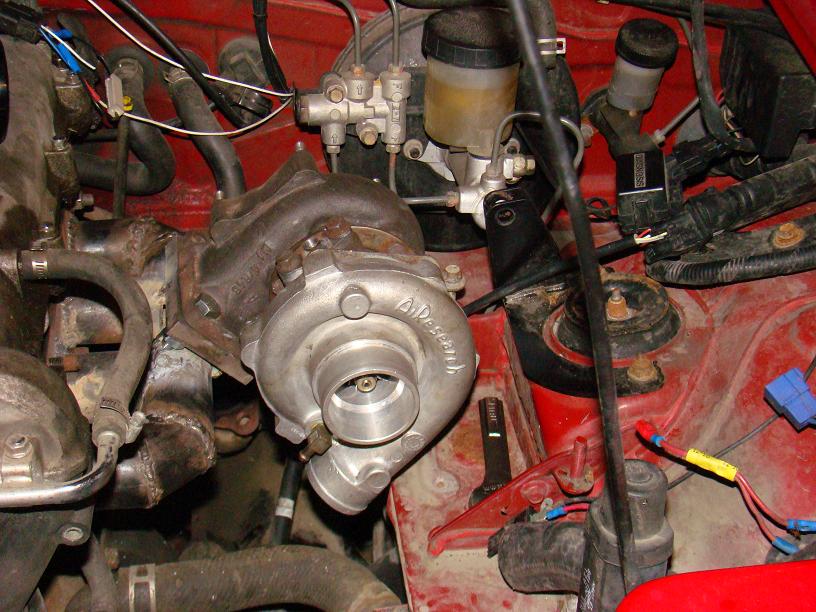

I'll see what I can dig up for the hose routing on the next manifold. In the mean time, she'd sitting on top. I still have to finish welding the turbo flange and I haven't mounted the EWG yet. (But it's all planned and the piping is cut.) Here's the latest pic....
--Alex
Attached Thumbnails
New level of cheap DIY....-5.jpg
AlexO35 is offline   Reply With Quote
Old 09-21-2008, 10:46 PM   #42
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

This is a ******* awesome build. Needs more pics, but it's awesome. Go camera crazy. Take pics of the intermediate steps. Keep up the good work.
patsmx5 is offline   Reply With Quote
Old 09-22-2008, 02:30 AM   #43
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Or hack the current mixing manifold to create your own water by-pass:
https://www.miataturbo.net/forum/sho...2&postcount=50
(first picture)
Laur3ns is offline   Reply With Quote
Old 09-22-2008, 04:12 AM   #44
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Alex, do you have a few more photos of that turbo? From the looks of the compressor thats the identical turbo I started with, but my Turbine is a .63... Curious if its close to the same and what car it came from..
elesjuan is offline   Reply With Quote
Old 09-22-2008, 02:43 PM   #45
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

What angles do you want? This one is a .48 A/R turbine, 50 trim Saab unit. Water cooled center section. Not much else to it really....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-22-2008, 02:45 PM   #46
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

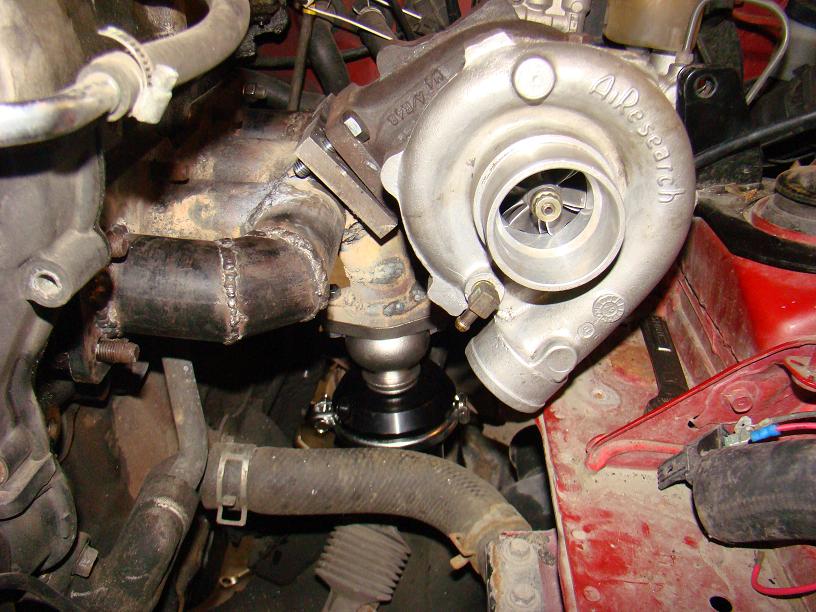

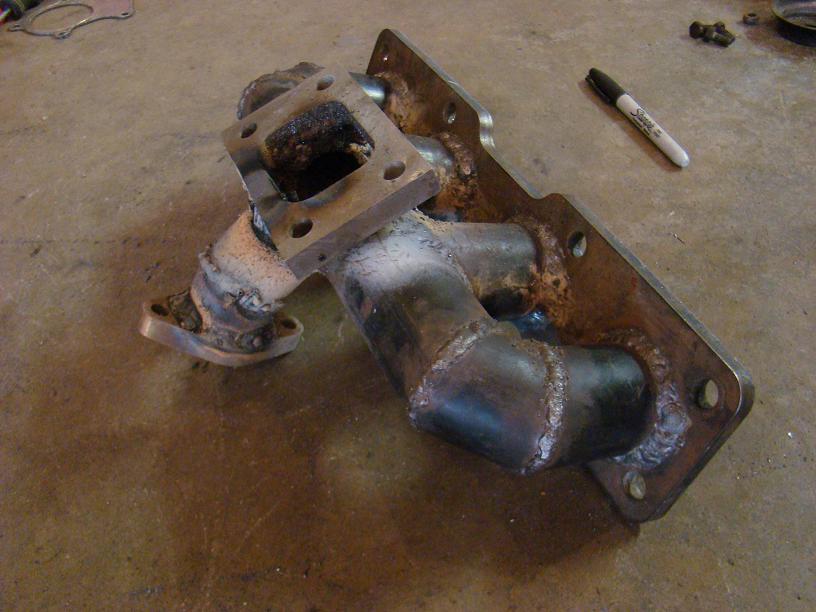

New pics. Manifold almost done. EWG mounted and mocked up in the car.
--Alex
Attached Thumbnails
New level of cheap DIY....-6.jpg   New level of cheap DIY....-7.jpg
AlexO35 is offline   Reply With Quote
Old 09-22-2008, 02:48 PM   #47
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

rotate your CHRA... your oil drain won't work at that angle.
Arkmage is offline   Reply With Quote
Old 09-22-2008, 02:55 PM   #48
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Oh yea. I had to whole turbo loose for that pic. It's clocked so to oil ports are vertical now. So, since you run this tubo, how much of a difference do the the 3" DP and exhaust make for you?
--Alex
AlexO35 is offline   Reply With Quote
Old 09-22-2008, 03:29 PM   #49
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

So now all it looks like I have left is the oil and water plumbing, IC piping, intake air filter, BOV, and DP..... Getting there slowly....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-22-2008, 03:46 PM   #50
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Schlitz can connector FTW! Use at least one license plate heat shield, a pony keg for water injection and for god's sake, figure out how to incorporate at least one part from an old washer/dryer or stove!

What the hell did I spend all that money with BEGI for?!? Love this build. Good luck.

Redneck-olishious.
cueball1 is offline   Reply With Quote
Old 09-22-2008, 04:19 PM   #51
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

What's the inside of the TB I/C pipe look like?
jayc72 is offline   Reply With Quote
Old 09-22-2008, 06:29 PM   #52
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by AlexO35 View Post
What angles do you want? This one is a .48 A/R turbine, 50 trim Saab unit. Water cooled center section. Not much else to it really....
--Alex

Does it have a wastegate in the turbine housing? Its not the same, mine isn't water cooled. :-/
elesjuan is offline   Reply With Quote
Old 09-22-2008, 07:13 PM   #53
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by AlexO35 View Post
So, since you run this tubo, how much of a difference do the the 3" DP and exhaust make for you?
--Alex
It's a huge difference, I just installed the BEGi 2.75" downpipe this weekend (coming from a 2.5" that necked down to 2.25" at the cat). The 3" alone made a pretty good difference... but with the new downpipe it's just silly fast. Had to turn the boost controller down a lot though as I was hitting 17-18 psi on the 1st runs on the new downpipe.
Arkmage is offline   Reply With Quote
Old 09-22-2008, 07:14 PM   #54
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by elesjuan View Post
Does it have a wastegate in the turbine housing? Its not the same, mine isn't water cooled. :-/
Some of the saab units are not water cooled (like mine). It just depends on the year of the donor car.
Arkmage is offline   Reply With Quote
Old 09-22-2008, 07:35 PM   #55
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by Arkmage View Post
Some of the saab units are not water cooled (like mine). It just depends on the year of the donor car.
I have no idea what mine came from. A friend worked at SAAB in 2000 and gave it to me because they were tossing it out. Had around 10,000 miles on it after Garrett rebuilt the unit, was removed from the car as a misdiagnosis. Its a .63 turbine with no wastegate and non-water cooled center. Swapped out the tiny compressor for a Turbonetics T04B-S3 acquired from a fellow member. No idea how well it'll work or not.
elesjuan is offline   Reply With Quote
Old 09-23-2008, 12:49 AM   #56
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

I think this unit was from an older Sabb 900. I'm not sure though. It did have an internal WG setup on it, but I sold it on eBay. I've been through a crap load of turbos just looking for pieces. I started with a Volvo unit, but that was a .63 turbine and a 45 trim compressor. Kept the compressor, sold the rest. Got a Volvo T04B, but the compressor back plate cracked. Still have the housing and the wheel, ditched the turbine. So all said and done, I'm going with the Saab unit for now, but have the other compressor is I can find a backing plate. And I still have a few turbine wheels and a few water cooled CHRAs around.... If anyone's interested, let me know and I'll thow some pieces in the classifieds. I think I have an extra Bosch BOV around too....

Thanks Arkmage. I think my DP flange is a 2.5" or 2.75". I'll step it up to 3" when the EWG is plumbed in. Guess I'll be shopping for a new cat and mufflers too....

I'll post a few pics of the inside of the IC pipes tomorrow....

--Alex
AlexO35 is offline   Reply With Quote
Old 09-23-2008, 01:18 AM   #57
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Cool man. You check out turbonetics.com for a backing plate on that T04B? Looking forward to more pictures!
elesjuan is offline   Reply With Quote
Old 09-23-2008, 12:35 PM   #58
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

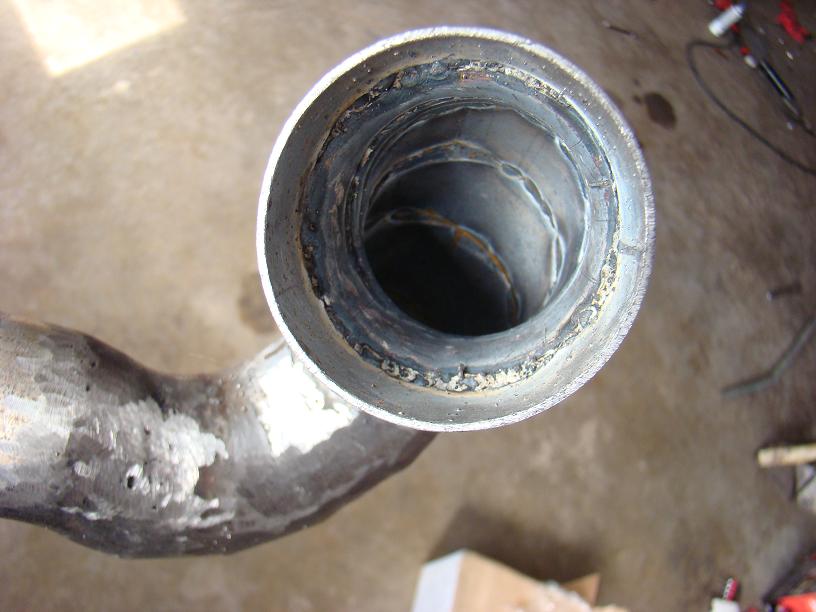

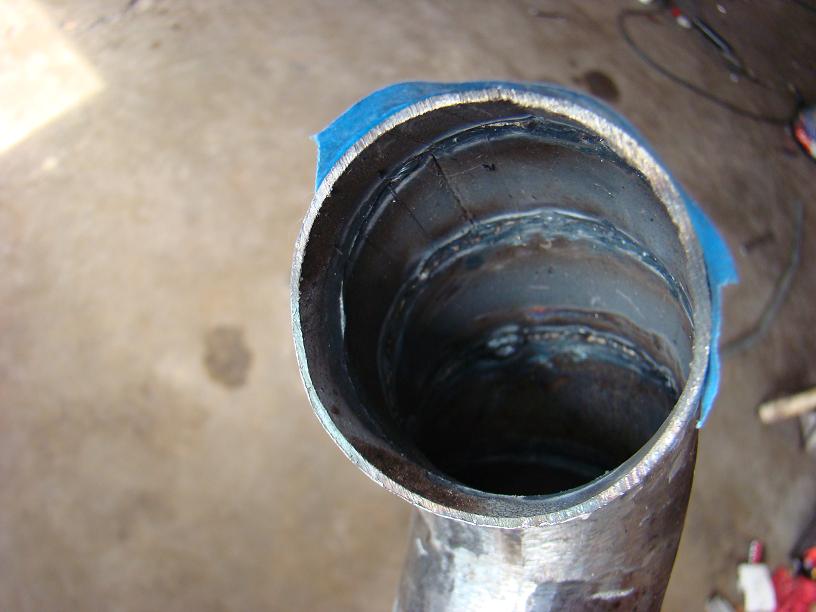

Inside of the IC pipes....
--Alex
Attached Thumbnails
New level of cheap DIY....-8.jpg   New level of cheap DIY....-9.jpg
AlexO35 is offline   Reply With Quote
Old 09-23-2008, 04:50 PM   #59
Junior Member
iTrader: (6)

Join Date: Oct 2007
Location: So Cal
Posts: 331
Total Cats: 0
Default

Quote:
Originally Posted by AlexO35 View Post
I'll see what I can dig up for the hose routing on the next manifold. In the mean time, she'd sitting on top. I still have to finish welding the turbo flange and I haven't mounted the EWG yet. (But it's all planned and the piping is cut.) Here's the latest pic....
--Alex
So F'ing ghetto I love it... +1 on the cut wrench I have a few of those

Lastly, I heard that Schlitz was coming back again after the original people sold out and the new owners f'd up the formula. Now they bought it back and are bringing it back better than ever..
99NBMia is offline   Reply With Quote
Old 09-23-2008, 09:01 PM   #60
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Good welds man- even penetration.... lol

I made a homemade grinder with steel wire and welded on screws, something like that will make sure all those little steel spatters are cleaned off the inside of the piping and wont eventually get sucked through your engine :-)
ogwazza is offline   Reply With Quote
