Old 09-18-2008, 08:04 PM   #21
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

I'm pretty sure hes just joking about using the tape.

Looks ******* great man, really good job. Cant wait to see the finished product.
Fireindc is offline   Reply With Quote
Old 09-18-2008, 08:14 PM   #22
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Fireindc View Post
I'm pretty sure hes just joking about using the tape.
Yea, he's gotta be joking....right?.......
KPLAFIN is offline   Reply With Quote
Old 09-18-2008, 09:38 PM   #23
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Joe Perez View Post
Are you using MIG or stick on that manifold?
Looks like flux core to me.
Savington is online now   Reply With Quote
Old 09-18-2008, 09:49 PM   #24
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Quote:
Originally Posted by AlexO35 View Post
TB to IC pipe in place. In keeping with the low budget theme, I decided to use blue painters tape instead of silicone couplers....
--Alex
JB Weld the Tape FTW!!

:thumbs up:

Chris
Miatamaniac92 is offline   Reply With Quote
Old 09-19-2008, 12:37 AM   #25
Junior Member
iTrader: (1)

Join Date: Oct 2006
Location: Cincinnati, OH
Posts: 375
Total Cats: 0
Default

Those welds are uuuuuugly, haha. I'm all about the ghetto builds, though, so thumbs up from me.
StankCheeze is offline   Reply With Quote
Old 09-19-2008, 12:42 AM   #26
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Looking good, but threads like these thrive with pics. More Pics! Where did you get that wastegate? Does it look like a good one?
patsmx5 is offline   Reply With Quote
Old 09-19-2008, 01:02 AM   #27
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I keep looking at those pipes and thinking of a hand hammered wok.
m2cupcar is offline   Reply With Quote
Old 09-19-2008, 01:12 AM   #28
Junior Member
iTrader: (2)

Join Date: Nov 2007
Posts: 57
Total Cats: 0
Default

Total ganster right thur. I love it!

Craig
TunerToys is offline   Reply With Quote
Old 09-19-2008, 02:11 AM   #29
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Yea, everything has been done with a 110 flux core wire feed. I should have my regs back for the next mani and I'll have gas again. Gotta use flux core on the galvanized though. I've got a heavy breeze / light wind going across for those. Joe's right though, very grinding intensive....

The WG looks like a pretty decent piece. It'ts the first one I've ever seen in person though. (Did I mention I have no prior turbo experience) I though I had the whole EWG setup figured out in my head, then I opened the box and it was twice the size I thought it would be.... It'll be interesting, but I think it'll work.

I'll take a few more pics tomorrow. There's not too much to see yet, but I'll come up with something.

And of course I was kidding about the painters tape. It's just there to hold it for a mock up. I figured you guys would have caught on when I mentioned the WG had a 7psi spring. Everyone knows that painters tape is only good for 3psi. After that you have to use electrical tape. 600v and 12psi.... Sheesh.... Thought I was gunna use painters tape....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-19-2008, 03:14 AM   #30
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Haha Legend!!

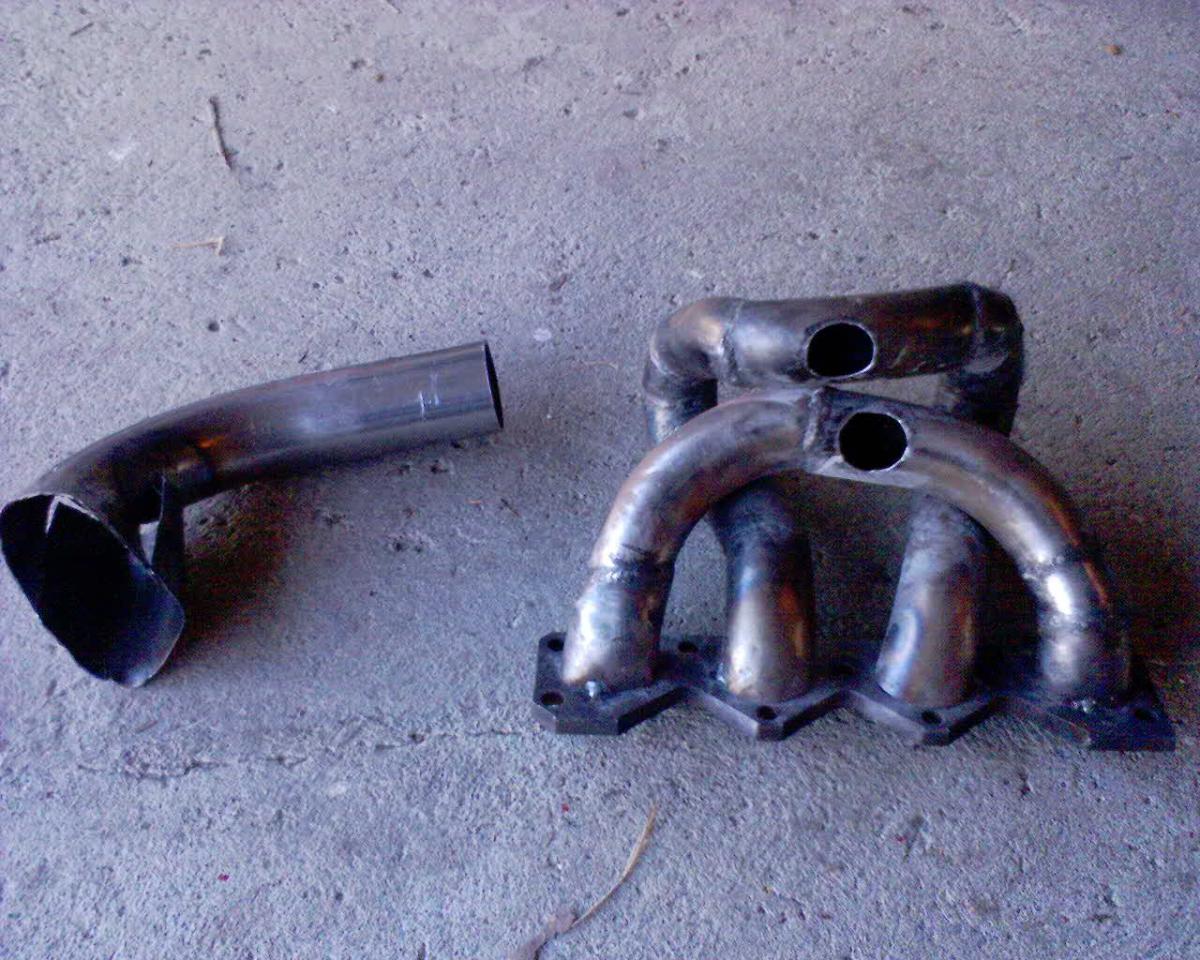

Hey hope you don't mind but i'm adding my 5c to your cheap diy thread, so heres my bogan manifold.

It's made so that the turbo sits lower so I can actually close the bonnet

Fits a twinscroll, has had many a happy grinding since then too smoothing out all those lumpy welds that provide all that extra strength!!!!!!!
Attached Thumbnails
New level of cheap DIY....-dsc00048.jpg
ogwazza is offline   Reply With Quote
Old 09-19-2008, 10:39 AM   #31
Newb
iTrader: (1)

Join Date: Sep 2007
Posts: 24
Total Cats: 0
Default

The painters tape might just hold about .00001 psi. haha
Shainz is offline   Reply With Quote
Old 09-19-2008, 12:36 PM   #32
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Sweet man. Good job.
You should recieve the redneck build of the year award. I think it is going to work.
Good Luck.
For real though, don't use lowes couplers. I have one right now. It is sagging.
Mabe truck radiator hose??????
Toddcod is offline   Reply With Quote
Old 09-19-2008, 01:51 PM   #33
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

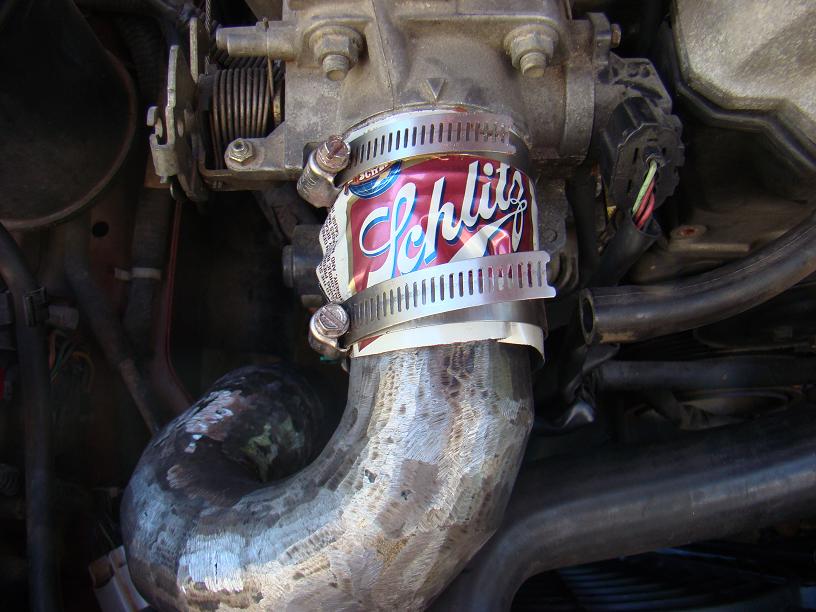

Good call Todd.... The Redneck-charger. Perfect. I was wondering what to call it since MarkP took "Ghettocharger" on his high dollar china-charger build....

A few changes to suit the name.... And she's now the Redneck-charger....

--Alex
Attached Thumbnails
New level of cheap DIY....-3.jpg
AlexO35 is offline   Reply With Quote
Old 09-19-2008, 02:00 PM   #34
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

That is ******* awesome.
skidude is offline   Reply With Quote
Old 09-19-2008, 02:01 PM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Dude, where the hell did you get a Schlitz can? I haven't seen that stuff in forever!
Joe Perez is offline   Reply With Quote
Old 09-19-2008, 02:15 PM   #36
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Oh the things I have lying around the garage.....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-19-2008, 10:58 PM   #37
Senior Member

Join Date: Jul 2008
Location: Phoenix
Posts: 657
Total Cats: 12
Default

Quote:
Originally Posted by AlexO35 View Post
Good call Todd.... The Redneck-charger. Perfect. I was wondering what to call it since MarkP took "Ghettocharger" on his high dollar china-charger build....

A few changes to suit the name.... And she's now the Redneck-charger....

--Alex
This is your avatar...
oilstain is offline   Reply With Quote
Old 09-21-2008, 07:28 PM   #38
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

So I've got the manifold mocked up to trial fit the turbo, but I'm having some issues. I'm sure this is the same dilemma everyone goes through, and I have a feeling there is no real answer. Here it is anyway....

If I top mount the turbo, the compressor is in a nice spot but I'm stuck with a nasty 3-4" radius 90 for the DP.

If I bottom mount, the DP is a straight shot and the EWG has a nice spot on top. but there's a damn radiator hose in the way of the compressor.

So I guess the question is, how big of a deal is the tight radius 90 (which will have to be pie cut) straight off the turbine. Or is there an easy way to get that hose out of the way?
--Alex
AlexO35 is offline   Reply With Quote
Old 09-21-2008, 08:29 PM   #39
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Silly me. I forgot the point of this project. The goal is to make lag first, then worry about it.... On the top she goes....
--Alex
AlexO35 is offline   Reply With Quote
Old 09-21-2008, 08:42 PM   #40
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

You can use a 1.8 thermostat cover on the waterpump inlet and reroute the rad hose. (youll need a hosebarb for the mixing manifold)
greddymx5 is offline   Reply With Quote
