Default New oil return line - hangs low...

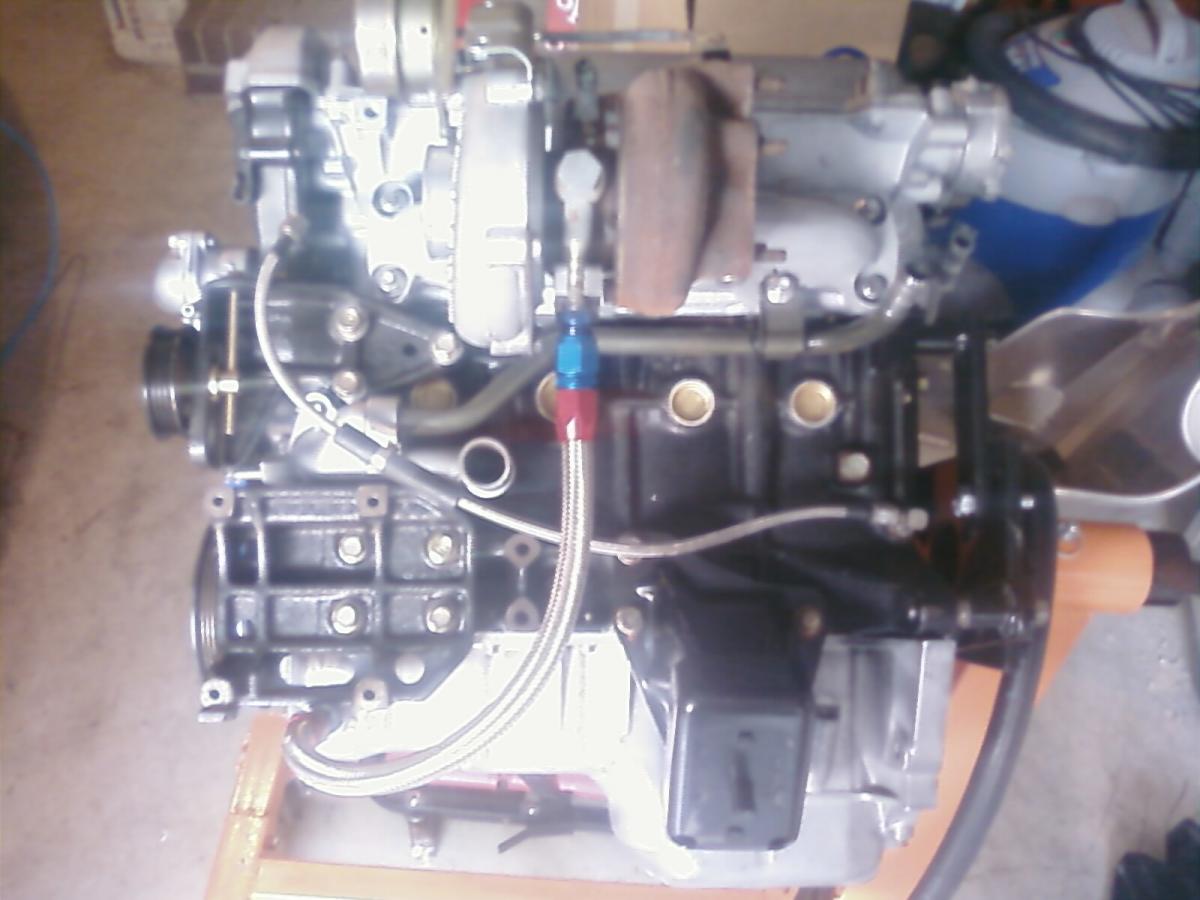

I sent this pic to Steph too but thought I'd ask for your opinions. I welded a bung on the pan while the engine is out and ran the stainless braided hose from the turbo. Problem is the line hangs just a little bit below the connection on the pan so oil will pool in the hose. I've heard this is a no-no but I don't know why. Thoughts?
Attached Thumbnails
New oil return line - hangs low...-pic-0009.jpg
thymer is offline   Reply With Quote
Old 10-08-2008, 10:54 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

throw a section of rubber hose around the line, zip tie it up onto an a/c or something after installed.
Braineack is offline   Reply With Quote
Old 10-08-2008, 11:06 AM   #3
Junior Member

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Alternatively, can you do anything about the connection to the turbo? Looks like a lot of, and long, hardware there. Something more direct will shorten things up just the right amount.
Thucydides is offline   Reply With Quote
Old 10-08-2008, 11:26 AM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by Thucydides View Post
Alternatively, can you do anything about the connection to the turbo? Looks like a lot of, and long, hardware there. Something more direct will shorten things up just the right amount.
That's a optical illusion in the pic. The long thing you see is the water line port.
thymer is offline   Reply With Quote
Old 10-08-2008, 11:33 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Mine was way too long. I cut that bitch and shortened it to find that it interfered with the power steering line. Put the motor in the car before you trim it.
hustler is offline   Reply With Quote
Old 10-08-2008, 11:39 AM   #6
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by hustler View Post
Mine was way too long. I cut that bitch and shortened it to find that it interfered with the power steering line. Put the motor in the car before you trim it.
Good conservative move. Hope to be putting it in in the next two weeks.
thymer is offline   Reply With Quote
Old 10-08-2008, 11:47 AM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Mine is the same way, no problems.
Saml01 is offline   Reply With Quote
Old 10-08-2008, 11:59 AM   #8
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

^^mine's that way as well with no problems.
johndoe is offline   Reply With Quote
Old 10-08-2008, 12:13 PM   #9
Junior Member
iTrader: (4)

Join Date: Oct 2007
Location: santa cruz
Posts: 246
Total Cats: 0
Default

Once everything is installed, you can loosen one of your -AN fittings and twist the hose a little bit, forcing it to change shape slightly, which can help with clearances and possibly help with your situation as well.
chucker is offline   Reply With Quote
Old 10-08-2008, 12:15 PM   #10
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

so dont cut it, and its just fine
akaryrye is offline   Reply With Quote
Old 10-08-2008, 12:51 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I also recommend putting the motor in the car with the head off.
hustler is offline   Reply With Quote
Old 10-08-2008, 12:59 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by hustler View Post
I also recommend putting the motor in the car with the head off.

you would.
Braineack is offline   Reply With Quote
Old 10-08-2008, 01:34 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
you would.
I'd rather yank the head than the sway bar/brace if the motor is out of the car.
hustler is offline   Reply With Quote
Old 10-08-2008, 03:02 PM   #14
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by hustler View Post
I also recommend putting the motor in the car with the head off.
why on earth would I want to do that???
thymer is offline   Reply With Quote
Old 10-08-2008, 03:03 PM   #15
Senior Member
Thread Starter
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by hustler View Post
I'd rather yank the head than the sway bar/brace if the motor is out of the car.
Didn't have to do that to take it out, no reason to when putting it back in.
