Default o2 Bungs on Downpipe

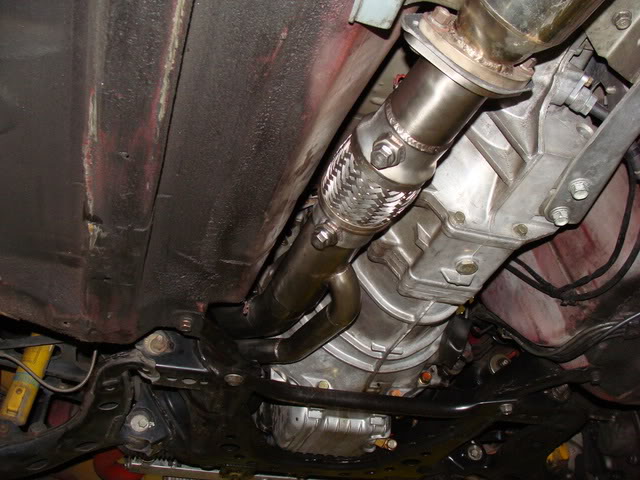

I just installed my BEGi downpipe, and I was stupid and it didn't click that the o2 bungs were on the lower half of the pipe until I got it installed and went to install the WB sensor.
I talked to Stephanie today, and they're willing to work with me to fix it, but she said that she's talked to WB vendors that say that as long as the sensor is above about the 7 or 8 o'clock position (which mine looks to be), it should be fine.
What's the general consensus here? I've been taught and told that you keep it as high as possible to avoid moisture damage, but if it'll be ok as is, I'd rather avoid the hassle of getting it changed. But if it's gonna kill sensors, I'm going to change it.
Name:  DSC01136.jpg
Views: 35
Size:  76.3 KB
RotorNutFD3S is offline   Reply With Quote
Old 01-21-2008, 05:12 PM   #2
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I wouldn't want mine be below 3 or 9 o-clock. I'd get that fixed.

Also, think about it's placement, the O2 sensor would probably be the lowest point on the car, I bet they don't like to be hit with objects on the highway, or cones for that matter.
Bryce is offline   Reply With Quote
Old 01-21-2008, 05:30 PM   #3
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I have never seen a recommendation below 10 degrees ABOVE horizontal for a permanent installation. This is done so that you don't get condensate forming in the unit. Temporary use bungs for dyno tuning can be below horizontal for access, but those units are removed while still warm in most cases.
olderguy is offline   Reply With Quote
Old 01-21-2008, 06:01 PM   #4
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Is that where they normally put it?

Straight from the LM-1 manual;
Quote:
The bung must be installed in the exhaust pipe at the side or on top, NOT on the bottom of the exhaust pipe. Best position is between 10:00 and 2:00 position.
C
chriscar is offline   Reply With Quote
Old 01-21-2008, 07:21 PM   #5
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

yup.....my begi S downpipe has two bungs pointing in the 6 o'clock position. i guess it's a good location if you like destroying O2 sensors.
budget racer is offline   Reply With Quote
Old 01-21-2008, 07:47 PM   #6
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Mine are close to horizontal. Guess I got lucky.
sv650_ck is offline   Reply With Quote
Old 01-21-2008, 08:21 PM   #7
Elite Member
Thread Starter
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

OK, thanks guys! I just wanted to see if I was missing something, but clearly I'm right on the money. I'll get things rolling my way tomorrow.
RotorNutFD3S is offline   Reply With Quote
Old 01-21-2008, 08:23 PM   #8
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

I see that downpipe as a possibility in my future, and will be sure to specify bung placement when I order.

C
chriscar is offline   Reply With Quote
Old 01-21-2008, 08:29 PM   #9
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

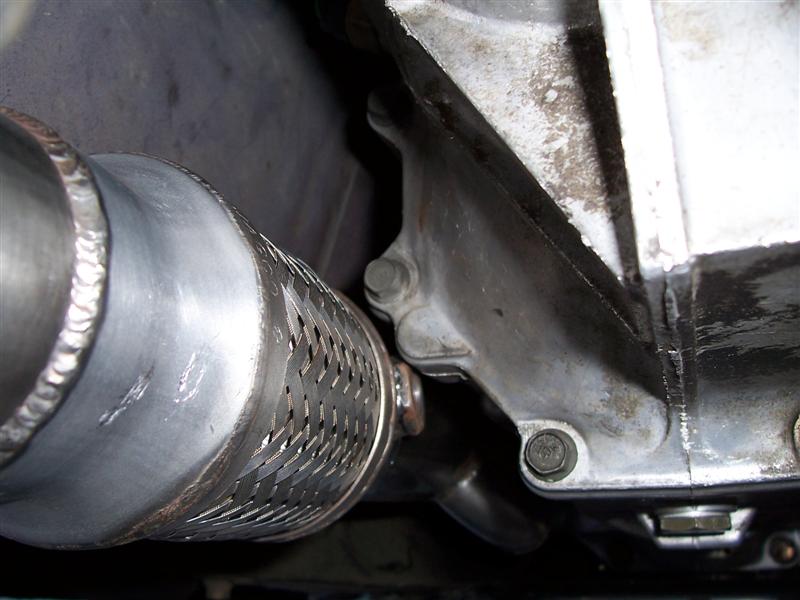

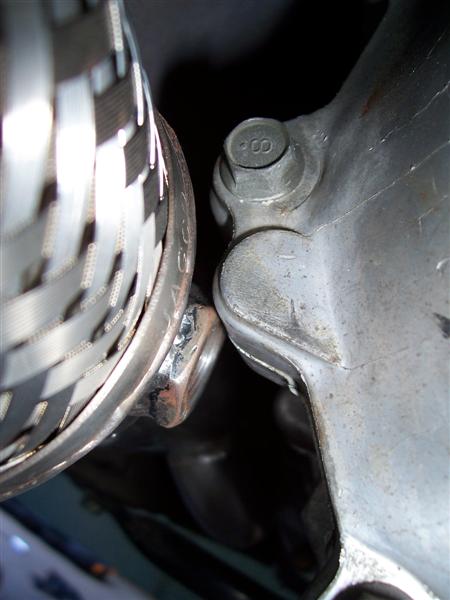

I too have had problems with the BEGi downpipe I ordered with O2 sensor position. I'm at the point where I believe they are incapable of building a downpipe with correct bung positions. I would think that with a shop that specializes in Miatas, could figure out where to correctly mount a sensor bung so it doesn't interfere with anything, but unfortunately, this is not the case. I'm also a little baffled by the use of steel bungs on a stainless steel downpipe. I'm extremely disappointed with this fact as they have a good reputation, but because of my incident and what followed, I will never buy another product from them, let alone have them do any custom fabrication for me. Attached is a picture of where they thought my O2 sensor should be located......
Attached Thumbnails
o2 Bungs on Downpipe-100_0235-medium-.jpg   o2 Bungs on Downpipe-100_0238-medium-.jpg
karter74 is offline   Reply With Quote
Old 01-21-2008, 08:32 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

A sensor bung facing down is super convenient for the dyno. If I were having a custom DP made, I'd have a bung at the NB location, a second facing down pre cat, and a third facing up pre cat.
Ben is offline   Reply With Quote
Old 01-22-2008, 10:12 PM   #11
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Ordered mine a few months ago, Stef emailed me pics to mark for location.
Actually, come to think of it I have 2 bungs in the WB location...the original that they put in which is very close (prob same) as the OP's pic, and then one I marked for them with correct orientation...
And I have a 3rd pretty much right where its located on the stock dp for the stock 02...
TonyV is offline   Reply With Quote
Old 01-22-2008, 10:21 PM   #12
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by karter74 View Post
I'm extremely disappointed with this fact as they have a good reputation, but because of my incident and what followed
What followed?

Last edited by sv650_ck; 01-22-2008 at 11:10 PM.
sv650_ck is offline   Reply With Quote
Old 01-22-2008, 11:02 PM   #13
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I've put WB bungs on 3 different headers. Best place I found was near the flange around the 3 oclock position. Plenty of room for the sensor and it was on a slight angle to prevent the condensation issue. Plus I think it may keep the sensor from overheating. I haven't read issues of WB sensors being too cold, but I've read things about them getting too hot. I have to take a look at my recently received downpipe. It has 2 bungs welded in before the flex joint, but I haven't looked at it hard enough to see where they would put the WB sensor.
soflarick is offline   Reply With Quote
Old 01-22-2008, 11:06 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

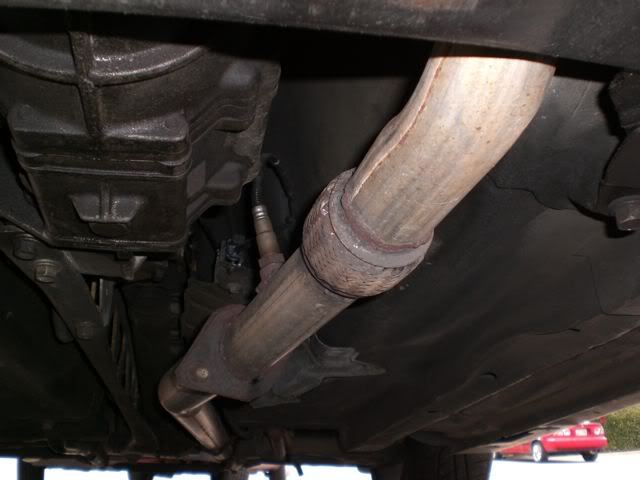

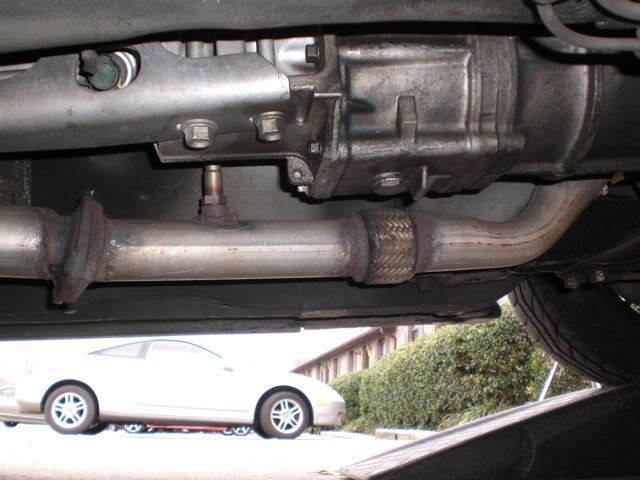

Here's mine, it could stand to be moved closer to vertical by like 5 more degrees but it doesn't come close to hitting anything the way it is now.
Name:  sidewv.jpg
Views: 26
Size:  76.7 KBName:  frontwv.jpg
Views: 19
Size:  58.2 KB
cjernigan is offline   Reply With Quote
Old 01-23-2008, 12:43 AM   #15
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

You can put the wideband in your muffler tip for all it matters. Just as long as you don't have exhaust leaks and you don't get a reversion of air into it. It's got a built in heater.

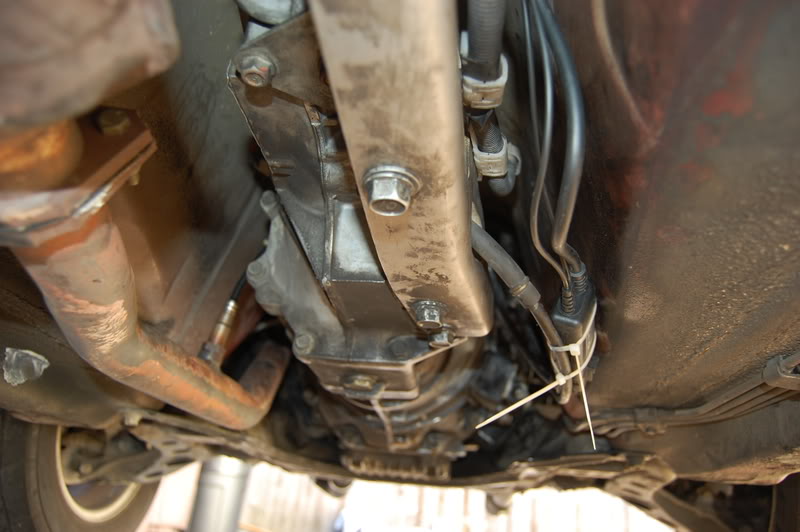

Durka Durka here's mine. Tons of space to get a wrench in there too.
Name:  DSC_1030.jpg
Views: 20
Size:  87.2 KB
Bryce is offline   Reply With Quote
Old 01-23-2008, 01:04 AM   #16
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Quote:
Originally Posted by sv650_ck View Post
What followed?
Without going into nitty gritty details, they wanted me to pay for shipping back to them for their mistake, but finally agreed to pay both ways. I marked the correct location for the replacement O2 bung, and emailed them pictures of the issue, and included a letter of what needed to be done to make it work. They sent it back to me, with the new O2 bung in the correct location, but even though the pictures speak for themselves, they just welded a plug into the bung, creating even more of an issue. After numerous phone calls back and forth, and after shipping my downpipe back and still not fixed, I was literally told that they won't mess with it anymore and I had to find someone else to fix it on my dime. Great customer service, nothing like paying $400 for a downpipe that doesn't fit and not even willing to fix correctly......
karter74 is offline   Reply With Quote
Old 01-23-2008, 12:37 PM   #17
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by olderguy View Post
I have never seen a recommendation below 10 degrees ABOVE horizontal for a permanent installation. This is done so that you don't get condensate forming in the unit. Temporary use bungs for dyno tuning can be below horizontal for access, but those units are removed while still warm in most cases.
Yep!
TurboTim is offline   Reply With Quote
Old 01-23-2008, 01:00 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

the 7-8 o clock position doesn't bother me....what bothers me is it's facing the side of the car, therefore the routing of the wires will be interesting at best.

i opted for horizontal.

Braineack is offline   Reply With Quote
Old 01-23-2008, 01:13 PM   #19
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Interesting thread.. i'll take a pic of where i'm thinking about. I wanted the wideband and o2 sensor to be maybe 3 inches apart..
PaKMaN is offline   Reply With Quote
Old 01-23-2008, 01:20 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default
