Default O2 placement vs EWG/ crank evac

I am modifying my stock FM downpipe...well, I should put it more like, "using it for parts to build a different DP". I am going to use my Tial 38mm MVS wastegate, and also use a crank evac setup. I know the crank evac needs to be plumbed in after my O2, but does it matter where the wastegate dump goes?

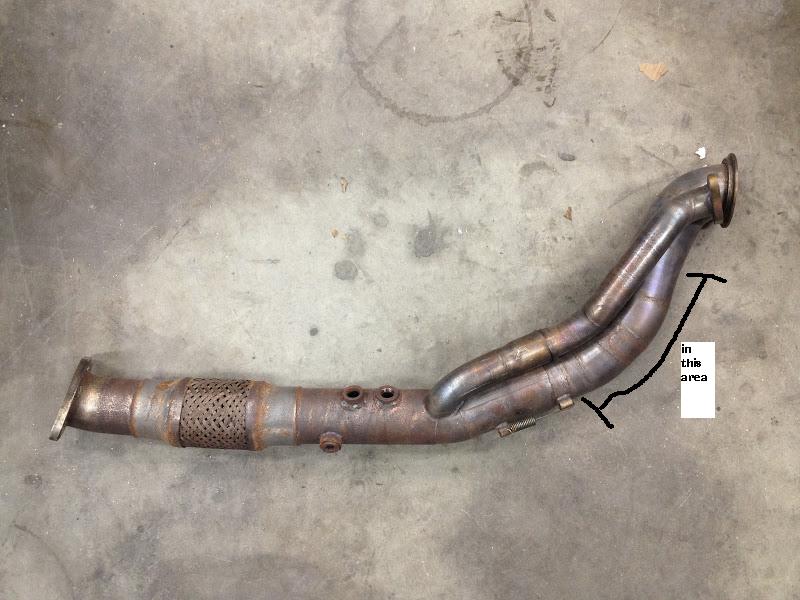

The following is a photo of a BEGI DP that is used for EWG and has the O2 bungs pretty far down. The line with the text next to it is where I want to put my O2 bung (I only need 1).
What says MT.net about placement?
O2 placement vs EWG/ crank evac-downjpipe.jpg
thirdgen is offline   Reply With Quote
Old 04-24-2013, 04:52 PM   #2
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Nobody?
thirdgen is offline   Reply With Quote
Old 04-24-2013, 04:56 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

the top of that is too close to turbo
the bottom is about right.

doesnt' matter if its before or after dump, since the sensor doesn't care about the volume of gasses but their content
18psi is offline   Reply With Quote
Old 04-24-2013, 07:42 PM   #4
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Awesome, thanks Vlad!
thirdgen is offline   Reply With Quote
Old 04-24-2013, 07:46 PM   #5
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

In other words "what comes out of the exhaust side of the cylinder head will have the same air fuel ratio if it passes though a wastegate or a turbine"?
thirdgen is offline   Reply With Quote
Old 04-24-2013, 07:50 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

lolol
