Default Oil Drain

Hey guys, I did some searching on oil drains back into the pan, I have a -6 weld-in bung that I was hoping to use, but it seems that everyone has -10. Would a -6 be okay to use? I have the pan off and want to get this thing welded in. Also, just off the top of my head, is the oil port on the side of the block for feeding the turbo m10x1.5? I just want to double check, I know I have looked before but cant remember.

Thanks All,
Ryan
RyanRaduechel is offline   Reply With Quote
Old 09-27-2010, 12:32 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

-10AN = .625" I.D.
-6AN = .375" ID = pretty small for drain
Braineack is online now   Reply With Quote
Old 09-27-2010, 12:48 PM   #3
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

dang I didnt realize that was such a big gap in I.D. sizes, would a -8 be a compromise or just buy a -10 and be done with it?
RyanRaduechel is offline   Reply With Quote
Old 09-27-2010, 12:50 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

8 is fine.


-AN I.D. sizes = -X/16
Braineack is online now   Reply With Quote
Old 09-27-2010, 05:39 PM   #5
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

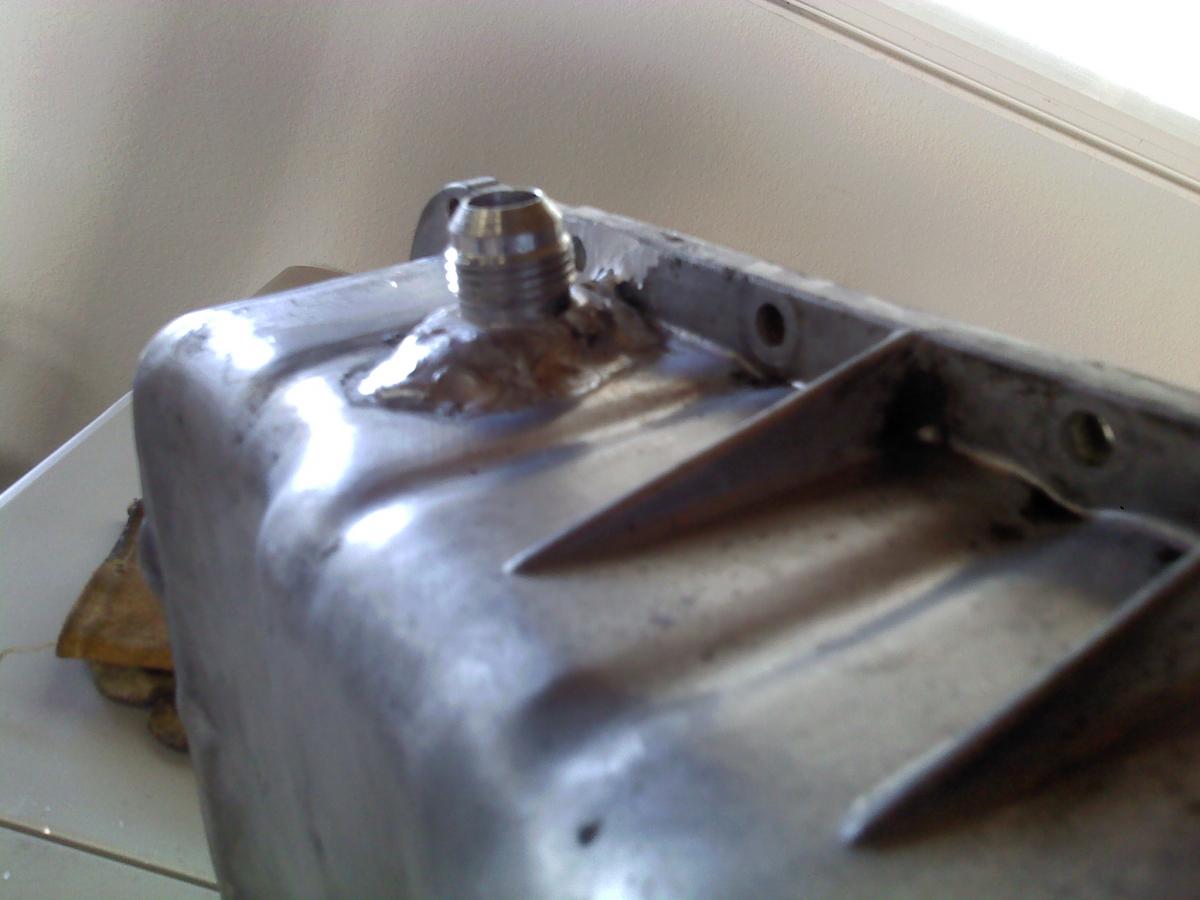

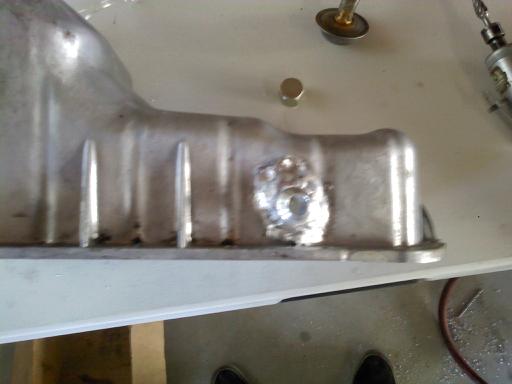

well, so much for it looking like a roll of quarters, it more or less looks like a ball of ****. I guess I should have laid down some practice beads before giving it a go. I dont TIG very often, and it shows. But function over form on this one I guess. What do you guys think?
Attached Thumbnails
Oil Drain-downsized_0927001335.jpg   Oil Drain-0927001335b.jpg
RyanRaduechel is offline   Reply With Quote
Old 09-27-2010, 11:03 PM   #6
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Sorry man but that looks super haggard, but welding onto the pan is one of the hardest things you can do. Oil residue just pulls through the metal.
dustinb is offline   Reply With Quote
Old 09-28-2010, 01:52 AM   #7
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

yeah it looks like hell, I thought about trying to clean it up with a grinder but I'm not sure. Buy another pan and try again lol
RyanRaduechel is offline   Reply With Quote
Old 09-28-2010, 01:56 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

if it works it works. who gives a **** what it looks like its at the bottom where no one will see it.
18psi is offline   Reply With Quote
Old 09-28-2010, 02:04 AM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by RyanRaduechel View Post
yeah it looks like hell, I thought about trying to clean it up with a grinder but I'm not sure. Buy another pan and try again lol
Bah, just go with it, you're not going to put the bottom of your motor on show. I had a -10 welded on my pan - what size did you end up going with?
dustinb is offline   Reply With Quote
Old 09-28-2010, 02:08 AM   #10
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Tip on welding oily aluminum... put lacquer thinner on a rag and rub it clean. Then use a grinder with a sanding pad to take out all the porousness to make it a dull shine, clean again with lacquer thinner then stainless steel brush. Some imperfections still will get by you so use 4043 rod and set the machine highest clean without ruining your ball and run it hot. You can also preheat with a propane torch which i do most of the time welding anything except thin tubing (just to about 200*).
SKMetalworks is offline   Reply With Quote
Old 09-28-2010, 02:17 AM   #11
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

I was going to go with a -8 but the local speed shop only had -10 so thats what I went with. I didnt want to wait for Summit to ship one out. Thank you for the tips, I skipped some steps. I just used a SS brush and some brake kleener. I thought about preheating but wasnt sure if it would help any. I defiantly need more practice. Hell setting this thing up can confuse me. Its old, I will snap a picture tomorrow.
RyanRaduechel is offline   Reply With Quote
Old 09-28-2010, 09:30 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by RyanRaduechel View Post
yeah it looks like hell, I thought about trying to clean it up with a grinder but I'm not sure. Buy another pan and try again lol

who cares what it looks like.
