Default Oil feed line problem..

Took the plug out of the block for the oil feed line, to find that the threads arent 1/8BSPT pipe thread, they are very course.. Anyone ever run into this problem?
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 02:08 PM   #2
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Err BSPP..
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 02:13 PM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yeah they are metric if you mean the ones on the exhaust side 10* 1.5 i believe.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 02:34 PM   #4
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Oh? I've only heard of them being BSPP.. Or this a 1.8L thing?
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 02:44 PM   #5
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

the pipe thread hole is on the oil pressure sending unit bung on the intake sid eof the motor. If you have a crate motor or 1.8 you get your oil from there but the original 1.6 people, get a nice fitting on the hot side of the motor that takes a metric to AN fitting. i got some through summit for like 20 bucks apeice i believe but cant remember exacltly. Dont forget to get some to attach to the turbo as well the turbo might vary from engine in thread profile to but this is just good times.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 02:45 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Where in ILL are you?
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 02:56 PM   #7
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

I up untill recently lived in Carol Stream, IL, but moved back up north for my job. Still go to school down there every day in Glendale Heights though.. 150mile round trip comute FTL...
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 02:58 PM   #8
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

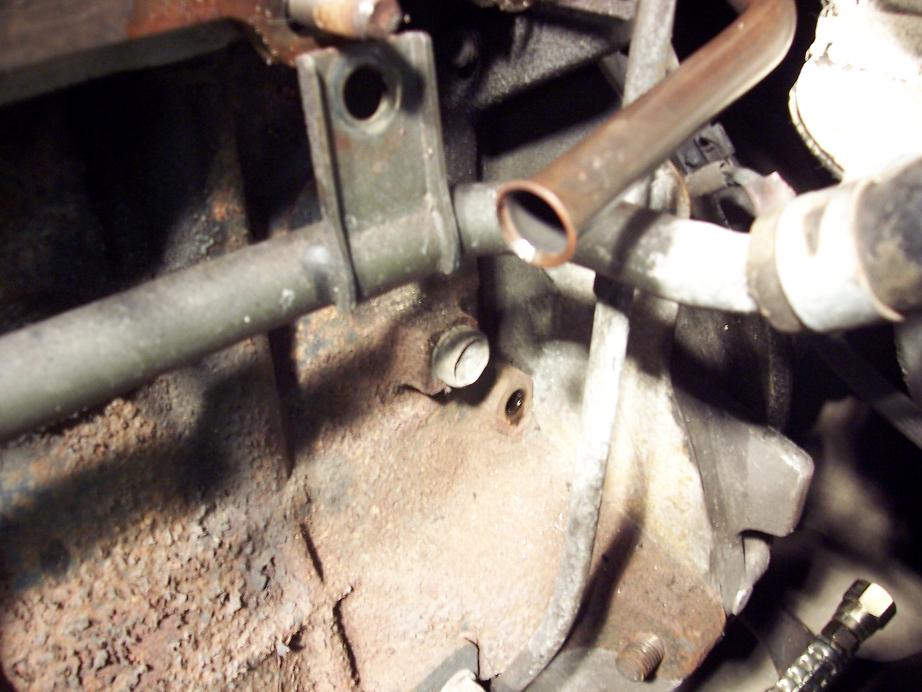

Here are the pics.
Attached Thumbnails
Oil feed line problem..-102_2572se.jpg   Oil feed line problem..-102_2573s.jpg
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 02:58 PM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

ouch damn if you where closer i woulda offered to swing by and lend a hand. sounds abit to far to be convenient/. GL man.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 03:00 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by ApexOnYou View Post
Here are the pics.
WTF is the first thing? the hole is metric and your line will most likely be AN you need an adapter.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 03:07 PM   #11
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Arent you in Kentucky? Isnt that a bit far even for southern Illinois? I appreciate the thought though!

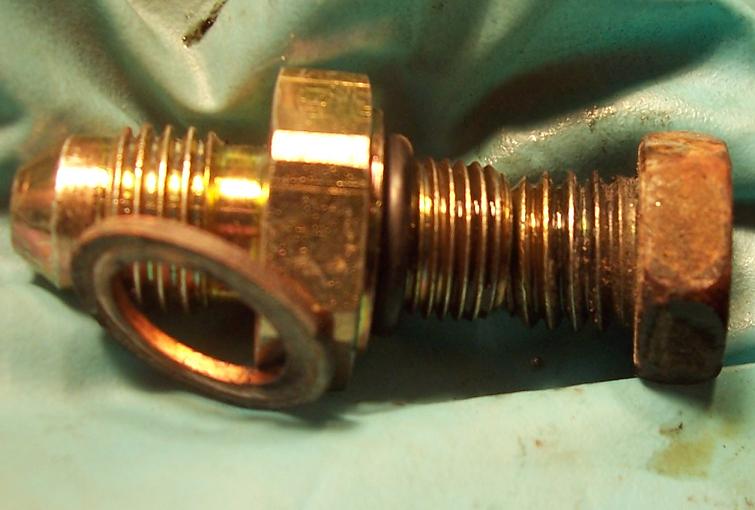

The first thing is the 1/8BSPP to *iforgetsize*AN fitting.
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 03:13 PM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yeah you need a fitting that is metric on one side and AN on the other.Yeah but Southern ILL would only be like an hour or 2 well worth it to help someone in my book. + im bored. http://store.summitracing.com/partde...5&autoview=sku
I dont remember the exact sizes but this is about what you will need. Off course you need to be sure of the block thread and your AN size first. i cant remember it off the top of my head.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 03:17 PM   #13
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
yeah you need a fitting that is metric on one side and AN on the other.Yeah but Southern ILL would only be like an hour or 2 well worth it to help someone in my book. + im bored. http://store.summitracing.com/partde...5&autoview=sku
I dont remember the exact sizes but this is about what you will need. Off course you need to be sure of the block thread and your AN size first. i cant remember it off the top of my head.
Oh I see what you mean now. Thats pretty much exactly what I have right now.. Just I dont have the right size lol. I may see if I can get some parts from the hardwars store to make an adapter to use the adapter I currently have. I would rather have a brass fitting than the aluminum earls fitting too.. But who knows what i'll end up doing. Thanks for the info!
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 03:18 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

BTW hardware store was of no help to me on this. So GL man. Metric stuff powns alot of these hardware stores and AN powns the rest.
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 03:32 PM   #15
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

https://www.miataturbo.net/forums/showthread.php?t=6520

This thread deals with it and hase some other links. I don't know which it turned out to be -3 AN or -4 AN
olderguy is online now   Reply With Quote
Old 02-03-2007, 03:34 PM   #16
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

I was thinking trying to make something like this, dont pay attention to sizing im just throwing those out there..

[BLOCK][M10 X1.5 to 1/8BSP adapter peices][1/8BSPP to 6AN adapter in pics][for the win.]

1/8BSPP seems like something thats going to be hard to find...
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 03:35 PM   #17
Senior Member
Thread Starter
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
https://www.miataturbo.net/forums/showthread.php?t=6520

This thread deals with it and hase some other links. I don't know which it turned out to be -3 AN or -4 AN
Thanks for the link! Seems like it might just be M10x1.5..
ApexOnYou is offline   Reply With Quote
Old 02-03-2007, 04:21 PM   #18
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Thats odd, I have always heard that the oil port on the block was 1/8 British Pipe Parallel, straight from Corky Bell.
-Michael-
TheBandit is offline   Reply With Quote
Old 02-03-2007, 04:43 PM   #19
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

The oil port for the pressure sensor yess, corky is not wrong here just missunderstood
magnamx-5 is offline   Reply With Quote
Old 02-03-2007, 06:53 PM   #20
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

yeah the hot side unused port is a 10mm x 1.5 i just ordered one from summit 10 bucks
adbradley is offline   Reply With Quote
