Default oil fittings, aluminum ok?

so as i assemble a list to place a large order from summit for my oil feed and return lines, i have one question. is aluminum ok for the fitting into the block oil feed location? generally my gut is telling me an aluminum fitting into a steel block is a bad idea, but anyone want to tell me otherwise?

since it's a greddy turbo, my feed line is a -4an line with a 10mm x 1.50 to -4an adpater for the block, side, and a 10mm x 1.25 to -4an adapter for the turbo side, possibly with some 90 degree action on the turbo side to make things a bit cleaner.

sound about right? aluminum safe, or does anyone have a link to where i can get the above in non-aluminum?
devin mac is offline   Reply With Quote
Old 09-04-2007, 06:20 PM   #2
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

id get steel. Just because I am strong like bull, and they expand a different rates. No big deal, but I am paranoid. Plus steel is cheaper.
Loki047 is offline   Reply With Quote
Old 09-04-2007, 06:29 PM   #3
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I think braineack broke one of the aluminum ones off in his block a while back...
Arkmage is offline   Reply With Quote
Old 09-04-2007, 06:37 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i sure did.





I had removed it from one block and installed into another....didn't like it the second time around.
Braineack is offline   Reply With Quote
Old 09-04-2007, 07:58 PM   #5
Newb

Join Date: Sep 2007
Posts: 35
Total Cats: 0
Default

an easyout get them out like butter..how do i know??? ,,ya i broke one off in my old 323... but if u want to save money go to a transport shop and they will make you the lines ..they wont be "AN" or "STEEL BRAIDED" but JIC is a lot cheaper and does the job just as good ...im runing JIC for oil feed/return and coolant..... and there hydrolic lines/fitings there good for 2000psi??
sweetmeatz is offline   Reply With Quote
Old 09-04-2007, 08:02 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by devin mac View Post
so as i assemble a list to place a large order from summit for my oil feed and return lines, i have one question. is aluminum ok for the fitting into the block oil feed location?
When I built my turbo feed line, I used a -4AN to M10 banjo fitting with an M10x1.5 banjo bolt to go into the block. Summit carries them under brake hardware. Then a 45 -4AN hose end to go onto it, and up to the turbo.
Joe Perez is online now   Reply With Quote
Old 09-04-2007, 09:41 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by sweetmeatz View Post
an easyout get them out like butter..how do i know???
yep.

Braineack is offline   Reply With Quote
Old 09-04-2007, 11:29 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

you know there's a tightening rule for AN fittings... wish I could find the link
y8s is offline   Reply With Quote
Old 09-05-2007, 12:07 AM   #9
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by sweetmeatz View Post
an easyout get them out like butter..how do i know??? ,,ya i broke one off in my old 323... but if u want to save money go to a transport shop and they will make you the lines ..they wont be "AN" or "STEEL BRAIDED" but JIC is a lot cheaper and does the job just as good ...im runing JIC for oil feed/return and coolant..... and there hydrolic lines/fitings there good for 2000psi??
JIC = 37* Flare = AN.... They are all the same sealing geometry and fully compatible. I do a lot of hydraulics at work and what AN fittings are called all has to do with the manufacturer. Industrial suppliers can also make you hoses in SS braid... you just have to ask. Standard is 3,000 Psi working pressure... in the length we deal with you can sometimes get a killer deal if you ask them to use scraps from other jobs.
Arkmage is offline   Reply With Quote
Old 09-05-2007, 10:19 AM   #10
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

sounds god. i'll look for banjo fittings for the block and turbo. only issue is it looks like they only sell the damn things in pairs for brake jobs... anyone want me to make an extra greddy feed line? lol

the only tihng is, the greddy oil feed port is 10mm x 1.25, right?

thanks for the tips, guys.

-D
devin mac is offline   Reply With Quote
Old 09-05-2007, 01:39 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by devin mac View Post
sonly issue is it looks like they only sell the damn things in pairs for brake jobs...
Eh?

The feed from the block is M10x1.5. The feed into the turbo is M10x1.25.

You're going to need two -4AN to M10 banjo fittings, and these parts are the same between turbo and block. (the exception being that I used one with a long neck to feed the turbo, and at the block I used a short one.)

The bolts and washers are sold separately, and this is what determines the thread pitch (1.25 vs. 1.5)

Here are banjo fittings by themselves:
http://store.summitracing.com/partde...5&autoview=sku
http://store.summitracing.com/partde...5&autoview=sku
http://www.anplumbing.com/shop/index...op=&dept=Steel

and here are the bolts:
http://www.anplumbing.com/shop/index.php
http://store.summitracing.com/partde...5&autoview=sku
http://www.pegasusautoracing.com/pro...p?Product=3242

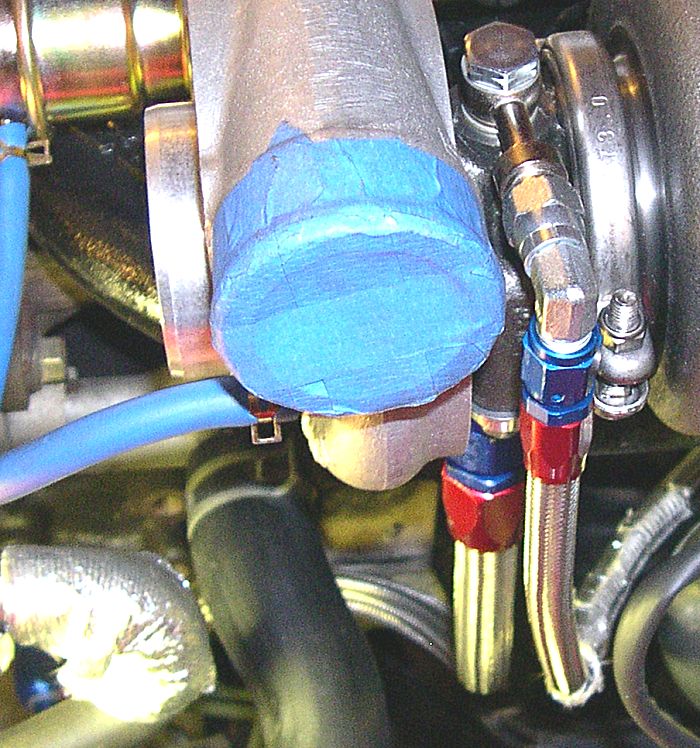

Also, here are some pictures of how my oil feed and drain setup went together:



Joe Perez is online now   Reply With Quote
Old 09-05-2007, 01:46 PM   #12
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

yeah, i just ordered all the stuff from summit. only difference is i got straight hose ends for the drain. should come together just fine, though. i appreciate the help.
devin mac is offline   Reply With Quote
Old 09-05-2007, 07:57 PM   #13
Junior Member

Join Date: Nov 2006
Location: Goshen, IN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by devin mac View Post
yeah, i just ordered all the stuff from summit. only difference is i got straight hose ends for the drain. should come together just fine, though. i appreciate the help.
My thinking is you should still have enough hose length to get the straight hose ends lined up. I probably just ordered the same stuff you did, except only a drain. Hope the Summit stuff isn't cheap Chinese junk.
mkrazit is offline   Reply With Quote
Old 09-05-2007, 08:05 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by mkrazit View Post
Hope the Summit stuff isn't cheap Chinese junk.
Most of the plumbing fittings they sell are made by Aeroquip, Russel, Earl's, and other well-known manufacturers. Even the ones sold under the no-name Summit brand seem to be of roughly equal quality to the low-end (non-swivel) Earl's fittings.
Joe Perez is online now   Reply With Quote
