Default oil leaking from drain flange

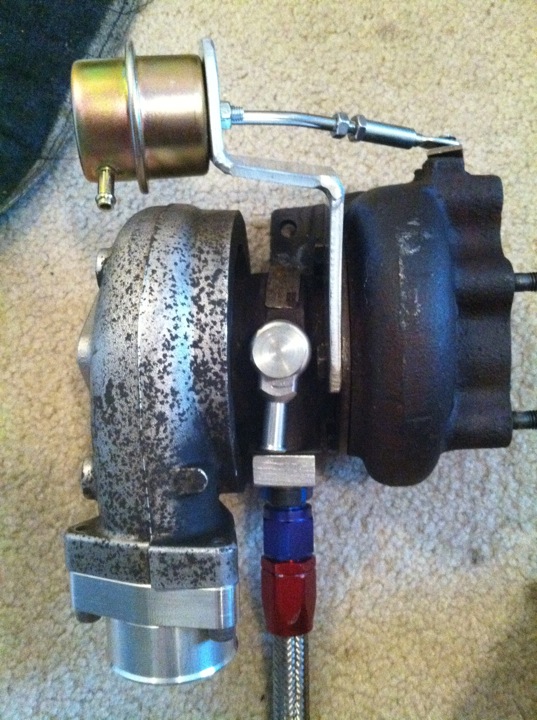

so i have oil leaking from between the threaded flange for my drain line, it bolts on with two allen bolts and has a paper gasket, i made sure the bolts were as tight as i can get them, the fitting itself is in tight, but i can feel oil leaking out from the interface of turbo and flange. its not alot, but i can smell it burning when im driving. I know silicon wouldnt withstand the heat, neither would jbweld, anyone have similar problem/solution?
Attached Thumbnails
oil leaking from drain flange-photo.jpg
rigidbigelsworth is offline   Reply With Quote
Old 10-09-2011, 06:34 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Is that the begi oil drain flange? I had the same issue with mine on my gt2871. I ordered a new drain flange off ebay for like $15 and it fit a good bit better. We will see if the new one does not leak
shuiend is offline   Reply With Quote
Old 10-09-2011, 06:39 PM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

yeah its begi. let me know if the replacement leaks too or not.
i might just have to deal with it, i cant think of how else to fix it without getting some sort of flange welded on? is there some reason not to do it that way if i get a steel flange instead?
rigidbigelsworth is offline   Reply With Quote
Old 10-10-2011, 06:08 PM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

just as a reference, how bad did your leak? mine leaks enough that my steering input shaft (whatever its called) is wet with oil. its not just leaking enough to burn, its dripping some too.
rigidbigelsworth is offline   Reply With Quote
Old 10-12-2011, 10:04 AM   #5
Newb

Join Date: Apr 2011
Posts: 6
Total Cats: 0
Default

I have the same problem. BEGi parts. Everything is tight. Its a serious pain in the *** to get to it, so I might just have to pull the turbo to replace BEGi's inferior parts, which is becoming a trend on my car.
papasmurf2k3 is offline   Reply With Quote
Old 10-12-2011, 12:11 PM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by rigidbigelsworth View Post
just as a reference, how bad did your leak? mine leaks enough that my steering input shaft (whatever its called) is wet with oil. its not just leaking enough to burn, its dripping some too.
I could see all the oil on the undertray. The top of my line was also had oil on it. It was hot horrible, but I wanted the leak gone. I will be putting 1200 miles on the car this coming weekend, I will report back on how well the new fitting works.
shuiend is offline   Reply With Quote
Old 10-14-2011, 04:41 AM   #7
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

Also, did you try using any sort of copper or composite gasket before replacing?

Looking forward to your update on the new flange
rigidbigelsworth is offline   Reply With Quote
Old 10-14-2011, 11:28 AM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by rigidbigelsworth View Post
Also, did you try using any sort of copper or composite gasket before replacing?

Looking forward to your update on the new flange
I used paper gaskets all the times I have done it. After driving 2 days I have not seen any leaks, but I have only gone about 50 miles. I will have a for sure if it is leaking or not Monday for you.

Is it possible for you to measure the distance between the 2 bolt holes on the turbo and then compare that distance to the bolt holes on the piece from Begi?

The problem with mine was that it fit perfectly on my SR20 T25 and my China 2870 with no leaks. When my got my Garrett GT2871 the holes were actually closer together. So I have to make the holes in my block bigger. I think that is why I had oil leaks, because I had no way to tell if it was perfectly centered. When I removed it last week I could tell that it was off and could see where it was leaking.
shuiend is offline   Reply With Quote
Old 10-15-2011, 04:01 PM   #9
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

mine is a sr t25 turbo, so the flange should fit right if yours did, ill try to measure it sometime but i wonder if some sort of composite gasket might help, or if i should just get a replacement. what did you go with for your new flange?
