Default OK place to dump my EWG?

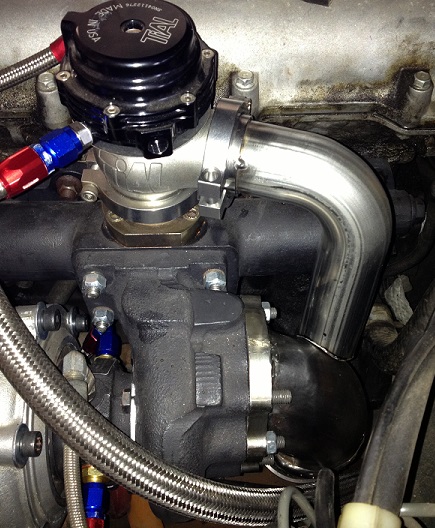

I was working on my car today for once, and I am almost ready to fire it up. I need to dump my EWG somewhere. I am getting impatient and looking for an easy spot, and I found that it would be cake to dump it right into my turbine outlet. The photo is where I'd put it, I didn't cut out my outlet yet, or weld anything. I'm wondering if this would cause any issues as far as exhaust flow or turbulence.
What says MT.net?
OK place to dump my EWG?-img_4943.jpg
thirdgen is offline   Reply With Quote
Old 10-04-2013, 08:28 AM   #2
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Well thats about the least optimal for power and wastegate performance, you might as well use an internal wastegate. It should work through.
Leafy is offline   Reply With Quote
Old 10-04-2013, 08:40 AM   #3
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I assume running it to the DP is the better option...
I could make it even easier and vta.
thirdgen is offline   Reply With Quote
Old 10-04-2013, 08:53 AM   #4
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Turn it 180 degrees and vent to atmosphere through your hood, duh.
gorillazfan1023 is offline   Reply With Quote
Old 10-04-2013, 09:02 AM   #5
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I thought about that, and I was gonna put a flapper on it. I think I'll keep it stealth though and keep it going under the car.
Seriousness, vta I think it is. I'm just concerned about noise, basically just an annoying factor.
thirdgen is offline   Reply With Quote
Old 10-04-2013, 09:03 AM   #6
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I dont think it'lo be to bad. I've wanted to do it since I watched underdogs video with his vta.
gorillazfan1023 is offline   Reply With Quote
Old 10-04-2013, 09:09 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

Quote:
Originally Posted by thirdgen View Post
I need to dump my EWG somewhere.
What says MT.net?
My suggestion is back into the exhaust.
Braineack is offline   Reply With Quote
Old 10-04-2013, 09:29 AM   #8
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by gorillazfan1023 View Post
I dont think it'lo be to bad. I've wanted to do it since I watched underdogs video with his vta.
Would you happen to have a link to said video?
thirdgen is offline   Reply With Quote
Old 10-04-2013, 09:34 AM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Didn't Savington have issues with his dump tube when he VTA with it cracking?
shuiend is offline   Reply With Quote
Old 10-04-2013, 09:36 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

vta will make most power. Make sure its braced though or that the tube us uber short or it will lead to cracking. if you're going to re-introduce into exhaust stream you want to do it way lower on the dp, like about a foot down from where the picture shows, and make it a smooth transition back in

Quote:
Originally Posted by gorillazfan1023 View Post
Turn it 180 degrees and vent to atmosphere through your hood, duh.
Ryan did that recently.
Its pretty crazy lol
Quote:
Originally Posted by shuiend View Post
Didn't Savington have issues with his dump tube when he VTA with it cracking?
Yup, so did Ryan's.
18psi is offline   Reply With Quote
Old 10-04-2013, 09:51 AM   #11
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I read Turbo Tim saying he stopped doing VTA because of cracked dump tubes. But I'm sure there's lots of people who have.
thenuge26 is offline   Reply With Quote
Old 10-04-2013, 11:21 AM   #12
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Vta it is.
I'm gonna brace it...no cracks for me. Looks like I need to order more tubing.
This car ran out of inspection in March. I took it apart like 3 weeks before it ran out and I said "it'll be back on the road in a few weeks, then I'll get it inspected. Lol. That turned into machining parts for it, fabbing/ welding **** up, getting new shocks and wheels, installing door bars. I'm estimating I'm about 2 weeks away from taking her off the jack stands.
I'm a little behind schedule....if you consider a few months is a little.
thirdgen is offline   Reply With Quote
Old 10-04-2013, 11:37 AM   #13
Junior Member
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

VTA. Boss ****.
Thursday is offline   Reply With Quote
Old 10-04-2013, 01:53 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

I love how thirdgen works: three examples of people cracking their vta ewgs, so he decides that the best choice.
Braineack is offline   Reply With Quote
Old 10-04-2013, 02:34 PM   #15
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by 18psi View Post
or that the tube us uber short or it will lead to cracking.
This.
thirdgen is offline   Reply With Quote
Old 10-04-2013, 02:35 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

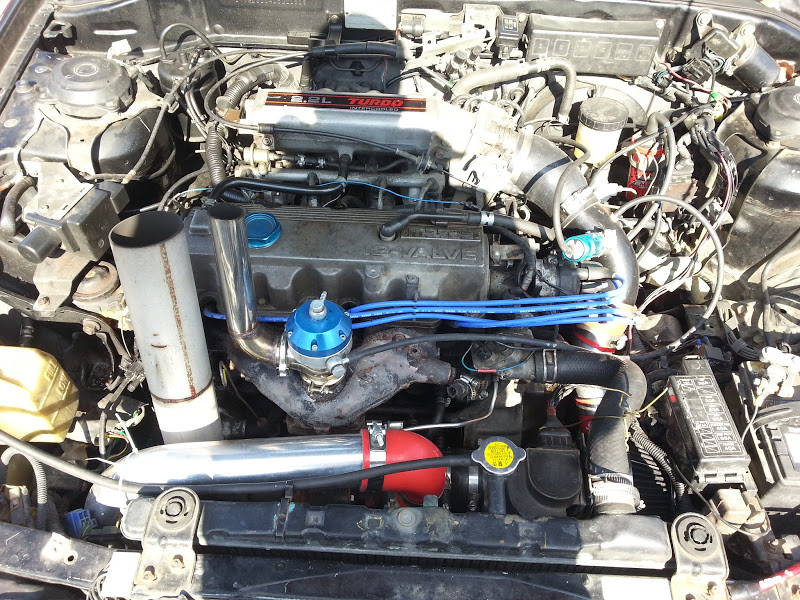

Is the dump tube cracking a BP thing?


Because this **** didn't crack.

Attached Thumbnails
OK place to dump my EWG?-20130223_122118.jpg   OK place to dump my EWG?-20130223_122118.jpg   OK place to dump my EWG?-20130223_122118.jpg
concealer404 is offline   Reply With Quote
Old 10-04-2013, 02:54 PM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by shuiend View Post
Didn't Savington have issues with his dump tube when he VTA with it cracking?
Broke the EWG off the manifold. VTA is a bad idea.
Savington is online now   Reply With Quote
Old 10-04-2013, 05:09 PM   #18
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

But how long/ heavy was your tube, was it braced?
thirdgen is offline   Reply With Quote
Old 10-04-2013, 05:13 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

ANYTHING cracking is a BP thing........I'm almost completely serious
18psi is offline   Reply With Quote
Old 10-05-2013, 01:09 AM   #20
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by 18psi View Post
ANYTHING cracking is a BP thing........I'm almost completely serious
Well, how relatively unbalanced is the BP motor compared to the supposed vast majority of other motors? It IS a vibration problem.
Bryce is offline   Reply With Quote
