Old 04-27-2012, 02:12 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Faeflora View Post
Would need to be rebalanced. Fail
lol.

Braineack is offline   Reply With Quote
Old 04-27-2012, 02:14 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by thirdgen View Post
The wheel gets upgraded from a 56mm diameter wheel to a 60mm diameter wheel, with a said gain of 15whp? Doesn't seem at all worth it to me to upgrade 4mm's for a mere 15whp, but what about upgrading the whole compressor with one from, say, a 2871?

You'll get more than 15whp (where did you come up with that number), and it's a significant upgrade:

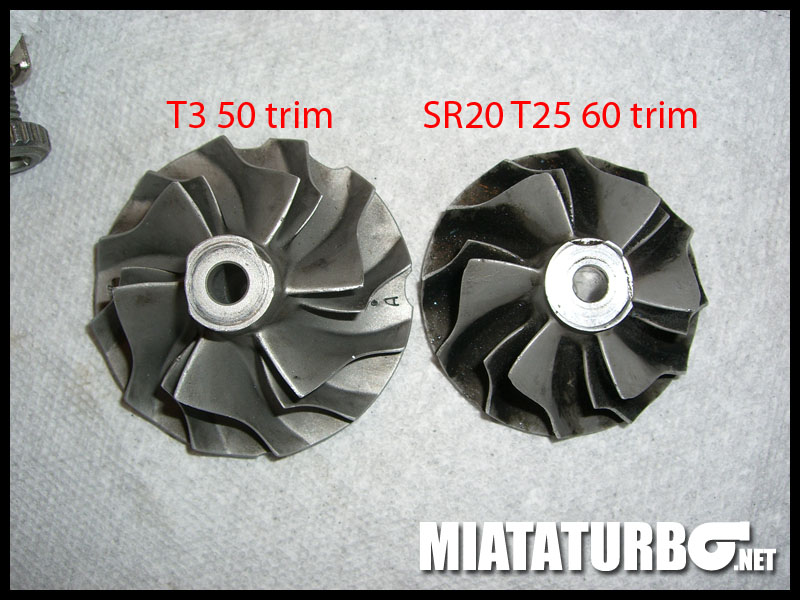

swapping to a t3 wheel (45,50,60, super 60 trim) would make your turbo a t28.

t25 + t3 = t28




but.


I'd for the prices you listed, I'd rather just buy a godspeed t28. not a 3076, or 3071, or 2871. I'm talking 2860 or 2560 sized turbo.
Attached Thumbnails
Opinions on upgrading compressor side of turbo?-t3_vs_t25_wheel.jpg
Braineack is offline   Reply With Quote
Old 04-27-2012, 02:20 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Quote:
Originally Posted by Faeflora View Post
OK so should I put a 5 speed in my car?
DEFINITELY
Quote:
Originally Posted by palmtree View Post
Then you sold the car, and the next dude broke it in like a week
a month iirc, but yeah. I never denied the fact that I babied the heck out of it when I had it. super smooth shifts, almost never any launching, just going WOT from time to time. (which is what Todd would probably be doing too).

had I money shifted it like him, I probably woulda popped it in a month too.
Quote:
Originally Posted by Braineack View Post
You'll get more than 15whp (where did you come up with that number), and it's a significant upgrade:




swapping to a t3 wheel (45,50,60, super 60 trim) would make your turbo a t28.

t25 + t3 = t28

So how much realistic power gains should he expect from something like this, and how much lower boost would he be able to run yet achieve same peak power?
From everything I've seen on other cars, huge wheels in small housings usually require a TON of pressure to really shine.
18psi is offline   Reply With Quote
Old 04-27-2012, 02:22 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

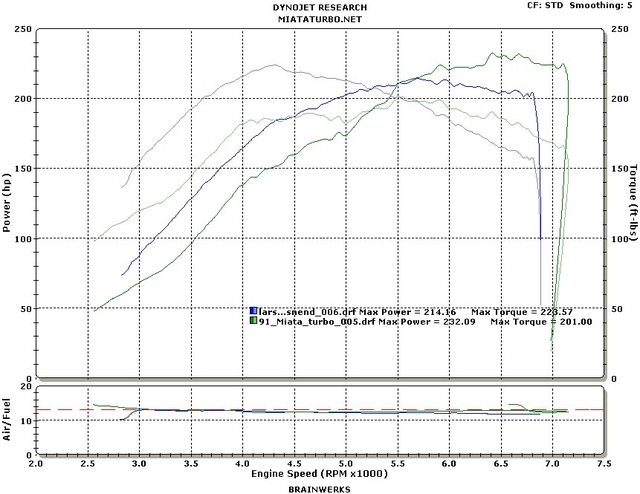

well here's my old garrett super 60 t3 on my stock 1.6L vs a sr20 t25 on a stock 1.8L



it can push a lot more air.



consider the last dyno I've seen of Todd's:

Attached Thumbnails
Opinions on upgrading compressor side of turbo?-lars_vs_scott.jpg
Braineack is offline   Reply With Quote
Old 04-27-2012, 02:38 PM   #25
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

That dyno was when I was ms1 parallel with rx7 460's. I think I was on just under 12psi.
What boost were you running Scott? I can tell cfm's were higher cause you made a lot more torque than me.
thirdgen is offline   Reply With Quote
Old 04-27-2012, 02:40 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

he made less torque.
18psi is offline   Reply With Quote
Old 04-27-2012, 02:42 PM   #27
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

223 is less than 208?
thirdgen is offline   Reply With Quote
Old 04-27-2012, 02:42 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

my car was running about 13psi, and it's puny 1.6L that makes no torque. it made 201rwtq on that plot.


green is the 1.6L t3, blue was Lars's sr20. his plot looks just like yours we all dynoed on the same day.
Braineack is offline   Reply With Quote
Old 04-27-2012, 02:43 PM   #29
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

Oh wait, I was looking at Lars, the blue line.
thirdgen is offline   Reply With Quote
Old 04-27-2012, 02:44 PM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Quote:
Originally Posted by thirdgen View Post
223 is less than 208?
read the fine print: he is the green lines, and the blue ones are a different car.
18psi is offline   Reply With Quote
Old 04-27-2012, 02:48 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

you will lose a bit of low end torque but make power to redline.

I think just upgrading to a 2560 equvianalt bolt in chinacharger might just be the best thing for considering your stock rough and tumble motor.
Braineack is offline   Reply With Quote
Old 04-27-2012, 02:56 PM   #32
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

Rough and tumble...That's an understatement.
160,000 miles, and 1 quart every 500 miles. That's how I roll.
thirdgen is offline   Reply With Quote
Old 04-27-2012, 03:05 PM   #33
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by Faeflora View Post
God damn it when did i start sounding so retarded?
Savington is offline   Reply With Quote
Old 04-27-2012, 03:11 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

i chuckled at that too.
Braineack is offline   Reply With Quote
