Default overboosting issue

I'm not quite sure this is a boost creep, or a boost spike problem i'm having. I described this in my project log. I'm running gt2560, 5o 750cc, no intercooler (i have 2 to choose to mount sitting in my garage now chillax), wastegate pressure (hooked to compressor housing), megasquirt, FM 2.5 all the way back with a test pipe.

I get a solid 10psi up until about 5500rpm give or take then i start to climb in pressure. I've been seeing it top out at 15psi around 7000rpm. But the other night we seen it hit 20psi.

I've taken off the actuator arm and the flapper moves a full 90* nice and easy. The arm is super hard to pull, and i can only pull it maybe 1/4 - 1/2 an inch. But i assume that's the way it should be??? How, or can i even run a MBC on this external wastegate? I mean, if it's a 10psi WG as is. I have no idea.

Also, when we were tuning, we may have set base timing on the wrong mark, could that be it? It will be another week before i can check this.

Or maybe my 2.5" exhaust with a test pipe isn't restrictive enough?

I know you all want me to say F it and run ALL of the boost. But i kinda don't feel like building this spare motor just yet.


Build thread = slowest turbo miata ever
(and it's not living up to it's name overboosting like it is)
Erat is online now   Reply With Quote
Old 04-01-2012, 01:13 AM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

Exhaust timing is early a tooth.

And tell your ECU to cut spark above 12psi.
fooger03 is offline   Reply With Quote
Old 04-01-2012, 05:14 AM   #3
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Had a very similar issue and my setup is similar to yours +an intercooler.
Thread
https://www.miataturbo.net/engine-performance-56/overboosting-any-ideas-62298/

I wound up porting the turbo. I only had a couple drives with it together before I found out the 2 middle cylinders are F---ed. I will admit I didn't go rape it to truly test the boost stability, however what romping on it I did do it held the pressure I had set it at. Well actually I was messing with a new MBC so don't "know" what I set it at, but it would hit 8psi on wastegate can only and stay there. Couple clicks on the MBC and it would hold 9psi, then clicks and 10psi. So as far as I can tell porting the hot side fixed my issue.
TorqueZombie is offline   Reply With Quote
Old 04-01-2012, 07:48 AM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Don't think it's your exhaust setup, the separated gas design is the one that can tend to boost creep. FM's the gasses combine pretty early which tends to help wastegate/boost control.

How much preload on your wastegate flapper? Double check to make sure everything is tight and no possible air leaks on the hose from compressor housing to wastegate.

I suspect the turbine housing needs a little porting, rest of your setup seems pretty good. But, I'd double check everything else first of course, before you start creating more work for yourself. Check the base timing ASAP if you're unsure, but I don't think it's related to this.
aaronc7 is offline   Reply With Quote
Old 04-01-2012, 10:03 AM   #5
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Awww hell. What a bunch of work this is going to be. I should bought a Borg Warner.

I'm going to check everything over, base timing, and this little exhaust leak i have and all everything else. But i think you're right it might need to be ported. If i have to take this turbo off and send it in and all that i might just man the F up and run 15psi like a boss... Till she blows then rebuild.

Garrett should be fixing this. For free.
Erat is online now   Reply With Quote
Old 04-01-2012, 11:55 AM   #6
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Don't think this helps any, but yeah. I backed out of it a bit before limiter. I think it gets to about 20psi... But i'm not going to push it there.

Erat is online now   Reply With Quote
Old 04-02-2012, 06:10 PM   #7
Newb

Join Date: Aug 2007
Location: NC
Posts: 18
Total Cats: -3
Default

Test the wastegate actuator outside the car with some metered air
lgt2000 is offline   Reply With Quote
Old 04-02-2012, 06:44 PM   #8
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

I took this video earlier, and posted in my progress log.

Seems it's only opening about half way, then starts creeping up in boost.

Erat is online now   Reply With Quote
Old 04-02-2012, 08:22 PM   #9
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

replace your actuator signal line, then try again.
fooger03 is offline   Reply With Quote
Old 04-03-2012, 10:15 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Is this one of the bad wastegates that FM has upgraded? you might be able to get a replacement form them. but from the looks of it, it doesnt appear to be opening far enough.
Braineack is offline   Reply With Quote
Old 04-03-2012, 01:22 PM   #11
Newb

Join Date: Aug 2007
Location: NC
Posts: 18
Total Cats: -3
Default

If you are not able to get a replacement for that actuator and do not wish to go externally gated I would recommend an upgraded actuator that you can actually change springs in like the Turbosmart IWG units which run about $200

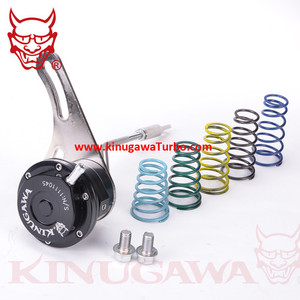

There is also the option of the Kinugwara IWG units which run about $90 and also have good reviews
Attached Thumbnails
overboosting issue-%24-kgrhqnhjeie88cr3te3bpvepqev-q%7E%7E60_35.jpg
lgt2000 is offline   Reply With Quote
Old 04-06-2012, 04:41 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Like you posted, i think i might go with a turbosmart or something similar. An upgraded external might be what's needed.



Stock (10psi or such) being pressurized to 15psi. Not opening all the way, only 45*
Erat is online now   Reply With Quote
Old 04-08-2012, 02:35 PM   #13
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

I can't find a turbosmart IWG replacement for my turbo.

Will a s14 one work?

http://www.forgemotorsport.com/conte...oduct=FMACS14B

I looked for some of the Kinugwara units on ebay and didn't see any that directly fit my application. In fact, i haven't found any that do. Maybe i'm not looking in the right places.
