Default P.O. didnt put turbo on right? is this how it should go?

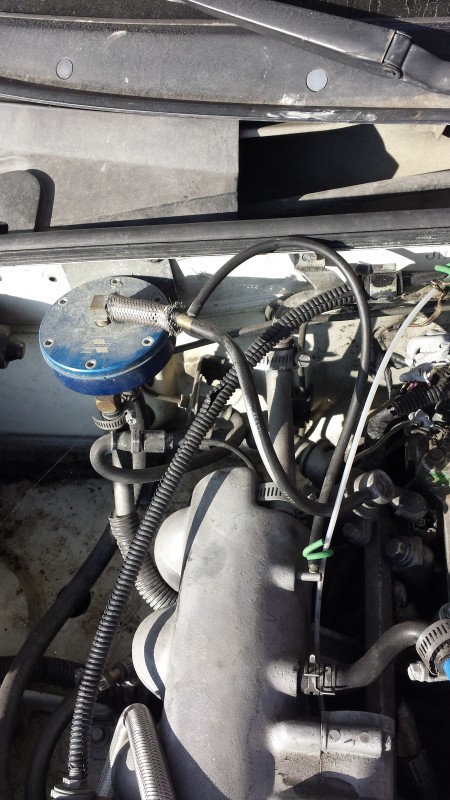

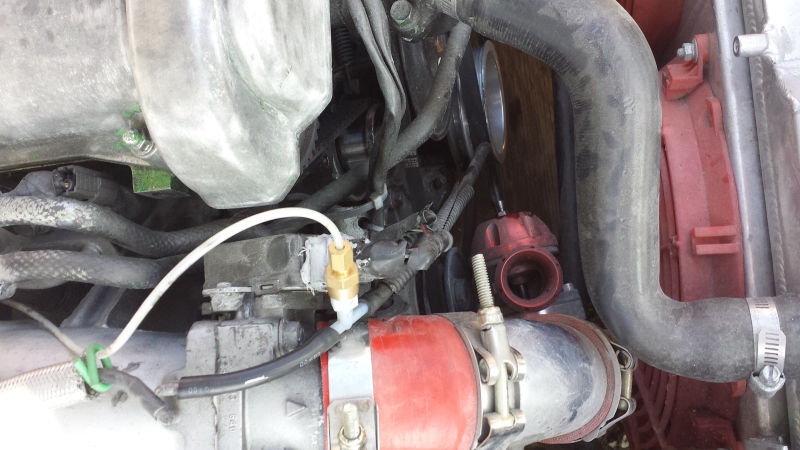

yeah, i just bought a miata with a greddy turbo kit installed (kinda) and it has a blown turbo. i dont know if it is running rich or lean yet, but i am in the process of rebuilding the tdo4h turbo on it right now. i am also going to test the fuel pressure eventually to find out if the FMU is operating correctly, and i am going to check to see if he retarded the timing to 8* (it haz intercooler). i took pictures of the blow off valve and the vortech FMU, and i am wondering if he hooked up the lines on top of them correctly. thanks for your help guys! (blow off valve connected to intake manifold and connected to white tubing which is boost gauge) (vortech fmu connected to intake manifold and i am guessing also the fuel pressure regulator?)


Attached Thumbnails
P.O. didnt put turbo on right? is this how it should go?-106wqib.jpg   P.O. didnt put turbo on right? is this how it should go?-16ixyzq.jpg
azndude3141 is offline   Reply With Quote
Old 02-20-2015, 01:56 AM   #2
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

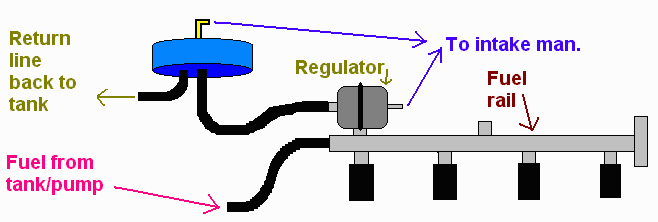

Looks right to me. I would Tee off the line earlier on so your vacuum line running to the stock FPR isn't as long.

BOV is correct.

Attached Thumbnails
P.O. didnt put turbo on right? is this how it should go?-vortechfmu_installation.gif
cyotani is offline   Reply With Quote
Old 02-20-2015, 02:42 AM   #3
Newb
Thread Starter

Join Date: Feb 2015
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by cyotani View Post
Looks right to me. I would Tee off the line earlier on so your vacuum line running to the stock FPR isn't as long.

BOV is correct.

thanks!! ill shorten the vacuum lines on the Tee like you said
azndude3141 is offline   Reply With Quote
Old 02-20-2015, 03:16 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

What's the wideband say?
Savington is offline   Reply With Quote
Old 02-20-2015, 08:20 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by Savington View Post
What's the wideband say?
you think the guy who bought a miata with a blown motor has a wideband?
Braineack is online now   Reply With Quote
Old 02-21-2015, 12:43 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by Braineack View Post
you think the guy who bought a miata with a blown motor has a wideband?
It was a rhetorical question
