Default TD04 oil feed

Hi, I have a mk1 eunos and im installing a TD04L from a subaru on my 1.6. I have a -4AN steel braided oil feed pipe but was unsure whether it needs a oil restrictor.
do TD04 turbochargers need a restrictor, I was told journal bearing turbos wont need them but it wasn't a reliable source
can anybody help me?
thank you in advance
zammish is offline   Reply With Quote
Old 01-17-2015, 05:58 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Can't speak to that specific turbo, but the TD04H-15 used to be quite popular on the Miata (it was used in the Greedy kit) and we ran them without restrictors.
Joe Perez is offline   Reply With Quote
Old 01-17-2015, 06:03 PM   #3
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,707
Total Cats: 269
Default

Sturovo, who supports lots of TD04 installs, counseled me to do so. I used a 1.5mm restrictor built into the -4AN adaptor at the CHRA and have had no issues in about 3k miles.

Last edited by DNMakinson; 01-18-2015 at 02:30 PM. Reason: I had incorrectly stated 1.0mm restrictor
DNMakinson is offline   Reply With Quote
Old 01-17-2015, 10:54 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

yes, oem subaru td04's do use a restrictor
18psi is offline   Reply With Quote
Old 01-18-2015, 07:27 AM   #5
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Good info Joe and David.

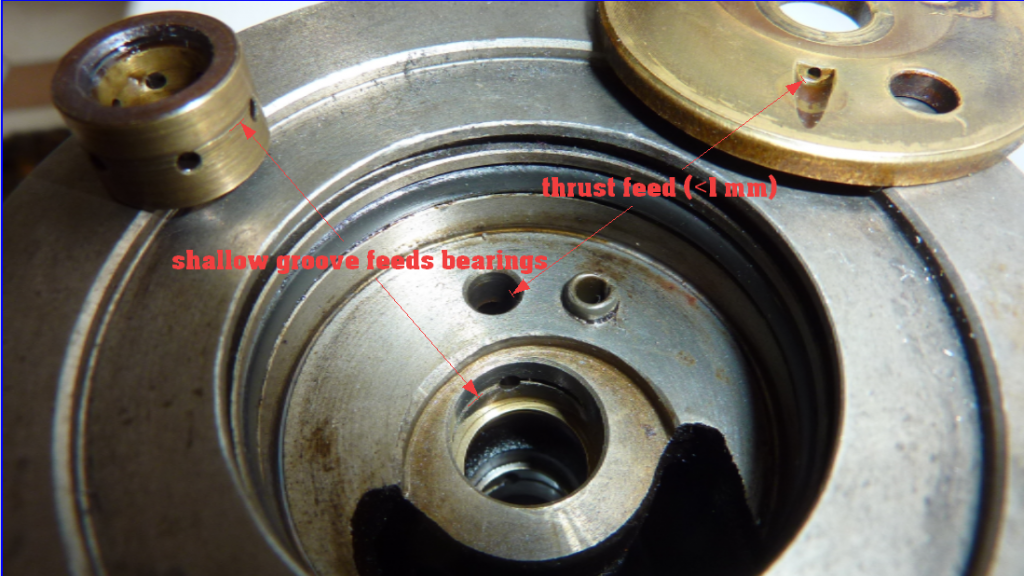

I think it should be possible to run the run the Subaru 13t without a restrictor looking at the CHRA oil ways.



The pathways to the bearing and thrust surfaces are small (~ 1-2 mm) and once the oil reaches the shaft the clearance for the oil to escape is tiny.

I tested the oil flow through a TD04 with and without a restrictor and there was no significant difference. As Vlad pointed out Subaru use a 1.5mm restrictor with this turbo so for peace of mind I use one also.
Attached Thumbnails
TD04 oil feed-untitled_zps5e985081.png
sturovo is offline   Reply With Quote
Old 01-18-2015, 12:51 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

that's great news! thank you everybody! just bought a 1.5mm restrictor, hopefully should arrive soon!
I was told that a 3AN line I wouldn't need a restrictor but because as im running a 4AN id need one
I was told this from a local mechanic but ive seen his work before and I didn't trust his advice on this.
zammish is offline   Reply With Quote
Old 01-18-2015, 02:30 PM   #7
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,707
Total Cats: 269
Default

1) I will edit my post. I looked, and I also used a 1.5mm dia restrictor / adaptor as well, NOT 1.0mm
2) I think you made a wise choice to use a -4AN and restrictor rather than relying on tubing size and length.
3) Sturovo, thanks for the further research.
DNMakinson is offline   Reply With Quote
Old 01-18-2015, 04:41 PM   #8
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

Yeah I assumed you ment 1.5mm because 1mm are for ball bearing turbos and 1.5mm for journal bearings which is what TD04s have
zammish is offline   Reply With Quote
Old 01-22-2015, 12:30 PM   #9
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

just a quick question everybody, I received my restrictor today and the turbo is no longer burning ANY oil so im happy however there is a leak I cant figure out why.
I bought a
M10x1.5 1.5mm restrictor adapting to a 4AN fitting perfect for the oil feed line to attach to, however it is leaking I believe from where the pipe joins the fitting. and ive tightened it as much as I dare but its the same.
Is there anything high temperature I can apply to the threads to seal it?
zammish is offline   Reply With Quote
Old 02-01-2015, 10:45 AM   #10
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

im putting my oil line together for a td04 and thought i post this. this will fit the block on 1.6 setups.
Adapter Fitting M10x1 5 w 1 5mm Hole Subaru TF035HM TD04L TD05H Turbo Oil Feed | eBay
hi_im_sean is offline   Reply With Quote
Old 02-21-2015, 01:58 PM   #11
Junior Member
Thread Starter

Join Date: Sep 2014
Location: whats that coming over the hill?
Posts: 67
Total Cats: -15
Default

thanks guys, I fixed it in the end, I fitted the restrictor just before the turbo and all is good I have a
Block has a m10x1.5 with a 4AN adaptor > 40cm 4an pipe > 4an fitting to m10x1.5mm with a 1.5mm oil restrictor fitted right ontop of the turbo
