And that illustrates another aspect of the anti-surge housing. The inlet is HUGE. On the GT2871 I am looking at it is 4" dia. and could be a problem.
ZX-Tex is offline   Reply With Quote
Old 02-19-2009, 01:08 PM   #22
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

huge is awesome.

steph, can you make anti-surge holes for, say, a 2876 compressor housing?

y8s is offline   Reply With Quote
Old 02-19-2009, 01:33 PM   #23
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by ZX-Tex View Post
^^Are you talking about surge due to not using a BOV on a WRX? If so, I have always planned to use a BOV regardless of whether I use the anti-surge housing or not. I am using one now.
The 2871 surges (mildly) on a WRX equipped with a BOV. During spoolup, surge doesn't care whether or not you have a BOV anyway.
JKav is offline   Reply With Quote
Old 02-19-2009, 01:37 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

no issues with a 2871 on a 1.6L, i'd assume the same on a 1.8L.
Braineack is online now   Reply With Quote
Old 02-19-2009, 01:56 PM   #25
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

How much boost on the 1.6?
JKav is offline   Reply With Quote
Old 02-19-2009, 02:11 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

Quote:
Originally Posted by JKav View Post
How much boost on the 1.6?

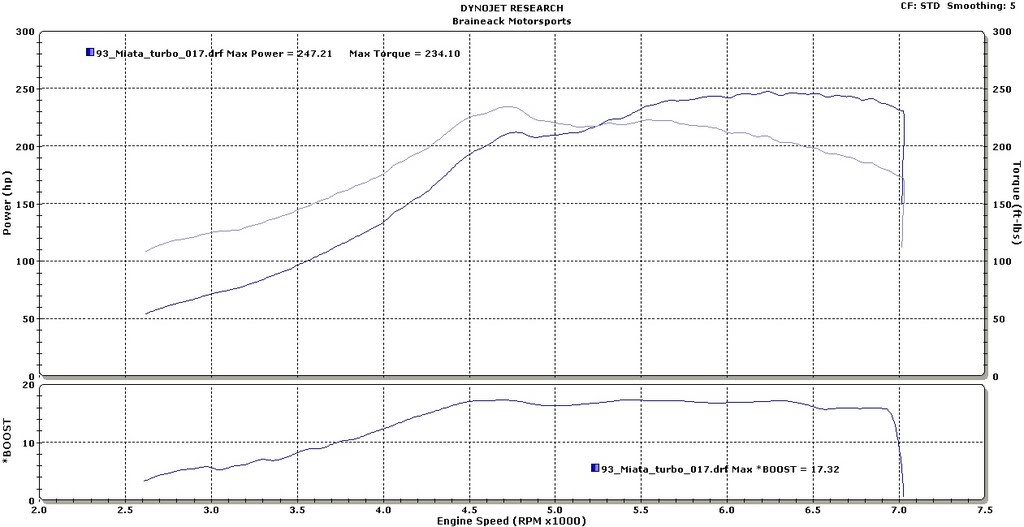

17ish.

Name:  brad_247.jpg
Views: 32
Size:  87.2 KB
Braineack is online now   Reply With Quote
Old 02-19-2009, 02:13 PM   #27
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by JKav View Post
The 2871 surges (mildly) on a WRX equipped with a BOV. During spoolup, surge doesn't care whether or not you have a BOV anyway.
I agree, that is why I asked Thanks for the clarification.
ZX-Tex is offline   Reply With Quote
Old 02-19-2009, 02:15 PM   #28
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Braineack View Post
no issues with a 2871 on a 1.6L, i'd assume the same on a 1.8L.
Thanks Brain. Yeah if anything I would think it would be less likely on a 1.8L.
ZX-Tex is offline   Reply With Quote
Old 02-19-2009, 02:38 PM   #29
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by y8s View Post
huge is awesome.
Yeah normally I would agree. That big nozzle should help airflow. But the problem is the S4 manifold shifts the turbo inlet downward quite a bit, so there is possible interference with the a/c and/or PS. Fortunately I have depowered the PS so that is no longer an issue. Just the a/c belt tensioner will be there which is a lot smaller and further toward the front of the engine.

And before the whole a/c debate thing starts, no I am not ditching the a/c
ZX-Tex is offline   Reply With Quote
Old 02-19-2009, 04:39 PM   #30
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You could always use a 3"-4" coupler to use 3" tubing which will allow for easier intake path routing. Y8s has a HUGE intake, I love the way it looks but a complex routing for a cold air box with 4" tubing would be tough.
cjernigan is offline   Reply With Quote
Old 02-19-2009, 06:10 PM   #31
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by cjernigan View Post
You could always use a 3"-4" coupler to use 3" tubing which will allow for easier intake path routing. Y8s has a HUGE intake, I love the way it looks but a complex routing for a cold air box with 4" tubing would be tough.
If I get the 4" inlet that is what I was thinking, probably a 4"-3" 90 deg silicone bending reducer right at the compressor inlet. Silicone Intakes has them.
ZX-Tex is offline   Reply With Quote
Old 02-19-2009, 06:16 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

so much for velocity...
Braineack is online now   Reply With Quote
Old 02-19-2009, 06:24 PM   #33
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If you mean from the elbow, not really. It is such a large cross-section there will probably not be much head loss through there.
ZX-Tex is offline   Reply With Quote
Old 02-20-2009, 04:08 PM   #34
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

I think he was talking about the inlet velocity of air. As you increase the diameter of the path the air travels, the velocity slows down as well. Vice-versa happens when you make the inlet smaller. Yay physics/fluid dynamics! However, the difference will be barely measureable so I wouldn't worry about it...
thagr81 us is offline   Reply With Quote
Old 02-20-2009, 04:54 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

Exactly. Going from a 3" intake tube and a small transition to 4" just before shrinking down to your 2" inducer has got to do some interesting things.

a 4" 90 is all you need:

Braineack is online now   Reply With Quote
Old 02-20-2009, 05:10 PM   #36
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
Exactly. Going from a 3" intake tube and a small transition to 4" just before shrinking down to your 2" inducer has got to do some interesting things.

a 4" 90 is all you need:

actually that pic is old. I have a new cell phone now.
y8s is offline   Reply With Quote
Old 02-20-2009, 07:57 PM   #37
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

well no actually I need to get down to 3" eventually for the CAI so I can incorporate both transitions into one.

I think the flow regime will be fine and will not amount to more than a minor loss by my calcs. I am more concerned about the clearance.

EDIT: Sorry I was traveling on business and did not have full access where I could see the picture above. That helps, thanks. After looking at yours, and looking more at the BEGI S4 system picts, I think it would fit with the 4" inlet if I use a 90 deg bend.

Last edited by ZX-Tex; 02-21-2009 at 03:36 AM.
