Default Pretty pictures of my motor.

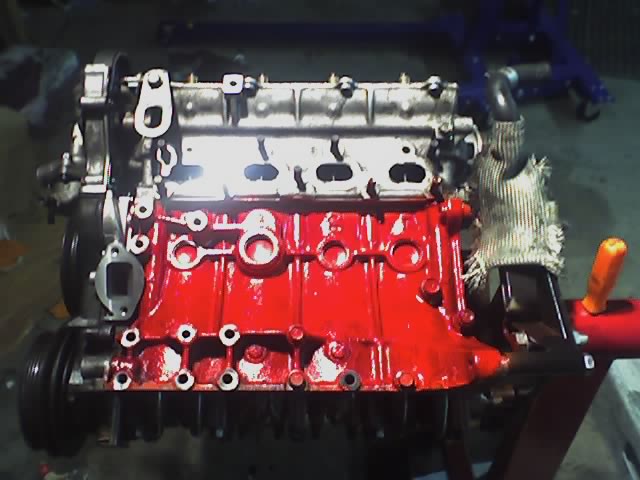

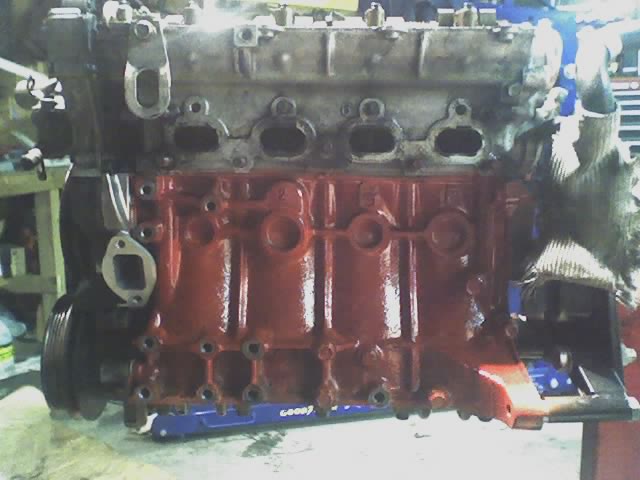

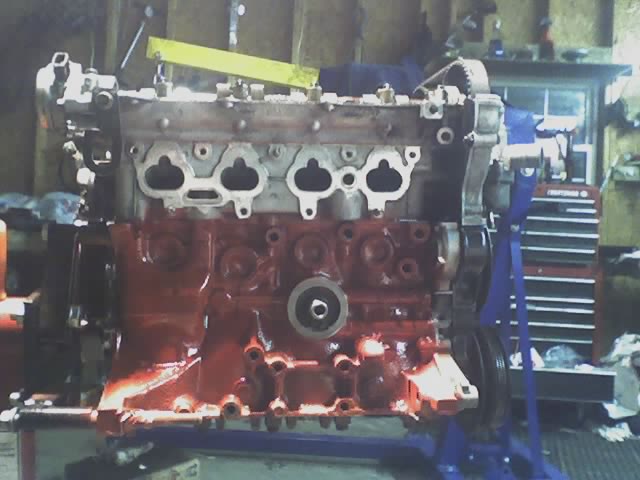

check it out i love how the color came out. I took pics of the manifold cracking but they didnt turn out.
Attached Thumbnails
Pretty pictures of my motor.-01-12-07_2052.jpg   Pretty pictures of my motor.-01-12-07_2055.jpg   Pretty pictures of my motor.-01-12-07_2053.jpg
magnamx-5 is offline   Reply With Quote
Old 01-15-2007, 02:58 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

it might looks good, but lets hope it performs better than the last one
Braineack is offline   Reply With Quote
Old 01-15-2007, 03:00 PM   #3
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

If it goes 110K in full boost i'll still buy another. Wiescos will help, as well as Balance and blueprint.+ shot peening rods.
magnamx-5 is offline   Reply With Quote
Old 01-15-2007, 03:11 PM   #4
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

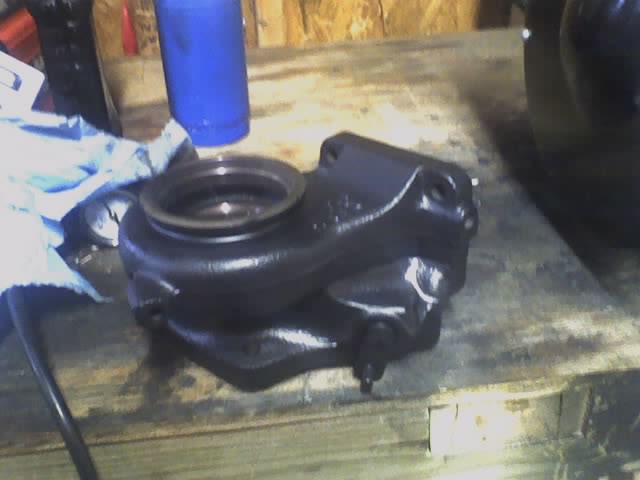

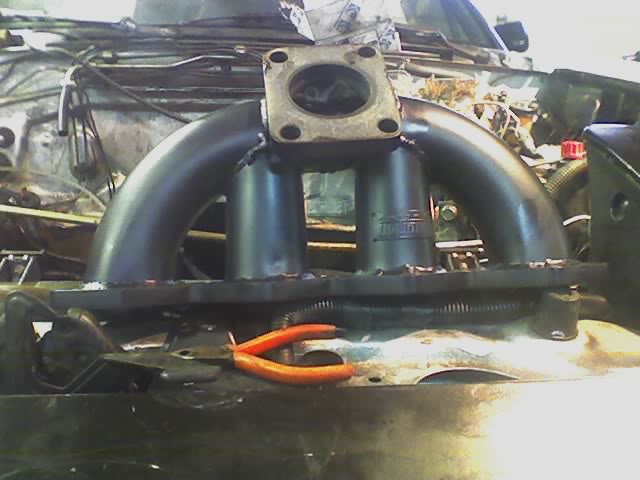

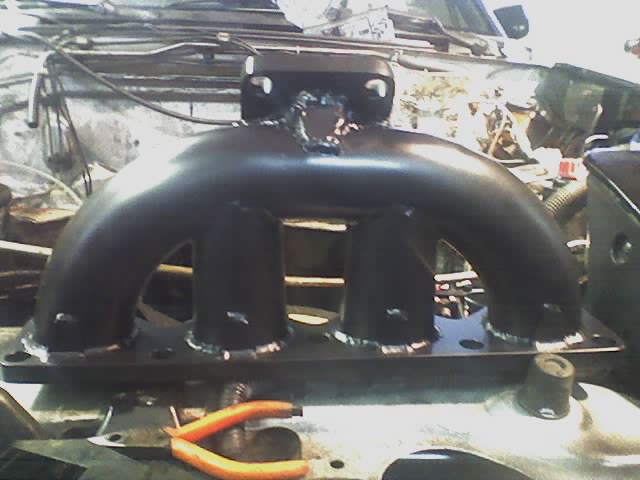

a few pics of my ceramic caoted hot side and manifold looks sweet if i do say so myself not bad for 100 bucks.

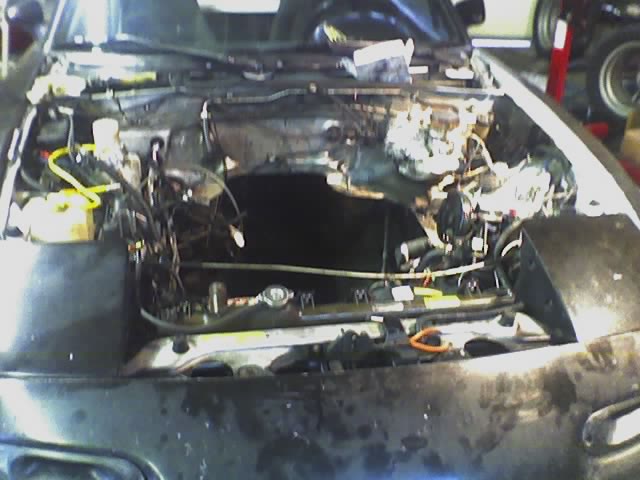

+ one of the very rare sub 2000lbs wet full interior miatas.
Attached Thumbnails
Pretty pictures of my motor.-01-15-07_1505.jpg   Pretty pictures of my motor.-01-15-07_1506.jpg   Pretty pictures of my motor.-01-15-07_1504.jpg   Pretty pictures of my motor.-01-15-07_1507.jpg
magnamx-5 is offline   Reply With Quote
Old 01-15-2007, 03:13 PM   #5
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Won't you need an external WG to run that turbo?
kotomile is offline   Reply With Quote
Old 01-15-2007, 03:23 PM   #6
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nope that is the side that mates to the chra. other side has WG and other outs. same turbo as before just this one is new.and i got the other on reserve realy dont trust it though.
magnamx-5 is offline   Reply With Quote
Old 01-15-2007, 04:13 PM   #7
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Looking good, I can't wait until I get ready to tear down the heads on mine. I am planning on getting rid of any casting imperfections on the head, and installing new lifters, and just changing out all of the seals and the guides. I am still trying to decide if I should get a more aggressive intake cam.
boostinsteve is offline   Reply With Quote
Old 01-15-2007, 04:30 PM   #8
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

ARP head studs are sweet as well. hell yeah i cleaned mine up as well.
magnamx-5 is offline   Reply With Quote
Old 01-15-2007, 04:43 PM   #9
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

looking good!
tabs604 is offline   Reply With Quote
Old 01-15-2007, 06:06 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

your miata rolled of the manufacturing line weighing in under 2000lbs? or you removed a bunch of stuff, retained the interior and it weighs under 2k? My 91 ITA Miata weighed 2010lbs - hardtop and cage but no softop assembly, and I removed everything I could think of.
m2cupcar is offline   Reply With Quote
Old 01-15-2007, 07:32 PM   #11
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

Magna, why not remove that POS megan racing tag before coating???? Looks good buddy, love to see a nice clean DSM Turbo housing
adbradley is offline   Reply With Quote
Old 01-15-2007, 08:46 PM   #12
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by adbradley View Post
Magna, why not remove that POS megan racing tag before coating???? Looks good buddy, love to see a nice clean DSM Turbo housing
Its there to make it even more of a sleeper no IC? no name manifolds. this guy doesnt have ****. Well wanna find out. OK. ha ha ha, geuss now you know. kinda thing. thx guys
magnamx-5 is offline   Reply With Quote
Old 01-16-2007, 05:02 PM   #13
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Mine was WAY more clean when it got put in It does look nice. Get it back in there and go dyno with me.
F20turbo is offline   Reply With Quote
Old 01-17-2007, 12:02 AM   #14
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

when i put a newer 1.6 motor,in my car the short nose crank.head had very clean casting.it looked a lot smother.on the inside and outside.kinda pissed me off a little.

so im gonna port and rebuild that head when i get board and have some extra cash.
turbopezz is offline   Reply With Quote
Old 01-17-2007, 12:09 PM   #15
:(
Thread Starter
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by AndyFloyd View Post
Mine was WAY more clean when it got put in It does look nice. Get it back in there and go dyno with me.
Fired it up today. now i just gotta get it all torqued and broken in and we are on.agian this time i'll be there though.
