Old 09-26-2014, 09:17 AM   #41
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Enlarge holes? Alien births? Chopped yours up? Whats all this?
Ds1 is offline   Reply With Quote
Old 09-26-2014, 11:05 AM   #42
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by Ds1 View Post
Enlarge holes? Alien births? Chopped yours up? Whats all this?

Sounds like my Friday night. I can't wait.
concealer404 is offline   Reply With Quote
Old 09-27-2014, 01:41 AM   #43
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

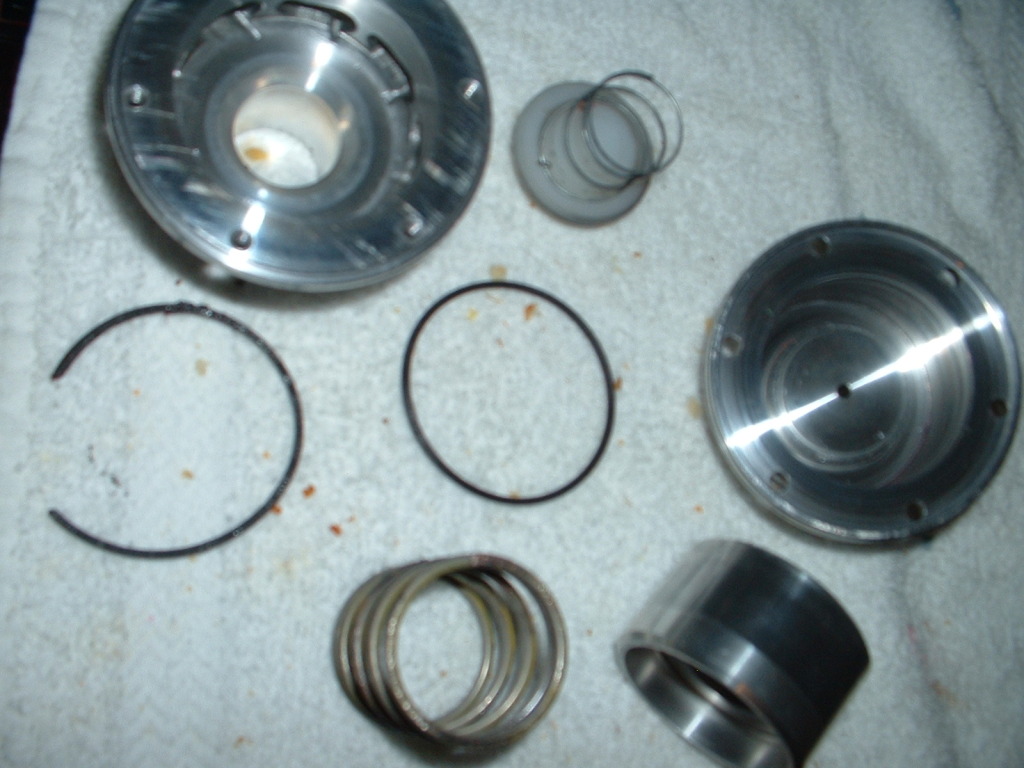

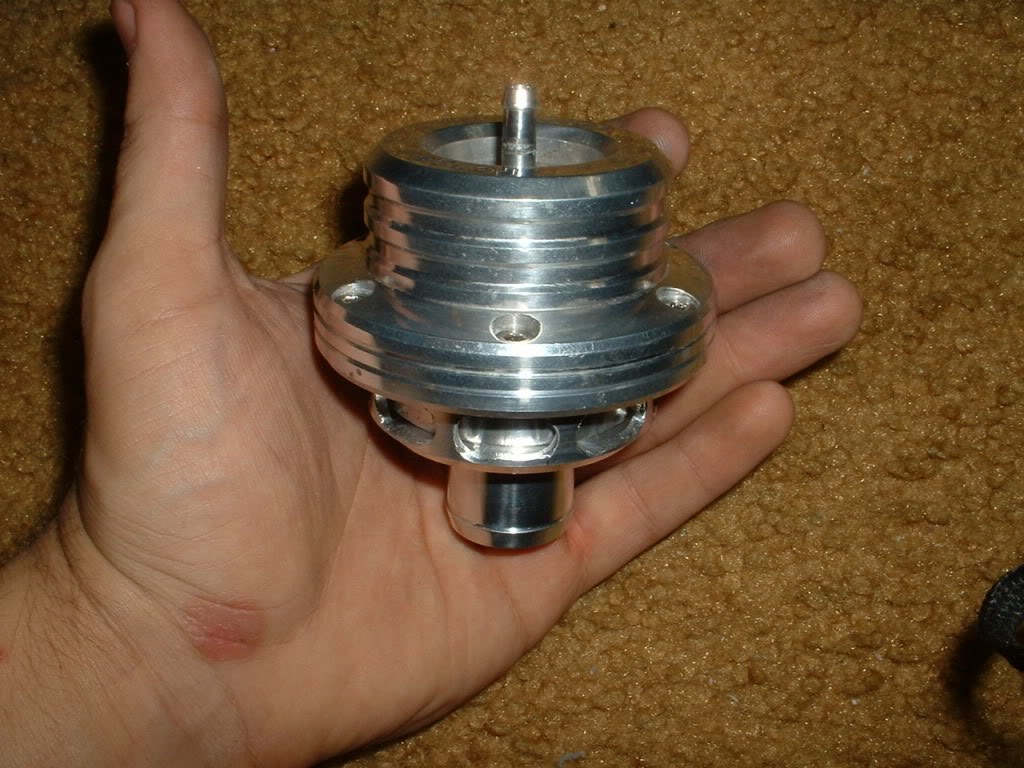

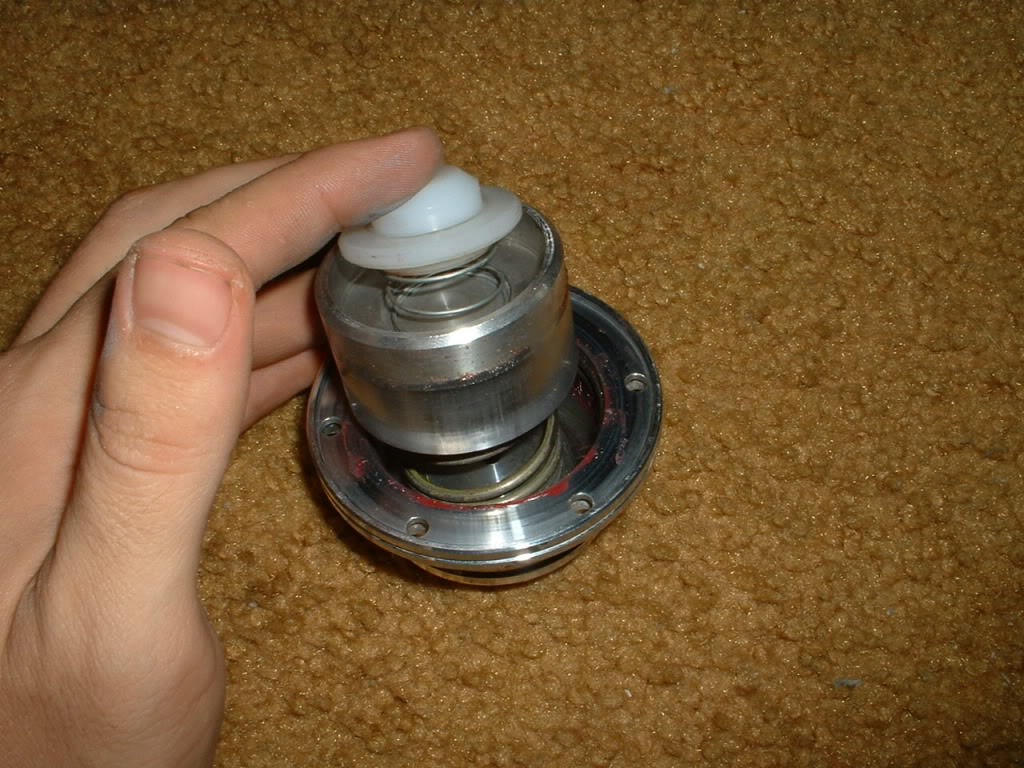

Stock

Attached Thumbnails
Recommend the best BOV for my boost levels.-dscf0002-2.jpg   Recommend the best BOV for my boost levels.-dscf0002.jpg   Recommend the best BOV for my boost levels.-dscf0005.jpg
triple88a is offline   Reply With Quote
Old 09-28-2014, 04:20 AM   #44
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

My local supplier gets better discount for turbosmart than for forge. Anyone see any glaring problems with Turbosmart Vee Port Pro? It sounds ok on youtube...

Vee Port PRO BOVs
Chiburbian is offline   Reply With Quote
Old 09-28-2014, 11:36 AM   #45
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 268
Default

And comments on this: leaking under partial boost?
SI #10
DNMakinson is offline   Reply With Quote
Old 09-28-2014, 01:13 PM   #46
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Cruise leaks is not uncommon. My forge leaks between 60-80kpa however once i get to 80kpa it shuts closed again while under that the secondary white valve keeps it from leaking.
triple88a is offline   Reply With Quote
Old 09-29-2014, 10:57 AM   #47
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Cruise is a bit different though, since you really aren't using the turbo at all. My issue is that the eBay BOV won't close until like 4,000RPM's even at WOT most times.

Forge will be here Thursday. Stoked.
Ds1 is offline   Reply With Quote
Old 09-29-2014, 01:21 PM   #48
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

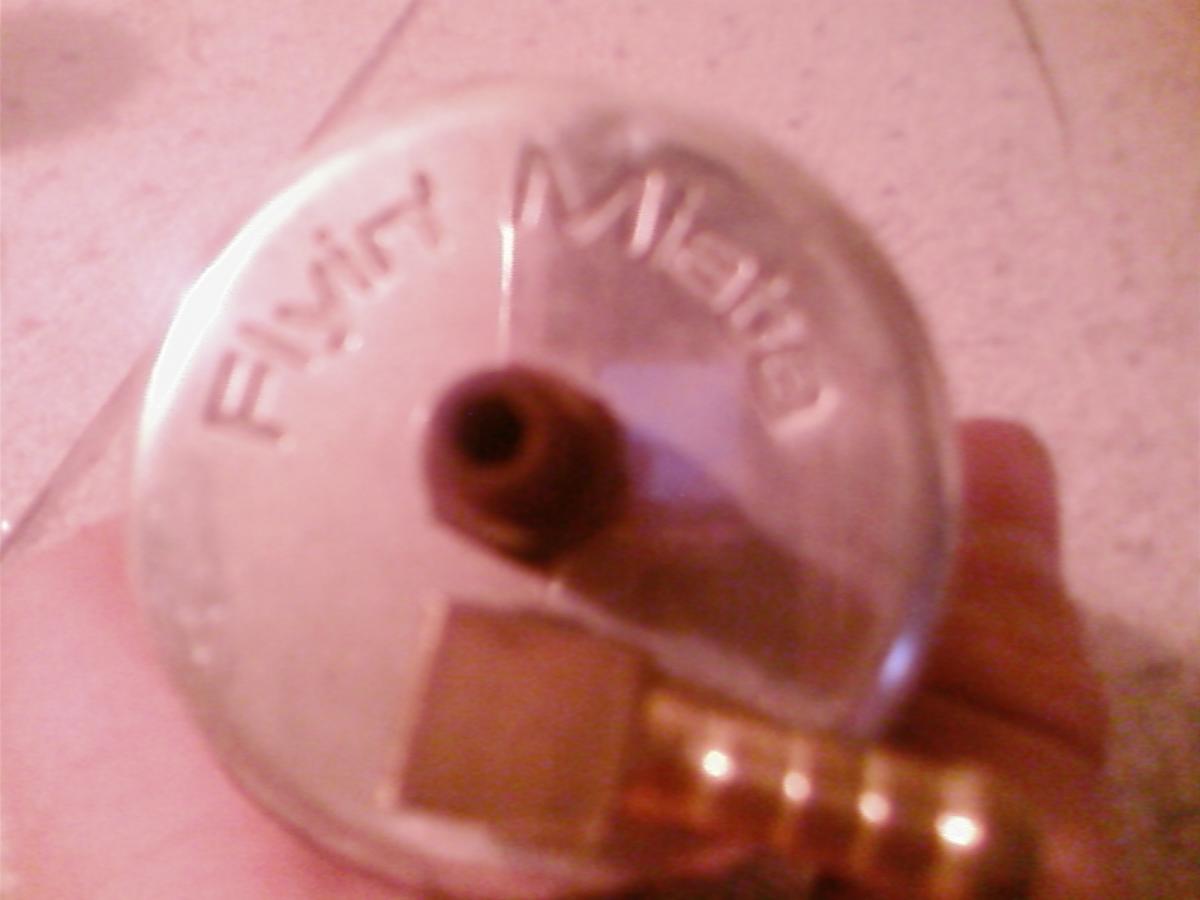

Kinda sorta related. I have this old FM Bov. Anyone know much about it? It seems to work well for all the different setups I've had on it but I haven't tried anything else and can't tell if it leaks because it's currently in my fender. I prefer little spring pressure so it vents as much as possible therefore open at idle but I run a filter on the open at idle side. Should I buy something new? Am I loosing 100 hp running this?! it's so quiet.

I've taken it apart a few times and rehoned the ID so it still slides smoooooth as butter.





TurboTim is offline   Reply With Quote
Old 09-29-2014, 02:21 PM   #49
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Isn't that just an FM-badged GFB?
concealer404 is offline   Reply With Quote
Old 09-29-2014, 05:28 PM   #50
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

It very well could be, I still don't know if it's 'bad' or why. Seems to be fine but I'm missing something, like:

Quote:
Originally Posted by 18psi View Post
I was gonna say: on some cars you actually want it open at idle.

Our cars are not those cars though, we ditch the maf as the 1st order of business
Huh? If you had a maf you'd want that **** closed so you aren't venting the MAF'ed air out.

On our man cars you'd want it open at idle, no? This is why I like my FM with it's filter and why I haven't gone with a tial Q.
TurboTim is offline   Reply With Quote
Old 09-29-2014, 08:04 PM   #51
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by Chiburbian View Post
My local supplier gets better discount for turbosmart than for forge. Anyone see any glaring problems with Turbosmart Vee Port Pro? It sounds ok on youtube...

Vee Port PRO BOVs
I use a Vee-Port Pro. I had the model before it as well. Think it was just called a Vee-Port. And I used one on my WRX awhile back too. I have really liked turbosmart products. I have a 38mm UltraGate that I will be using on the new setup.
Evergreen is offline   Reply With Quote
Old 10-02-2014, 04:30 PM   #52
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

So I got my Forge today. STOKED. Put it on. Massive compressor surge.... Opened it up... sent me the yellow spring instead of lighter green one. Ugh. Called. New one is on its way.

This brings me to the question: what spring do you guys use on the idle side, to keep it closed during idle? I have red, yellow, blue, green, and the stock one in it which is very light. Idle did seem to be much different as soon as I installed the new valve over the old China one so I'm assuming its either sealing a lot better or leaking a lot better, but don't know how to test it hahaha.
Ds1 is offline   Reply With Quote
Old 10-02-2014, 04:47 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by TurboTim View Post
Huh? If you had a maf you'd want that **** closed so you aren't venting the MAF'ed air out.

On our man cars you'd want it open at idle, no? This is why I like my FM with it's filter and why I haven't gone with a tial Q.
you're not venting it out, it goes back to the inlet after the maf and right before the turbo. the stocker actually opens at idle a little too, I think its to keep the car happy and not surging when letting off (that roughness for a split second right after easing off the throttle when the bov goes between open/closed a few times)


Quote:
Originally Posted by Ds1 View Post
So I got my Forge today. STOKED. Put it on. Massive compressor surge.... Opened it up... sent me the yellow spring instead of lighter green one. Ugh. Called. New one is on its way.

This brings me to the question: what spring do you guys use on the idle side, to keep it closed during idle? I have red, yellow, blue, green, and the stock one in it which is very light. Idle did seem to be much different as soon as I installed the new valve over the old China one so I'm assuming its either sealing a lot better or leaking a lot better, but don't know how to test it hahaha.
TEST:
1-put in softest spring
2-observe if its open at idle
3-replace spring with stiffer one until it doesn't, without making it surge like crazy
4-????
5-Profit

On MS controlled miata's I've actually had much better luck maintaining a rock solid idle with the bov not open at idle. I don't think there's a drastic difference either way, just my preference. I know some people swear by having it closed at idle.
18psi is offline   Reply With Quote
Old 10-02-2014, 04:57 PM   #54
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Umm you want the main valve to be open at idle.
triple88a is offline   Reply With Quote
Old 10-02-2014, 05:06 PM   #55
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 268
Default

Quote:
Originally Posted by 18psi View Post
you're not venting it out, it goes back to the inlet after the maf and right before the turbo. the stocker actually opens at idle a little too, I think its to keep the car happy and not surging when letting off (that roughness for a split second right after easing off the throttle when the bov goes between open/closed a few times)




TEST:
1-put in softest spring
2-observe if its open at idle
3-replace spring with stiffer one until it doesn't, without making it surge like crazy
4-????
5-Profit

On MS controlled miata's I've actually had much better luck maintaining a rock solid idle with the bov not open at idle. I don't think there's a drastic difference either way, just my preference. I know some people swear by having it closed at idle.
I cannot imagine that there would be very much differnece if the BOV is or is not open at idle (filtered). Very little air acutally flows as there is very little pressure diffence. On one side (at the outlet port) there is atmosphere +/- whatever the fan might be inducing. On the other side (charge pipe) there is atmosphere +/- filter drop +/- idleing compressor - charge pipe drop (at idle).

On my Mitsubishi BOV, open at idle, I put a plastic bag on it at idle and it neither inflated nor pulled into the filter.

AND all of this is occurring upstream of the throttle and AIC valve.
DNMakinson is offline   Reply With Quote
Old 10-02-2014, 05:13 PM   #56
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

At idle you want maximum vacuum. with it closed you get maximum vacuum.

Its likely not a big difference, I'm just sharing what worked for me.
18psi is offline   Reply With Quote
Old 10-02-2014, 05:18 PM   #57
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Interesting. I would think logically it should be closed. I've never used a 2 stage BOV so I didn't know if there was a process like "tune this then that" or anything, thats all. I'll just screw with it.
Ds1 is offline   Reply With Quote
Old 10-02-2014, 05:30 PM   #58
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

its not two stage
its just dual piston. so even with the softest piston it should still remain closed at idle.

so you will likely be ok even with the softest spring
18psi is offline   Reply With Quote
Old 10-02-2014, 05:53 PM   #59
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,843
Total Cats: 271
Default

Quote:
Originally Posted by 18psi View Post
its not two stage
its just dual piston. so even with the softest piston it should still remain closed at idle.

so you will likely be ok even with the softest spring
+1 to closed BOVs,

In my case using the MAF still, anything not through the MAF is air not accounted for. Once I got my greddy fv, I re-tuned the idle and its butta at 14.7 afr & no more crap idle.

Follow 18's test recommendation, you'll be set in no time.
Girz0r is offline   Reply With Quote
Old 10-02-2014, 06:45 PM   #60
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by concealer404 View Post
Isn't that just an FM-badged GFB?
Not AFAIK.

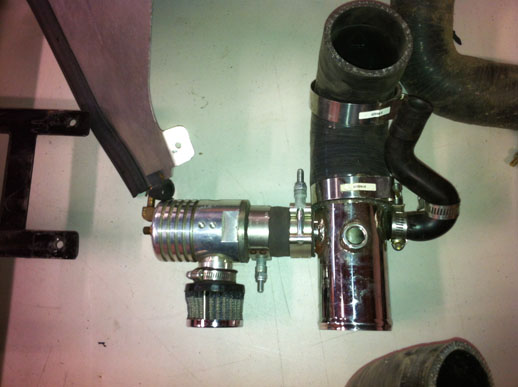

I had that FM valve on my original kit (2002-vintage 2-cat 99 CARB-approved kit w/ Link Piggyback). It's huge, much bigger than the GFB valve that came when I upgraded to the modern FM2 hardware a couple years ago.

The old FM valve was dual port -- if the piston moved a little bit, then it opened the recirculation port (the one with a flange on it), but if it moved a lot then it opened up a second port on the other side that did VTA. It didn't leak through the VTA port at idle, so didn't **** off cars that still had the stock ECU with the MAF hooked up (like with the Link Piggy).

Aside from being huge and comparatively heavy, the main downside was that the recirc port flange was not retained very well and had a tendency to come off. It was basically pressed into the housing with a few punched retaining points around the circumference, but mine kept coming apart. I eventually JB welded it on.

--Ian
codrus is offline   Reply With Quote
