Default Relocating coolant hose below turbo

Is there a better way in relocating the coolant line without buying one? Im thinking of cutting that nipple and blocking it off there and then cutting a hole and welding the nipple their. See picture. Open to ideas

Name:  Pic.jpg
Views: 151
Size:  97.3 KB
SKMetalworks is offline   Reply With Quote
Old 12-12-2009, 09:55 PM   #2
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Do you mean for your lower rad hose, or the heater core line?
Jeff_Ciesielski is offline   Reply With Quote
Old 12-12-2009, 10:12 PM   #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Im trying to get rid of that whole bracket so i got some more room to work with my manifold. Heater line will stay cause its been freakin cold. I am referring to the radiator hose.



BTW i forgot the die grinder at work

But i cleaned up my exhaust ports fine. See my other thread
SKMetalworks is offline   Reply With Quote
Old 12-12-2009, 10:22 PM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Ah, I was wondering why you would want to mess with your heater in this weather . Are you going to be able to get the die grinder, or are we just tuning tomorrow? Oh, and the exhaust ports look nice btw.
Jeff_Ciesielski is offline   Reply With Quote
Old 12-12-2009, 10:25 PM   #5
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Dremel FTMFW! I may start my manifold tomorrow. Got all the junk i need just need to move the rad hose
SKMetalworks is offline   Reply With Quote
Old 12-13-2009, 03:35 AM   #6
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I'm in this same boat right now to finish up my build. I think i'm going to clip it 180*, cut off the heater hardline after the first bend and plug it in there, get it to stay somehow and run a hose between the cut pieces of hardline. I imagine i'll have just the right amount of hose leftover after I shorten my oil return line for the new turbo location.
wayne_curr is offline   Reply With Quote
Old 12-13-2009, 03:48 AM   #7
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

in the same boat as well, i need more room. my hot side charge pipe is rubbin on the lower rad hose, its all up in my damn way. in for answers.......
WonTon is offline   Reply With Quote
Old 12-13-2009, 11:01 AM   #8
Senior Member
iTrader: (16)

Join Date: Jul 2009
Location: salem ark
Posts: 563
Total Cats: -1
Default

damn just looking at this in the miata yesterday. was thinking about pulling it and having a flange made and fabbing it to hit a 90 maybe straight forward since my a/c is gone.
i wouldn't even think of modding the oem part. but damn that lower hose is a jacked up mess.
browning is offline   Reply With Quote
Old 12-13-2009, 11:14 AM   #9
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I definitely need my heat. Gonna go get a hole saw and ill post up the outcome. The only possibly concern is that since the flow is redirected that it will hinder my cooling efficiency. But, Ill try it see how it works.
SKMetalworks is offline   Reply With Quote
Old 12-13-2009, 11:24 AM   #10
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

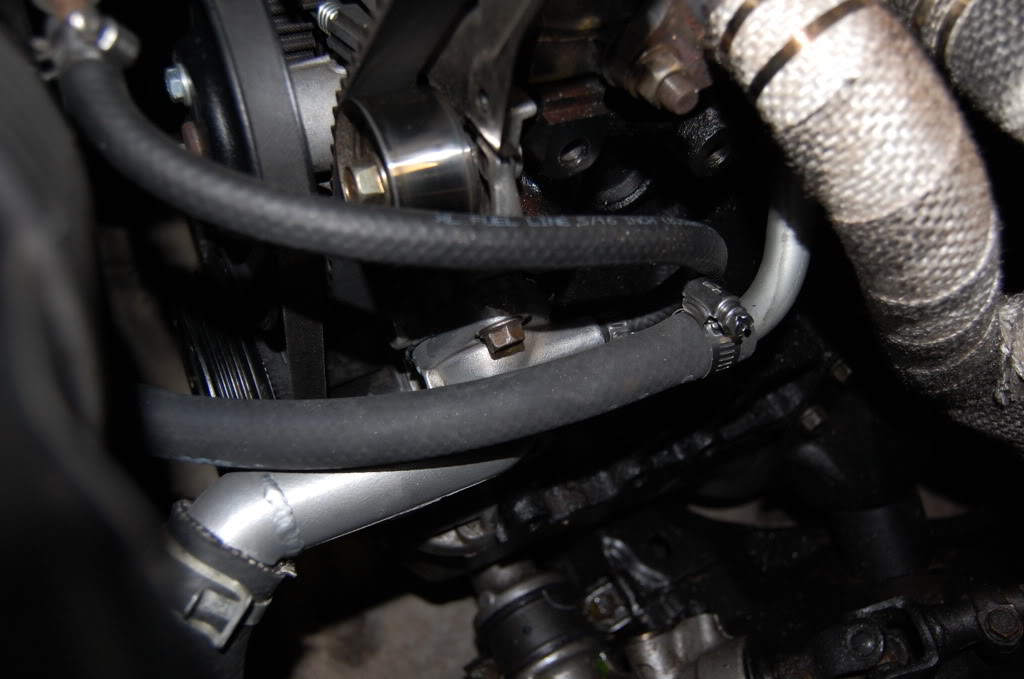

Name:  DSC_0164.jpg
Views: 32
Size:  103.1 KB

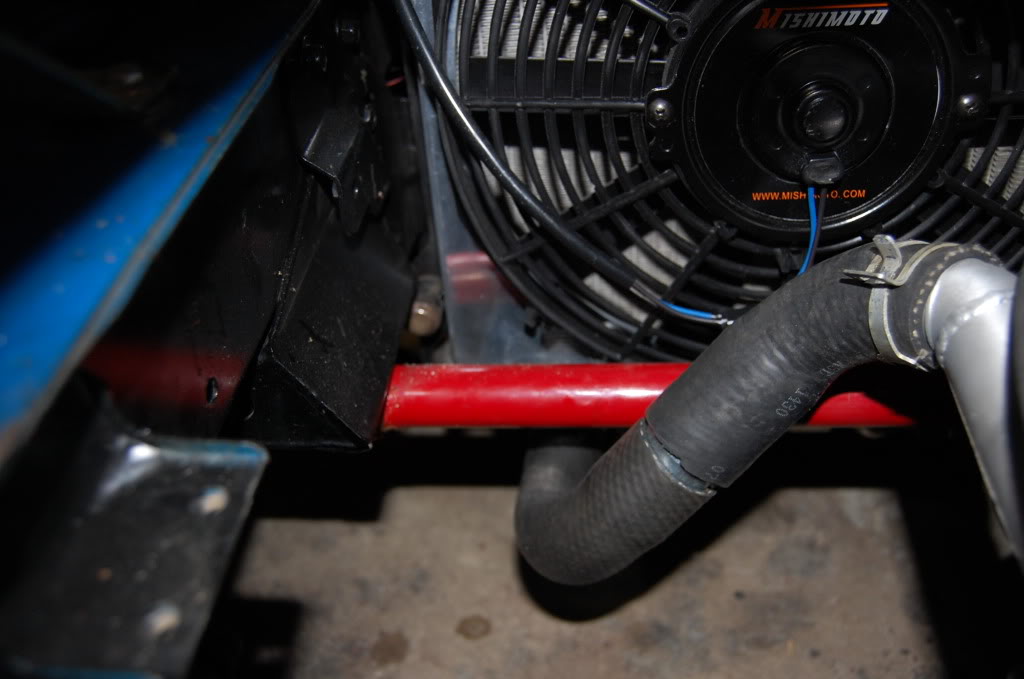

Name:  DSC_0166.jpg
Views: 31
Size:  98.9 KB
slutz4 is offline   Reply With Quote
Old 12-13-2009, 11:25 AM   #11
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Awesome. I'm committed now.


Thank you for the pictures slutz
SKMetalworks is offline   Reply With Quote
Old 12-13-2009, 02:33 PM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Dammit! That was going to be my suggestion. Flip it, and run a flex hose to the lower radiator barb. I welded a small .25" plate over the heater core line, putting mine to the upper radiator line for track driving and no heat. I could drill and tap that plate for a heater line down there though.
curly is offline   Reply With Quote
Old 12-13-2009, 03:55 PM   #13
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

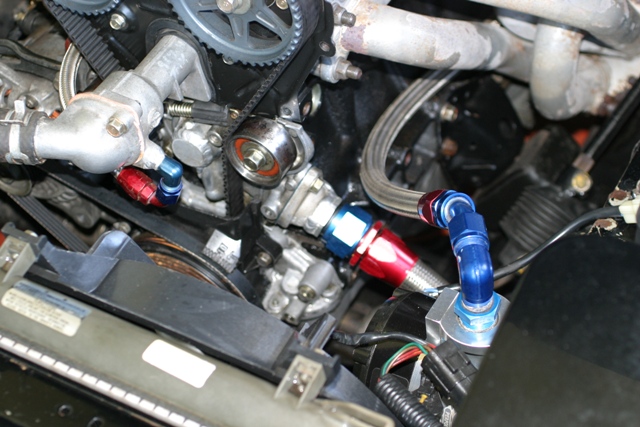

You can do something like this.
Attached Thumbnails
Relocating coolant hose below turbo-img_4888.jpg
miata2fast is offline   Reply With Quote
Old 12-13-2009, 08:41 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

flip the stock one around.

Braineack is offline   Reply With Quote
Old 12-13-2009, 08:45 PM   #15
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

k....now after you flip it what do you do fo the heater core line?
WonTon is offline   Reply With Quote
Old 12-13-2009, 08:53 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

This:

Quote:
Originally Posted by curly View Post
I welded a small .25" plate over the heater core line...[you] could drill and tap that plate for a heater line.
curly is offline   Reply With Quote
Old 12-13-2009, 08:58 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

what neo did was cut the stock hardline, stuff it in the housing and hose clamp it in place to keep it sealed.
Braineack is offline   Reply With Quote
Old 12-13-2009, 09:04 PM   #18
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

that whole piece is alumium right?

ill probly be doing this....i cant afford the BEGi fix for this!
WonTon is offline   Reply With Quote
Old 12-13-2009, 11:21 PM   #19
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

this.

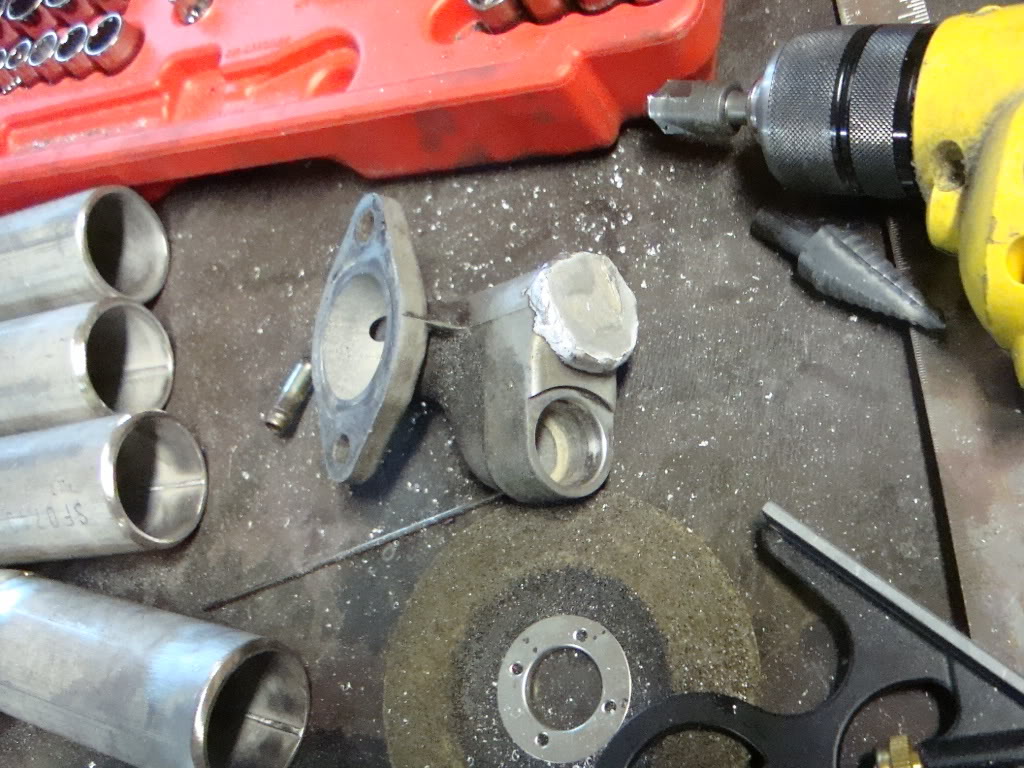

Name:  DSC00119.jpg
Views: 33
Size:  179.9 KB

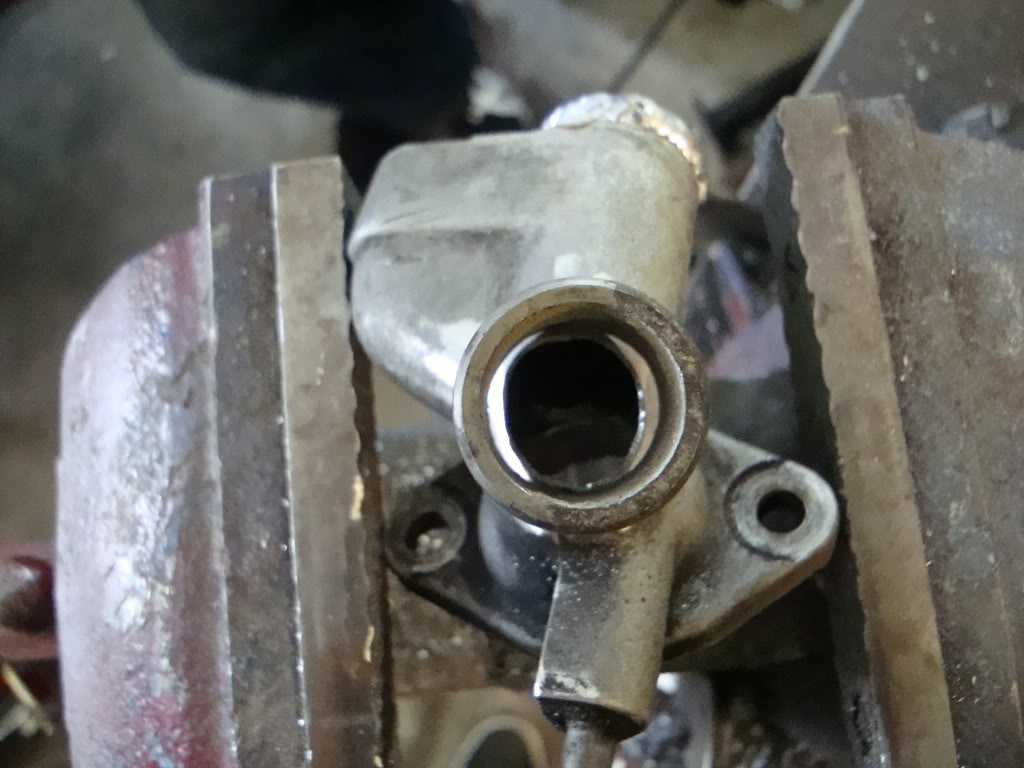

Name:  DSC00123.jpg
Views: 32
Size:  107.8 KB

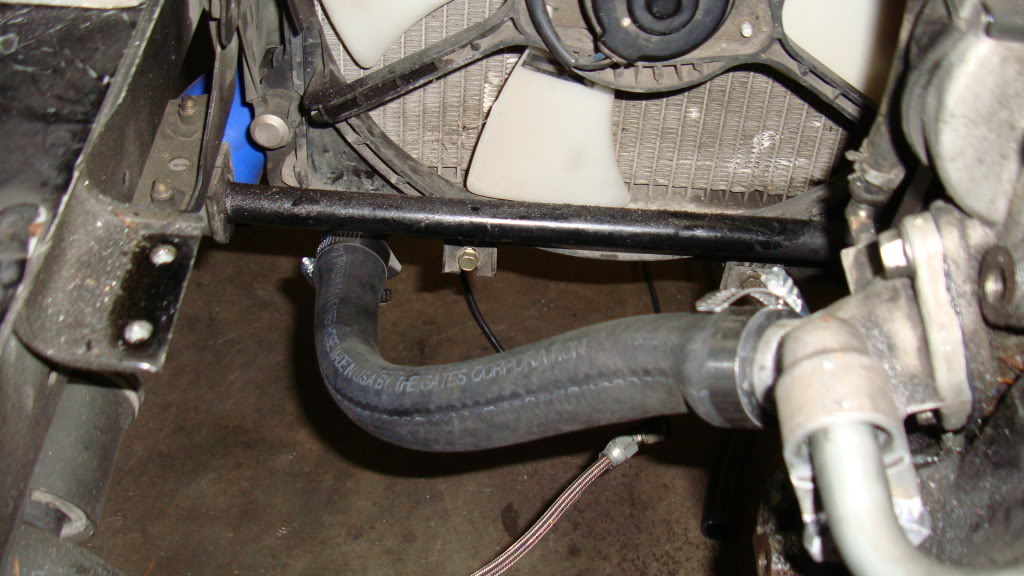

Name:  DSC00128.jpg
Views: 33
Size:  115.9 KB

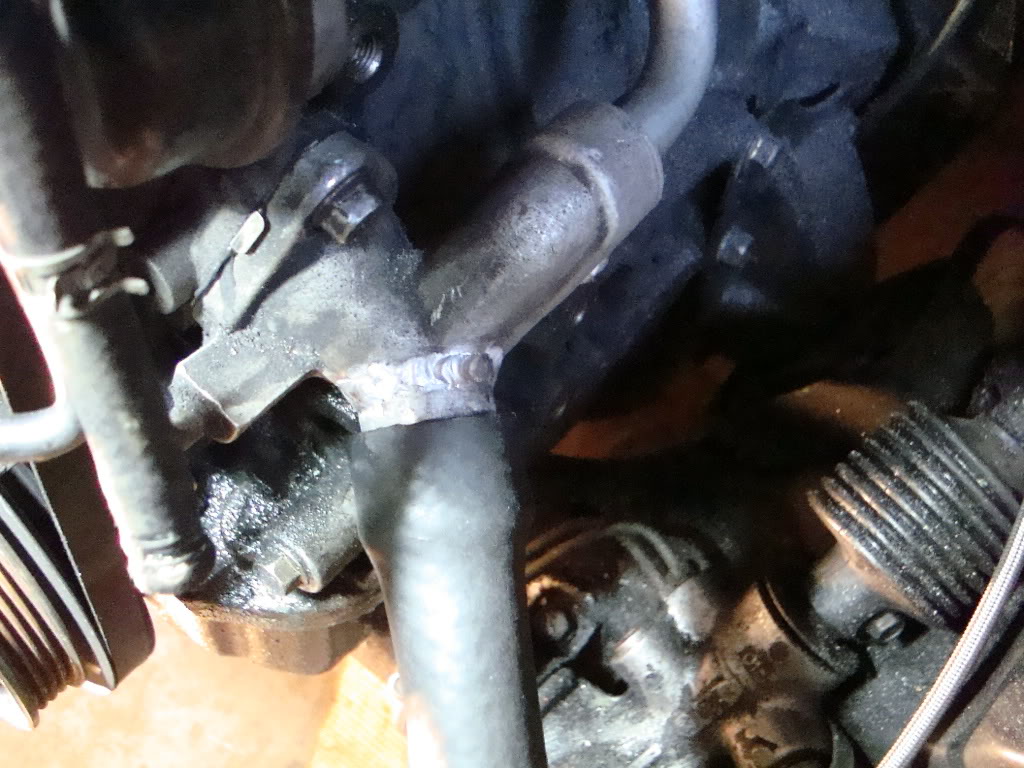

Name:  DSC00126.jpg
Views: 31
Size:  166.0 KB
SKMetalworks is offline   Reply With Quote
Old 12-14-2009, 12:03 AM   #20
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

doesnt look AC friendly! but other than that, it looks like it gets the job done....
