Request: air intake temp AIT data - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-19-2007, 05:31 PM   #41
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

HLI - head light intake FTW
m2cupcar is offline   Reply With Quote
Old 06-19-2007, 08:42 PM   #42
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Now THIS is telling... at 12 seconds I start the car. it'd been sitting ALL day...


Last edited by y8s; 01-12-2009 at 01:37 PM.
y8s is offline   Reply With Quote
Old 06-19-2007, 09:01 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Fubar
Braineack is offline   Reply With Quote
Old 06-19-2007, 09:02 PM   #44
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Should have bought a megasquirt!
jayc72 is offline   Reply With Quote
Old 06-19-2007, 10:32 PM   #45
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Black car FTL :gay:
I think the Link reads a constant 100c if the sensor is bad. But you get some slight variation. Pull that thing out and put the hair dryer on it with a thermometer for comparison.
m2cupcar is offline   Reply With Quote
Old 06-19-2007, 11:33 PM   #46
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

yep, I've got a Fluke with a thermocouple I can compare with.
y8s is offline   Reply With Quote
Old 06-20-2007, 03:31 AM   #47
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

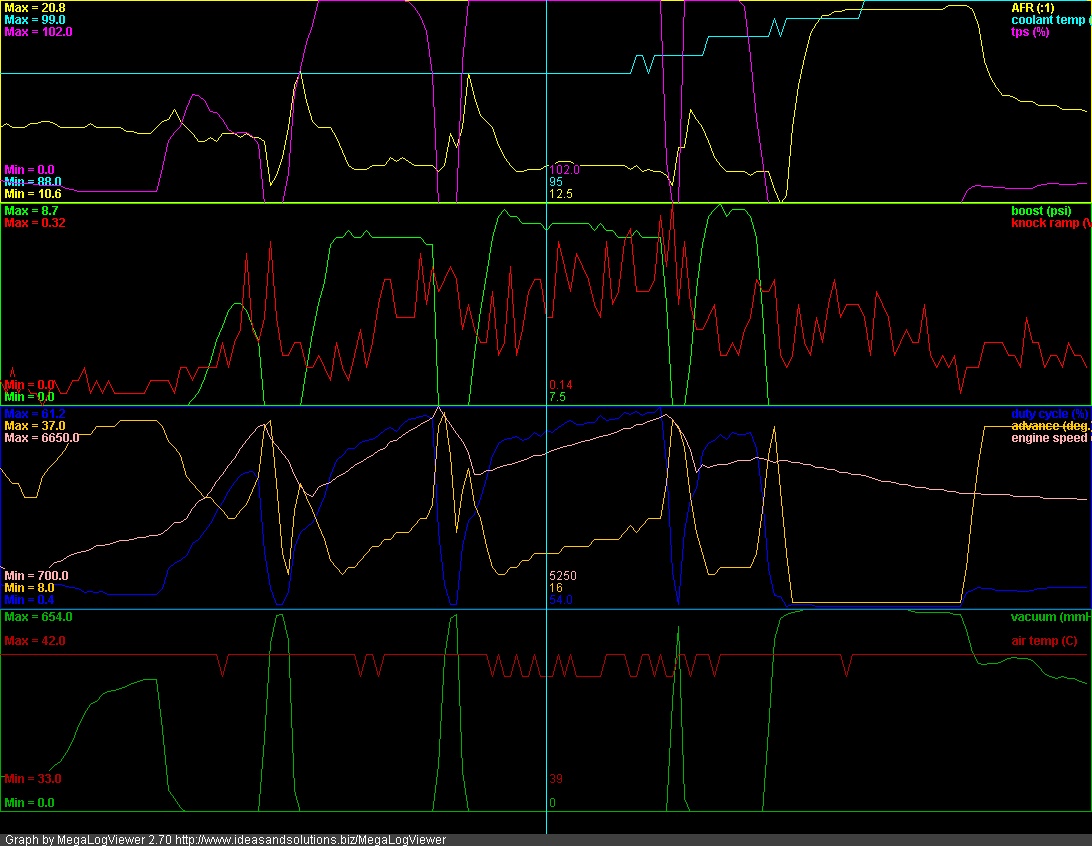

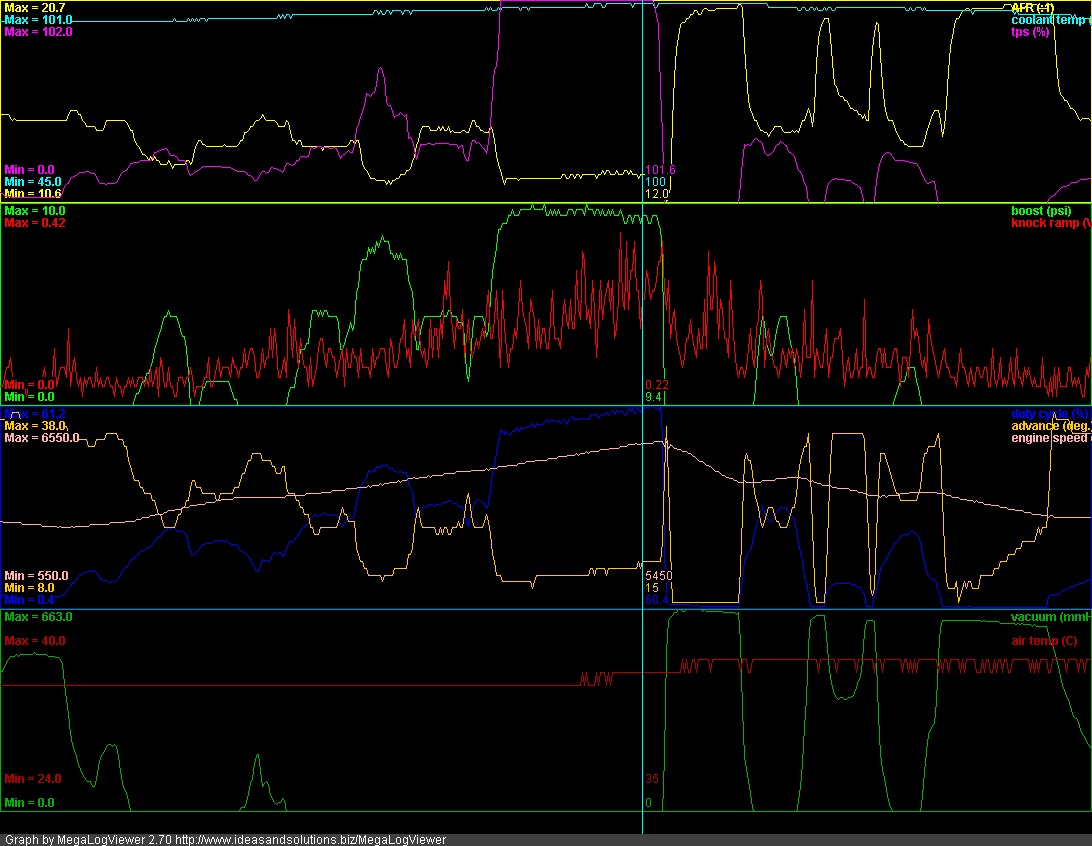

Here's some Hydra logs of my MSM. I have an AEM intake and a BEGI intercooler.

For the first log, I had just been sitting idling so the AIT started a little high. AIT stays steady at ~39-40C and it was around 20C ambient.

For the second log, I was climbing a steep mountain highway in the evening and at about ~15C ambient.
Attached Thumbnails
Request: air intake temp AIT data-1234_pull.jpg   Request: air intake temp AIT data-upcut.jpg
VanMSM is offline   Reply With Quote
Old 06-21-2007, 10:50 AM   #48
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

(second log) I see the typical rise in your longest boost section, but definitely heat soak after that run since the AIT rises to 40c right at the end of the boost and remains there. I'm surprised to see the temps that high at 10psi with the BEGI IC- that's 20c over ambient.

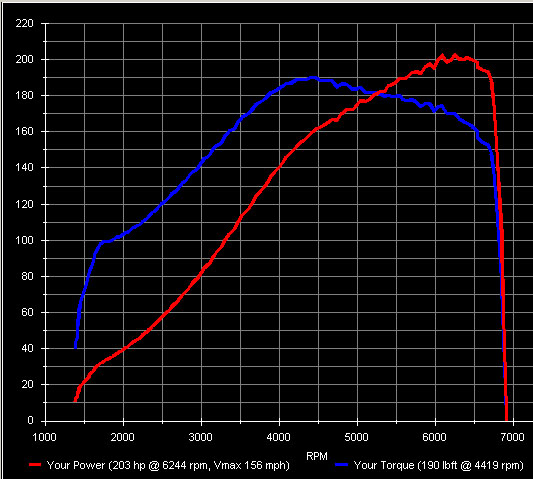

I went out last night and made some runs at 8psi (stock wg) with a poor tune (still spanked a 350z). Made four runs- two were low rpm to 7k in fourth, and two were 1-4th gear to ~7k. By then end of those I had my AIT up to 48c. First run is shown below in a power graph (same settings that produce 250/250 from my dyno run). I think this confirms that the AIT compensation's IGN retard is killing top end since this pull only peak at 38c near 7k. The fall off at the end is the knock sensor picking a yet to be identified rattle. I can feel the difference in relative pull after 6k compared to the higher boost (and temp compensation - ign retard) of the 15psi runs. This also explains why the car always feels quicker on the first boosted run.

Curious how others have their IC positioned. Mine is as close as I can get it to the face of the a/c condenser. That's probably a 1/4" gap between the two. The face is pretty much fully exposed to oncoming air. - rob
Attached Thumbnails
Request: air intake temp AIT data-0620powerrun02.jpg
m2cupcar is offline   Reply With Quote
Old 06-21-2007, 11:26 AM   #49
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

I've yet to see any of my air temps rise above 34c at 12psi. My intercooler is positioned ~ two inches away from the radiator. I do not have ac.

Quote:
Originally Posted by m2cupcar View Post

Curious how others have their IC positioned. Mine is as close as I can get it to the face of the a/c condenser. That's probably a 1/4" gap between the two. The face is pretty much fully exposed to oncoming air. - rob
Stripes is offline   Reply With Quote
Old 06-21-2007, 12:28 PM   #50
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I'm convinced it's the size of your intercooler- you are running that 18x12 (or is it 12x12 - still 40% larger than mine) core right?
m2cupcar is offline   Reply With Quote
Old 06-21-2007, 01:06 PM   #51
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

Sounds about right. I think the core is 18x12x2.5.
Stripes is offline   Reply With Quote
Old 06-21-2007, 04:31 PM   #52
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Quote:
Originally Posted by m2cupcar View Post
(second log) I see the typical rise in your longest boost section, but definitely heat soak after that run since the AIT rises to 40c right at the end of the boost and remains there. I'm surprised to see the temps that high at 10psi with the BEGI IC- that's 20c over ambient.
For the second log, in my longest boost the AIT is at 35C and rises to 36C afterwards. I should try taking my Moss high-flow grill (gasp! ) off and see if it makes a difference.

Quote:
Originally Posted by m2cupcar View Post
Curious how others have their IC positioned. Mine is as close as I can get it to the face of the a/c condenser. That's probably a 1/4" gap between the two. The face is pretty much fully exposed to oncoming air. - rob
I don't have a/c and I haven't tried filling any of the gaps to improve airflow.
VanMSM is offline   Reply With Quote
Old 06-21-2007, 05:22 PM   #53
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

What I'm getting at is that if it's 15c ambient, your AIT temp is substantially higher than that at 35c. Are you sure about this? That's before you're in boost? Usually you don't see temps like that until after you're deep into a boosted run. Your second log shows a min. AIT of 24c - so I assumed that you started your run at the min. and then rose to 34c with heat soak bringing it up to 36c after boost ended.

In my case, my IC is always 2c above ambient and only rises about 2c until I hit a peak boost of 15psi around 4500. At that point it's starts a rise for another 16c.
m2cupcar is offline   Reply With Quote
Old 06-21-2007, 09:08 PM   #54
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by y8s View Post


more pics of the big phat intake pipe at this thread.

no dataz yet.
What are those shocks from?
lazzer408 is offline   Reply With Quote
Old 06-21-2007, 09:10 PM   #55
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Can someone guide me with intake temp vs. timing? I need some sort of guideline to map the iat sensor. Should I pull 1deg per 10f? 20f? ect ect. Where's a good place to start here for the 1.8?
lazzer408 is offline   Reply With Quote
Old 06-21-2007, 09:55 PM   #56
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by lazzer408 View Post
What are those shocks from?
TEIN Flex with EDFC.
y8s is offline   Reply With Quote
Old 06-21-2007, 10:01 PM   #57
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by lazzer408 View Post
Can someone guide me with intake temp vs. timing? I need some sort of guideline to map the iat sensor. Should I pull 1deg per 10f? 20f? ect ect. Where's a good place to start here for the 1.8?
You know I asked that at miata.net a few weeks ago and didn't get a single answer. IIRC, I'm pulling 1 deg timing per 10 deg F after 115. Not knocking now, was before turning on the IAT correction.
Ben is offline   Reply With Quote
Old 06-21-2007, 11:39 PM   #58
I'm Miserable!

Join Date: Jun 2007
Posts: 22
Total Cats: 0
Default

intersting
dedonderosa is offline   Reply With Quote
Old 06-22-2007, 02:37 AM   #59
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
You know I asked that at miata.net a few weeks ago and didn't get a single answer. IIRC, I'm pulling 1 deg timing per 10 deg F after 115. Not knocking now, was before turning on the IAT correction.
I haven't actually logged my temps yet. That's something I need to do. Did you have any fuel correction also?
lazzer408 is offline   Reply With Quote
Old 06-22-2007, 02:57 AM   #60
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Quote:
Originally Posted by m2cupcar View Post
What I'm getting at is that if it's 15c ambient, your AIT temp is substantially higher than that at 35c. Are you sure about this? That's before you're in boost? Usually you don't see temps like that until after you're deep into a boosted run. Your second log shows a min. AIT of 24c - so I assumed that you started your run at the min. and then rose to 34c with heat soak bringing it up to 36c after boost ended.

In my case, my IC is always 2c above ambient and only rises about 2c until I hit a peak boost of 15psi around 4500. At that point it's starts a rise for another 16c.
I see what you're saying. I've just never had another point of reference before... Maybe I was wrong about the ambient temp? I can't really remember.

I just looked at the whole log again. I started it shortly after my car was started after work...the coolant was only at 45C. So the AIT was 24C basically from the start...maybe the sensor had heat-soaked in the engine bay for the 8 hours since I had parked it in the morning?

I then drove ~8 city blocks to the highway on-ramp with only a couple very minor boost events. At that point the AIT was already at 32C.

After driving on the highway in traffic for a bit then at the base of the hill the AIT was up to 34C.

After the boosted run up the hill the AIT was at 36C.

So it sure seems that it's really high all the time.

Coasting back down that same hill my coolant went from 95C to 88C but my AIT only went from 34C to 28C. I must be getting hardly any airflow through my intercooler.
VanMSM is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 59 12-15-2017 09:00 PM
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 08:58 AM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 12:04 PM
Moroso Air Oil Separator Catch Can Aroundcorner Miata parts for sale/trade 2 10-01-2015 04:20 PM
Going back to stock. Need some 1.6 parts. Trent WTB 2 10-01-2015 01:15 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 11:30 PM.
