Default Restriction

You know what's funny? A few months ago I was writing a somewhat cocky response to some fellow wherein I was criticizing the Kraftweks / Rotrex supercharger system, and I said something to the effect of "you wouldn't try to regulate the boost of a turbocharger by deliberately adding restriction to the exhaust, would you?"

And then I see this: http://forum.miata.net/vb/showthread.php?t=456058
Joe Perez is offline   Reply With Quote
Old 04-17-2012, 08:18 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

This is essentially what I'll be doing until I can afford Artech's 3" exhaust. My 2.5 exhaust is going to be bolted up to his 3" dp. It looks funny.
curly is offline   Reply With Quote
Old 04-17-2012, 08:24 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

1. The Rotrex inlet restrictors are not even remotely the same thing as an exhaust restrictor in a turbo

2. The real way to fix the issue of boost creep caused by insufficient wastegate flow is to - get this - fix the wastegate flow.



Attached Thumbnails

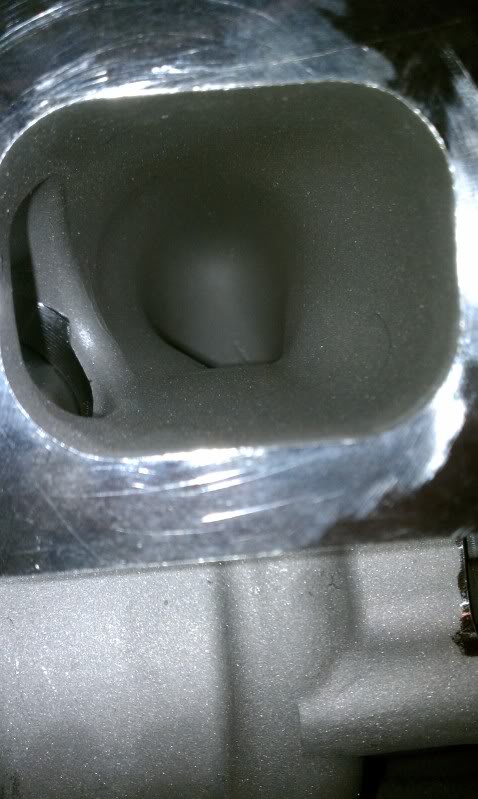

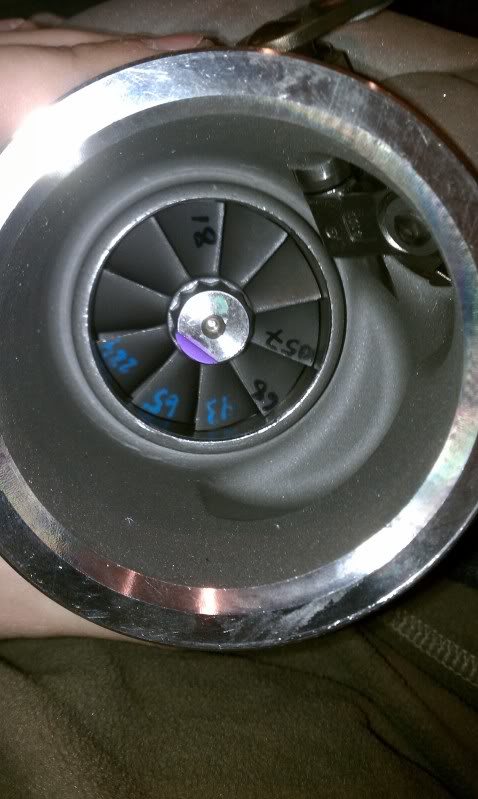

Restriction-imag0055.jpg   Restriction-imag0054.jpg
Savington is offline   Reply With Quote
Old 04-17-2012, 08:26 PM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Yeah, and Corky has been throwing this suggestion out for quite some time, if porting the WG doesn't fix boost creep issues. I still don't like the idea of adding a deliberate restriction.
aaronc7 is offline   Reply With Quote
Old 04-17-2012, 10:24 PM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

i'm torn. this is clearly the cheapest solution.

and probably also the least awesome.

better would be to make some sort of boost actuated bypass that diverts gases into a 2" pipe instead of the 3". IF you dont intend to fix the actual problem.
y8s is offline   Reply With Quote
Old 04-17-2012, 10:25 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

im confused why they are opposed to porting wastegate.

i hold 15psi perfectly flat to redline.
Braineack is offline   Reply With Quote
Old 04-18-2012, 10:36 AM   #7
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
im confused why they are opposed to porting wastegate.

i hold 15psi perfectly flat to redline.
It has been done enough times on this site alone that I can't imagine why it would be considered a "bad idea."
skidude is offline   Reply With Quote
Old 04-18-2012, 11:03 AM   #8
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

They're about 2 years behind the power curve:
https://www.miataturbo.net/showpost....3&postcount=44
fooger03 is offline   Reply With Quote
Old 04-18-2012, 11:16 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default




/thread.

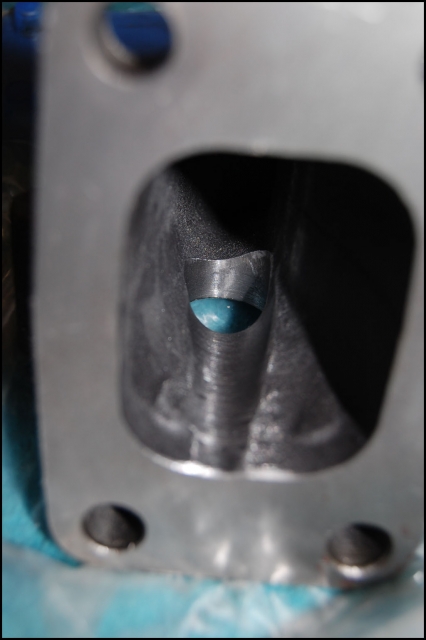

Attached Thumbnails
Braineack is offline   Reply With Quote
Old 04-18-2012, 11:57 AM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

We have a FM 2560r 94 on the dyno right now. It has whatever "new style" wastegate actuator FM offers. It overboosted like mad with a 3" exhaust, even when I pinned the gate full open mechanically. I'm not sure how much boost it would have made up top because we aborted the runs by 6k rpm, as the boost was at 15 psi and climbing hard. The owner did not want to take the turbo back off to port the housing and gate out, so he replaced the 3" exhaust with a 2.5" system. It no longer overboosts, and we can even dial in more boost with EBC.
Ben is offline   Reply With Quote
Old 04-18-2012, 12:32 PM   #11
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

This is like chopping the tip off your ***** when your girlfriend complains about it hurting.
gospeed81 is offline   Reply With Quote
Old 04-18-2012, 01:33 PM   #12
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I guess Garrett never tested if the wastegate was large enough on the GT2560, on a setup as efficient as current turbo miata setups.
JasonC SBB is offline   Reply With Quote
Old 04-18-2012, 01:40 PM   #13
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Quote:
Originally Posted by JasonC SBB View Post
I guess Garrett never tested if the wastegate was large enough on the GT2560, on a setup as efficient as current turbo miata setups.
I don't have any trouble with overboost on my setup, I wonder why some people have these problems and others do not. GT2560 with 3" exhaust and a decent manifold should be all the same in that regard, right?
skidude is offline   Reply With Quote
Old 04-18-2012, 04:31 PM   #14
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Off the top of my head, other variables will include:

- exhaust valve opening time (i.e. cam used, and cam gear setting if any)
- downpipe - if you look at a wastegate flapper cocked open a bit. The gases will come out at an angle, and not aimed into the wastegate pipe (in hte case of a divorced d/p)
- intercooler pressure drop - if this is large, the turbine will need more power (and less exhaust needs to be wastegated)
- engine displacement and VE
-etc
JasonC SBB is offline   Reply With Quote
Old 04-18-2012, 05:50 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

We finished tuning the car. Boost was wild and had uncontrollable creep with the 3" exhaust. With the 2.5" exhaust, the IWG had no problem controlling boost, and we even had to dial in some EBC to make ~12psi. I think it was a 10 psi can.
Ben is offline   Reply With Quote
Old 04-19-2012, 12:05 AM   #16
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Ugh.
FWIW my 2560 is ported and I still struggle to keep it under 10 psi on colder days. 3" exhaust.
At a track day a couple weeks ago I don't think I ever went past 50% throttle. Overboost protection would immediately kick in.

---- all this, I'm going with EWG eventually.
MartinezA92 is offline   Reply With Quote
Old 04-19-2012, 12:39 AM   #17
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

In that thread, Jeremy says that the reason FM doesn't port wastegate housings is because Limit Engineering told them not to. So the question is, why won't Limit do porting? Is it just liability, or do they want to sell more EWG turbos?

--Ian
codrus is offline   Reply With Quote
Old 04-19-2012, 12:45 AM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by codrus View Post
In that thread, Jeremy says that the reason FM doesn't port wastegate housings is because Limit Engineering told them not to. So the question is, why won't Limit do porting? Is it just liability, or do they want to sell more EWG turbos?

--Ian
Paging jkav.
Savington is offline   Reply With Quote
Old 04-19-2012, 01:49 AM   #19
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
We finished tuning the car. Boost was wild and had uncontrollable creep with the 3" exhaust. With the 2.5" exhaust, the IWG had no problem controlling boost, and we even had to dial in some EBC to make ~12psi. I think it was a 10 psi can.
any logs / pics of the spool differences of 2.5" vs 3" would be interesting
Oni is offline   Reply With Quote
Old 04-19-2012, 11:33 AM   #20
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

curious to see how loudly everyone screams "but the wg port will crack after many miles!"

but only because that happens anyway on most turbos.
y8s is offline   Reply With Quote
