Default RX7 Injector question.

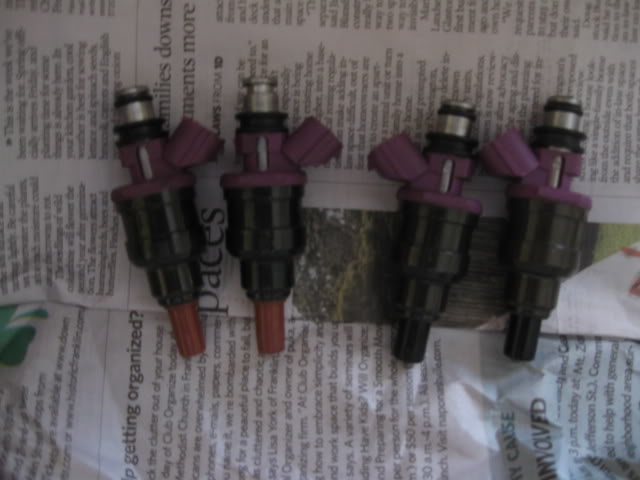

Hey guys, I bought these remanufactured from someone on another forum I use. I had a question about the nozzles. he sent me 2 primary and 2 secondarys out of a TII. Will I have any problem with that? And yes I know im missing a seal on one, but I have replacements

Name:  Picture001-8.jpg
Views: 1
Size:  39.8 KB
StatixNWH is offline   Reply With Quote
Old 03-20-2009, 06:27 PM   #2
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

They look just like mine but then again Im looking at them on a little blackberry screen.
Gotpsi? is offline   Reply With Quote
Old 03-20-2009, 07:30 PM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Tennessee
Posts: 114
Total Cats: 0
Default

well the nozzles are longer..was wondering if this is gonna give me a problem since it wont be spraying the same....
StatixNWH is offline   Reply With Quote
Old 03-20-2009, 07:40 PM   #4
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

wtf?

do the part numbers on all four end in "-2020"?

does the pintle tip protrude from the pintle cap on all four?

to me it looks like the ones on the left have the wrong caps on them, maybe its just me...
therieldeal is offline   Reply With Quote
Old 03-20-2009, 07:47 PM   #5
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Weird. If it's just the pintle caps it shouldn't matter much, but I don't know whether it is or not. I'm no help..

But when you send them for servicing things like seals and pintle caps can be replaced anyway.
kotomile is offline   Reply With Quote
Old 03-20-2009, 07:51 PM   #6
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

if they are the wrong pintle caps you will need to replace with the right ones, or your spray pattern will be FUBAR
therieldeal is offline   Reply With Quote
Old 03-20-2009, 10:49 PM   #7
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

IIRC, primaries have different flow rates than the secondarys.If they are, you'll never be able to get a good tune.They should all be the same for a 4 cylinder.Make sure the impedance is correct also.Check the part numbers.
lordrigamus is offline   Reply With Quote
Old 03-20-2009, 11:13 PM   #8
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Tennessee
Posts: 114
Total Cats: 0
Default

the black tip ones end in 5283??? Thats what it says on the injector, the other 2 are different....But cant read them...godamnit
StatixNWH is offline   Reply With Quote
Old 03-21-2009, 12:43 AM   #9
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Tennessee
Posts: 114
Total Cats: 0
Default

Anyway, I think I figured it out....I think the part number or somthing was changed or replaced with somthing else whenever he got them rebuilt or somthing....These are obviously rx7 injectors. They came out of a tII, so promaries and secondaries are the same, just different tips, which I think I can just change them out with my miata ones?
StatixNWH is offline   Reply With Quote
Old 03-21-2009, 12:48 AM   #10
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by StatixNWH View Post
the black tip ones end in 5283??? Thats what it says on the injector, the other 2 are different....But cant read them...godamnit
According to the bible they should all end in 2020.

https://www.miataturbo.net/forum/t4288/#3

I don't believe they should have different part numbers between them. Your checking the part number casted into the plastic right?

My 460cc were all 2010's and looked the same. Granted they weren't from a turbo RX-7, but I think yours are the same deal you know.
Vashthestampede is offline   Reply With Quote
Old 03-21-2009, 02:09 AM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Tennessee
Posts: 114
Total Cats: 0
Default

well the guy assures me they are TII injectors, they were just restamped when they were rebuilt, he swears they will work, so I believe em. They gotta be restamped, they look like rx7 injectors, purple top and all, and the lettering is somewhat new on it, and since no rx7 injectors end with the number I said it was, its gotta be the right ones.
StatixNWH is offline   Reply With Quote
Old 03-21-2009, 12:00 PM   #12
Junior Member
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

I would send them out and get them checked and tested. Other wise you will be chasing fuel issues forever if they are not matching injectors. You say the numbers on the injectors match nothing on the list. That should be a huge warning to at least have them serviced and tested before proceeding.
Qckslvr is offline   Reply With Quote
