I would love fOr my car to skinflint a subie. I get comPliments as is but that would be sick. Yo.
Faeflora is offline   Reply With Quote
Old 05-12-2011, 09:39 PM   #23
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by TurboTim View Post
Ahh boy. Now I'm getting excited!!

EDIT: yeah that's similar to my exhaust; 3" magnaflow metal cat and 5x8x18" muffler. Drone at all?
No drone at all. No cat either.
Splitime is offline   Reply With Quote
Old 05-12-2011, 10:00 PM   #24
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Tim, what's wrong with redoing your lower radiator hose? I did a simple job of mine.



It just goes down around a few things and then back up. I forget what hose I used but it had a nice simple j-hook shape. I then mated it to the cut stock hose with a dual barb end connector of the appropriate size from mcmaster.
y8s is offline   Reply With Quote
Old 05-12-2011, 11:15 PM   #25
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by y8s View Post
Tim, what's wrong with redoing your lower radiator hose?
Requires effort.

Nice job on your solution however. Can I buy your MIG for cheap?
TurboTim is offline   Reply With Quote
Old 05-12-2011, 11:16 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by TurboTim View Post
subaru's tend to gain HP when switching to equal length mani's and no loss of spool or low end. Correct, 18psi?

.
correctomundo. on average 15-17hp vs like 5-10 with a free-er flowing unequal one
18psi is offline   Reply With Quote
Old 05-12-2011, 11:23 PM   #27
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

So say 5-10hp with my tiny 2560. If that's the case I'll turn up the boost 1psi. Worth the tone in that case.
TurboTim is offline   Reply With Quote
Old 05-13-2011, 12:42 AM   #28
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by TurboTim View Post
Requires effort.

Nice job on your solution however. Can I buy your MIG for cheap?
probably less effort than building a manifold. but i guess you do that either way.

you want my mig? it's not worth it. there are better ones with variable current (not switches to make you angry) for about what I paid. it does do 110VAC though which is nice for light stuff.

there's an ad in grassroots motorsports for a 110v eastwood for 299 if you mention the magazine.

http://www.eastwood.com/mig-welder-1...5a-output.html

seems like a decent deal.
y8s is offline   Reply With Quote
Old 05-13-2011, 10:40 AM   #29
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

No drone on my old setup either....
shlammed is offline   Reply With Quote
Old 05-13-2011, 11:41 AM   #30
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

No drone is good to know. Do either of you two have more pics of your manifolds? Would it clear A/C & P/S? Anything major have to be moved for it to fit?
TurboTim is offline   Reply With Quote
Old 05-13-2011, 12:03 PM   #31
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

**** dawg, mine clears, PS, AC and has an EGR bung.

http://gallery.y8s.com/miata/turbo/?g2_page=7

only thing I dont like about it is the wastegate placement on #4. it might be possible to do a collector-sourced gate pipe but it's tight in there.

also note the size of my compressor and how it fits without a sawzall heh heh!
y8s is offline   Reply With Quote
Old 05-13-2011, 12:42 PM   #32
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

my manifold WAS splitimes manifold. but i will give you this...
Name:  PC290009.jpg
Views: 3
Size:  74.6 KB
Name:  d3a5450f.jpg
Views: 2
Size:  309.9 KB
Name:  838ca2fb.jpg
Views: 2
Size:  295.9 KB
Name:  7df7e579.jpg
Views: 3
Size:  296.5 KB

Cleared PS no problem with a 2860RS 0.86

I then upgraded to a 2871R Tial housing and it was fine too. I never ran AC so i cant comment on that.

Edit: the hardest part was making an intake that would fit with a decent sized filter. i ended up running the filter under the headlight (headlight stationary) and the hot pipe through fender.... no decent pics of that.


Edit 2: oh yeah... i modded my PS low pressure hjose since it wouldnt work with this manifold

Edit 3: the manifold nut going on between cylinder #1 and #2 was a royal pain in the nuts to get to... figure this into future designs.

Last edited by shlammed; 05-13-2011 at 12:55 PM.
shlammed is offline   Reply With Quote
Old 05-13-2011, 12:51 PM   #33
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Damn! I learn so much on this forum. That explains why my MSP3 sounds like a Subie. I've always wondered...

Weird manifold on that car too. Has some sort of accordion looking gizmo between the 2 sets of runners. No idea wtf that does.
soloracer is offline   Reply With Quote
Old 05-13-2011, 03:07 PM   #34
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by y8s View Post
**** dawg, mine clears, PS, AC and has an EGR bung.

only thing I dont like about it is the wastegate placement on #4. it might be possible to do a collector-sourced gate pipe but it's tight in there.

also note the size of my compressor and how it fits without a sawzall heh heh!
Yeah you're old ETD manifold I think is very nice, hits all the good points. Fits with A/C P/S, big turbos, decent room for downpipe. Not a fan of the collector (for no good reason other than it's not available commercially in schedule 40 so I'd have to make it myself...or use schedule 10 which is fine for that portion anyway) but it works for the design and it works for flow.

Quote:
Originally Posted by shlammed View Post
my manifold WAS splitimes manifold. but i will give you this...

Cleared PS no problem with a 2860RS 0.86

I then upgraded to a 2871R Tial housing and it was fine too. I never ran AC so i cant comment on that.

Edit: the hardest part was making an intake that would fit with a decent sized filter. i ended up running the filter under the headlight (headlight stationary) and the hot pipe through fender.... no decent pics of that.


Edit 2: oh yeah... i modded my PS low pressure hjose since it wouldnt work with this manifold

Edit 3: the manifold nut going on between cylinder #1 and #2 was a royal pain in the nuts to get to... figure this into future designs.
I think if it cleared PS then it should also clear AC. I like your manifold better than mine...oh well. My collector angle is tighter which forces the turbo further from the engine.

Anyway, manifold is done, I have to order a 90deg silicone 2 to 2.5" transition and a tight R 3" bend for my downpipe...I have enough scraps to do the downpipe now but if I have to wait for the silicone then I may as well also get a new fresh bend.
TurboTim is offline   Reply With Quote
Old 05-13-2011, 03:51 PM   #35
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Tim it's time to make a collector pipe cut jig.

I'm sure you could come up with something that lets you vary the merge angle in both planes.

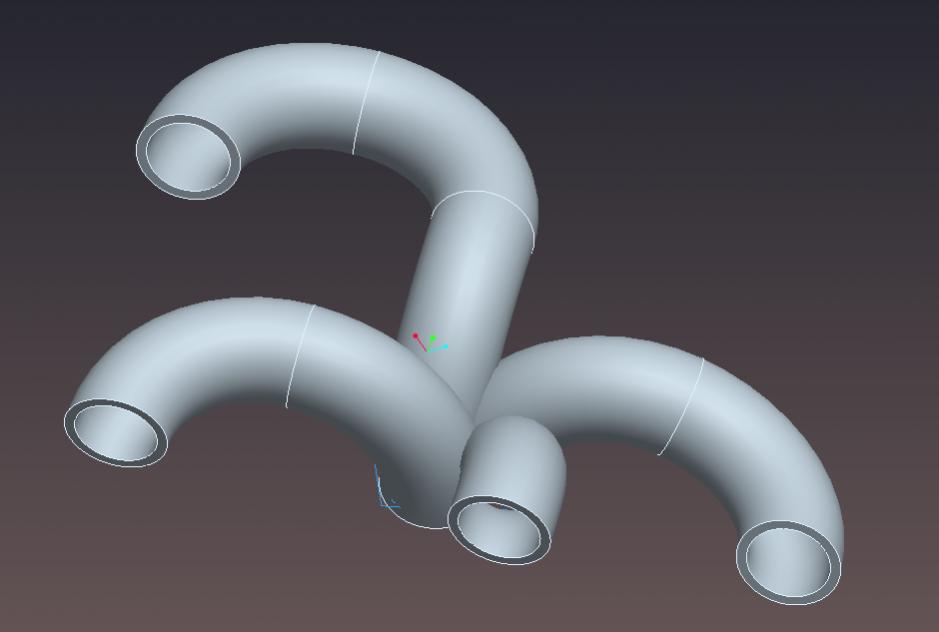

of course the next challenge I have for you is a twisted collector.

I will have a picture for you shortly.
y8s is offline   Reply With Quote
Old 05-13-2011, 04:03 PM   #36
Junior Member

Join Date: May 2010
Posts: 75
Total Cats: -4
Default

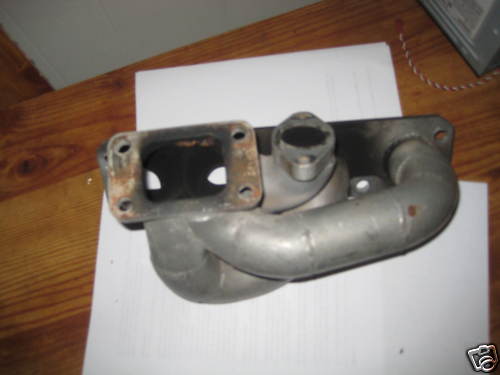

Looks similar to the ones Ric Stephens (RacingMazda) used to make. Your collector is much nicer though.

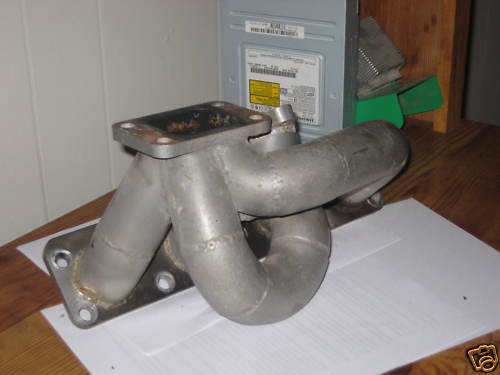

Attached Thumbnails
