Default This seems like the logical place

Kind of. Wish there was a forum section for just swap questions?

Putting a 1.8 into my 1.6 chassis. Don't see anything on the 1.6 motor/harness that would take advantage of these two items pictured below on my 1.8 - do i just pull them off and disregard?

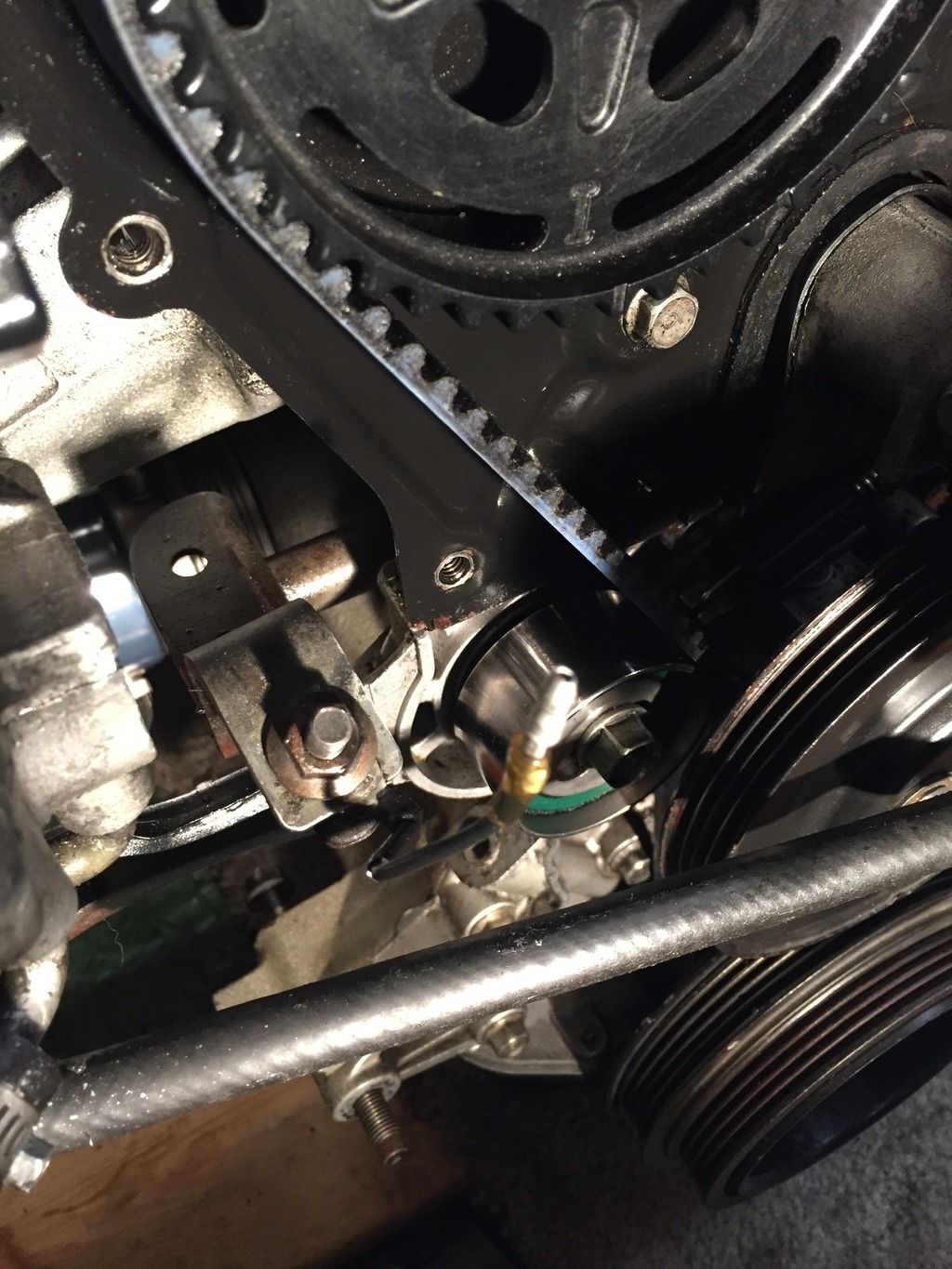

Wire connector above the alternator bracket:

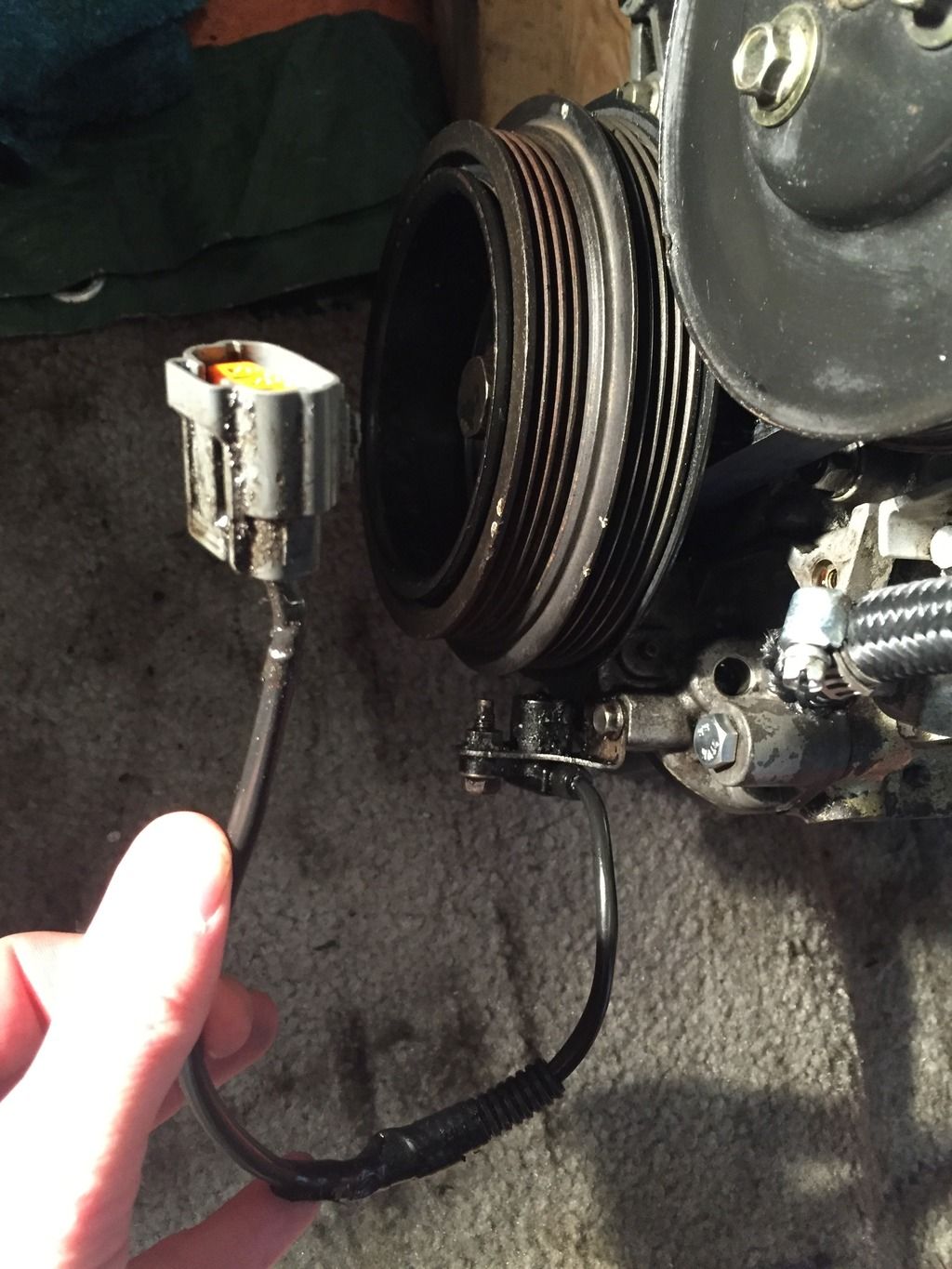

Extra crank sensor? 1.6 doesn't use one that I see....I'm assuming it just relies on the CAS on the back of the head alone?



Sorry if this is in the wrong area or a no brainer. I searched out images to compare and swap how to's and didn't see anything referenced.
Attached Thumbnails
This seems like the logical place-80-img_5817_zpsnvbycgnp_55cfeeff0835eaf69c863c0e53e6357b4f0cf82d.jpg   This seems like the logical place-80-img_5816_zpsnovad4cf_c0b1ed564563e15fd1ddba3814a14410486868cd.jpg
OGWar is offline   Reply With Quote
Old 01-05-2016, 12:54 AM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

First one looks like a random ground to me.

I defer to Braineack's comment: https://www.miataturbo.net/diy-turbo...6/#post1296913



Second is a Crank position sensor for the , but if you're using the CAS from the 1.6L on the exhaust cam, you won't need this.

Looks like this is a 1.8L from an NA?

Last edited by psyber_0ptix; 01-05-2016 at 02:49 PM.
psyber_0ptix is offline   Reply With Quote
Old 01-05-2016, 09:15 AM   #3
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

I'm putting a 1.8 from a '96 m edition into a '92 chassis. I'm gonna be extending the wiring of the 1.6 CAS plug and just using the CAS on the 1.8 on the exhaust cam.
OGWar is offline   Reply With Quote
Old 01-05-2016, 09:48 AM   #4
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Then you can do as you wish with these superfluous parts. Are you running megasquirt already? If you do not plan to run sequential ignition/fuel then you can just run a toothed ring on the crank pulley for higher resolution.

I just happen to have a 36-1 available that fits supermiata harmonic dampers
psyber_0ptix is offline   Reply With Quote
Old 01-05-2016, 10:26 AM   #5
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by psyber_0ptix View Post
Then you can do as you wish with these superfluous parts. Are you running megasquirt already? If you do not plan to run sequential ignition/fuel then you can just run a toothed ring on the crank pulley for higher resolution.

I just happen to have a 36-1 available that fits supermiata harmonic dampers
Ill take it.
aidandj is offline   Reply With Quote
Old 01-05-2016, 10:39 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

So if I'm just using the oem 1.8 CAS located on the exhaust cam with the 1.6 harness wires extended, I can scrap the crank sensor? I'm gonna be running a braineack built ms.

Can you elaborate on the 36-1, and retaining the crank sensor pictured? How would you wire that in?
OGWar is offline   Reply With Quote
Old 01-05-2016, 02:04 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

first wire is for power steering.
Braineack is offline   Reply With Quote
Old 01-05-2016, 02:45 PM   #8
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Quote:
Originally Posted by Braineack View Post
first wire is for power steering.
I rescind my statement. I guess I would have never known with a manual rack.
psyber_0ptix is offline   Reply With Quote
Old 01-05-2016, 03:26 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

it tells the ECU: WE NEED MORE POWER, SCOTTY.
Braineack is offline   Reply With Quote
Old 01-05-2016, 06:45 PM   #10
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 157
Total Cats: 10
Default

Thanks for the replies guys. Looks like I'll be doing away with both of them then.
