Default Show me some hotside IC pipe routing

Looking for a few pictures of how some of you did your hotside IC piping if your turbo was clocked down.

I have the cold side all done from my past turbo kit, but with the new Rotrex it is clocked down VS. my old Greddy and it's going to have 2.5'' piping VS. 2'' piping. I need to see some pics so I can order up what I need. I *think* I know what I need but a few extra pictures won't hurt.

Thanks in advance.
falcon is offline   Reply With Quote
Old 04-25-2011, 03:45 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Just google images of fm/begi traditional routing. that's what the majority of members here go with.

I think it will be much easier with the rotrex since its more forward and shouldn't be hitting the a/c lines (if you have ac)
18psi is offline   Reply With Quote
Old 04-25-2011, 04:09 PM   #3
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I'll post a pic of mine when i get home it's really easy clocked down. I just have a 90 degree silicone coupler that goes from 2 inch off the turbo to 2.5 inch for the ic piping , then a straight pipe with like 140 degrees of a u bend into the intercooler
wittyworks is offline   Reply With Quote
Old 04-25-2011, 04:21 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Your blower sits high enough that you have no problems.
hustler is offline   Reply With Quote
Old 04-25-2011, 04:22 PM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

No AC or PS.

I think what I will do is

2'' straight off the Rotrex to a 90* 2.0'' to 2.5'' reducer. Then a straight pipe coupled to a 45* and then that should slide into the 90* coupler on the end of the IC.

I want to use stuff I have already to save costs, which is why I'm running 6'' of a 2'' pipe off the end of the Rotrex. No money left... lol
falcon is offline   Reply With Quote
Old 04-25-2011, 04:36 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

no ps/ac = routing will be piece of cake
18psi is offline   Reply With Quote
Old 04-25-2011, 05:23 PM   #7
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

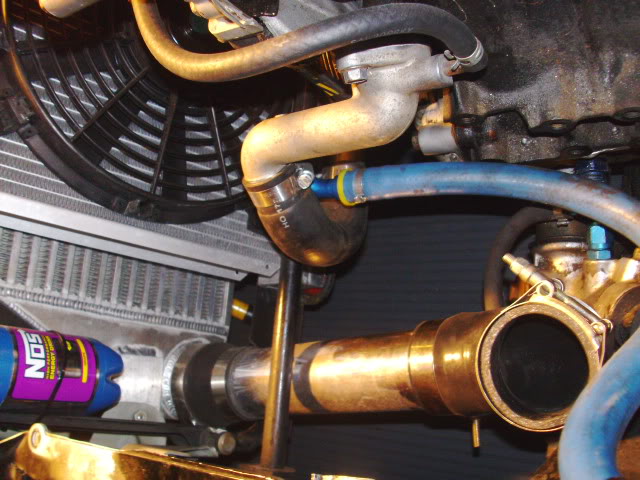

Name:  PICT0657.jpg
Views: 2
Size:  69.5 KB

Can't get any simpler.

Last edited by jtothawhat; 04-25-2011 at 07:24 PM.
jtothawhat is offline   Reply With Quote
Old 04-25-2011, 05:46 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default





Braineack is offline   Reply With Quote
Old 04-25-2011, 08:07 PM   #9
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

thanks for the pics guys.

I threw the rotrex on my other miata sitting in my garage and took a good look I think I know what I'll be needing
