Default So sick of stuff not fitting

I'm starting to get annoyed. Nothing is fitting the way I had envisioned. First the turbo positioning, the dp not mating as it should...now the intercooler isn't fitting where I wanted, ala UofACats. My intercooler, with all the flangework, is damn near 3.25" thick, although the core is only ~2.5"

I almost want to throw in the towel, sell everything off, and buy a decent GReddy setup. But not yet.
Atlanta93LE is offline   Reply With Quote
Old 05-08-2007, 06:05 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

dont give up man i have had a shitty year as well it is worth it in the end. The more you suffer the more is shows you realy care rigth
magnamx-5 is offline   Reply With Quote
Old 05-08-2007, 07:10 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

welcome to my world.

this is what i started with:



the only thing that still remains from this are; two couplers, the coldside pipe, modded hotside , BOV, and boost gauge.
Braineack is online now   Reply With Quote
Old 05-08-2007, 07:15 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

You need a hammer. A big one.
Ben is offline   Reply With Quote
Old 05-08-2007, 07:37 PM   #5
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
You need a hammer. A big one.
And a saw. A sharp one.
Atlanta93LE is offline   Reply With Quote
Old 05-08-2007, 08:14 PM   #6
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Atlanta93LE View Post
now the intercooler isn't fitting where I wanted, ala UofACats. My intercooler, with all the flangework, is damn near 3.25" thick, although the core is only ~2.5"
I had to grind the flanges for everything to fit. Is that an option?

Did you move the radiator? AC?

I don't see your car in the vBgarage. Throw some pics up, that always helps.






edit: 1,000
UofACATS is offline   Reply With Quote
Old 05-08-2007, 08:20 PM   #7
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by UofACATS View Post
I had to grind the flanges for everything to fit. Is that an option?

Did you move the radiator? AC?

I don't see your car in the vBgarage. Throw some pics up, that always helps.





edit: 1,000
And yet still no turbo
magnamx-5 is offline   Reply With Quote
Old 05-08-2007, 08:35 PM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

How about a zis wheel and bench grinder? Got them
Ben is offline   Reply With Quote
Old 05-08-2007, 09:29 PM   #9
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I think I might have figured out a way to get the intercooler in there and the pipes routed. It'll squish the pipes some, but it should be alright to get me started.

I've been playing around with moving both the rad and AC condensor...ground/cut off excess flange area on the rad and intercooler, but to no avail.

I'm not planning on posting anything in the vbgarage until my car actually has a turbo. Or putting my sticker on
Atlanta93LE is offline   Reply With Quote
Old 05-08-2007, 09:36 PM   #10
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

So, I just did a quick check, and it looks like the squished 2" pipe gives the equivalent area of a 1.83" pipe. Hopefully that'll be ok.
Atlanta93LE is offline   Reply With Quote
Old 05-08-2007, 09:44 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

where are you squishing things....i want pics.
Braineack is online now   Reply With Quote
Old 05-08-2007, 09:45 PM   #12
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

DIY = Make It Fit

DIY isn't always the cheaper option, and definately not the easiest. It's rewarding none the less, so keep at it!
retro is offline   Reply With Quote
Old 05-08-2007, 09:52 PM   #13
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

It got dark and the floodlights were attracting bugs, so I came in without any decent pic. Basically, I've lowered the radiator a bit and tilted it back, and tilted the top part of the AC condensor back to leave a little space between the radiator support piece and the condensor through which I can slide some 90° 2" radiator hoses over and into my Audi IC with top-mounted inlet/outlet. It's all just kinda test fitted in there right now, but hopefully tomorrow I'll be able to button things down and solidify it.
Atlanta93LE is offline   Reply With Quote
Old 05-16-2007, 03:14 AM   #14
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

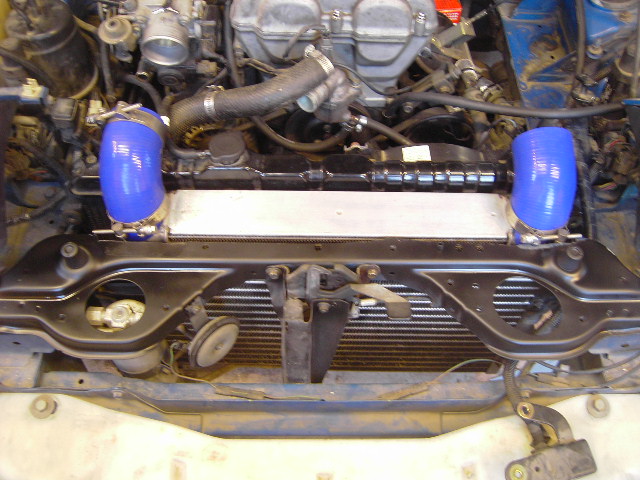

I lowered the rad about an inch, and moved the AC foward about 3/4 inch or so from memory, with grinding a little off the I/C I was able to stuff it down far enough. You can see the trimming I did on the flat-black metal as well. Although you can also see most of it was unnecessary..

My build is going somewhere else, so it's all removed.

Want the I/C and pipes?









.. course you could rip out that AC
Attached Thumbnails
So sick of stuff not fitting-pict0024.jpg
UofACATS is offline   Reply With Quote
Old 05-16-2007, 05:46 AM   #15
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by Atlanta93LE View Post
I'm starting to get annoyed. Nothing is fitting the way I had envisioned. First the turbo positioning, the dp not mating as it should...now the intercooler isn't fitting where I wanted, ala UofACats. My intercooler, with all the flangework, is damn near 3.25" thick, although the core is only ~2.5"

I almost want to throw in the towel, sell everything off, and buy a decent GReddy setup. But not yet.
Why the **** are you bitching? My FMIC is all custom over the radiator, the turbo has to be re clocked both hot and cold sides.. umm downpiipe hasn't even been made i'm not sure how i'm going to get that going.. I don't even know how to use this EMB.. i'm just dead. If anyone I shoudl be throwing in the towel... only thing thats gone right so far is that the manifold has bolted up ... and even that is sitting way to ******* high my turbos less than an inch away from the hood
PaKMaN is offline   Reply With Quote
Old 05-16-2007, 09:07 AM   #16
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by UofACATS View Post
Want the I/C and pipes?
I found a way to squeeze mine in there, so...only if the price were right
Atlanta93LE is offline   Reply With Quote
Old 05-16-2007, 09:33 AM   #17
I'm Miserable!

Join Date: Apr 2007
Location: Gettysburg, PA lol
Posts: 130
Total Cats: 0
Default

Quote:
Originally Posted by UofACATS View Post
I lowered the rad about an inch, and moved the AC foward about 3/4 inch or so from memory, with grinding a little off the I/C I was able to stuff it down far enough. You can see the trimming I did on the flat-black metal as well. Although you can also see most of it was unnecessary..

My build is going somewhere else, so it's all removed.

Want the I/C and pipes?









.. course you could rip out that AC
i remember the first time i saw a ka-t guy do this set up...very creative...although he was ziptying his radiator to the front brace...very cool though.

in that picture of yours

Last edited by speedracerTD04; 05-16-2007 at 09:34 AM. Reason: picture
speedracerTD04 is offline   Reply With Quote
Old 05-16-2007, 11:29 AM   #18
Senior Member

Join Date: Mar 2007
Location: Denver, CO
Posts: 564
Total Cats: 0
Default

I'm so glad my car doesn't have PS/AC/Cruise.
jwarriner is offline   Reply With Quote
Old 05-16-2007, 11:44 AM   #19
I'm Miserable!

Join Date: Apr 2007
Location: Gettysburg, PA lol
Posts: 130
Total Cats: 0
Default

i wanna take my CC/PS off...but am afraid i'll do something wrong haha. it would def make everything fit a lot better....
speedracerTD04 is offline   Reply With Quote
Old 05-16-2007, 11:52 AM   #20
Senior Member

Join Date: Mar 2007
Location: Denver, CO
Posts: 564
Total Cats: 0
Default

Either my car came from the factory without this stuff or it was removed. Oddly, it still has a power steering cooler that appears never to have been used.
jwarriner is offline   Reply With Quote
