DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 04-08-2014, 11:36 AM   #1
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default Starting to part together my turbo build

Already megasquirted car, Built block, 2000 head.
Began with the RX-8 425cc injectors

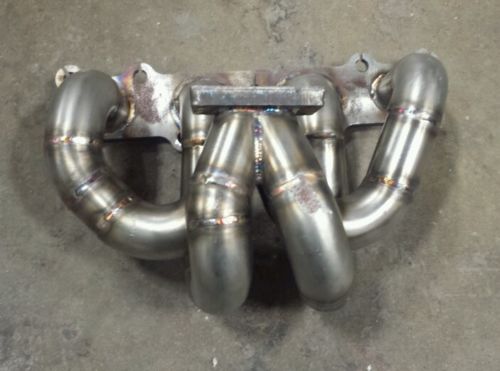

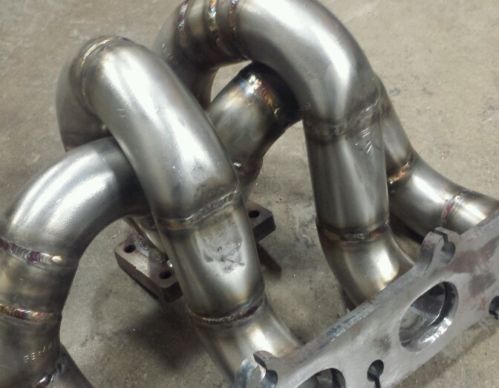

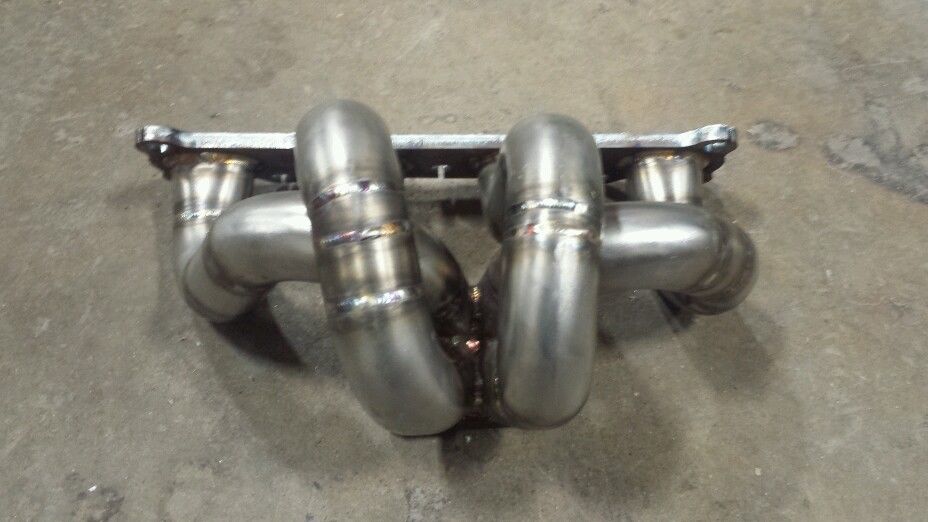

How does this Exhaust manifold look? I got up with a guy who had it custom made in a shop, it is used. no cracks, dented in on the 2&3 for clearance. flanged for t25/28

Starting to part together my turbo build-%24_121.jpg
Starting to part together my turbo build-%24_12.jpg
Starting to part together my turbo build-%24_57.jpg

Now talking compressors here.
This is going to be a conservative daily driver low boost build. just looking for more power and fun on my daily 20 minute drive on the interstate etc...

What should i be looking for? Ive seen that the GT2560 is a popular choice.

Also could use some help finding the right down pipe.
this is a bottom/low mount manifold, and right now im running a magnaflow cat back exhaust system, that the previous driver claimed to have had custom bent for fitment. and that worries me.
zacktrotter_uncc is offline   Reply With Quote
Old 04-08-2014, 11:39 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

was there any specific reason he flattened out #2 and #3?
Braineack is offline   Reply With Quote
Old 04-08-2014, 11:56 AM   #3
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Nov 2013
Location: GA
Posts: 171
Total Cats: -154
Default

Quote:
Originally Posted by Braineack View Post
was there any specific reason he flattened out #2 and #3?
He said to clear the valve cover.
zacktrotter_uncc is offline   Reply With Quote
Old 04-08-2014, 12:02 PM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

It looks like its never been run on a car and that the turbo might hit the frame rail. I'd be wary about buying it.
Leafy is offline   Reply With Quote
Old 04-08-2014, 12:50 PM   #5
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

So what you're saying is that the manifold doesn't actually fit the car, right?
concealer404 is offline   Reply With Quote
Old 04-08-2014, 01:39 PM   #6
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I think he's saying turbo hit block.
dieselmiata is offline   Reply With Quote
Old 04-08-2014, 03:44 PM   #7
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

If those dents are clearance for the valve cover, I wouldn't imagine the valve cover gasket has much of a chance.
EO2K is offline   Reply With Quote
Old 04-09-2014, 07:25 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Quote:
Originally Posted by EO2K View Post
If those dents are clearance for the valve cover, I wouldn't imagine the valve cover gasket has much of a chance.
I would have to agree. That's awfully close. I guess it was mocked up on a head that didn't have a VC on it when it was built.
sixshooter is offline   Reply With Quote
