Where does your exhaust terminate? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 04-05-2014, 12:51 AM   #1
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default Where does your exhaust terminate?

I'm in the process of having Abe fab a manifold and DP for me. Instead of trying to mate it with my existing exhaust, I'm considering having him run a straight pipe from the DP (w/ flex) back as far as the diff, and then having it dump to the ground at that point.

I don't run any sort of muffler, so why run it all the way to the back of the car? Any downside to terminating the exhaust at the diff? Is anyone else doing this?

Any feedback would be appreciated. Thanks!
supersuckers is offline   Reply With Quote
Old 04-05-2014, 01:56 AM   #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Id terminate it directly after the 2nd exhaust hanger just in front of the diff based on building quite a few exhausts for these, however if someone has tried it and had a fume issue speak up.

Dann
nitrodann is offline   Reply With Quote
Old 04-05-2014, 08:58 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by supersuckers View Post
I'm in the process of having Abe fab a manifold and DP for me. Instead of trying to mate it with my existing exhaust, I'm considering having him run a straight pipe from the DP (w/ flex) back as far as the diff, and then having it dump to the ground at that point.

I don't run any sort of muffler, so why run it all the way to the back of the car? Any downside to terminating the exhaust at the diff? Is anyone else doing this?

Any feedback would be appreciated. Thanks!
are you going for the loudest most annoying miata out there?
Braineack is offline   Reply With Quote
Old 04-05-2014, 10:04 AM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by supersuckers View Post
I don't run any sort of muffler, so why run it all the way to the back of the car? Any downside to terminating the exhaust at the diff? Is anyone else doing this?
My recollection here is a tad hazy, but it seems to me that the last person who tried this melted both the bumper cover and the taillights.
Joe Perez is offline   Reply With Quote
Old 04-05-2014, 10:34 AM   #5
Junior Member

Join Date: Feb 2014
Location: Chicago, IL
Posts: 95
Total Cats: 1
Default

Melted a bumper of mine because the exhaust terminated right before edge of the bumper.
AdrianD2 is offline   Reply With Quote
Old 04-05-2014, 10:57 AM   #6
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

Quote:
Originally Posted by Braineack View Post
are you going for the loudest most annoying miata out there?
Already running straight to the back of the car, and I'm nowhere near the loudest car at the track.

I'm also going with a straight dump off of the wastegate if you think that'll help :-)
supersuckers is offline   Reply With Quote
Old 04-05-2014, 11:00 AM   #7
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

Quote:
Originally Posted by Joe Perez View Post
My recollection here is a tad hazy, but it seems to me that the last person who tried this melted both the bumper cover and the taillights.
Will ensure things are aimed down. Thanks for the warning.
supersuckers is offline   Reply With Quote
Old 04-05-2014, 11:18 AM   #8
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

I've always said that a turbo is the best sounding muffler you can buy.
Tw34k is offline   Reply With Quote
Old 04-05-2014, 12:08 PM   #9
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

Quote:
Originally Posted by supersuckers View Post
Will ensure things are aimed down. Thanks for the warning.
I melted a bumper cover and the inner, plastic bumper support with an exhaust which stopped at the driver's side half shaft. Even with a turn down, it will melt the bumper if you drive it on the interstate or at interstate+ speeds for an extended period (i.e. 45mins+). Never had a problem around town, but then one drive on a normal summer day and the bumper was ruined.

If you try it, make sure the exhaust is really directed at the ground...
noname4me is offline   Reply With Quote
Old 04-05-2014, 01:08 PM   #10
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

No problem with heating the fuel tank?
NiklasFalk is offline   Reply With Quote
Old 04-05-2014, 01:20 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Assume this is a track car?

I'd take a page from the pros. Get it away from the body of the car somehow -- out the rear, to the side, whatever. You WILL shoot fireballs. Fire is bad. You have gasoline, plastic, wiring and rubber parts back there.
hornetball is offline   Reply With Quote
Old 04-05-2014, 01:30 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by hornetball View Post
Assume this is a track car?

I'd take a page from the pros. Get it away from the body of the car somehow --
That's usually the test I apply. If neither the OEMs nor competitive race teams are doing a certain thing, then it's probably not a thing that's good to do.

Merely angling the pipe downwards ain't gonna hep. Airflow down there be all whirley-like when the car be movin'.
Joe Perez is offline   Reply With Quote
Old 04-05-2014, 01:41 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Ryan has this on his car.
If you want to go deaf, and choke on fumes, by all means do this.

Running it all the way back will still be quieter than terminating at the diff and turning down. His did just that, it was a nightmare. I would take headache pills before tuning his car.
18psi is offline   Reply With Quote
Old 04-05-2014, 03:57 PM   #14
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

Looks like the nays vastly outweigh the yeas. Thanks for steering me in the proper direction.
supersuckers is offline   Reply With Quote
Old 04-05-2014, 06:43 PM   #15
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

You guys are sissies, the fumes are not that bad unless you like to sit and idle for hours at a time like some sort of maniac. Its not even that loud either. Harleys are way louder than a turbo car with an open downpipe.

This is a real mans downpipe:


Ignore the fact that its running on 3 cylinders. Even down a cylinder its still a 1.7L
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-06-2014, 11:50 PM   #16
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Dumping right before the diff is pretty standard for auto-x miatas, it needs to have a turn down though so you dont melt the gas tank.

Mine exits out the drivers side of the rear bumper.
Leafy is offline   Reply With Quote
Old 04-08-2014, 05:34 PM   #17
Junior Member

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
This is a real mans downpipe:

Ignore the fact that its running on 3 cylinders. Even down a cylinder its still a 1.7L

Accord? F23 Motor?


I ran open downpipe on my turbo single cam Honda for an entire summer and I don't remember it actually being that bad. An NA car with an obnoxious muffler is louder. I was younger back then though.
AlexL is offline   Reply With Quote
Old 04-08-2014, 06:12 PM   #18
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

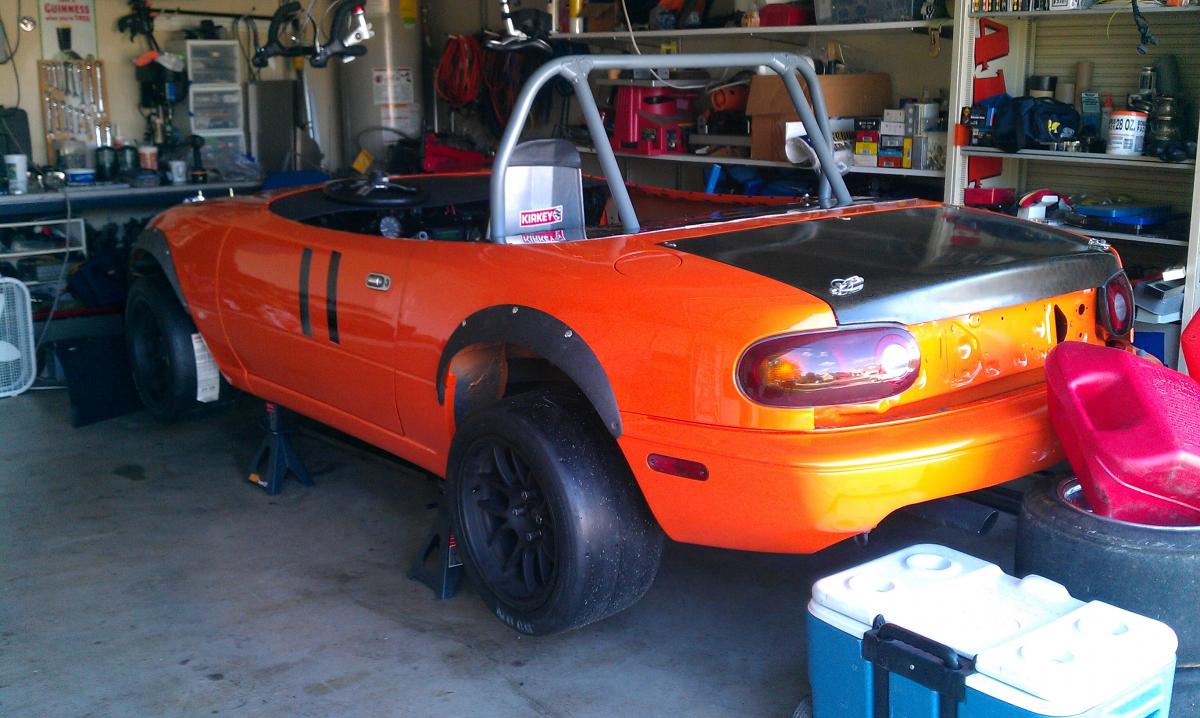

I got the muffler shop to put it out past the rear on the XP car. Straight 2.5" from the turbo. Well sort of, 14" resonator section but it is basically just a section of heavier 2.5" pipe :P
Attached Thumbnails
Where does your exhaust terminate?-imag0283.jpg
mcfandango is offline   Reply With Quote
Old 04-08-2014, 06:44 PM   #19
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by AlexL View Post
Accord? F23 Motor?


I ran open downpipe on my turbo single cam Honda for an entire summer and I don't remember it actually being that bad. An NA car with an obnoxious muffler is louder. I was younger back then though.
F22a swapped into a 97 civic hx.
It will get 3" straight pipe all the way out to the back bumper eventually. But for now it will run like this and it will be fastest like this.
Open downpipe is a gift from the gods. Everybody raves about how awesome 3" is compared to 2.5", but 3" open downpipe is like a fast spooling, horsepower making, mind ****.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-09-2014, 07:38 PM   #20
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

So if I run the exhaust all the way to the back of the car, what are the pros/cons of running it to driver's side versus the passenger's side? The only con I can think of is not routing through the cutout, but I hardly care about that.
supersuckers is offline   Reply With Quote
