Default Stupid intercooler question

This must be a stupid question, but in all my reading of this forum I've never seen it come up:

How do you actually mount a generic intercooler to the front of the car? I assume it gets somehow fastened in there, but the cars probably don't have much for mounting points, and the intercoolers don't have miata-shaped brackets. What's a boy with no fabrication tools to do when he gets an intercooler?

When I did my last build I used a starion IC and we had brackets welded onto it, but I would prefer not to have to modify the IC this time.
skidude is offline   Reply With Quote
Old 02-14-2011, 11:30 PM   #2
Want fries with that?
iTrader: (3)
Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1

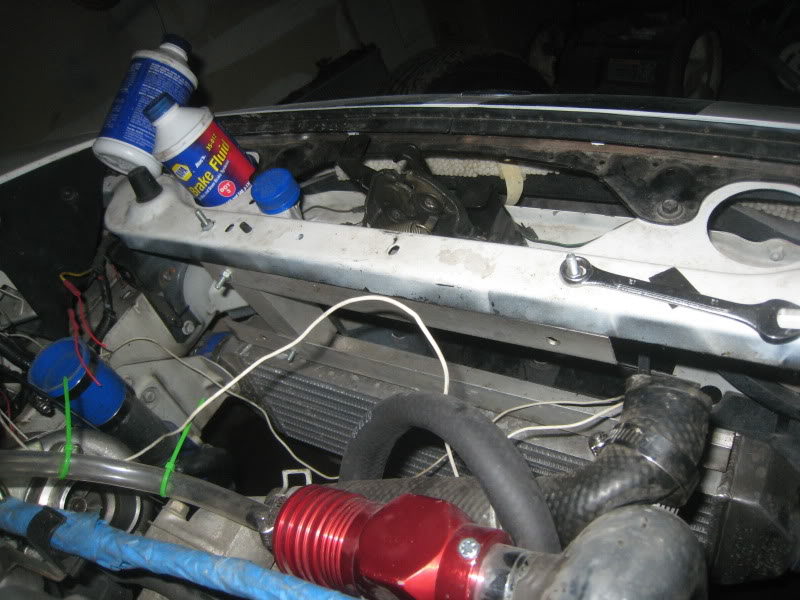

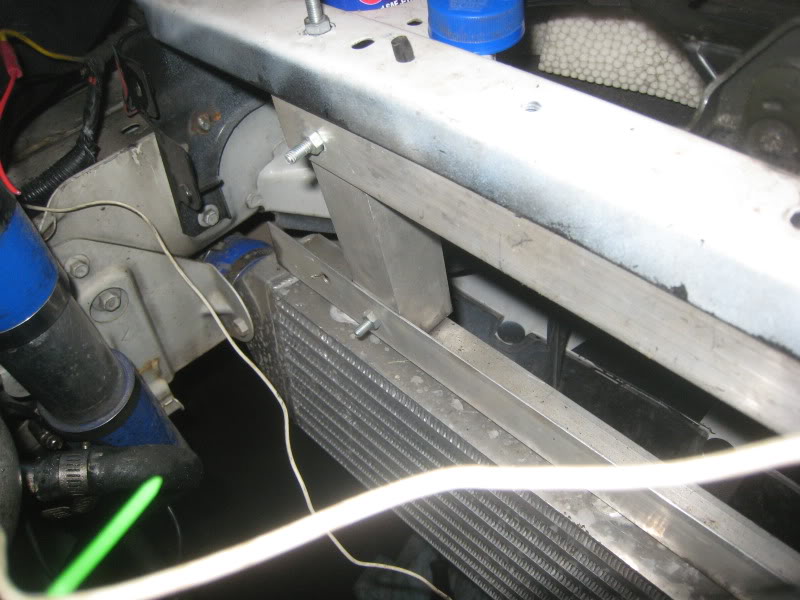

I used the holes in the front support. I'll go take a pic.

Name:  IMG_1596.jpg
Views: 1
Size:  83.6 KB
Name:  IMG_1597.jpg
Views: 1
Size:  75.9 KB
rider384 is offline   Reply With Quote
Old 02-16-2011, 12:02 AM   #3
Junior Member
Join Date: Jan 2009
Location: Freehold nj
Posts: 50
Total Cats: 2

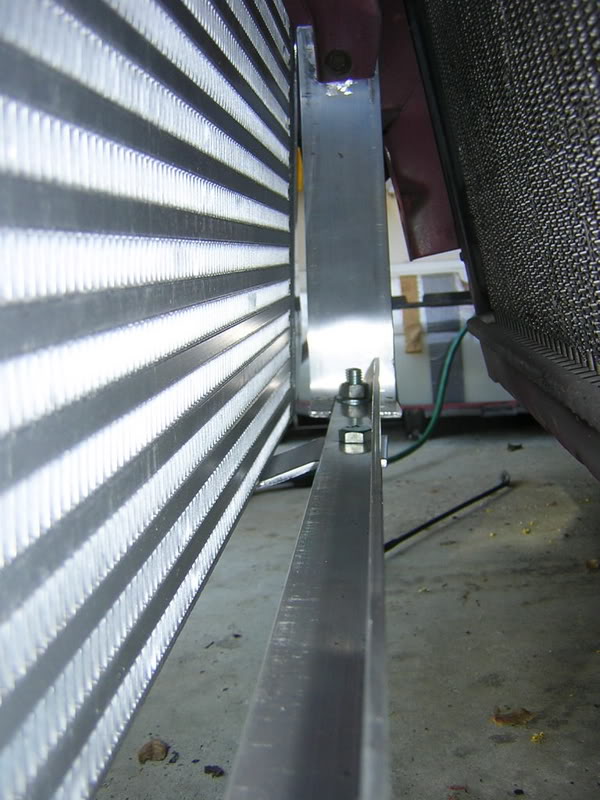

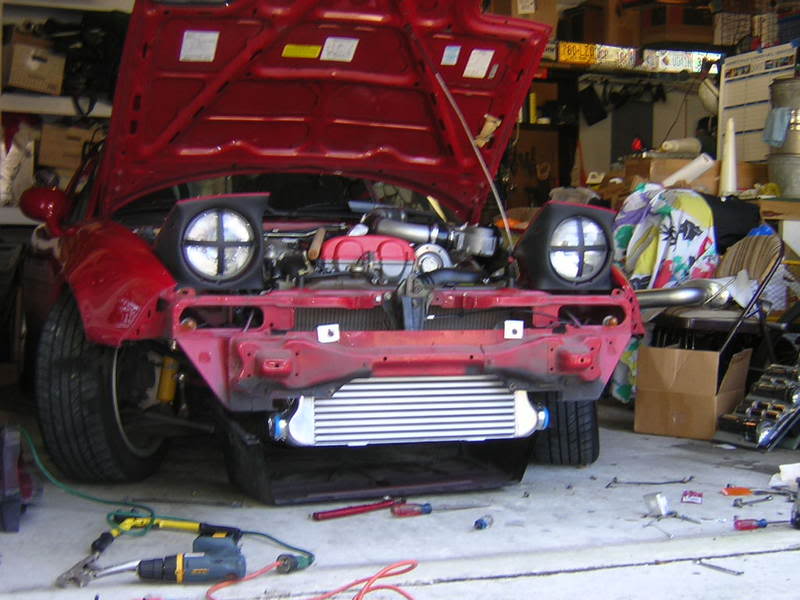

I'm using a generic mishimoto intercooler and I used a bunch of aluminum bar-stock. I made two "L" shaped brackets to attach the threaded mounting points on the bottom of the intercooler to the A/C condenser mounting points IIRC.
danotakulus is offline   Reply With Quote
Old 02-16-2011, 12:45 AM   #4
Elite Member
iTrader: (2)
triple88a's Avatar
Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598

I mounted mine to the holes already in there.

triple88a is offline   Reply With Quote
Old 02-16-2011, 11:03 AM   #5
Junior Member
iTrader: (1)
Join Date: Jul 2010
Location: Tucson, AZ
Posts: 82
Total Cats: 0

I have seen a lot of folks use plumbers tape, (I think thats what it is called) Just metal strips with holes every inch or so and just bend it into shape
lazyguy is offline   Reply With Quote
Old 02-16-2011, 11:37 AM   #6
Elite Member
iTrader: (24)
kotomile's Avatar
Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40

kotomile is offline   Reply With Quote
