Old 03-12-2007, 12:25 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

it will be cool when you can finally out accelerate me :gay:
Braineack is offline   Reply With Quote
Old 03-12-2007, 01:36 PM   #22
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Yeah the reason I couldnt before was because I liked hearing that clanking sound your flywheel made as you passed by!
Newbsauce is offline   Reply With Quote
Old 03-12-2007, 02:55 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

that's my battle cry.
Braineack is offline   Reply With Quote
Old 03-13-2007, 10:21 AM   #24
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

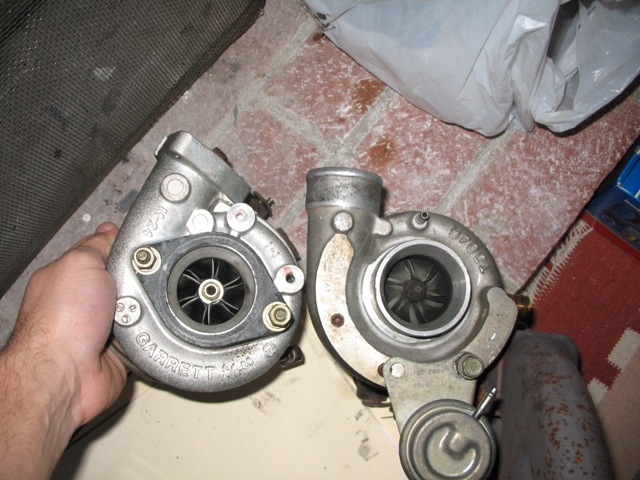

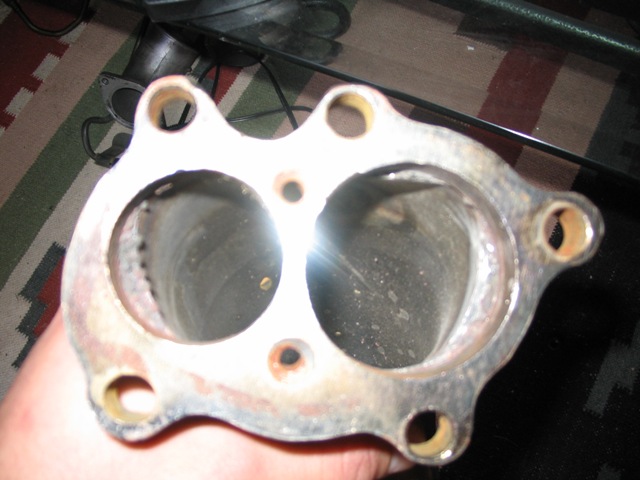

Well yesterday I attempted to clock the turbo, which was a complete waste of time. After hitting the turbo with a hammer, quite hard, I gave up and will take it to a shop. Either way I got some pictures to add to the thread. One pic is a t-25 (left) next to the greddy 15g (right). The other is showing the initial porting I just finished on my downpipe, you can compare it to braineack's pic above of before the porting. Still need to clean out a bit more.
Attached Thumbnails
Summer Plans: Pics to come-img_0038.jpg   Summer Plans: Pics to come-img_0039.jpg

Last edited by Newbsauce; 03-15-2007 at 09:43 AM.
Newbsauce is offline   Reply With Quote
Old 03-14-2007, 09:59 AM   #25
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Yesterday, I took the turbo to midas and had it superheated and hit w/ a rubber mallet. FINALLY I have clocked it. Its mounted up now and i'm facing new problems.
1> there is nowhere to mount the wastegate
2> The elbows that come off the compressor side pretty much run into each other, which means they will probably need to be cut.

Left the cam at home, i'll post the pics tonight
Newbsauce is offline   Reply With Quote
Old 03-15-2007, 09:42 AM   #26
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

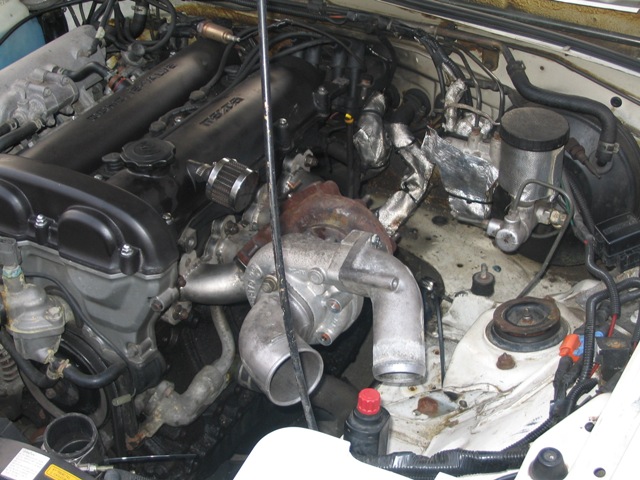

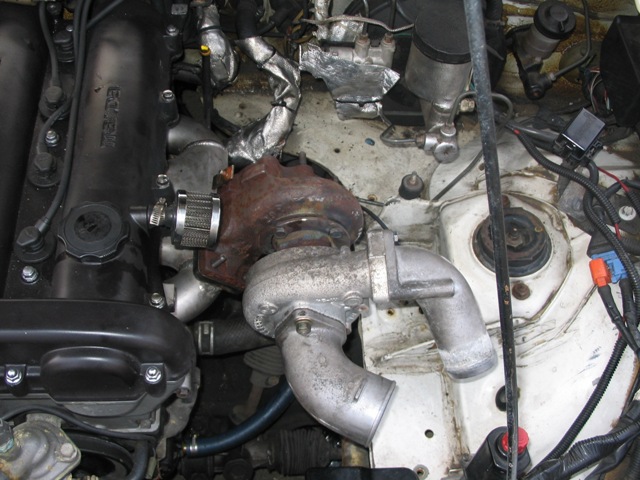

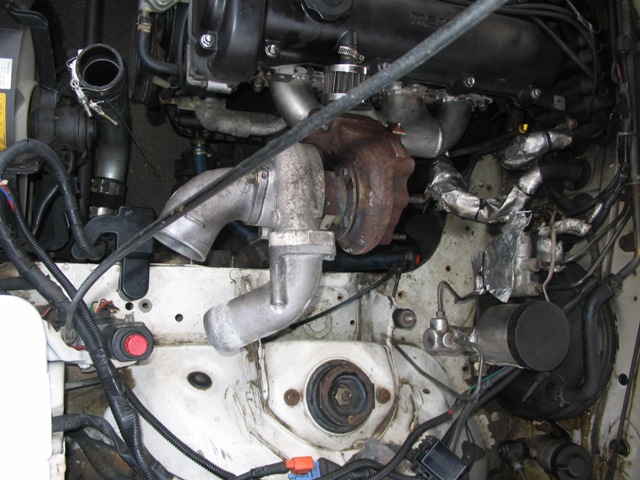

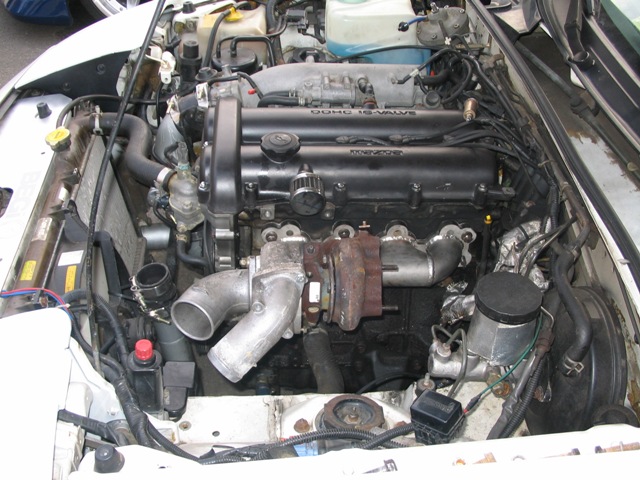

Yesterday I got the oil line in the mail and added the water lines onto the turbo just to see how I was going to run them. Everything is looking pretty good at this point minus the I/C piping route and the wastegate.. Take a look at the pics.

I see two options for the inlet:
1> 45 degree silicon bend and position the filter behind my headlight naca duct (see next post w/ drawing)
2> cut the flange and put the filter down behind the radiator

As for the I/C piping, I think a 90 degree bend silicon should put me in good shape.
Attached Thumbnails
Summer Plans: Pics to come-img_0040.jpg   Summer Plans: Pics to come-img_0041.jpg   Summer Plans: Pics to come-img_0043.jpg   Summer Plans: Pics to come-img_0042.jpg

Last edited by Newbsauce; 03-15-2007 at 09:52 AM.
Newbsauce is offline   Reply With Quote
Old 03-15-2007, 09:52 AM   #27
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

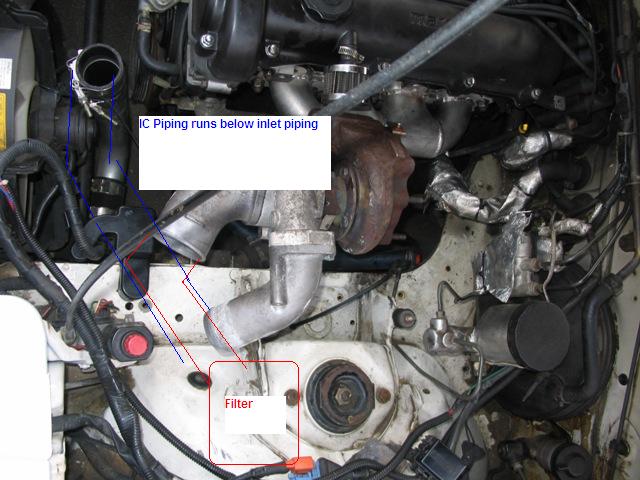

Here is what I was thinking
Attached Thumbnails
Summer Plans: Pics to come-img_0043-painted.jpg
Newbsauce is offline   Reply With Quote
Old 03-15-2007, 10:13 AM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

i think we can pull it off. i need to see it in person after work today, then i can fiddle around and bring all my extra piping and silicone.
Braineack is offline   Reply With Quote
Old 03-15-2007, 12:50 PM   #29
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Hey Brad,

Glad you're making some headway with it. Sorry about the t-25/28 confusion. I was going off of what I was told...

-Fadi
MiaTurbo is offline   Reply With Quote
