Default Swapped turbo, fittment issues

Like the title says, I swapped my turbo out for another. The old turbo was a t3 60/.63 stage 3 turbine (don't ask why) The new one is t3 60/.48 stage 1. Now my problem is that it seems like the studs are shifted just slightly counter-clockwise as seen in the picture. This causes the wastegate to not line up correctly, and also the downpipe hits the transmission tunnel, making it impossible to slide the flange all the way on. i know that I can fix this by hacking, rotating, and rewelding the downpipe and that is what I am going to do, but has anybody had this problem before?

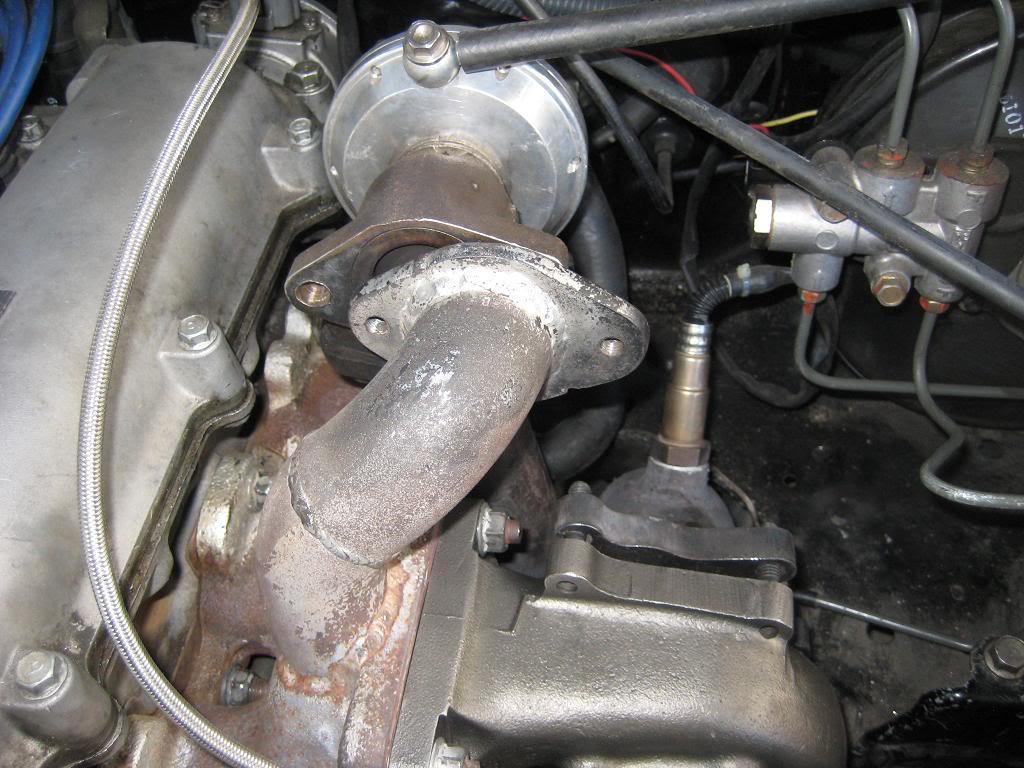

Name:  IMG_1416.jpg
Views: 1
Size:  131.2 KB
akaryrye is offline   Reply With Quote
Old 07-21-2009, 09:10 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I'm swapping mine out for an ebay T3. Going to try a 50 trim over my Super 60....I sure hope I dont have the same issue!!!


hold the other turbine up to it and snap a pic, I'm curious myself.
Braineack is offline   Reply With Quote
Old 07-21-2009, 09:22 PM   #3
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

alright, im in the middle of modifying the downpipe right now ... probably take me another hour or so. Once I am done Ill take side by side shots of the turbos
akaryrye is offline   Reply With Quote
Old 07-22-2009, 12:03 AM   #4
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

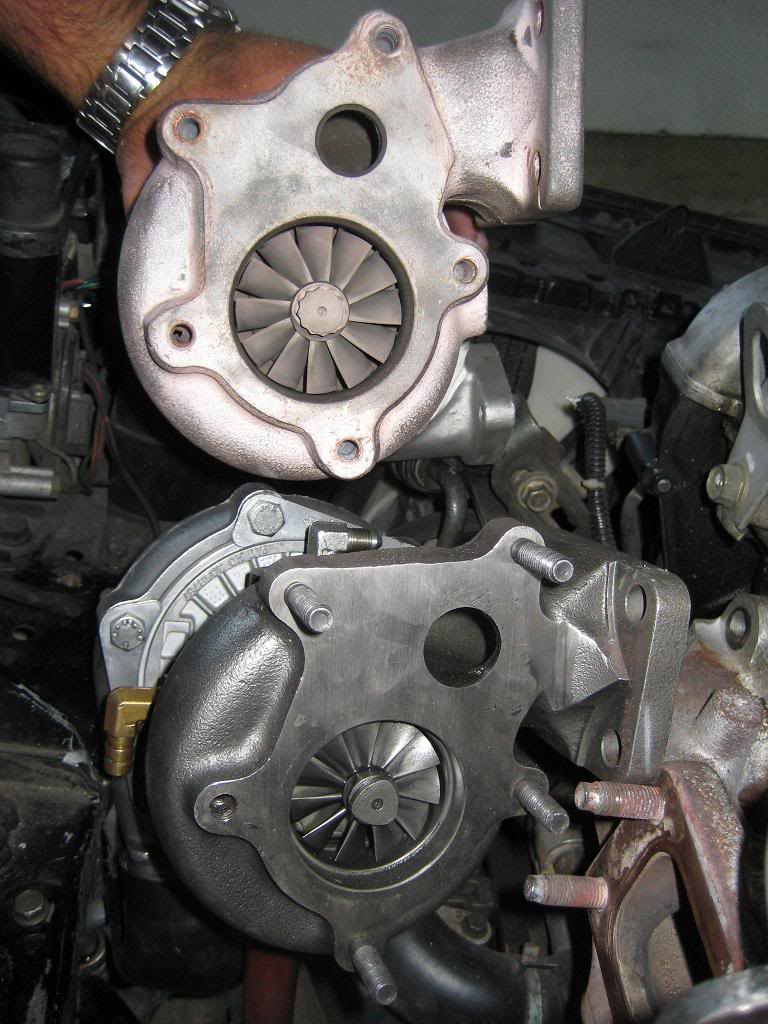

visually they seem the same. Though the picture does not show it, it seems the same from above as well, where the exhaust bolts on seems the same location

Name:  IMG_1423.jpg
Views: 1
Size:  127.7 KB
akaryrye is offline   Reply With Quote
Old 07-22-2009, 02:12 AM   #5
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Both Garretts I assume?
zoomin is offline   Reply With Quote
Old 07-22-2009, 02:25 AM   #6
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

The distance between the top stud and face of the flange look different If my eyes don't lie, I'd say thats why the new one is a shorter distance therefor making the dp closer to the engine.....IMHO
p51hellfire is offline   Reply With Quote
Old 07-22-2009, 08:42 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Is the first one a Turbonetics turbo? I also notice it has 12 blades vs 11. I guess maybe it's a function of the .63 A/R housing, but I didn't think it change the position like that.
Braineack is offline   Reply With Quote
Old 07-22-2009, 10:24 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default illustrated difference?

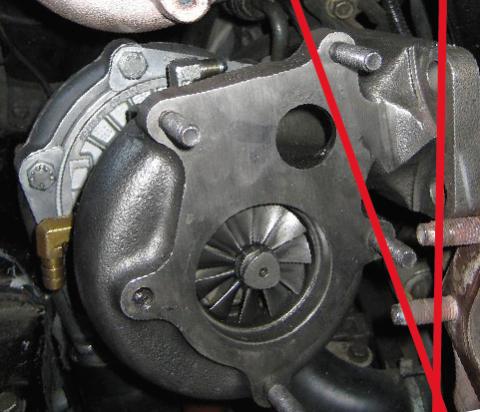

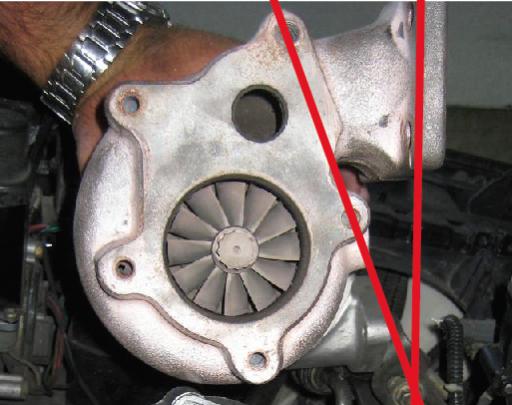

I think I see what you're talking about. That's the same angle laid over both with the flange at 90*. I wouldn't be surprised if one of the turbine housings is an OE application. I've got a stage 3 that was originally a Mercedes Stage 1 then over bored to fit the bigger wheel.
Attached Thumbnails
Swapped turbo, fittment issues-picture-2.jpg   Swapped turbo, fittment issues-picture-6.jpg
m2cupcar is offline   Reply With Quote
Old 07-22-2009, 02:25 PM   #9
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I see it now, and that would explain the issue. It took me a few hours to cut and reweld the downpipe, and it gave me a chance to throw in a flex on the wastegate which I sort of wanted to do anyway. Sort of a pain though and I should be getting some better response now with this turbo.

by the way, if someone is looking to make some big power, a 60-1 compressor thrown on the old one would make for a pretty sweet turbo. Unfortunately it will need a rebuild as there is considerable side to side shaft play.
akaryrye is offline   Reply With Quote
Old 07-22-2009, 03:20 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

your new one matches my .48 housing.
Braineack is offline   Reply With Quote
Old 07-22-2009, 06:23 PM   #11
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

good freaking god


....


the simplist things seem to be turning into big hassles for me. the bolt holes on my wastegate stripped and now it seems that my WB02 is wanting to crossthread ... this sucks.
akaryrye is offline   Reply With Quote
Old 07-22-2009, 07:30 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

you're the only person in history to cross-thread a WB sensor. Hellen Keller could put an o2 sensor in without screwing it up.

As for the stripped hardware...v-bands are your god.
hustler is offline   Reply With Quote
Old 07-22-2009, 07:45 PM   #13
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Seriously, that is what pisses me off so much. I have the tap I need at my parents house, but i just dont want to go over there right now. I had issues with the bung from day 1, having trouble getting it started. I guess this time was the last straw.
akaryrye is offline   Reply With Quote
Old 07-23-2009, 01:48 AM   #14
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Those are the days i just put my tools down and take a break and tackle it the next day
mike_671 is offline   Reply With Quote
Old 07-23-2009, 02:33 AM   #15
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

LOL, how exactly do you cross thread an O2 sensor? Hope your luck turns for the better. My issues are always the little ones as well. Or I think most people are that way too.
NA6C-Guy is offline   Reply With Quote
Old 07-24-2009, 01:14 AM   #16
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Thats pretty much what I did. I have free time right now, so It wasn't like I needed it to get around.

Quote:
Originally Posted by mike_671 View Post
Those are the days i just put my tools down and take a break and tackle it the next day
akaryrye is offline   Reply With Quote
